BC810K01 3BSE031154R1

/ 4.9
1001 reviews | Need a Specific Revision?

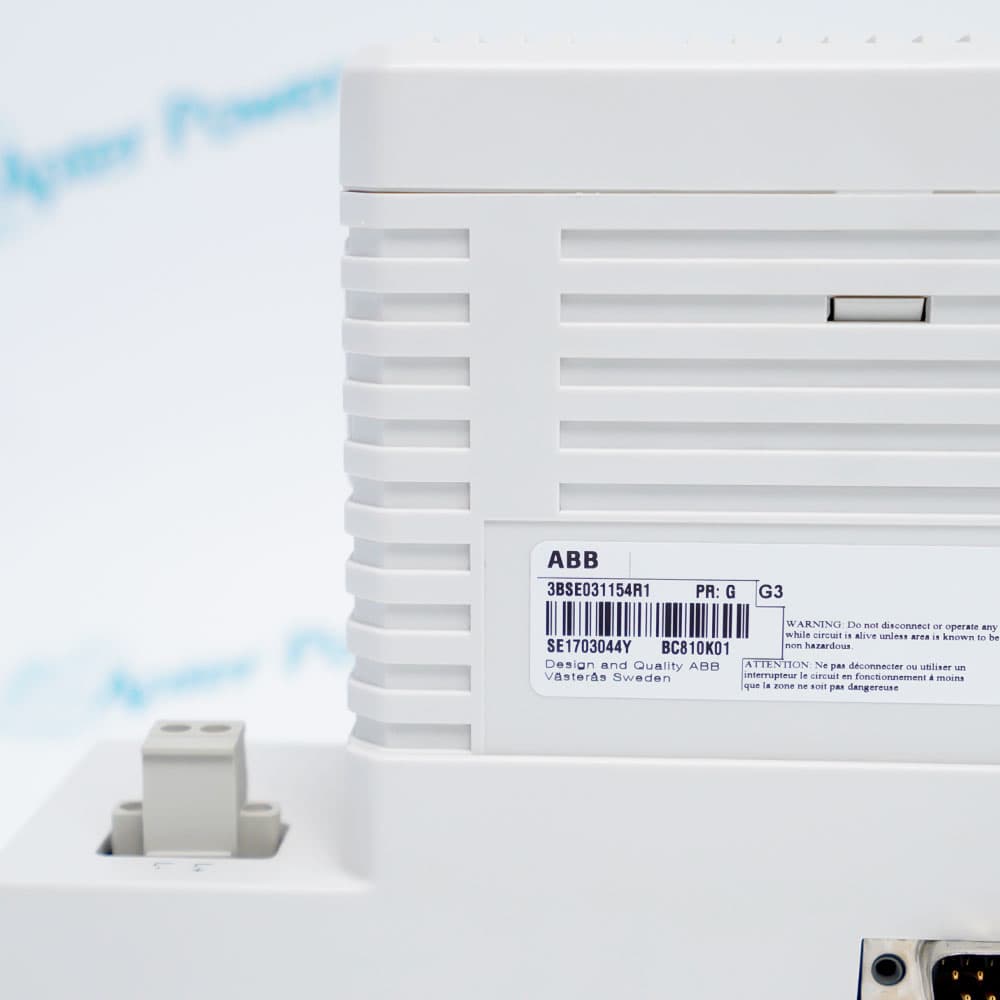

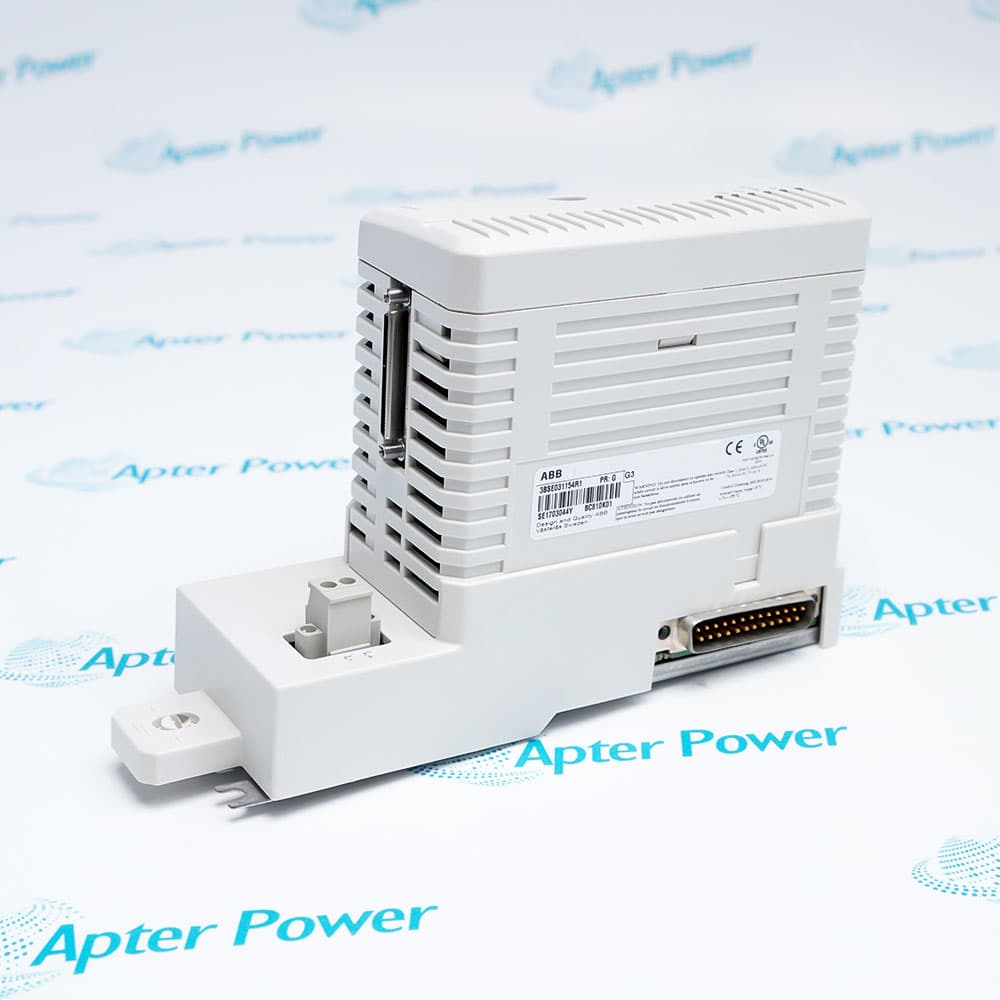

ABB BC810K01 3BSE031154R1 is an AC 800M CEX-Bus interconnection kit built around one BC810 unit and its TP857 baseplate.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for BC810K01 3BSE031154R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BC810K01 3BSE031154R1

  • Manufacturer:
    ABB
  • Part Number:
    BC810K01 3BSE031154R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    CEX-Bus Interconnection Unit Kit
  • Stock:
    1
  • Kit Designation:
    BC810K01
  • Interconnection Unit:
    BC810
  • Baseplate:
    TP857, 60 mm width
  • CEX-Bus Terminator:
    TB850
  • Nominal Supply:
    24 VDC
  • Supply Range:
    19.2 to 30 VDC
  • Supply Connector:
    Two-pin screw connector, L+ and L-
  • Current Consumption:
    50 mA typical; 70 mA maximum
  • Power Dissipation:
    1.2 W typical
  • Status Indicators:
    Error, Run, External Power OK and two CEX-Bus traffic LEDs
  • Protection Class:
    IP20 according to EN 60529 / IEC 529
  • Hot Swap:
    Supported
  • Width:
    59 mm
  • Height:
    185 mm
  • Depth:
    127.5 mm
  • Package Weight:
    0.70 kg
  • Electrical Safety:
    UL 508 and UL 60079-15
  • Hazardous Location:
    Class I, Zone 2
  • Weight:
    0.7 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Power & Status Installation Diagnostics

Features:

  • Packages one BC810 interconnection unit with the TP857 baseplate and CEX-Bus termination hardware.
  • Uses an external 24 VDC supply within the documented operating range.
  • Reports operating, external-power, error and CEX-Bus traffic states on dedicated indicators.
The current ordering configuration is ABB BC810K01 with article number 3BSE031154R1 for an AC 800M CEX-Bus segment.

The interconnection unit separates part of the CEX architecture so supported communication-interface modules can operate through the intended bus topology.

Before installation, record the module order, termination, cable routing, external supply polarity, adjacent hardware and project hardware declaration.

Availability is subject to Apter Power inventory and sourcing confirmation.

ABB BC810K01 3BSE031154R1 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Segments the CEX-Bus in AC 800M controller installations that use supported communication-interface modules.
  • Extends the communication-expansion architecture while retaining the documented module order and termination.
  • Supports service replacement in installed System 800xA control cabinets using the same BC810K01 kit configuration.
  • The external supply enters through the L+ and L- screw terminals on the TP857 baseplate.
  • External Power OK and Run indicators separate supply presence from normal logic operation.
  • Error and dual traffic indicators help isolate unit faults from inactive communication paths.
  • The TP857 baseplate mounts on DIN rail and establishes the mechanical ground through its metal housing parts.
  • CEX-Bus cables and the terminator are installed in the documented order before the segment is commissioned.
  • Supply polarity, fuse protection, connector seating and cable labels are checked before the controller hardware tree is restored.
  • A missing external-power indication directs testing to the 24 VDC feed, connector and baseplate protection components.
  • Traffic indicators are compared across both CEX paths to identify a disconnected or inactive segment.
  • The error state is evaluated together with controller diagnostics and the configured order of downstream communication modules.
Description
ABB BC810K01 3BSE031154R1 is a single CEX-Bus interconnection kit for AC 800M and System 800xA controller hardware. The package combines one BC810 electronics unit with its TP857 baseplate, creating a dedicated interconnection point between the controller-side communication extension bus and the attached interface segment.

The unit divides the CEX-Bus into separate electrical sections so communication-interface equipment can be organized around a more resilient topology. External 24 VDC power feeds the baseplate, while onboard conversion, logic and bus drivers maintain the connected segment and pass communication toward the next supported CEX assembly.

DIN-rail grounding, protected power connections and clearly separated status indications make the kit practical for cabinet-based process-control installations. Operators can identify external-power availability, running state, detected faults and traffic on the two CEX paths from the front, improving service visibility without disturbing normal controller operation.
Alternative Names
BC810K01 3BSE031154R1 BC810K01 3BSE031154R1 ABB BC810K01 ABB 3BSE031154R1 ABB BC810K01 3BSE031154R1 AC 800M BC810K01 AC800M BC810K01 ABB AC 800M BC810K01 System 800xA BC810K01 ABB System 800xA BC810K01
Technical notes
BC810K01 3BSE031154R1 hot-swap capability does not remove process risk; replacing the unit stops traffic to its connected CEX segment.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is included in ABB BC810K01 3BSE031154R1?
The documented kit contains one BC810 interconnection unit with a TP857 baseplate and CEX-Bus termination hardware for a single segment.
Can ABB BC810K01 3BSE031154R1 be used as an Ethernet repeater?
No. It is designed for the AC 800M CEX-Bus and is not a general Ethernet or fieldbus repeater.
What must be recorded before replacing ABB BC810K01 3BSE031154R1?
Capture the CEX module order, cable labels, termination, supply polarity, active indicators and controller hardware configuration.
Does hot swap keep the ABB BC810K01 3BSE031154R1 segment online?
No. The unit supports hot swap, but communication to the connected CEX segment stops while that BC810 is replaced.
Which official source defines ABB BC810K01 3BSE031154R1 hardware data?
Use the ABB AC 800M Controller Hardware Product Guide 3BSE036352 for BC810 and TP857 technical data and installation requirements.
What should be sent for an ABB BC810K01 3BSE031154R1 quotation?
Provide article number 3BSE031154R1, required condition, quantity, destination and the existing CEX-Bus arrangement.
How should ABB BC810K01 3BSE031154R1 be accepted after installation?
Verify supply and status LEDs, detect every downstream CEX module, compare live diagnostics with the saved baseline, test communication recovery and observe the process during a controlled cycle.
