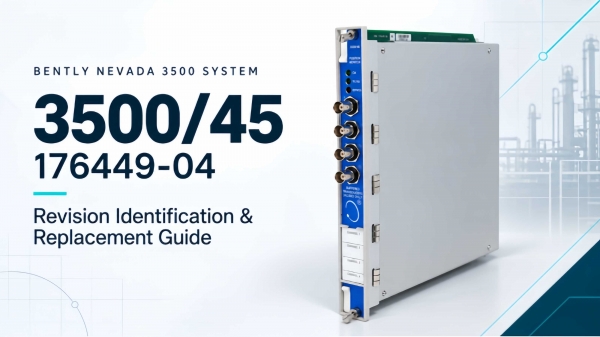

Bently Nevada · 3500 Machinery Protection System 3500/45 PWA 176449-04: How to Identify the Revision and Plan a Replacement A reliable replacement check starts with the complete 3500/45 identity—not a partial board number. This guide shows how to read the 176449-04 designation, match the rear I/O, and verify the rack and software before ordering or commissioning. Prepared: October 12, 2026 Proposed publication: On approval Technical review: Pending Reading time: 6 min   Representative product image only; it does not verify the revision or nameplate of a specific unit. The official Baker Hughes spare-parts list identifies 176449-04 as a 3500/45 Position Monitor . “PWA” is often used to describe a printed wiring assembly, but the manufacturer’s datasheet lists the spare as 176449-04; do not treat a PWA prefix alone as a complete rack configuration or proof of interchangeability. Before ordering, photograph the monitor label and board marking, then record the rear I/O module, termination arrangement, rack slot, and installed 3500 software/firmware versions. Quick identification: what each marking tells you Item to record What to verify Why it matters Monitor type 3500/45 Position Monitor Confirms the measurement-monitor family, not the complete I/O configuration. Spare / board number 176449-04, exactly as printed Baker Hughes lists this number as a 3500/45 Position Monitor spare. Hardware revision Capture the actual revision marking and serial/nameplate data The datasheet does not publish a blanket revision-to-revision interchange rule; confirm the exact unit with the installed system records or OEM support. Rear I/O and terminations Record the I/O part number, internal/external termination, terminal block, and cable Required I/O depends on transducer type; external termination blocks and cables are separately ordered. Rack and software Rack slot, RIM/TDI, configuration software and firmware versions System compatibility and configuration requirements can affect commissioning. Illustrative nameplate example: “3500/45 Position Monitor · Spare P/N 176449-04 · Revision [read from actual label] · Serial [read from actual label].” This is a field-recording example, not a photograph or transcription of a particular unit’s serial label. Illustrative replacement-check sequence based on the identification items in this guide; this is not an OEM wiring diagram. 176449-04 is not the whole replacement decision The 3500/45 is a four-channel position monitor. Baker Hughes states that the measurement and transducer input determine the required I/O module. Its datasheet lists these related I/O options: Related I/O part Documented configuration Check before replacement 135137-01 Position I/O with internal terminations for Proximitor, RPT, or DC LVDT inputs Confirm sensor family and internal terminal arrangement. 135145-01 Position I/O with external terminations for Proximitor, RPT, or DC LVDT inputs Confirm the matching external terminal block and cable. 139554-01 AC LVDT Position I/O with internal terminations Confirm AC LVDT application and installed termination. 139567-01 AC LVDT Position I/O with external terminations Confirm the corresponding external block and cable set. The ordering format is 3500/45-AA-BB: the first option identifies the I/O type and the second identifies agency approval. The complete order configuration and the installed rear I/O should be reconciled before treating a monitor as a direct replacement. Need a checked 3500/45 replacement quotation? Send the complete label, rear I/O part number, termination details, and rack/software information. Contact Us · Email Apter Revision and commissioning checks Do not infer that two boards are interchangeable because both are marked 3500/45 or share the 176449 family. Preserve the existing configuration and confirm each dependency before removing hardware. The cited Baker Hughes datasheet (141537 Rev. T) gives the following minimum versions when adding a 3500/45 to an existing system. Treat this as a document-specific baseline; verify the current OEM documentation and the actual installed rack before commissioning. System element Minimum stated in datasheet 141537 Rev. T Field action 3500/20 RIM Firmware revision G Record module type and firmware from rack diagnostics. 3500 Configuration Software Version 2.41 Check the engineering workstation version and saved rack configuration. 3500 Data Acquisition Version 2.20 Verify the installed data acquisition software baseline. 3500 Operator Display Version 1.20 Confirm the operator display version used at the site. 3500/93 Display Interface 135799-01, firmware revision G Confirm only when this display interface is part of the installed system. Valve Position using RPT 3500 Configuration Software 3.00 or later Apply this requirement to the documented RPT valve-position application. Take clear photos of the front label, board/PWA marking, rear I/O label, terminal blocks, connectors, and rack slot. Record the 3500 rack identity, RIM or TDI type, channel functions, transducer models, termination style, and current setpoints. Back up the rack configuration and record the software/firmware versions against the table above and the current applicable OEM documentation. Match the rear I/O and external termination path to the sensor type. Do not move field wiring based on the front monitor number alone. After an approved replacement, verify channel status, measured values, alarms, and configuration through the site’s maintenance procedure before returning the protection function to service. The monitor’s channels are programmed in pairs (1–2 and 3–4). The datasheet also limits Case Expansion to channels 3 and 4. A replacement review should therefore include the channel-pair assignment and the configured measurement, not only the physical fit. Functional arrangement summarized from Baker Hughes datasheet 141537 Rev. T; this is an explanatory diagram, not an electrical wiring drawing. Related listed part and documented customer example Related listed part: Bently Nevada 3500/45 176449-04 Position Monitor . Product imagery is representative; confirm the offered unit’s condition, revision, and quantity in the quotation. Related success case: In Apter Power’s published Bently Nevada audit case, a customer reviewed accelerometers, extension cables, and 3500/22M modules; zero discrepancies supported a follow-up order covering 11 machines. This is a related 3500-system verification example, not a 3500/45 replacement case. Read the documented Bently Nevada audit case . FAQ Does 176449-04 identify a 3500/45 Position Monitor? Yes. Baker Hughes lists spare part 176449-04 as a 3500/45 Position Monitor in datasheet 141537. Confirm the complete label on the unit before ordering. Is “PWA176449-04” enough to select a direct replacement? No. Record the monitor number and actual hardware revision, then verify the rear I/O, termination path, sensor type, rack configuration, and software/firmware requirements. Can any 3500/45 rear I/O module be reused? No. The required I/O depends on the measurement and transducer input. Match the existing internal or external termination configuration and confirm separately ordered blocks and cables where applicable. Does the datasheet confirm that different hardware revisions are interchangeable? It does not provide a general revision interchange table. Check the installed system records and obtain OEM confirmation for the exact revision and application when compatibility is uncertain. What information should be included in a 3500/45 replacement request? Include clear photos of the full nameplate and board marking, the rear I/O number, termination details, transducer type, rack slot, software/firmware versions, quantity, and delivery destination. Where can I request availability and technical-document support? Use the product page or email info@apterpower.com . Apter Power can review the supplied identification details and clarify the quotation scope. Verify the complete replacement path before purchase Send your 3500/45 label and rear I/O details for a quotation and configuration review. Contact Us · info@apterpower.com Official sources and related records Baker Hughes, 3500/45 Position Monitor Datasheet 141537 — monitor identity, I/O options, channel configuration, rack/software requirements, and listed spares. Baker Hughes, 3500 Machinery Protection Systems — 3500/45 product-family overview. Apter Power product listing for 3500/45 176449-04 — related listed item; confirm current condition, revision, and quantity. Apter Power Bently Nevada audit case — related 3500-system verification case; not a 3500/45 replacement claim. Apter Power team profiles — public author and proposed reviewer role references. Pre-publication checks: The public author/profile details are prepared from the existing Apter author link and team page. Confirm May as author, confirm the Apter Power Team as the reviewer after review, and enter the actual review date before publication. Proposed publication date is set only when the post is approved and saved.

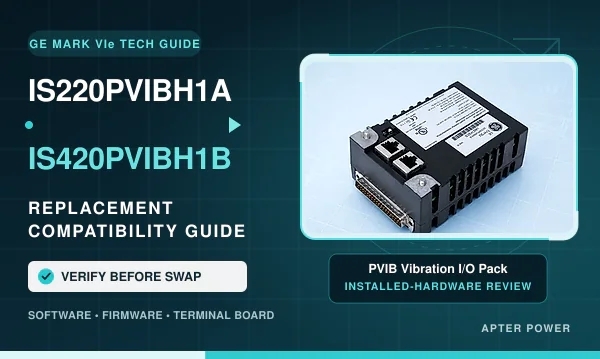

Technical Guide GE Mark VIe Vibration Monitoring INSTALLED MODULE IS220PVIBH1A Legacy BPPB-based Mark VIe vibration I/O pack H1A generation 1,150 Hz bandwidth REPLACEMENT COMPATIBILITY REVIEW IS220PVIBH1A → IS420PVIBH1B Replacement is practical only after the installed system and configuration are verified. ControlST V06.01+ Firmware 5.01+ for mixed/online Approved TVBA/WNPS Simplex / TMR Replacement is possible—subject to compatibility checks Yes—but the correct answer depends on ControlST version, module firmware, terminal-board configuration, redundancy architecture, and the vibration application settings already in service. IS420PVIBH1B is the current replacement path, but it should not be treated as a blind plug-and-play swap. A planned replacement is generally practical when the system meets the software, firmware, terminal-board, and redundancy conditions documented for the newer PVIB hardware. Request a Compatibility Review Email info@apterpower.com Before ordering, confirm: ControlST V06.01 or later Firmware 5.01 or later for mixed/online replacement cases Simplex or TMR topology Approved TVBA/WNPS terminal-board arrangement Filtering and GAP configuration requirements What changes between the two PVIB generations? Selection point IS220PVIBH1A IS420PVIBH1B Engineering implication OEM lifecycle Obsolete catalog GE-listed replacement (2021 notice) Use the newer catalog number for a planned lifecycle migration. Core electronics BPPB with BAFA/KAPA architecture BPPC with BBAA architecture The internal hardware generation changes; configuration verification is required. ControlST support Supported in legacy installations Minimum V06.01 Upgrade ControlST before commissioning H1B in an older system. Firmware condition Legacy revisions vary by site 5.01 or later for online/mixed cases Record all module firmware levels before changing one leg of a TMR set. Mixed TMR set Permitted only when all three packs meet the required firmware level and Enhanced mode is not used. A mixed set is conditional—not a default configuration. Enhanced mode Not the target platform All three packs should be H1B Do not mix generations when Enhanced mode is required. Signal bandwidth Confirm the installed application Up to 4,500 Hz application bandwidth Review low-pass filters and GAP settings to prevent unintended behavior. Terminal boards Commonly TVBAH2A / WNPSH1A Approved TVBA/WNPS combinations vary by panel certification Verify the exact terminal-board catalog number from the cabinet or drawing set. Use the hardware label—not appearance alone The enclosure family can look similar across revisions. The catalog number, functional revision, firmware, power rating, and terminal-board information should be recorded before a replacement is selected. Real module example Confirm Ethernet ports, power connector, DC-37 interface, enclosure condition, and the exact catalog number. Nameplate example Photograph the complete label at readable resolution. Include the functional revision and any site asset tag. A five-step replacement check 1 Capture the installed hardware Record PVIB and terminal-board catalog numbers, revisions, and cabinet topology. 2 Check ControlST Confirm that the project and workstation support the H1B minimum software level. 3 Audit firmware Compare all packs in the simplex or TMR group, especially for an online change. 4 Review configuration Validate filters, sensor channels, Keyphasor inputs, GAP blocks, and redundancy mode. 5 Test before return to service Complete loop checks, diagnostics, alarms, and vibration-channel validation. What is not guaranteed The word “replacement” does not mean that every IS220PVIBH1A can be exchanged for IS420PVIBH1B without a software update, configuration review, or terminal-board check. Site drawings and the installed ControlST project remain the final engineering reference. Parts that may support the replacement plan Model Reference stock Typical role Next action IS220PVIBH1A 5 units Legacy vibration I/O pack for maintenance continuity Request availability IS220PVIBH1AL 3 units Suffix variant; exact interchangeability must be verified Verify revision IS200WNPSH1A / IS200WNPSH1AAA 1 unit Negative power-supply daughterboard used with TVBAH#A terminal boards Check terminal board IS420PVIBH1B Sourcing on request Current replacement-path vibration monitor module Request sourcing support Inventory changes continuously. Apter Power will reconfirm condition, revision, quantity, and lead time during quotation. Documents used for the compatibility review GEH-6721, Volume II Mark VIe System Guide PVIB/YVIB hardware architecture, firmware, TMR mixing, online replacement, channel behavior, and configuration guidance. GEZ-S2046 Extended Product Lifecycle Notice Records IS220PVIBH1A as the obsolete catalog number and IS420PVIBH1B as the available catalog number, with ControlST V06.01 listed as the minimum. GEH-6725R Hazardous Location Equipment Lists approved PVIB/YVIB modules, terminal-board combinations, ratings, and classified-location requirements. View the Apter-hosted reference PDF Ready to verify your replacement path? Send the installed PVIB nameplate, ControlST version, firmware level, terminal-board catalog number, and simplex/TMR architecture. Apter Power can support quotation, technical-document review, sourcing, and system matching. Request a Quote & Technical Review Email info@apterpower.com © 2026 Apter Power. Technical content is provided for selection support; final suitability depends on the installed system configuration. About Apter Power · Contact .ap-news-v2{max-width:none;width:100%;margin:0;background:#fff;color:#17384c;font-family:Arial,Helvetica,sans-serif;font-size:15px;line-height:1.65;box-sizing:border-box;text-align:left} .ap-news-v2 *{box-sizing:border-box} .ap-news-v2 h1,.ap-news-v2 h2,.ap-news-v2 h3,.ap-news-v2 p,.ap-news-v2 li,.ap-news-v2 th,.ap-news-v2 td,.ap-news-v2 figcaption,.ap-news-v2 footer{font-family:Arial,Helvetica,sans-serif;text-align:left} .ap-news-v2 a{text-decoration:none} .ap-news-v2 .ap-topbar{display:flex;align-items:center;justify-content:space-between;padding:18px 26px;border-bottom:1px solid #dcecf4;background:#fff} .ap-news-v2 .ap-logo{width:154px;height:auto;display:block} .ap-news-v2 .ap-kicker{font-size:13px;line-height:1.4;color:#397a9e;text-align:left;font-weight:700} .ap-news-v2 .ap-hero{position:relative;overflow:hidden;background:linear-gradient(135deg,#eaf8fd 0%,#f8fcfe 100%)} .ap-news-v2 .ap-compat-hero{display:grid;grid-template-columns:.82fr 1.38fr;gap:26px;padding:30px 46px;border:1px solid #c8e6f2;background:linear-gradient(135deg,#eaf8fd 0%,#f8fcfe 68%,#edf8fc 100%)} .ap-news-v2 .ap-hero-module{display:flex;flex-direction:column;justify-content:center;min-height:190px;padding:24px;border:1px solid #8fd0e5;border-radius:12px;background:rgba(255,255,255,.9);box-shadow:0 8px 22px rgba(36,111,147,.09)} .ap-news-v2 .ap-hero-label{display:block;color:#287b9f;font-size:13px;font-weight:700;letter-spacing:.04em;line-height:1.4} .ap-news-v2 .ap-hero-module strong{display:block;margin:9px 0 7px;color:#0d4766;font-size:28px;line-height:1.2} .ap-news-v2 .ap-hero-module p{margin:0;color:#4b7084} .ap-news-v2 .ap-hero-facts,.ap-news-v2 .ap-check-chips{display:flex;flex-wrap:wrap;gap:9px;margin-top:17px} .ap-news-v2 .ap-hero-facts span,.ap-news-v2 .ap-check-chips span{display:inline-block;padding:5px 11px;border:1px solid #86cde3;border-radius:999px;background:#f6fcfe;color:#246d8d;font-size:13px;font-weight:700;line-height:1.35} .ap-news-v2 .ap-route-panel{display:flex;flex-direction:column;justify-content:center;min-width:0} .ap-news-v2 .ap-model-route{display:flex;align-items:center;flex-wrap:wrap;gap:14px;margin:10px 0 12px;color:#0d4766;font-size:28px;font-weight:800;line-height:1.25} .ap-news-v2 .ap-route-arrow{color:#0b9fc6;font-size:34px;line-height:1} .ap-news-v2 .ap-route-panel p{margin:0;color:#456b7e;font-size:15px} .ap-news-v2 .ap-hero-copy{padding:34px 46px 40px;background:linear-gradient(180deg,#fff 0%,#f4fbfe 100%);border-bottom:1px solid #dcecf4} .ap-news-v2 .ap-hero-title{margin:0;color:#0d4766;font-size:28px;line-height:1.3;letter-spacing:-.01em} .ap-news-v2 .ap-deck{max-width:820px;margin:15px 0 0;color:#49697b;font-size:15px;line-height:1.65} .ap-news-v2 .ap-content{padding:38px 46px 12px} .ap-news-v2 .ap-section{margin:0 0 42px} .ap-news-v2 h2{margin:0 0 15px;color:#103f5a;font-size:24px;line-height:1.35} .ap-news-v2 h3{margin:0 0 9px;color:#155879;font-size:18px;line-height:1.4} .ap-news-v2 p{margin:0 0 14px} .ap-news-v2 .ap-answer{display:grid;grid-template-columns:1.2fr .8fr;gap:22px;padding:26px;border:1px solid #bfe2f1;border-left:5px solid #16a2cc;border-radius:12px;background:#f2fbfe;box-shadow:0 8px 24px rgba(34,112,151,.08)} .ap-news-v2 .ap-answer strong{display:block;margin-bottom:8px;color:#0b597c;font-size:18px;line-height:1.45} .ap-news-v2 .ap-answer ul{margin:0;padding-left:20px;color:#355e73} .ap-news-v2 .ap-answer li{margin:6px 0} .ap-news-v2 .ap-side-note{padding:4px 0 4px 22px;border-radius:0;background:transparent;border:0;border-left:1px solid #bfe2f1} .ap-news-v2 .ap-side-note b{color:#0f7298} .ap-news-v2 .ap-cta-row{display:flex;flex-wrap:wrap;gap:12px;margin-top:22px} .ap-news-v2 .ap-btn{display:inline-block;padding:11px 18px;border-radius:7px;background:#0b86b3;color:#fff!important;font-weight:700;font-size:15px;box-shadow:0 6px 14px rgba(11,134,179,.18)} .ap-news-v2 .ap-btn-secondary{background:#fff;color:#0b729a!important;border:1px solid #69bfdc;box-shadow:none} .ap-news-v2 .ap-table-wrap{overflow-x:auto;border-radius:11px;box-shadow:0 8px 20px rgba(30,103,138,.06)} .ap-news-v2 table{width:100%;table-layout:fixed;border-collapse:collapse;background:#fff;border:1px solid #bdd9e5} .ap-news-v2 .ap-compare-table{min-width:900px} .ap-news-v2 .ap-compare-table th:nth-child(1),.ap-news-v2 .ap-compare-table td:nth-child(1){width:18%} .ap-news-v2 .ap-compare-table th:nth-child(2),.ap-news-v2 .ap-compare-table th:nth-child(3),.ap-news-v2 .ap-compare-table td:nth-child(2),.ap-news-v2 .ap-compare-table td:nth-child(3){width:21%} .ap-news-v2 .ap-compare-table th:nth-child(4),.ap-news-v2 .ap-compare-table td:nth-child(4){width:40%} .ap-news-v2 .ap-stock-table{min-width:860px} .ap-news-v2 .ap-stock-table th:nth-child(1),.ap-news-v2 .ap-stock-table td:nth-child(1){width:29%} .ap-news-v2 .ap-stock-table th:nth-child(2),.ap-news-v2 .ap-stock-table td:nth-child(2){width:18%} .ap-news-v2 .ap-stock-table th:nth-child(3),.ap-news-v2 .ap-stock-table td:nth-child(3){width:33%} .ap-news-v2 .ap-stock-table th:nth-child(4),.ap-news-v2 .ap-stock-table td:nth-child(4){width:20%} .ap-news-v2 th{padding:15px 14px!important;background:#0e668c!important;color:#fff!important;text-align:left;font-size:15px;line-height:1.4;border:1px solid #9fc9db;vertical-align:top;overflow-wrap:anywhere} .ap-news-v2 td{padding:15px 14px!important;border:1px solid #c9dfe8;vertical-align:top;font-size:15px;line-height:1.55;color:#31596c;overflow-wrap:anywhere;word-break:normal} .ap-news-v2 tbody tr:nth-child(even) td{background:#f7fbfd} .ap-news-v2 td:first-child{font-weight:700;color:#184d68;white-space:normal} .ap-news-v2 .ap-status{display:inline-block;padding:3px 9px;border-radius:999px;font-size:13px;font-weight:700} .ap-news-v2 .ap-status-obsolete{background:#fff0ef;color:#aa3c35} .ap-news-v2 .ap-status-current{background:#eaf8ef;color:#237847} .ap-news-v2 .ap-photo-grid{display:grid;grid-template-columns:1fr 1fr;gap:22px} .ap-news-v2 .ap-photo-card{overflow:hidden;border:1px solid #cfe5ee;border-radius:12px;background:#fff;box-shadow:0 8px 22px rgba(37,105,137,.08)} .ap-news-v2 .ap-photo-card img{display:block;width:100%;height:auto} .ap-news-v2 .ap-photo-copy{padding:17px 18px 19px} .ap-news-v2 .ap-photo-copy p{margin:0;color:#547183;font-size:15px} .ap-news-v2 .ap-steps{display:grid;grid-template-columns:repeat(5,1fr);gap:12px;margin-top:20px} .ap-news-v2 .ap-step{position:relative;min-height:158px;padding:18px 15px;border-radius:10px;background:#f4fafc;border:1px solid #d5eaf2} .ap-news-v2 .ap-step-num{display:flex;align-items:center;justify-content:center;width:30px;height:30px;margin-bottom:14px;border-radius:50%;background:#0d8cb8;color:#fff;font-weight:700} .ap-news-v2 .ap-step b{display:block;margin-bottom:6px;color:#155879;font-size:15px} .ap-news-v2 .ap-step span{font-size:15px;line-height:1.55;color:#577485} .ap-news-v2 .ap-caution{padding:23px 25px;border-radius:11px;background:#fff9ed;border:1px solid #f1d8a1;border-left:5px solid #e6a82b} .ap-news-v2 .ap-caution h3{color:#7f5810} .ap-news-v2 .ap-caution p{margin:0;color:#715c34} .ap-news-v2 .ap-inventory-note{margin-top:12px;color:#648091;font-size:15px} .ap-news-v2 .ap-ref-grid{display:grid;grid-template-columns:repeat(3,1fr);gap:16px} .ap-news-v2 .ap-ref{padding:20px;border:1px solid #d7e9f1;border-radius:10px;background:#fff} .ap-news-v2 .ap-ref-code{display:block;margin-bottom:8px;color:#0e86b2;font-size:15px;font-weight:700} .ap-news-v2 .ap-ref p{margin:0;color:#577485;font-size:15px} .ap-news-v2 .ap-ref-link{display:inline-block;margin-top:13px;color:#0b7da7;font-size:15px;font-weight:700} .ap-news-v2 .ap-final{margin:8px 0 0;padding:34px 32px;border-radius:14px;text-align:left;background:linear-gradient(135deg,#0f648a,#159bc3);color:#fff;box-shadow:0 12px 28px rgba(19,115,153,.19)} .ap-news-v2 .ap-final h2{color:#fff;margin-bottom:10px} .ap-news-v2 .ap-final p{max-width:720px;margin:0 0 20px;color:#e8f8fd} .ap-news-v2 .ap-final .ap-btn{background:#fff;color:#0b729a!important;box-shadow:none} .ap-news-v2 .ap-final .ap-btn-secondary{background:transparent;color:#fff!important;border-color:#bce9f7} .ap-news-v2 .ap-footer{padding:25px 30px;text-align:left;border-top:1px solid #dcecf4;color:#69808d;font-size:13px} .ap-news-v2 .ap-footer a{color:#187da5} @media (max-width:760px){ .ap-news-v2 .ap-compat-hero{grid-template-columns:1fr;padding:24px 22px} .ap-news-v2 .ap-model-route{font-size:24px} .ap-news-v2 .ap-topbar,.ap-news-v2 .ap-hero-copy,.ap-news-v2 .ap-content{padding-left:22px;padding-right:22px} .ap-news-v2 .ap-hero-title{font-size:25px} .ap-news-v2 h2{font-size:22px} .ap-news-v2 .ap-answer,.ap-news-v2 .ap-photo-grid{grid-template-columns:1fr} .ap-news-v2 .ap-steps{grid-template-columns:1fr 1fr} .ap-news-v2 .ap-ref-grid{grid-template-columns:1fr} } @media (max-width:470px){ .ap-news-v2 .ap-model-route{gap:8px;font-size:21px} .ap-news-v2 .ap-topbar{align-items:flex-start;gap:10px} .ap-news-v2 .ap-logo{width:125px} .ap-news-v2 .ap-kicker{font-size:13px} .ap-news-v2 .ap-steps{grid-template-columns:1fr} }

Why Keep a Spare ICS Triplex T8480 Module Industrial facilities rely on uninterrupted safety and control systems to protect personnel, equipment, and production. Within the ICS Triplex Trusted TMR architecture, the T8480 Analog Input Module is a critical component for reliable signal processing and fault-tolerant operation. Used in emergency shutdown (ESD) and process control applications, this SIL 3-certified module supports continuous and dependable plant performance. Keeping a backup ICS Triplex T8480 module on site enables maintenance teams to replace failed hardware immediately instead of waiting for lengthy procurement. This approach reduces repair time, minimizes production losses, and improves system availability in industries such as oil and gas, power generation, chemical processing, and manufacturing. Learn More Get Repairs Avoid Long Lead Times During Emergency Repairs Many industrial automation components remain in active service for years after the original equipment manufacturer (OEM) has slowed production or declared End-of-Life (EOL). As global demand increases for legacy TMR system components, technical procurement becomes exceptionally difficult, especially during unpredicted emergency shutdowns. A ready-to-install, hot-swappable ICS Triplex T8480 module allows instrumentation personnel to restore the redundant input channels quickly, bypassing the extended, costly downtime typically caused by supply chain bottlenecks and obsolete parts availability. Reduce Maintenance Risks and Improve Operational Readiness Unexpected hardware degradations often occur without warning due to thermal stress or environmental aging. Maintaining a fully tested, functional ICS Triplex T8480 module alongside corresponding Field Termination Assemblies (FTAs) enables seamless planned replacements during scheduled maintenance windows or immediate hot-swapping after a fault diagnostic is triggered. This proactive strategy significantly lowers operational risk profiles while giving engineering teams greater flexibility in managing aging plant assets and executing preventive maintenance intervals. Selecting Reliable Spare Parts for Long-Term System Support Choosing genuine, new and unused ICS Triplex T8480 modules from trusted suppliers helps ensure compatibility, reliable performance, and consistent operation. Reputable suppliers perform functional testing and quality inspections before delivery, providing greater confidence when replacing critical automation components. For plants operating ICS Triplex Trusted TMR systems, maintaining a strategic spare parts inventory is an effective way to improve reliability and reduce the impact of unexpected equipment failures. Keeping a backup ICS Triplex T8480 module helps shorten recovery time, support continuous production, and maximize long-term system availability. About Us More Product Build a Preventive Spare Parts Inventory Rather than purchasing replacement modules reactively after a catastrophic loop failure occurs, leading industrial operators develop preventive inventories based on equipment criticality and lifecycle risk assessments. Integrating the ICS Triplex T8480 module into your preventive warehouse stocks guarantees a faster engineering response, optimizes high-availability metrics, and drastically lowers the overall lifecycle cost of your mission-critical safety frameworks. FAQ What does the ICS Triplex T8480 Analog Input Module do? The ICS Triplex T8480 Analog Input Module processes analog input signals within the Trusted TMR safety system, supporting high-integrity monitoring and reliable operation for critical industrial applications. Why should a spare ICS Triplex T8480 module be kept on site? Keeping a spare ICS Triplex T8480 module allows maintenance teams to replace faulty hardware immediately, reducing repair time and helping maintain continuous plant operation during unexpected failures. How can the ICS Triplex T8480 module reduce plant downtime? The ICS Triplex T8480 module enables fast replacement of failed components, allowing the control system to return to normal operation more quickly and minimizing production interruptions. Can a new ICS Triplex T8480 module be installed in an existing system? Yes. A genuine, new and unused ICS Triplex T8480 module that has been checked for compatibility and inspected before shipment can provide a reliable replacement for a legacy Trusted TMR system. Where is the ICS Triplex T8480 Analog Input Module commonly used? The ICS Triplex T8480 Analog Input Module is widely used in safety-critical applications across oil and gas, power generation, chemical processing, petrochemical, and other industrial facilities that require high system availability and fault tolerance. Copyright Notice © 2026 apter.com All rights reserved,Apter Power is not an authorized distributor or representative of the manufacturers featured on this website. Brand names and trademarks featured are the property of their respective owners. Privacy Policy Warranty .diy_news_theme_pdf_1 ul{ margin: 0 !important; } .diy_news_theme_pdf_1 ul li{ list-style-type: none !important; } .diy_news_theme_pdf_1 .text-content{ color: #666; line-height: 24px; } .diy_news_theme_pdf_1 .btn1{ color: #002E3E !important; margin: 24px 0 0; } .diy_news_theme_pdf_1 .links-a{ color: #31CCCD !important; font-weight: bold; text-decoration: underline; } .diy_news_theme_pdf_1 img{ display: block; margin: 0 auto; } .diy_news_theme_pdf_1{ max-width: 1000px; margin: 0 auto; overflow: hidden; background: #FFFFFF; box-shadow: 2px 4px 4px 0px rgba(5,0,59,0.1); border-radius: 16px; border: 1px solid rgba(0,0,0,0.05); } .diy_news_theme_pdf_1 .themepdf1_top{ } .diy_news_theme_pdf_1 .themepdf1_top_wrapper{ display: flex; align-items: center; justify-content: space-between; padding: 24px 40px 16px; } .diy_news_theme_pdf_1 .themepdf1_top_logo img{ max-width: 200px; } .diy_news_theme_pdf_1 .themepdf1_top_links{ display: flex; } .diy_news_theme_pdf_1 .themepdf1_top_links a{ position: relative; font-size: 16px; color: #002E3E; line-height: 24px; padding-left: 16px; text-decoration: underline; margin-left: 40px; } .diy_news_theme_pdf_1 .themepdf1_top_links a:first-child{ margin-left: 0; } .diy_news_theme_pdf_1 .themepdf1_top_links a:before{ content: ''; position: absolute; left: 0; top: 7px; width: 10px; height: 10px; background: #31CCCD; border: 1px solid #002E3E; border-radius: 50%; box-sizing: border-box; } .diy_news_theme_pdf_1 .themepdf1_top_share{ background: #FAFAFA; display: flex; justify-content: center; align-items: center; padding: 24px 40px; } .diy_news_theme_pdf_1 .themepdf1_top_share a{ margin: 0 5px; } .diy_news_theme_pdf_1 .themepdf1_top_share a img{ display: block; max-width: 25px; max-height: 25px; } .diy_news_theme_pdf_1 .themepdf1_section1{ padding: 40px 40px 0; } .diy_news_theme_pdf_1 .themepdf1_section1 .themepdf1_section1_wrapper{ background: #31CCCD; border-radius: 16px; } .diy_news_theme_pdf_1 .themepdf1_section1 .img img{ width: 100%; } .diy_news_theme_pdf_1 .themepdf1_section1 .content{ padding: 0 40px 40px; text-align: center; } .diy_news_theme_pdf_1 .themepdf1_section1 .content h2{ font-size: 38px; color: #002E3E; line-height: 56px; margin: 0 0 24px !important; } .diy_news_theme_pdf_1 .themepdf1_section1 .content h2 span{ color: #fff; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_content{ color: #002E3E; line-height: 24px; text-align: center; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn{ margin: 32px 0 0; display: flex; justify-content: center; align-items: center; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn a{ margin: 0 20px; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn a.btn1{ background: #fff; border: 1px solid #fff; color: #002E3E; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn a.btn1:hover{ background: none; border-color: #002E3E; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn a.btn2{ border: 1px solid #002E3E; color: #002E3E; background: none; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn a.btn2:hover{ background: #fff; border: 1px solid #fff; } .diy_news_theme_pdf_1 .themepdf1_section2{ margin: 40px 0 0; padding: 0 40px; } .diy_news_theme_pdf_1 .themepdf1_section2 ul{ display: flex; justify-content: space-between; align-items: flex-start; } .diy_news_theme_pdf_1 .themepdf1_section2 li{ width: calc(50% - 22px); } .diy_news_theme_pdf_1 .themepdf1_section2 li .img{} .diy_news_theme_pdf_1 .themepdf1_section2 li .content{ margin: 40px 0 0; text-align: center; } .diy_news_theme_pdf_1 .themepdf1_section2 li .content h2{ font-size: 24px; color: #002E3E; line-height: 32px; margin: 0 0 24px !important; } .diy_news_theme_pdf_1 .themepdf1_section3{ margin: 80px 0 0; text-align: center; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_top{ padding: 0 40px; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_top h2{ font-size: 32px; color: #377D7F; line-height: 42px; margin: 0 0 24px !important; } .diy_news_theme_pdf_1 .themepdf1_section3 > .img{ margin: 24px 0 0; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn{ background: #377D7F; padding: 32px 100px; display: flex; justify-content: space-between; align-items: center; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn a{ width: calc(50% - 20px); margin: 0; justify-content: center; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn a.btn1{ background: #fff; border: 1px solid #fff; color: #002E3E; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn a.btn1:hover{ background: none; color: #fff; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn a.btn2{ background: none; border: 1px solid #fff; color: #fff; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn a.btn2:hover{ background: #fff; color: #002E3E; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper{ padding: 40px; display: flex; justify-content: space-between; align-items: center; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper .img{ width: 126px; height: 126px; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper .img img{ width: 100%; height: 100%; object-fit: cover; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper .content{ width: calc(100% - 166px); text-align: left; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper .content h2{ font-size: 18px; color: #002E3E; line-height: 27px; margin: 0 0 16px !important; } .diy_news_theme_pdf_1 .themepdf1_bom{ background: #FAFAFA; padding: 32px 40px; } .diy_news_theme_pdf_1 .themepdf1_bom .copyright{ color: #999; line-height: 24px; } .diy_news_theme_pdf_1 .themepdf1_bom .themepdf1_bom_links{ margin: 16px 0 0; display: flex; justify-content: center; align-items: center; flex-wrap: wrap; } .diy_news_theme_pdf_1 .themepdf1_bom .themepdf1_bom_links a{ margin: 0 16px; color: #377D7F; line-height: 24px; text-decoration-line: underline; } @media screen and (max-width: 767px){ .diy_news_theme_pdf_1 .themepdf1_top_wrapper{ display: block; padding: 20px; } .diy_news_theme_pdf_1 .themepdf1_top_links{ flex-direction: column; align-items: center; margin: 15px 0 0; } .diy_news_theme_pdf_1 .themepdf1_top_links a{ margin: 0; } .diy_news_theme_pdf_1 .themepdf1_section1{ padding: 20px 20px 0; } .diy_news_theme_pdf_1 .themepdf1_section1 .content{ padding: 0 20px 20px; } .diy_news_theme_pdf_1 .themepdf1_section1 .content h2{ font-size: 32px; line-height: 42px; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn{ display: block; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn a.btn1, .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn a.btn2{ width: 100%; margin: 0; justify-content: center; } .diy_news_theme_pdf_1 .themepdf1_section1 .content .themepdf1_section1_btn a.btn2{ margin: 15px 0 0; } .diy_news_theme_pdf_1 .themepdf1_section2{ padding: 0 20px; } .diy_news_theme_pdf_1 .themepdf1_section2 ul{ display: block; } .diy_news_theme_pdf_1 .themepdf1_section2 li{ width: 100%; } .diy_news_theme_pdf_1 .themepdf1_section2 li .content{ margin: 20px 0 0; } .diy_news_theme_pdf_1 .themepdf1_section2 li .content h2{ font-size: 20px; line-height: 30px; } .diy_news_theme_pdf_1 .themepdf1_section2 li{ margin: 0 0 30px; } .diy_news_theme_pdf_1 .themepdf1_section2 li:last-child{ margin: 0; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn{ padding: 20px; display: block; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn a{ width: 100%; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_btn a:last-child{ margin: 15px 0 0; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper{ display: block; padding: 20px; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper .img{ width: 100%; height: auto; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper .img img{ width: auto; height: auto; } .diy_news_theme_pdf_1 .themepdf1_section3 .themepdf1_section3_wrapper .content{ width: 100%; text-align: center; margin: 20px 0 0; } .diy_news_theme_pdf_1 .themepdf1_bom{ padding: 20px; text-align: center; } }
