DI814 3BUR001454R1

/ 4.9
1001 reviews | Need a Specific Revision?

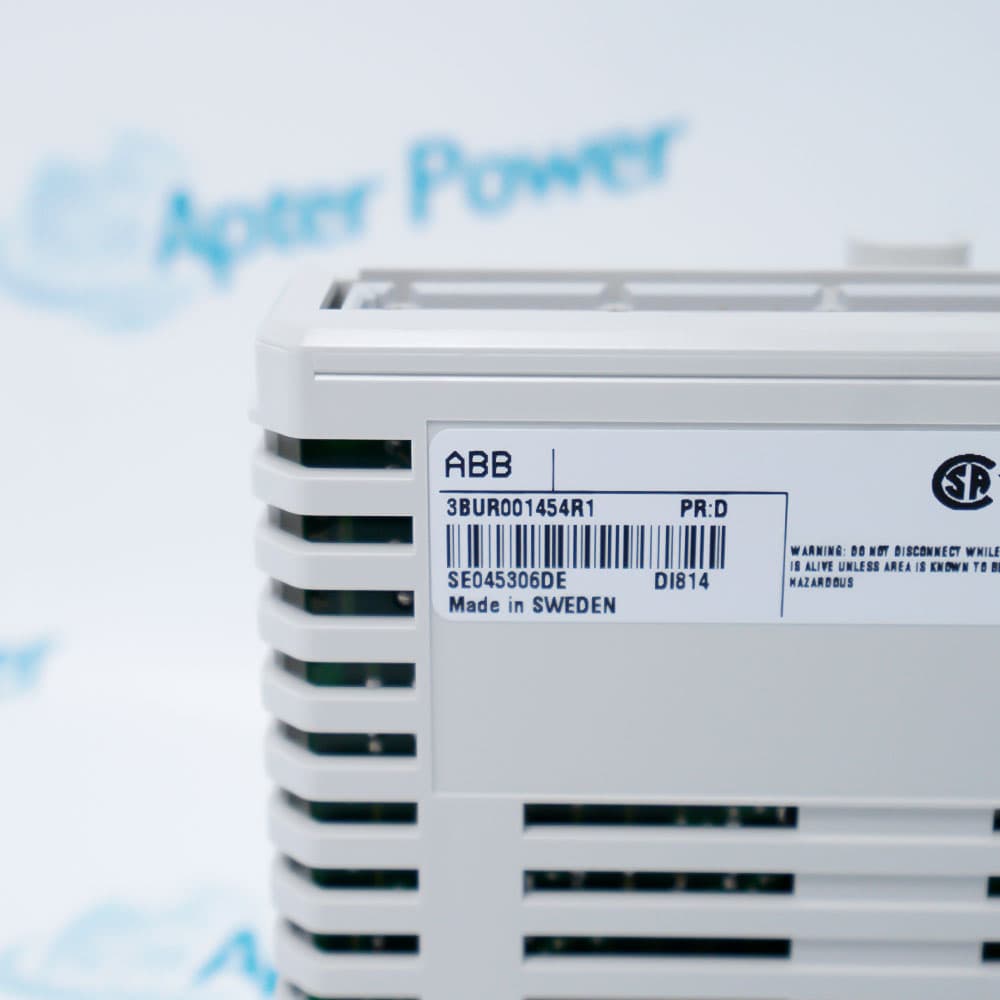

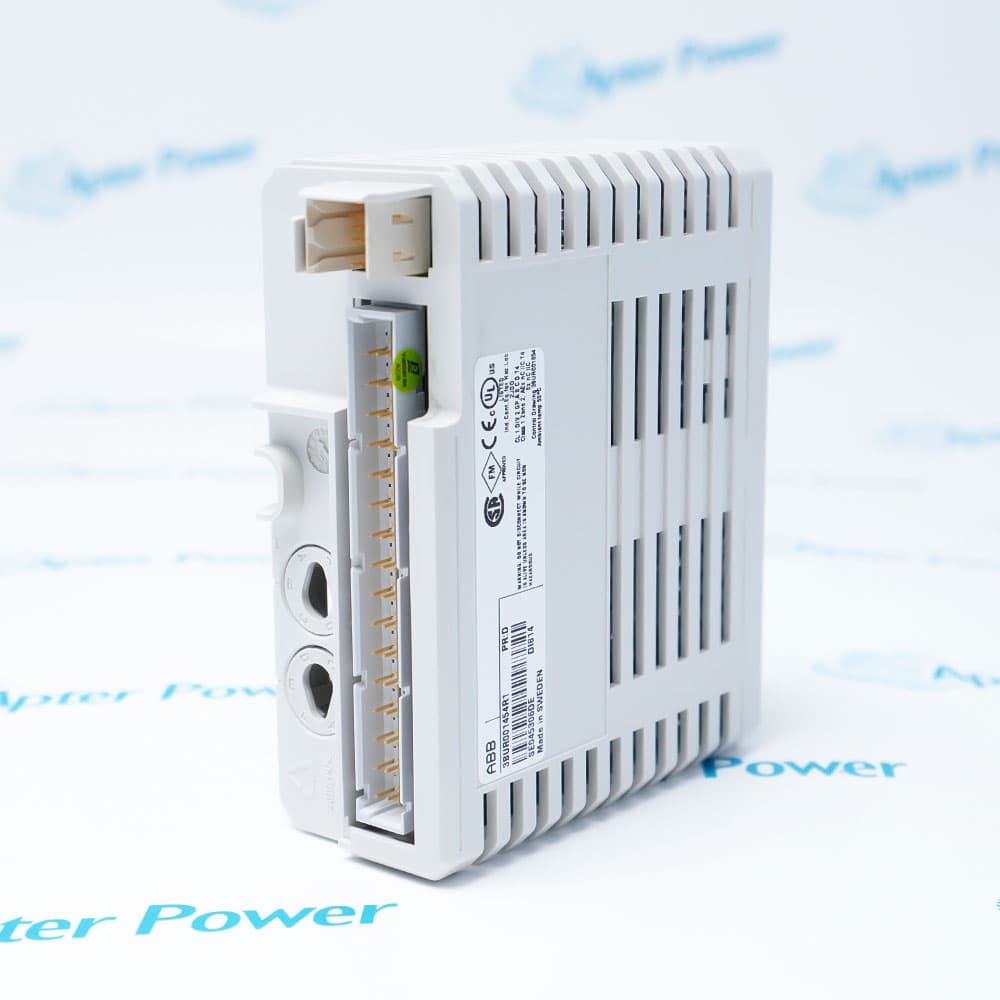

ABB DI814 3BUR001454R1 is a 16-channel S800 I/O digital input module for 24 V DC current-sourcing signals in two isolated groups of eight.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DI814 3BUR001454R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DI814 3BUR001454R1

  • Manufacturer:
    ABB
  • Part Number:
    DI814 3BUR001454R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    DI814 Digital Input 24V Current 16 ch
  • Stock:
    1
  • Number of Input Channels:
    16
  • Input Voltage:
    24 V DC
  • Input Type:
    Current sourcing
  • Channel Groups:
    2 isolated groups of 8
  • Signal Off Range:
    −30 to 5 V
  • Signal On Range:
    15 to 30 V
  • Input Impedance:
    3.5 kΩ
  • Digital Filter:
    2, 4, 8 or 16 ms
  • Compatible MTUs:
    TU810, TU812, TU814, TU830, TU833, TU838
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    4.5 × 10.2 × 11.9 cm
  • Tariff Code:
    85389099
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Monitoring Compatibility

Overview

  • 16 current-sourcing inputs for 24 V DC field signals
  • Two isolated groups with eight channels each
  • Selectable 2, 4, 8 or 16 ms digital filtering
  • Compatible with TU810, TU812, TU814, TU830, TU833 and TU838

ABB DI814 3BUR001454R1 provides grouped 24 V DC digital input acquisition for compatible S800 I/O installations.

ABB DI814 3BUR001454R1 Digital Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • Manufacturer: ABB
  • Model: DI814
  • Condition: New Original ready stock
  • Product Family: S800 I/O digital input modules

Applications

  • 24 V DC digital status acquisition from compatible field contacts
  • Monitoring of supported switch and sensor signals
  • Integration with compatible ABB S800 I/O stations
  • Current Sourcing: Supplies 6 mA at 24 V DC to passive field contacts.
  • Galvanic Isolation: Divides 16 channels into two isolated groups of eight.
  • Signal Filtering: Offers selectable software filters (2, 4, 8, or 16 ms).
  • Fault Diagnostics: Features group-level process voltage supervision via ModuleBus.
  • Visual Status: Displays Fault, Run, Warning, and channel states via LEDs.
  • System Integration: Connects with System 800xA and Advant OCS architectures.
  • Base Units: Mounts on TU810, TU812, TU814, TU830, TU833, and TU838 MTUs.
  • Physical Keying: Uses mechanical keying code "BE" to prevent incorrect insertion.
  • Bus Communication: Uses the ModuleBus protocol to connect with field communication units.
Description

DI814 3BUR001454R1 is an ABB S800 I/O digital input module with 16 current-sourcing channels for 24 V DC field signals. The channels are arranged in two electrically isolated groups of eight.

ABB specifies a 3.5 kΩ input impedance, signal ranges of −30 to 5 V for off and 15 to 30 V for on, and selectable digital filtering of 2, 4, 8 or 16 ms.

ABB lists TU810, TU812, TU814, TU830, TU833 and TU838 module termination units for DI814. Confirm field voltage, signal level and the installed MTU before wiring or replacement.

Alternative Names
DI814 3BUR001454R1 ABB DI814 DI814 3BUR001454R1 DI814-3BUR001454R1 DI8143BUR001454R1 DI 814 3BUR 001454 R1 ABB S800 DI814 Digital Input Module ABB 3BUR001454R1
Technical notes
ABB DI814 3BUR001454R1 provides sixteen current-sourcing 24 V DC inputs in two isolated groups of eight. Use an ABB-listed MTU and verify the field signal levels before wiring.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is DI814 3BUR001454R1?
DI814 3BUR001454R1 is an ABB S800 I/O 16-channel digital input module for 24 V DC current-sourcing field signals.
How are the DI814 channels grouped?
The 16 DI814 inputs are arranged in two electrically isolated groups of eight channels.
What signal levels does DI814 recognize?
ABB specifies −30 to 5 V as off and 15 to 30 V as on for DI814.
Which digital filter settings are available?
DI814 supports selectable 2, 4, 8 and 16 ms digital input filtering.
Which MTUs are compatible with DI814?
ABB lists TU810, TU812, TU814, TU830, TU833 and TU838 for DI814.
What should be checked before replacing DI814?
Confirm the complete article number, 24 V DC field signals, wiring and installed MTU.
