DSBC172-57310001-KD

/ 4.9
1001 reviews | Need a Specific Revision?

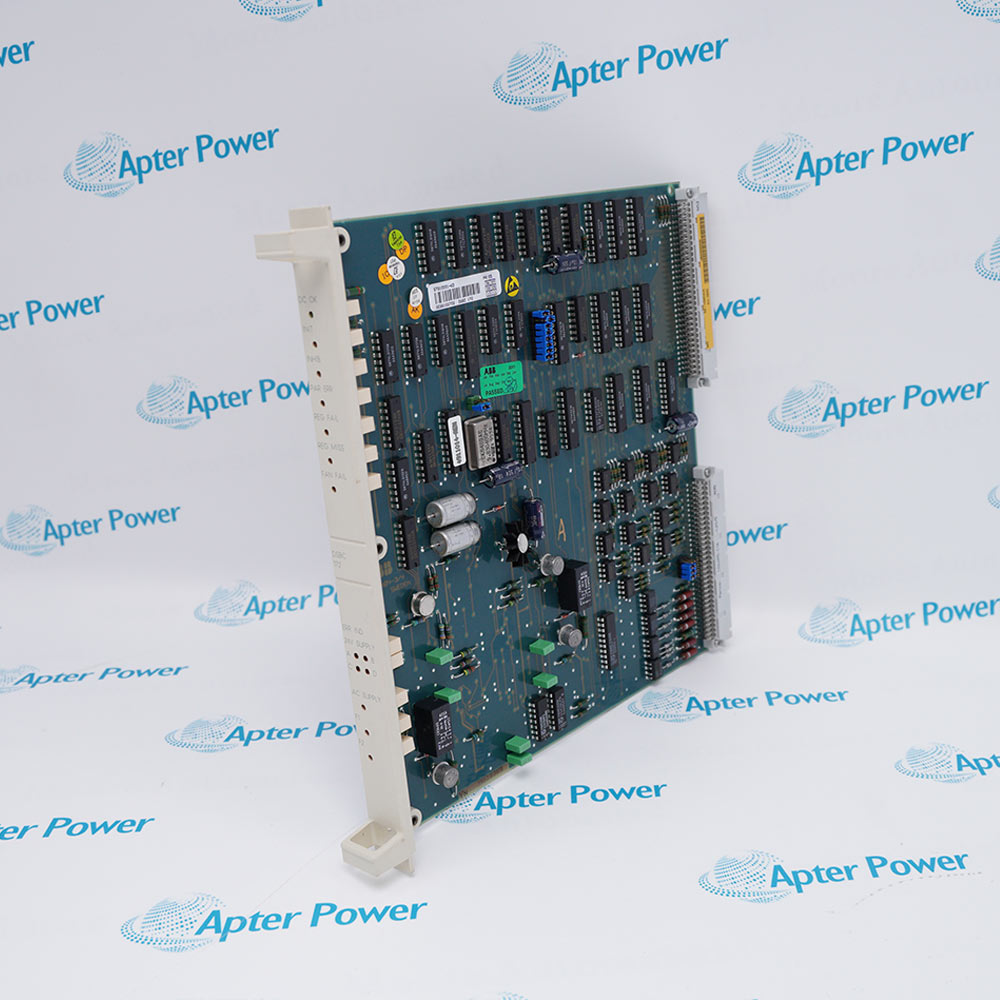

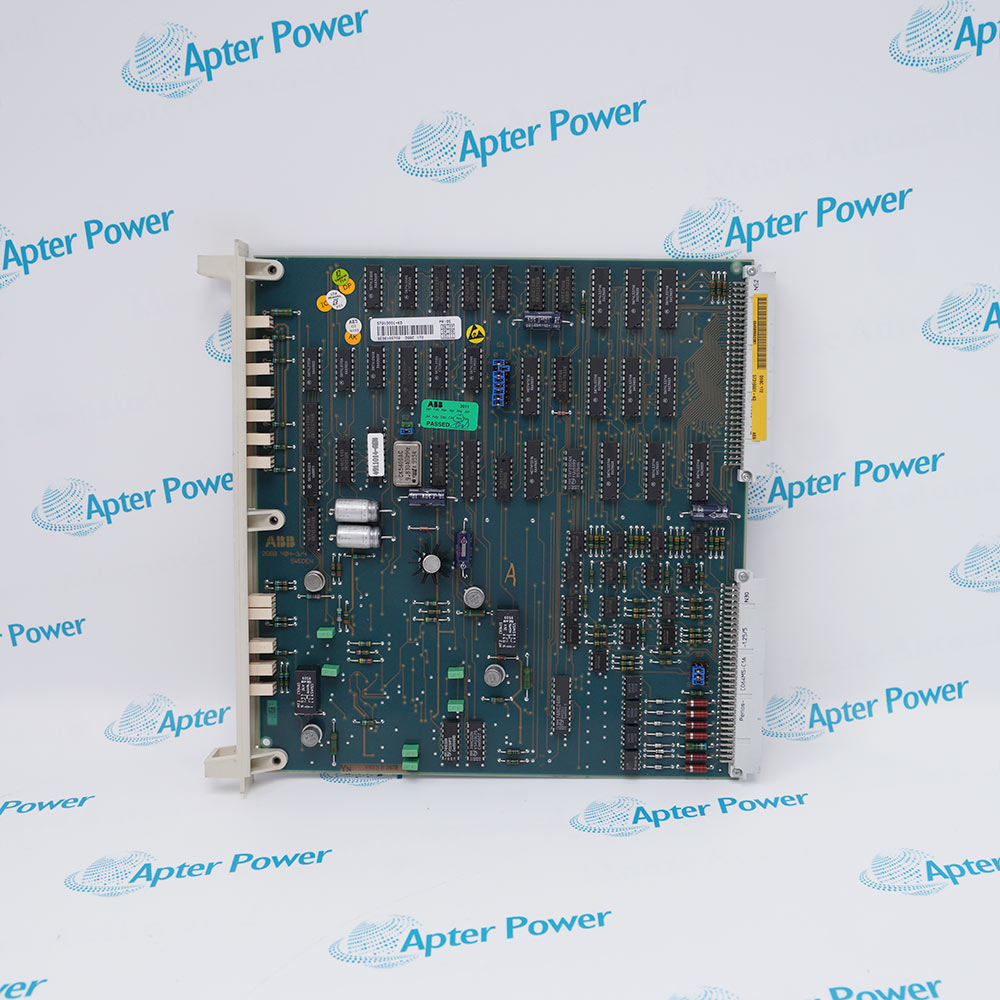

The DSBC172-57310001-KD is an ABB bus supervision board / bus repeater master for S100 I/O systems, compatible with MasterPiece 200 controllers and Advant OCS.
Get a quick price for DSBC172-57310001-KD
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSBC172-57310001-KD

  • Manufacturer:
    ABB
  • Part Number:
    DSBC172-57310001-KD
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Bus Supervision Board
  • Interface Communication:
    AF100 (Advant Fieldbus 100) Protocol
  • Operating Voltage:
    +24 V DC (Nominal)
  • Voltage Range Tolerance:
    19.2 V to 30 V DC
  • Current Consumption:
    220 mA @ 24 V DC
  • Power Dissipation:
    Max. 5.3 W
  • Processing Configuration:
    Redundancy Support (Dual-Port Access)
  • Data Rate:
    1.5 Mbit/s (Standard AF100 Speed)
  • Isolation Barrier:
    Galvanic Isolation (Tested at 500 V AC)
  • Weight:
    0.36 kg
  • Estimated shipping dimensions:
    2x24.7x24.3cm
  • Tariff Code:
    8517795000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Firmware and Updates Configuration

Features:

  • Regenerates and repeats bus signals; extends the length of the S100 I/O bus; allows more devices on the bus.
  • Monitors bus communication for faults; provides diagnostic information to the MasterPiece 200 controller.
  • Designed for ABB S100 I/O systems; works with MasterPiece 200/200/1 and Advant OCS; RoHS exempt spare part.
The DSBC172-57310001-KD acts as a bus repeater master for ABB S100 I/O systems. In a typical I/O bus, signal quality degrades over distance and with each connected device. The bus repeater regenerates the incoming signal and retransmits it at full strength, effectively extending the maximum cable length and allowing more I/O modules to be connected to a single bus. This is critical in large industrial installations where I/O racks must be distributed over long distances – for example, across a power plant, refinery, or material handling system. Without a repeater, the bus might be limited to 100 meters and 32 devices. With the DSBC172, engineers can build much larger distributed I/O networks. The module is listed under S100 I/O – Bus Communication Interface, confirming its role as a bus extension device.

The DSBC172-57310001-KD not only repeats bus signals but also supervises bus communication for faults. Bus supervision includes monitoring for signal integrity, detecting communication errors, and reporting faults to the MasterPiece 200 controller. This diagnostic capability is invaluable for troubleshooting in large distributed I/O systems. If a cable is damaged, a connector fails, or an I/O module malfunctions, the DSBC172 can detect the issue and alert the controller. The controller can then generate an alarm, allowing maintenance personnel to pinpoint the fault quickly. Without bus supervision, a communication failure might cause erratic I/O behavior with no clear indication of the root cause.

The DSBC172-57310001-KD is specifically designed for ABB's S100 I/O platform, a legacy system used with MasterPiece 200 and 200/1 controllers within Advant OCS with Master SW. S100 I/O systems remain in operation in thousands of industrial facilities worldwide, particularly in power generation, pulp and paper, oil and gas, and marine applications. The DSBC172 allows these legacy systems to extend their I/O bus and supervise bus communication without migrating to newer I/O platforms – a process that could cost millions and require extensive downtime.

The DSBC172-57310001-KD ABB Bus Supervision Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

ABB DSBC172-57310001-KD Bus Supervision Board Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
ABB DSBC172-57310001-KD Bus Supervision Board Specs

General

  • Manufacturer ABB
  • Model DSBC172-57310001-KD
  • Condition New Original ready stock
  • Product Family DSBC173,DSBC174,DSBC170,DSBC180
Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
  • Mass Distributed Control Systems (DCS): Utilizing the Advant Controller 400 (AC 400) series controllers as a bus expansion component, enabling high-speed data synchronization between different racks.
  • Critical Industrial Automation: Widely used in the power, oil and gas, chemical, and pharmaceutical industries, ensuring distortion-free data transmission in long-distance cabling environments.
  • Infrastructure Control: Providing interference-resistant communication links for applications such as water treatment plants, large-scale building automation (HVAC), and marine engine control systems.
  • Firmware Update Media: System software and firmware are typically loaded via a dedicated Flash Program Card.
  • Maintenance Recommendations: As a traditional S100 I/O series component, firmware updates usually occur during system overhauls or modernization upgrades performed by ABB engineers. When replacing modules, ensure that the new module's manufacturing revision is compatible with the original system.
  • System Integration: In the Advant Master software environment, this module must be defined as a Bus Supervision Board. The system will automatically assign its address and monitoring permissions on the bus.
  • Configuration Tools: Function Chart Builder or AMPL (ABB Master Programming Language) is primarily used for logical assignment, mapping the physical bus status to system diagnostic variables.
  • Diagnostic Functions: A built-in self-test mechanism can detect bus faults, voltage anomalies, or communication timeouts in real time, and provide feedback through front-end LED indicators.
Description
The DSBC172-57310001-KD is a bus supervision board and bus repeater master for ABB's S100 I/O family. It is designed for use with MasterPiece 200 and 200/1 controllers within Advant OCS with Master SW. The product ID is 57310001-KD with ABB type designation DSBC 172.

When using the DSBC172-57310001-KD, engineers can supervise and repeat bus communication in S100 I/O systems. The module acts as a bus repeater master, extending the length of the I/O bus and allowing more devices to be connected.

The DSBC172-57310001-KD is exempt from EU RoHS 2011/65/EU under Article 2(4)(c),(e),(f),(j) for ABB Advant Master Process Control Systems spare parts. It has a customs tariff number of 8517620000.

For legacy ABB Advant OCS systems requiring bus extension or supervision, the DSBC172-57310001-KD provides a critical spare part. It is listed under S100 I/O – Bus Communication Interface and MasterPiece 200 Central Units categories.
Alternative Names
DSBC173 DSBC174 DSBC170 DSBC180
Technical notes
The DSBC172-57310001-KD functions as a bus repeater master for ABB S100 I/O systems. It regenerates the bus signal, allowing longer cable runs and more devices on the I/O bus than a standard bus interface.The module has a customs tariff number of 8517620000 – this code is for machines for the reception, conversion, and transmission of data (including switching and routing apparatus).
