        ABB CM30-100S0E0-STD front view on Apter Power background

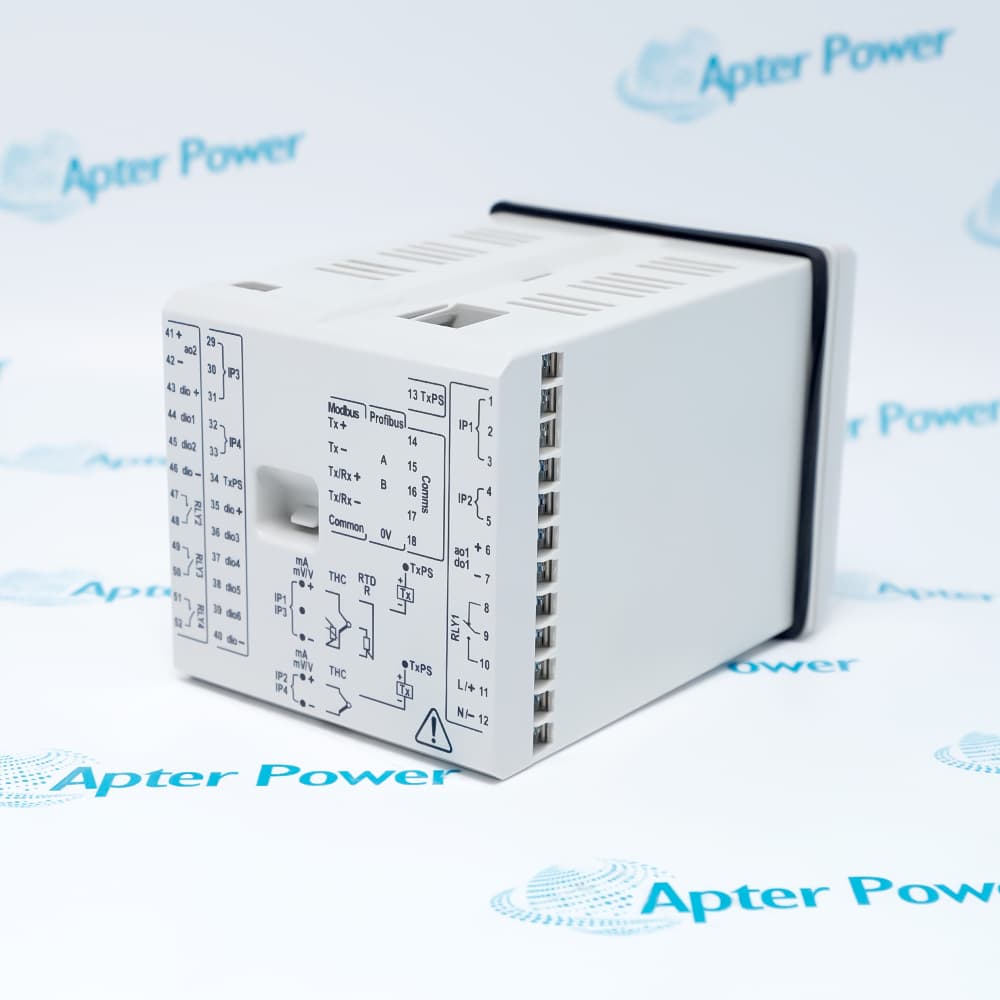

        ABB CM30-100S0E0-STD rear terminals on Apter Power background

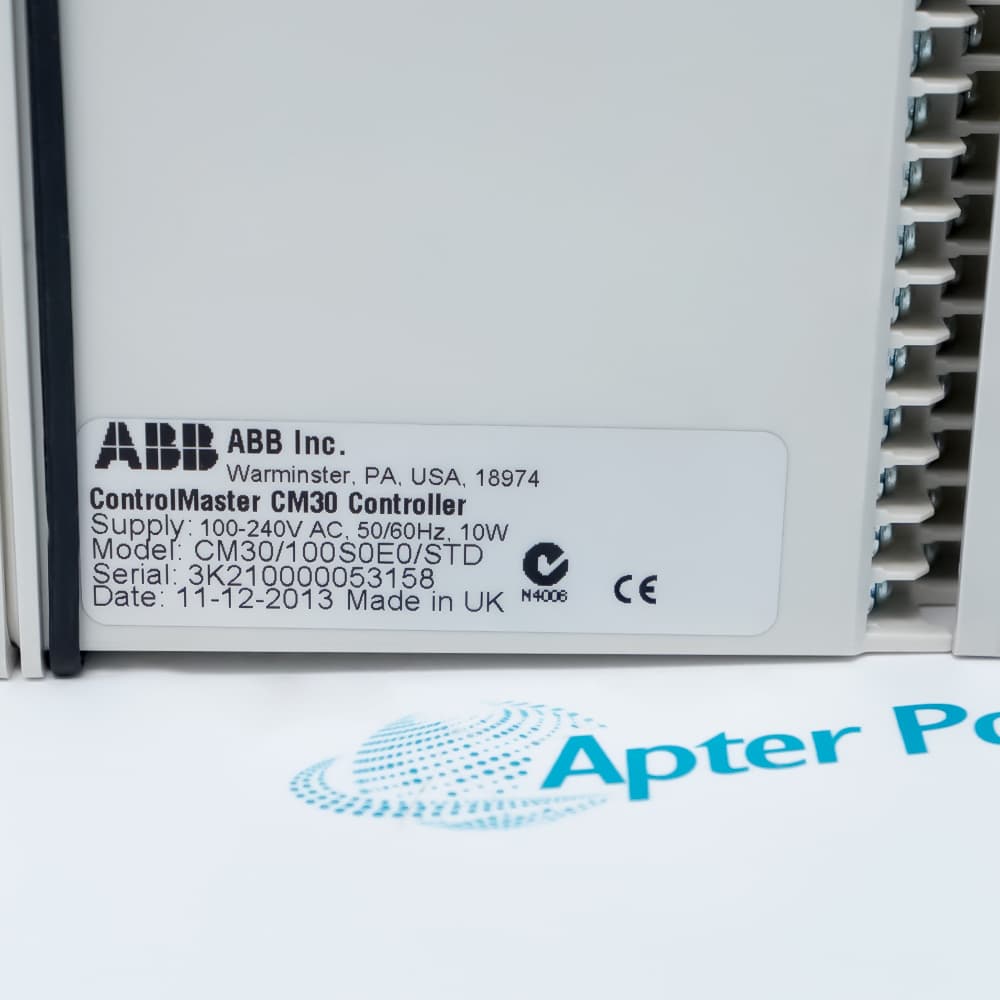

        ABB CM30-100S0E0-STD nameplate on Apter Power background
        ABB CM30-100S0E0-STD front view on Apter Power background
        ABB CM30-100S0E0-STD rear terminals on Apter Power background
        ABB CM30-100S0E0-STD nameplate on Apter Power background
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supplies original ABB CM30 ControlMaster controllers and supports exact order-code, I/O, power-supply and panel-fit verification for replacement and maintenance projects.

        CM30-100S0E0-STD

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        ABB CM30-100S0E0-STD (CM30/100S0E0/STD) is a 1/4 DIN ControlMaster universal PID process controller with two analog inputs, one analog output, two relays, 100–240 V AC nominal power and an English operator interface.
        In Stock
        Get a quick price for CM30-100S0E0-STD
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for CM30-100S0E0-STD

        • Manufacturer:
          ABB
        • Part Number:
          CM30-100S0E0-STD
        • Product Family:
          ABB CM Series
        • Product Type:
          ControlMaster Universal PID Process Controller
        • Stock:
          1
        • Manufacturer:
          ABB
        • Product Model:
          CM30-100S0E0-STD
        • ABB Ordering Format:
          CM30/100S0E0/STD
        • Product Family:
          ControlMaster CM30
        • Product Type:
          Universal PID process controller
        • Panel Format:
          1/4 DIN
        • I/O Build Code 1:
          2 analog inputs, 1 analog output and 2 relays (Basic + option board 1a)
        • Functionality Code 0:
          Base functionality
        • Communications Code 0:
          None; no Ethernet or RS 485 MODBUS option fitted
        • Approval Code S:
          Standard CE
        • Power Code 0:
          90 to 264 V AC (nominal 100 to 240 V AC), 50 / 60 Hz
        • Language Code E:
          English
        • Special Features Code 0:
          None
        • Configuration:
          STD — Standard
        • Display:
          Full-color 9 cm (3.5 in.), 1/4 VGA TFT LCD with backlight
        • Supported Universal Inputs:
          Voltage, current, resistance, 3-wire RTD, thermocouple, volt-free digital, 24 V digital, frequency and pulse
        • Local Setpoints:
          4
        • Process Alarms:
          8
        • Input / Control Update Rate:
          125 ms
        • Relay Contact Rating:
          5 A, 240 V
        • Transmitter Power Supply:
          24 V DC; 45 mA maximum
        • Power Consumption:
          10 W maximum
        • Operating Temperature:
          0 to 55 °C (32 to 131 °F)
        • Operating Humidity:
          5 to 95% RH, non-condensing
        • Enclosure Protection:
          Front face IP66 / NEMA 4X; remainder IP20
        • Dimensions:
          97 × 97 × 141 mm (3.8 × 3.8 × 5.5 in.)
        • Panel Cutout:
          92 × 92 mm; 121 mm behind panel
        • Approximate Weight:
          0.5 kg (1.1 lb), unpacked
        • Case Material:
          Glass-filled polycarbonate
        • EMC / Safety:
          IEC 61326 industrial environment; EN 61010-1
        • Weight:
          0.5 kg
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Model Selection Applications Operator Experience Installation & Compliance

        Controller overview:

        • Full-color TFT display presents process values, alarms and diagnostics in clear text.
        • Front-panel menus and ABB PC configuration tools support rapid setup and commissioning.
        • Autotune calculates PID settings on demand for the configured control loop.

        The CM30-100S0E0-STD is configured for base-level process control. It suits straightforward single-loop duties where universal signal acceptance, local visibility and dependable panel operation are required.

        Manuals and related ABB product series:

        Exact order-code selection:

        • 1 - Basic hardware plus option board 1a: two analog inputs, one analog output and two relays.
        • 0 - Base functionality for basic PID, on/off or time-proportioning control and autotune.
        • 0 - No Ethernet or RS 485 MODBUS communication option.
        • S0E0 - Standard CE approval, 90 to 264 V AC supply (nominal 100 to 240 V AC), English language and no special front-panel feature.
        • STD - Standard factory configuration.
        Before ordering: match the complete code, I/O count, communications, supply voltage, language and panel dimensions. Do not treat a different CM30 code as a direct replacement without configuration review.

        Applications appropriate to the base-functionality build:

        • Single-loop temperature control for heaters, heat exchangers and thermal processes.
        • Pressure, flow or level control using a compatible transmitter signal.
        • On/off, time-proportioning or analog PID output control.
        • Single-loop control with a remote setpoint where the available inputs are configured accordingly.
        • Local indication, alarm annunciation and basic setpoint switching.

        Advanced cascade, feed-forward, ratio, predictive, adaptive and dual-loop strategies require the corresponding CM30 functionality code and I/O build; they are not implied by the exact 100S0E0 configuration.

        Operator and commissioning experience:

        • Color display templates can be customized for the process and operator task.
        • Alarm and diagnostic messages appear in full text for faster fault recognition.
        • A short-term trend view plots two analog values to assist commissioning and loop tuning.
        • Six tactile keys provide local navigation, alarm acknowledgement and control-mode access.
        • The standard IrDA service port supports firmware and configuration upload/download.

        Installation and compliance guidance:

        • Install in a 92 x 92 mm panel opening with the depth and ventilation stated in ABB documentation.
        • The front face achieves IP66 / NEMA 4X protection when installed correctly; the remainder of the enclosure is IP20.
        • Use the rated AC supply and protective wiring shown on the exact nameplate and ABB connection diagram.
        • Keep the controller within the specified ambient temperature and non-condensing humidity range.
        • This exact S approval code is the Standard CE configuration.
        Replacement check: verify sensor types, output action, relay logic, setpoints, alarm behavior and stored configuration before replacing an installed controller.
        Description

        ABB CM30-100S0E0-STD, identified by ABB and on the product nameplate as CM30/100S0E0/STD, is a ControlMaster CM30 1/4 DIN universal PID process controller. The exact order code specifies two analog inputs, one analog output, two relays, base functionality, no optional Ethernet or RS 485 communications, Standard CE approval, AC power, English language and standard factory configuration.

        The controller accepts thermocouple, RTD, current, voltage, resistance, frequency, pulse and digital input signals. Its full-color TFT display presents process values, alarms and diagnostics in clear text, while front-panel menus, autotune and ABB configuration tools support commissioning and maintenance.

        For replacement, match the complete order code, panel dimensions, input types, output action, relay logic, power supply and stored configuration. Advanced ControlMaster functions or communication options are available only in the corresponding ABB order-code configurations and are not implied by CM30/100S0E0/STD.

        Alternative Names
        CM30-100S0E0-STD CM30/100S0E0/STD ABB CM30 100S0E0 STD CM30100S0E0STD ABB ControlMaster CM30 Controller ABB CM30 Universal PID Process Controller ABB CM30 1/4 DIN Controller ControlMaster CM30 100S0E0
        Technical notes
        ABB CM30-100S0E0-STD (CM30/100S0E0/STD) is a ControlMaster 1/4 DIN universal PID process controller with two analog inputs, one analog output, two relays and 100–240 V AC nominal power. This exact build has base functionality, no Ethernet or RS 485 option, Standard CE approval and standard configuration.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is ABB CM30-100S0E0-STD used for?
        It is a 1/4 DIN universal PID process controller for single-loop temperature, pressure, flow or level control, with local display, alarms and flexible signal input.
        What does the ABB model CM30/100S0E0/STD mean?
        The code specifies I/O build 1, base functionality 0, no communication option 0, Standard CE approval S, AC supply 0, English language E, no special feature 0 and standard configuration STD.
        How many inputs and outputs does CM30-100S0E0-STD have?
        ABB defines I/O build 1 as two analog inputs, one analog output and two relays using the basic hardware plus option board 1a.
        Does CM30-100S0E0-STD include Ethernet or RS 485 MODBUS?
        No. Its communications code is 0, meaning no optional Ethernet or RS 485 MODBUS board is fitted. The standard IrDA service port remains available for configuration and firmware service.
        What power supply does ABB CM30-100S0E0-STD require?
        Power code 0 specifies 90 to 264 V AC, corresponding to a nominal 100 to 240 V AC supply, at 50/60 Hz. ABB lists maximum power consumption as 10 W.
        Which sensor and process signals can the ABB CM30 accept?
        The universal input supports voltage, current, resistance, 3-wire RTD, thermocouple, volt-free digital, 24 V digital, frequency and pulse signals, subject to correct terminal and software configuration.
        Can CM30-100S0E0-STD replace another 1/4 DIN controller directly?
        The 92 × 92 mm panel cutout is a key mechanical check, but a direct replacement also requires matching the supply, inputs, output action, relay logic, communications, alarms and control configuration.
        Is ABB CM30-100S0E0-STD discontinued?
        ABB continues to publish the current CM30 Rev. X data sheet and current CM30/CM50 commissioning instructions. No ABB end-of-life notice, discontinuation date or official replacement model was found for this exact configuration.
