    Apter Power offers genuine ABB BGDR-01C gate driver boards to ensure optimal power control and reliable fault protection for your industrial motor drives.

BGDR-01C 3AUA0000074145

/ 4.9
1001 reviews | Need a Specific Revision?

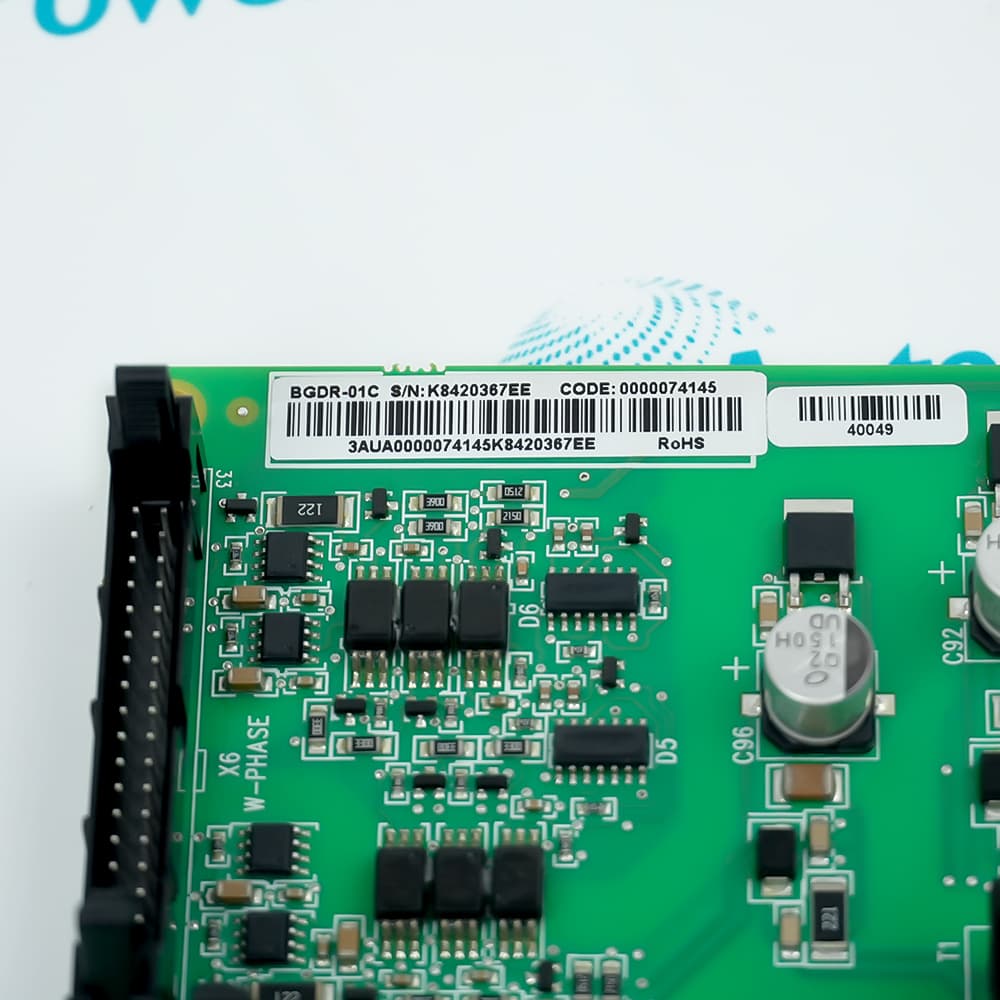

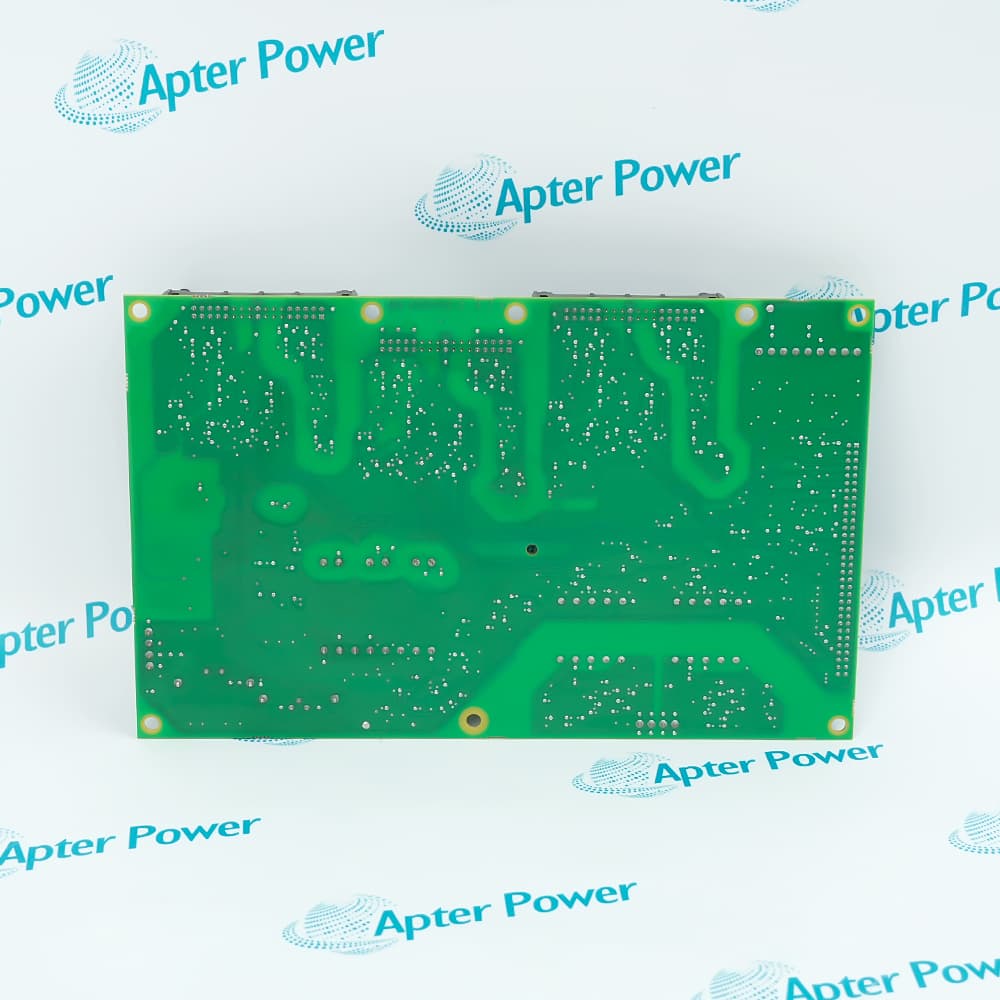

The ABB BGDR-01C 3AUA0000074145 is a gate driver board designed for ACS880-04 and ACS580-04 drives, delivering 10A peak output current with fast response and robust electrical isolation.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for BGDR-01C 3AUA0000074145
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BGDR-01C 3AUA0000074145

  • Manufacturer:
    ABB
  • Part Number:
    BGDR-01C 3AUA0000074145
  • Product Family:
    ABB Drives
  • Product Type:
    Gate Driver Board
  • Stock:
    1
  • Input Voltage:
    24V DC ±10%
  • Peak output current:
    10A
  • Isolation Voltage:
    2500V AC
  • Propagation Delay:
    <500ns typical
  • Operating Temperature:
    -25°C to +70°C
  • Storage Temperature:
    -40°C to +85°C
  • Relative Humidity:
    5% to 95% non-condensing
  • Compatible drive:
    ACS880-04, ACS580-04
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    24x15x3.6cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Safety & Compliance Operating Environment

Features:

  • Bridge Between Low-Voltage Control Logic and High-Power IGBT Semiconductors
  • Integrates Precision Gate Voltage Regulation with Integrated Protection Circuitry
  • Works in Coordination with ACS880 and ACS580 Series Drive Control Systems
The ABB BGDR-01C 3AUA0000074145 serves as the Gate Driver Board within ABB's industrial drive architecture, delivering accurately timed gate signals to power semiconductor switches for efficient motor control and energy conversion. It continuously translates low-level control commands from the main processor into high-current gate drive pulses, ensuring synchronized switching of IGBT modules across varying load conditions. Robust galvanic isolation is inherent to the ABB BGDR-01C 3AUA0000074145, and when deployed in redundant drive configurations it contributes to system resilience by maintaining signal integrity even under elevated electrical noise. The ABB BGDR-01C 3AUA0000074145 incorporates enhanced noise immunity and thermal management characteristics compared to earlier gate driver designs, alongside standardized interface compatibility across the ACS880 and ACS580 drive platforms.

The ABB BGDR-01C 3AUA0000074145 performs essential gate drive functions distributed throughout the power unit, and constitutes a vital link in the control-to-power path, directly influencing the stable, correct operation of the overall drive system. One ABB BGDR-01C 3AUA0000074145 is required per corresponding IGBT power module position within the drive frame. The ABB BGDR-01C 3AUA0000074145 mounts as a dedicated plug-in board within the power assembly and is always positioned in its assigned slot according to the specific drive frame configuration.

For multi-module drive applications, the ACS880/ACS580 system may require multiple ABB BGDR-01C 3AUA0000074145 gate driver boards installed across parallel power stages. Beyond standard single-module operation, such distributed configurations also support coordinated switching sequences. The ABB drive system executes phase synchronization using the internal timing logic specified in the control firmware. Through this mechanism, the gate driver array perpetually monitors switching alignment across all power stages. If the system identifies that a particular ABB BGDR-01C 3AUA0000074145 is no longer delivering synchronized gate pulses (outside configured timing or voltage thresholds), it will flag the corresponding power stage fault and log the event in the drive fault history.

The BGDR-01C 3AUA0000074145 ABB Gate Driver Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB BGDR-01C 3AUA0000074145 Gate Driver Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB BGDR-01C 3AUA0000074145 Gate Driver Board Specs

General

  • Manufacturer ABB
  • Model BGDR-01C 3AUA0000074145
  • Condition New Original ready stock
  • Product Family ACS880-04,APOW-01C,BTDR-01C
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Variable Frequency Drives (VFDs): Primarily used in ABB ACS880-104-R8i and ACS580-04 (R10/R11 frame sizes) to provide necessary gate voltage and current for motor control.
  • Power Inverters: Integrated into industrial power inverters for reliable semiconductor switching in high-power applications.
  • Automation Systems: Found in industrial and naval automation environments requiring robust motion control and drive spares.
  • Isolation Protection: Features electrical isolation to protect sensitive control electronics from high-voltage transients.
  • Integrated Monitoring: Typically includes protection against overcurrent, undervoltage, and overtemperature conditions.
  • Installation Standards: Requires installation by qualified electrical personnel only, preferably within a locked enclosure to prevent accidental contact with terminal blocks.
  • Compliance: Designed to meet EMC standards for intrinsic immunity to electromagnetic disturbances.
  • Temperature Range: Rated for operation between -40°C and +85°C, making it suitable for harsh industrial settings.
  • Input Specifications: Operates on a DC input voltage of 10V to 30V, with an application voltage range typically between 200V and 500V DC.
  • Storage Requirements: Should be stored indoors in dry, well-ventilated areas at temperatures between -5°C and 40°C with maximum 50% humidity.
Description
The ABB BGDR-01C 3AUA0000074145 is a Gate Driver Board engineered specifically for ABB’s industrial drive systems, including the ACS880 and ACS580 series. As a critical internal component, the ABB BGDR-01C 3AUA0000074145 functions as the vital bridge between the low-voltage control unit and the high-power semiconductor switches (IGBTs). By providing precise gate voltage and current, the ABB BGDR-01C 3AUA0000074145 ensures that power modules switch at the exact timing required for efficient motor control and energy conversion.

This ABB BGDR-01C 3AUA0000074145 is purpose-built to handle the complex challenges of high-speed switching and electrical noise in heavy-duty industrial environments. Specifically, the ABB BGDR-01C 3AUA0000074145 was designed to solve the problem of signal interference and potential voltage spikes that can damage sensitive control electronics. By providing robust galvanic isolation and integrated protection circuits, the ABB BGDR-01C 3AUA0000074145 resolves the issue of drive instability and prevents catastrophic failure of the power stage during overcurrent or undervoltage events.

In terms of specific application scenarios, the ABB BGDR-01C 3AUA0000074145 is essential in large-scale industrial setups such as water treatment plants using ACS580 drives for pump control or mining operations utilizing ACS880-104-R8i modules for heavy conveyors. In these contexts, the ABB BGDR-01C 3AUA0000074145 is designed to handle the rigorous thermal demands and continuous operation cycles. It solves the problem of equipment downtime by ensuring the drive maintains a steady, reliable output even under fluctuating load conditions, thereby extending the overall lifespan of the industrial inverter system.

Alternative Names
3AUA0000074145 BGDR-0IC 8GDR-01C BGDR01C BGDRO1C BGDR0IC 8GDR01C
Technical notes
For installation and integration, the ABB BGDR-01C 3AUA0000074145 is designed as a plug-in module that fits directly into the designated slot within the drive's power unit frame.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the input voltage range of BGDR-01C 3AUA0000074145?
Its input voltage is 24V DC ±10%, suitable for standard industrial DC power supply scenarios.
Is your ABB BGDR-01C 3AUA0000074145 brand new and original?
Exactly. The ABB BGDR-01C 3AUA0000074145 Gate Driver boards we supply are all brand new, original and genuine products with guaranteed quality.
What is the peak output current that this driver board can achieve?
The peak output current of ABB BGDR-01C 3AUA0000074145 can reach 10A, meeting the requirements of most drive loads.
Does ABB BGDR-01C 3AUA0000074145 Gate Driver Board provide warranty service?
Sure. This product comes with a one-year warranty. During the warranty period, non-human-caused faults can be supported by after-sales service.
Which ABB drive series is BGDR-01C 3AUA0000074145 compatible with?
The driver families it is compatible with are ACS880-04 and ACS580-04 series.
What are the isolation voltage parameters of ABB BGDR-01C 3AUA0000074145?
The isolation voltage of this driver board is 2500V AC, which can effectively ensure circuit safety.
