ABB NGDR-07C NGDR-07 FF650R17IE4 is a photo-identified gate-driver and Infineon PrimePACK 2 half-bridge assembly used in high-power converter service.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for NGDR-07C NGDR-07 FF650R17IE4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NGDR-07C NGDR-07 FF650R17IE4

  • Manufacturer:
    ABB
  • Part Number:
    NGDR-07C NGDR-07 FF650R17IE4
  • Product Family:
    ABB Drives
  • Product Type:
    IGBT Gate Driver and 1700 V 650 A PrimePACK Power Module Assembly
  • Stock:
    1
  • Power Module Topology:
    PrimePACK 2 half bridge
  • Collector-Emitter Voltage:
    1700 V — power-module rating
  • Nominal Collector Current:
    650 A — power-module rating
  • Peak Collector Current:
    1300 A — power-module rating
  • Gate-Emitter Voltage:
    ±20 V maximum — power-module rating
  • Operating Junction Temperature:
    −40 to +150 °C — power-module rating
  • Maximum Power Dissipation:
    4150 W — power-module rating
  • Temperature Sensor:
    Integrated NTC in the power module
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Assembly Boundary Driver Pairing Thermal Mounting Application

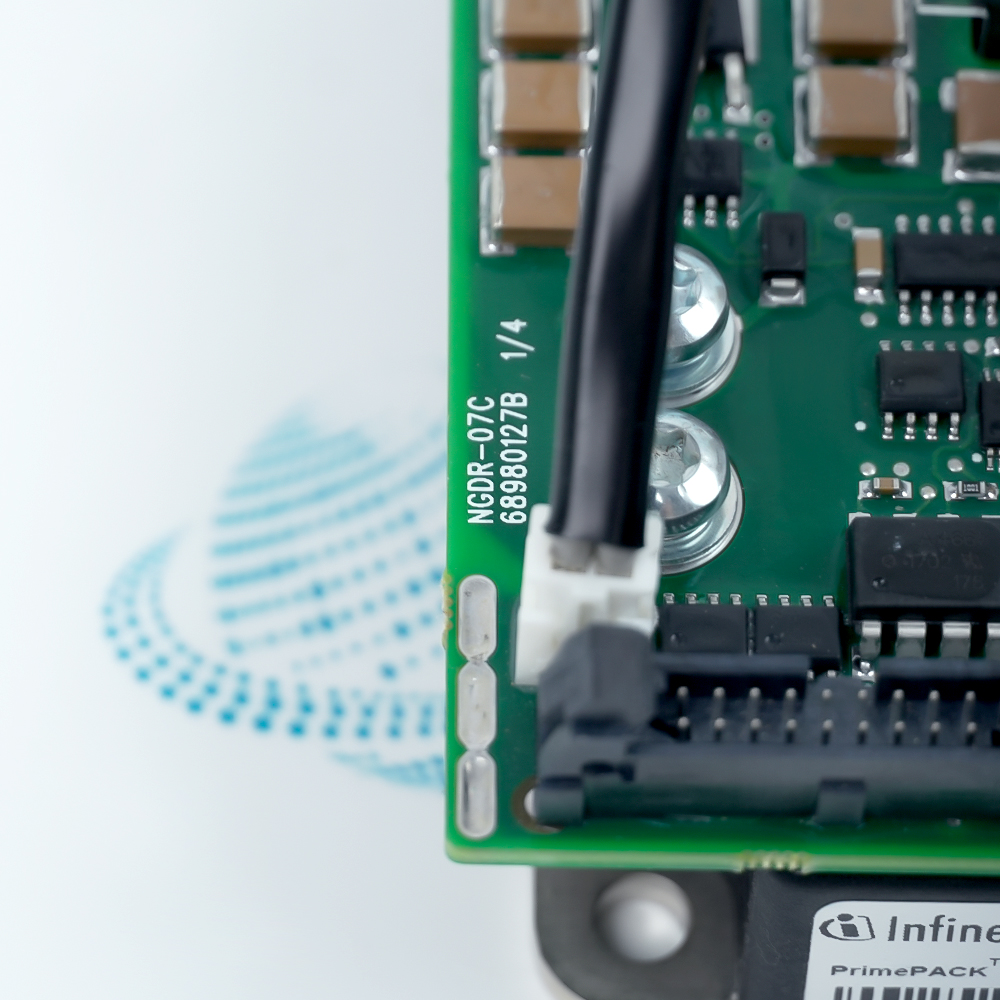

  • NGDR-07C gate-driver board marked 68980127B 1/4

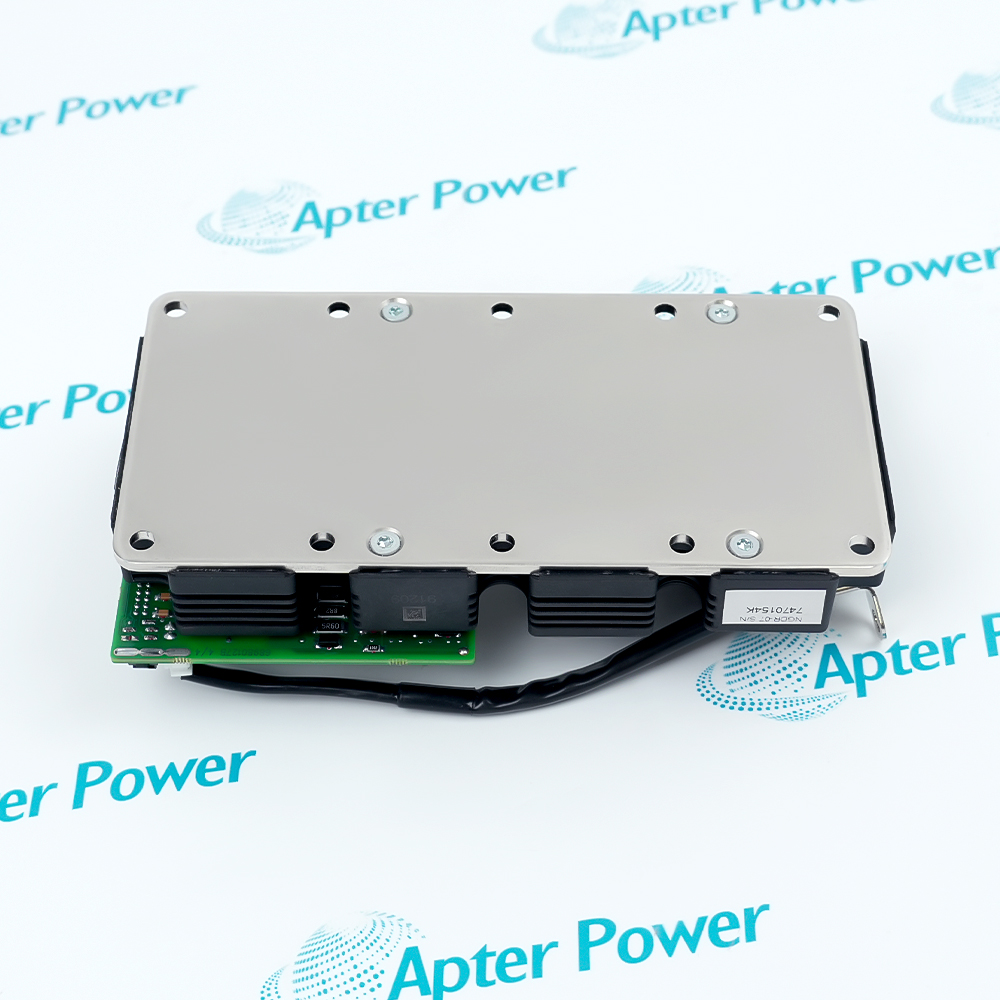

  • NGDR-07 assembly combined with FF650R17IE4
  • 1700 V 650 A PrimePACK 2 half-bridge power stage

NGDR-07C NGDR-07 FF650R17IE4 is a gate-driver and IGBT power-module assembly for high-power converter service.

The photographs identify the ABB driver hardware, while the official Infineon datasheet defines the ratings of the FF650R17IE4 semiconductor module rather than the complete ABB assembly.

Before replacement, match the driver revision, module code, mounting plate, busbar geometry, harness, thermal interface, cooling path, and drive-specific service instruction.

Availability, condition, price, and shipping time for NGDR-07C NGDR-07 FF650R17IE4 are confirmed during quotation.

NGDR-07C NGDR-07 FF650R17IE4 IGBT Gate Driver and 1700 V 650 A PrimePACK Power Module Assembly Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The stock item must state whether the driver board, power module, harness, plate, and fasteners are included
  • FF650R17IE4 ratings apply to the semiconductor module, not automatically to the complete ABB assembly
  • A bare PrimePACK module does not replace an NGDR-equipped drive assembly by itself
  • Preserve NGDR board revision and gate-loop connection with the serviced power module
  • Inspect gate resistors, isolation, driver supplies, and harness condition after a semiconductor failure
  • Do not substitute an FF1400R12IP4 assembly because its package and electrical design differ
  • Inspect cooler flatness and remove old thermal material without damaging the surface
  • Apply the drive-specified thermal interface and tightening sequence
  • Verify clamping, NTC response, insulation, and staged commissioning before full load
  • Medium-voltage drive converter service where the installed ABB assembly uses the FF650R17IE4 power module
  • Traction or wind-power converter maintenance after the complete NGDR driver-board and power-module combination is matched
  • Motor-control or UPS converter repair performed with the original ABB assembly drawing and commissioning procedure
Description
NGDR-07C NGDR-07 FF650R17IE4 is a photo-identified ABB NGDR-07/NGDR-07C gate-driver assembly mounted with an Infineon FF650R17IE4 PrimePACK 2 half-bridge power module.

The official Infineon documentation supports the 1700 V, 650 A semiconductor-module ratings, while the supplied photographs confirm NGDR-07C board marking 68980127B 1/4 and the NGDR-07 assembly label.

Treat the driver board and IGBT module as a matched converter subassembly: verify the complete module code, gate-driver revision, mounting base, busbar layout, thermal interface, connector pinout, and drive-specific service instruction before replacement.
Alternative Names
NGDR-07C NGDR-07 FF650R17IE4 NGDR-07C FF650R17IE4 NGDR-07 FF650R17IE4 FF650R17IE4 NGDR-07 ABB NGDR-07C NGDR-07 FF650R17IE4
Technical notes
ABB NGDR-07C NGDR-07 FF650R17IE4 combines a photo-identified NGDR gate driver with a 1700 V, 650 A PrimePACK 2 half-bridge. Match the whole assembly, thermal interface, busbar layout, driver revision, and converter service procedure.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is ABB NGDR-07C NGDR-07 FF650R17IE4 one replaceable item or two separate parts?
It is an assembled gate-driver and IGBT power-module combination. Confirm whether the offered stock item includes the NGDR board, FF650R17IE4 module, mounting plate, harness, thermal hardware, and fasteners; a bare module is not an equivalent shipment.
Can ABB NGDR-07C NGDR-07 FF650R17IE4 be replaced with an FF1400R12IP4 assembly?
No direct interchange should be assumed. The FF650 unit is 1700 V/650 A PrimePACK 2, while FF1400 is 1200 V/1400 A PrimePACK 3; package, busbar geometry, electrical ratings, gate behavior, cooling, and converter design differ.
Must the NGDR board remain paired with the same FF650R17IE4 in ABB NGDR-07C NGDR-07 FF650R17IE4?
Preserve the serviced assembly pairing unless the ABB drive procedure explicitly permits separation. Driver calibration, gate-loop layout, harnessing, mounting pressure, and module condition must be evaluated as one converter subassembly.
What should be inspected after an IGBT failure in ABB NGDR-07C NGDR-07 FF650R17IE4?
Inspect the NGDR gate outputs, gate resistors, isolation components, DC-link and snubber circuits, busbars, current feedback, cooling surface, fault history, and the opposite converter devices before installing a new power module.
Can the metal base of ABB NGDR-07C NGDR-07 FF650R17IE4 be reused without resurfacing?
Only if the drive procedure permits it and the surface is flat, clean, undamaged, and free of old compound. Apply the specified thermal interface uniformly and use the correct tightening sequence and torque.
How should ABB NGDR-07C NGDR-07 FF650R17IE4 be electrically checked before full DC-bus operation?
With the bus discharged, verify isolation, shorts, gate-emitter resistance, harness continuity, NTC response, and driver supply. Then use the ABB staged commissioning method rather than applying full bus voltage immediately.
Why can a new ABB NGDR-07C NGDR-07 FF650R17IE4 fail again shortly after installation?
An unresolved driver fault, shorted load, damaged snubber, uneven clamping, poor thermal compound, contaminated cooler, wrong module variant, or incorrect gate connection can destroy the replacement even when the IGBT module was new.
