    Superseded by D3G146-AB06-10
    ABB identifies D3G146-AB06-10 under code 3AXD50000042302 as the new long-life replacement fan type. Verify the supported drive, electrical supply, mounting, connector, and airflow direction before replacement.

RF3D-146-180 K506 DSF-2326

/ 4.9
1001 reviews | Need a Specific Revision?

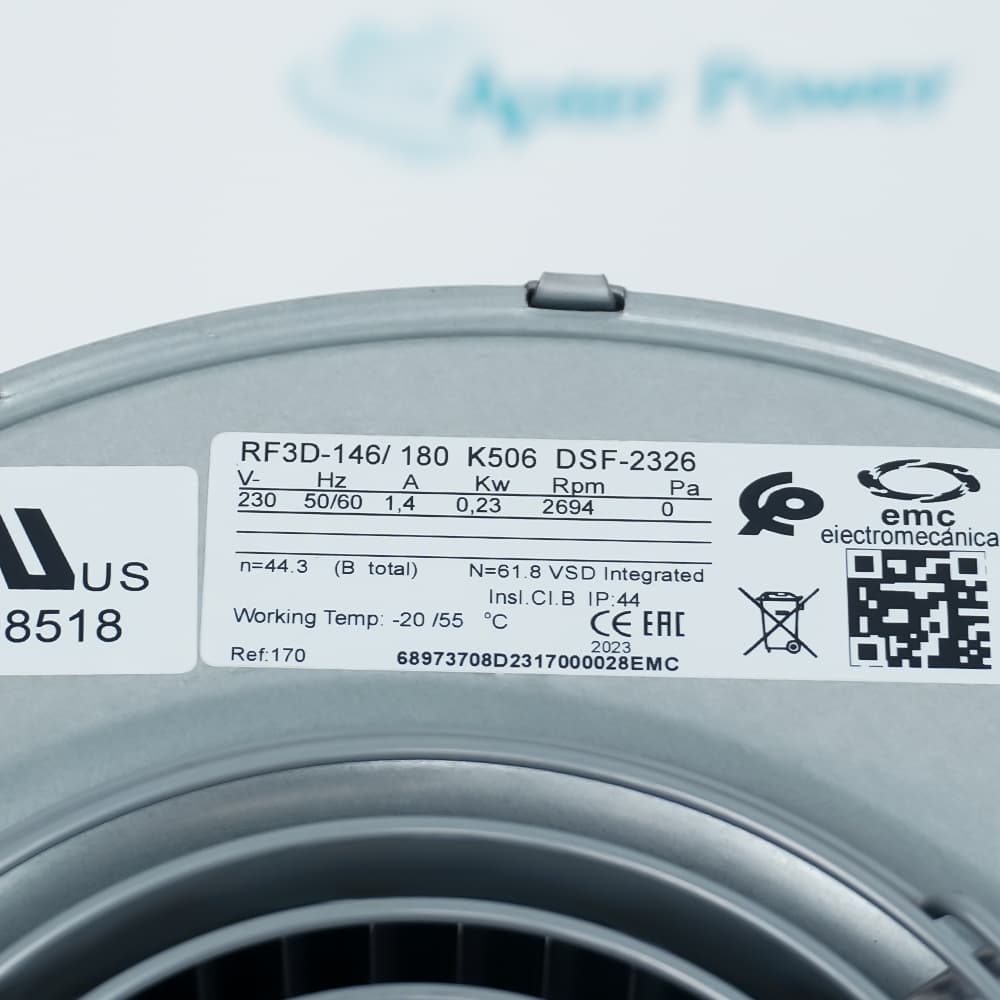

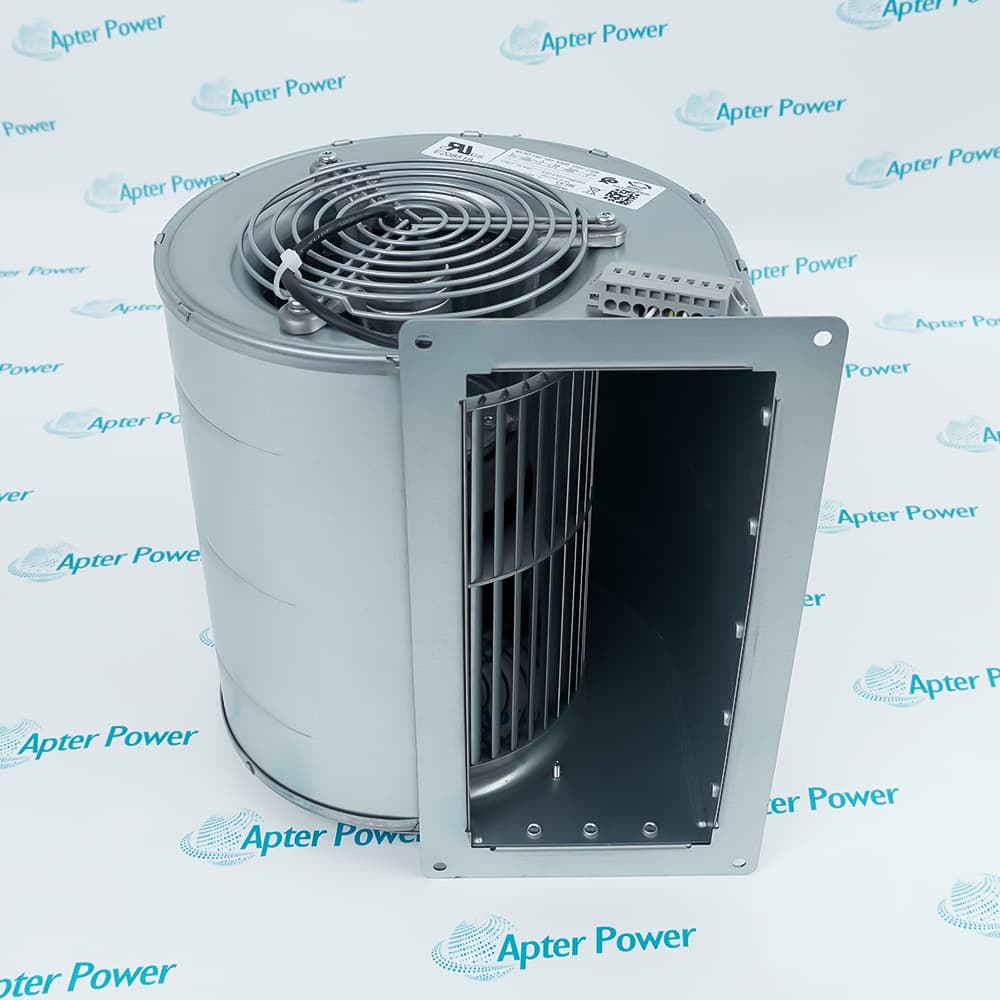

ABB RF3D-146-180 K506 DSF-2326 is a 230 V AC, 230 W EC centrifugal drive cooling fan rated at 1.4 A and 2694 rpm.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for RF3D-146-180 K506 DSF-2326
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for RF3D-146-180 K506 DSF-2326

  • Manufacturer:
    ABB
  • Part Number:
    RF3D-146-180 K506 DSF-2326
  • Product Family:
    ABB Drives
  • Product Type:
    EC Centrifugal Fan
  • Stock:
    1
  • Voltage Rating:
    230 V AC
  • Power:
    230 W
  • Current:
    1.4 A
  • Rotational Speed:
    2694 rpm
  • Frequency:
    50/60 Hz
  • Bearing Type:
    Dual ball bearing
  • Weight:
    4.7 kg
  • Estimated shipping dimensions:
    20.5 × 21.9 × 27 cm
  • Tariff Code:
    8414593000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Compatibility Cooling Replacement Application

Features:

  • 230 V AC EC centrifugal drive cooling fan
  • 230 W power, 1.4 A current, and 2694 rpm speed
  • Dual ball-bearing construction without a traditional external running capacitor
RF3D-146-180 K506 DSF-2326 is the complete ABB type designation and should be used for identification.

Confirm the electrical supply, mounting, connector, airflow direction, and supported ABB drive before installation.

ABB identifies D3G146-AB06-10 under code 3AXD50000042302 as the new long-life replacement fan type.
ABB RF3D-146-180 K506 DSF-2326 Drive Cooling Fan Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • ABB product-specific part data lists this fan for ACS800-304 and ACS800-704 drive modules
  • Listed ACS800-304 uses are 0320-7 +V992, 0325-7 +V991, 0450-7 +V992, and 0455-7 +V991
  • Listed ACS800-704 uses are 0640-7 +V992, 0645-7 +V991, 0910-7 +V992, and 0915-7 +V991

Cooling

  • EC centrifugal fan construction
  • 2694 rpm published rotational speed
  • Dual ball bearings for the documented fan assembly

Replacement

  • Use RF3D-146-180 K506 DSF-2326 as the complete previous type designation
  • D3G146-AB06-10 is the ABB new long-life replacement fan type
  • 3AXD50000042302 is the documented ABB replacement code

Application

  • Cooling supported ABB drive installations that use the documented previous fan type
  • Planned fan replacement after supply, mounting, connector, and airflow checks
  • Long-life fan migration using the ABB replacement type after compatibility verification
Description
RF3D-146-180 K506 DSF-2326 is an ABB EC centrifugal fan rated for 230 V AC, 50/60 Hz operation, with 230 W power, 1.4 A current, and 2694 rpm speed.

The fan uses dual ball bearings and the documented EC design does not require a traditional external running capacitor. Confirm the complete designation, electrical supply, mounting, connector, airflow direction, and supported ABB drive before installation.

ABB identifies D3G146-AB06-10 under code 3AXD50000042302 as the new long-life replacement type. Treat this as a replacement relationship that requires installation verification, not as another name for RF3D-146-180 K506 DSF-2326.
Alternative Names
ABB RF3D-146-180 K506 DSF-2326 RF3D-146-180 K506 DSF-2326 RF3D146180K506DSF2326 RF3D 146 180 K506 DSF 2326 ABB RF3D-146-180 RF3D-146-180 RF3D-146-180 K506 ABB Drive Cooling Fan RF3D-146-180 K506 DSF-2326
Technical notes
Confirm the 230 V AC supply, 50/60 Hz, 1.4 A rating, mounting, connector, airflow direction, and supported ABB drive. D3G146-AB06-10 is a replacement type, not an alias.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why must buyers use the complete ABB RF3D-146-180 K506 DSF-2326 designation?
The suffixes K506 and DSF-2326 are part of the official previous type listed by ABB. Using only RF3D-146-180 can omit identification details needed to match the correct fan and replacement relationship.
Does ABB RF3D-146-180 K506 DSF-2326 need an external running capacitor?
No. The documented EC fan design does not use the traditional external running capacitor required by some AC fan constructions. Confirm the existing connector and supply before installation.
Which fan type officially replaces ABB RF3D-146-180 K506 DSF-2326?
ABB lists D3G146-AB06-10 as the new long-life fan type for the previous RF3D-146-180 K506 DSF-2326. This is a replacement relationship and should not be treated as an alternative name for the old fan.
Is 3AXD50000042302 an alternative name for ABB RF3D-146-180 K506 DSF-2326?
No. 3AXD50000042302 is the ABB code shown in the official long-life fan table that links the previous type RF3D-146-180 K506 DSF-2326 to the new type D3G146-AB06-10. It should be recorded as replacement information, not as an alias for the old fan.
What should be physically checked before replacing ABB RF3D-146-180 K506 DSF-2326?
Compare the mounting points, 20.5 × 21.9 × 27 cm envelope and orientation, connector, airflow direction, surrounding clearance, supply, and supported ABB drive before removing the installed fan.
What speed and bearing construction are documented for ABB RF3D-146-180 K506 DSF-2326?
The published fan data specifies 2694 rpm and dual ball-bearing construction. Confirm the complete type designation, supply, mounting, connector, and airflow direction when comparing an installed fan with replacement documentation.
What information should buyers provide when requesting ABB RF3D-146-180 K506 DSF-2326?
Provide the complete type designation, installed ABB drive model, fan nameplate, connector and mounting photos when available, quantity, destination, and whether the request concerns the old type or the new replacement type.
