SDCS-IOB-3 3BSE004086R1

/ 4.9
1001 reviews | Need a Specific Revision?

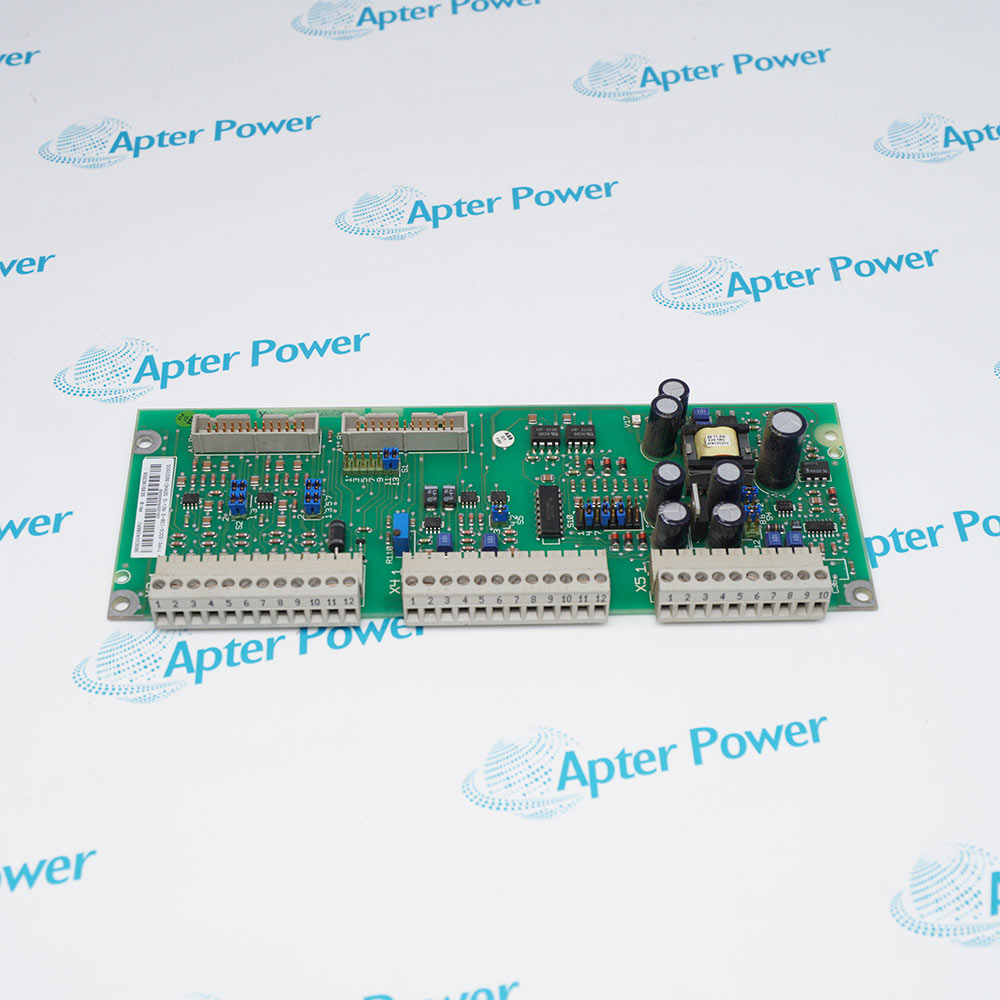

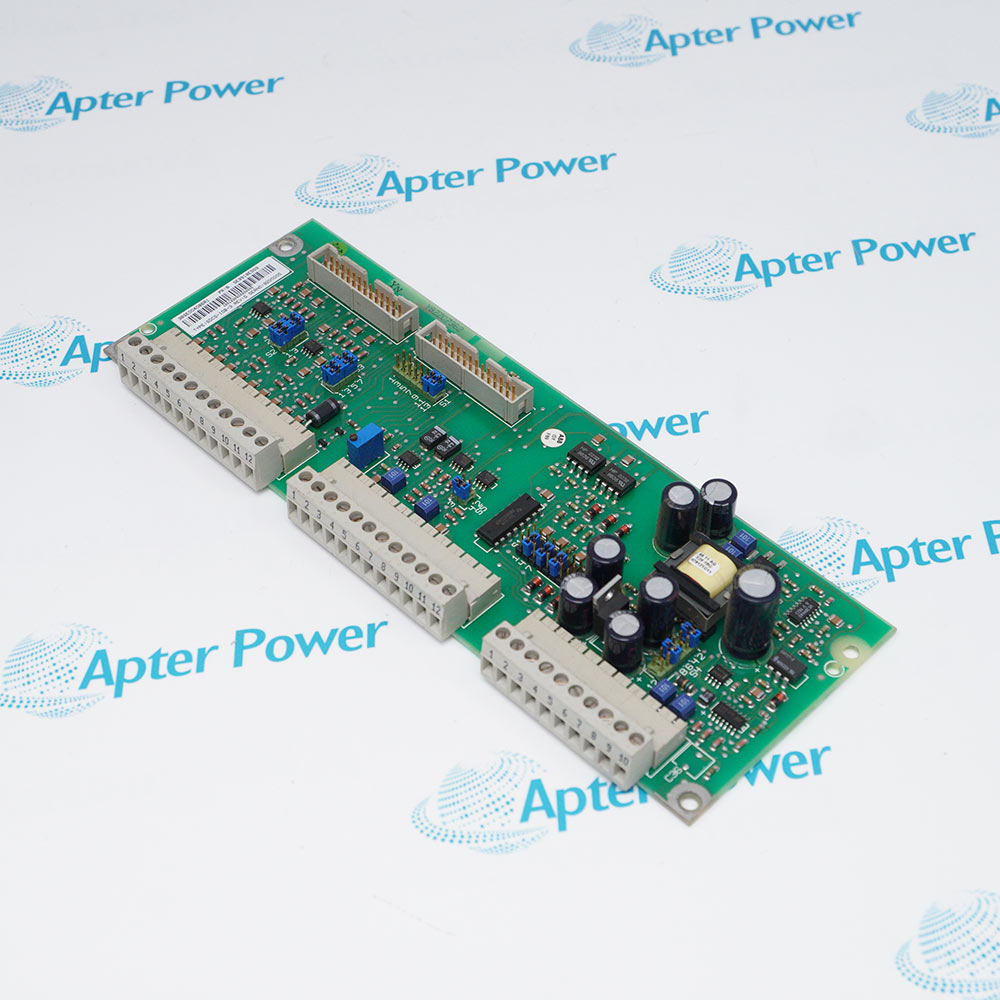

ABB SDCS-IOB-3 3BSE004086R1 is an external analog I/O board with five analog inputs, three analog outputs, temperature-device current sources, and a galvanically isolated encoder interface.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SDCS-IOB-3 3BSE004086R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SDCS-IOB-3 3BSE004086R1

  • Manufacturer:
    ABB
  • Part Number:
    SDCS-IOB-3 3BSE004086R1
  • Product Family:
    ABB Drives
  • Product Type:
    Analog I/O and Pulse Encoder Board
  • Stock:
    1
  • Type Designation:
    SDCS-IOB-3
  • Analog Inputs:
    5
  • Analog Outputs:
    3
  • Standard Voltage Range:
    -10 to +10 V
  • Configurable Current Range:
    -20 to +20 mA or 4 to 20 mA
  • Temperature Inputs:
    PT100 or PTC through board current sources
  • Encoder Interface:
    Galvanically isolated incremental encoder
  • Maximum Encoder Frequency:
    300 kHz
  • Encoder Supply Options:
    5 V at up to 0.25 A or 12/24 V at up to 0.2 A
  • Maximum X1-X2 Cable Length:
    1.7 m
  • Maximum X1-X3 Cable Length:
    0.5 m
  • Official Board Outline:
    23.35 × 8.5 cm
  • Dimensions:
    23.3 × 9 × 3 cm
  • Weight:
    0.2 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Analog Channels Encoder Interface Special Inputs Application
  • Five analog inputs and three analog outputs
  • Configurable voltage, current, and temperature-device interfaces
  • Galvanically isolated incremental-encoder connection

SDCS-IOB-3 3BSE004086R1 is ABB's external analog I/O board for DCS converter systems.

The board provides five analog inputs, three analog outputs, current sources for temperature devices, and a galvanically isolated incremental-encoder interface.

ABB's service manual maps order number 3BSE004086R1 directly to SDCS-IOB-3, and the technical-data manual defines its configurable signal ranges and encoder connections.

Availability, condition, price, and shipping time for SDCS-IOB-3 3BSE004086R1 are confirmed during quotation.

ABB SDCS-IOB-3 3BSE004086R1 Analog I/O Board Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Five analog inputs are provided
  • Three analog outputs are provided
  • Voltage and current ranges are configurable by the documented board settings
  • The encoder interface is galvanically isolated
  • Maximum encoder frequency is 300 kHz
  • Selectable encoder supplies include 5 V and 12 or 24 V
  • Current sources support PT100 and PTC devices
  • AI4 is used by default for residual-current measurement
  • Terminal and jumper configuration determines the active signal mode
  • Analog measurement and command I/O for ABB DCS500B converters
  • Analog and encoder interfacing for ABB DCS600 converters
  • Residual-current detection with the specified external current transformer and board configuration
Description
ABB SDCS-IOB-3 3BSE004086R1 uses jumper and software settings to configure its analog channels for the required voltage, current and feedback signals.

AI4 can be assigned to a 20 mA input, a 10 V input or residual-current monitoring, while the AITAC channel can use the optional PS5311 board when tachometer-voltage scaling is required.

Mount the board outside the converter on conductively grounded supports, limit the X1-to-X2 cable path to 1.7 m and the X1-to-X3 path to 0.5 m, and observe the documented SDCS-CON-2 terminal restrictions.
Alternative Names
SDCS-IOB-3 3BSE004086R1 SDCS IOB 3 3BSE004086R1 ABB SDCS-IOB-3 ABB 3BSE004086R1 3BSE004086R1 SDCS-IOB-3 ABB DCS500 SDCS-IOB-3
Technical notes
SDCS-IOB-3 3BSE004086R1 replacement requires matching analog ranges, current-source settings, encoder supply voltage, terminal assignments, residual-current configuration, cable lengths, and documented converter parameterization before controlled commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can I confirm ABB SDCS-IOB-3 3BSE004086R1 is correct for my drive?
Match the order number, converter, wiring, layout, ranges, jumpers, and control documentation.
Can ABB SDCS-IOB-3 3BSE004086R1 be installed without checking analog configuration?
No. Voltage, current, temperature-input, scaling, and wiring arrangements must agree before energizing it.
Which encoder details must be checked for ABB SDCS-IOB-3 3BSE004086R1?
Confirm supply, current, channels, frequency, polarity, shielding, isolation, connectors, and feedback parameters.
Can ABB SDCS-IOB-3 3BSE004086R1 directly replace a different SDCS I/O board?
Do not assume interchangeability; compare type, order number, functions, cabling, terminals, mounting, and documentation.
What should be recorded before removing ABB SDCS-IOB-3 3BSE004086R1?
Photograph connectors and jumpers, label wiring, record ranges and encoder supply, and save parameters and calibration data.
What commissioning checks follow installation of ABB SDCS-IOB-3 3BSE004086R1?
Validate analog channels, temperature input, encoder direction and stability, shielding, scaling, alarms, and interlocks.
What information is needed to quote ABB SDCS-IOB-3 3BSE004086R1?
Provide order number, photos, converter model, configuration, encoder data, condition, quantity, and destination.
