TZIDC V18345-2010421001

/ 4.9
1001 reviews | Need a Specific Revision?
ABB TZIDC V18345-2010421001 is a digital positioner that converts a 4–20 mA setpoint into double-acting pneumatic actuator control with fail-safe action.
In Stock
Fast Shipping Available
Get a quick price for TZIDC V18345-2010421001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

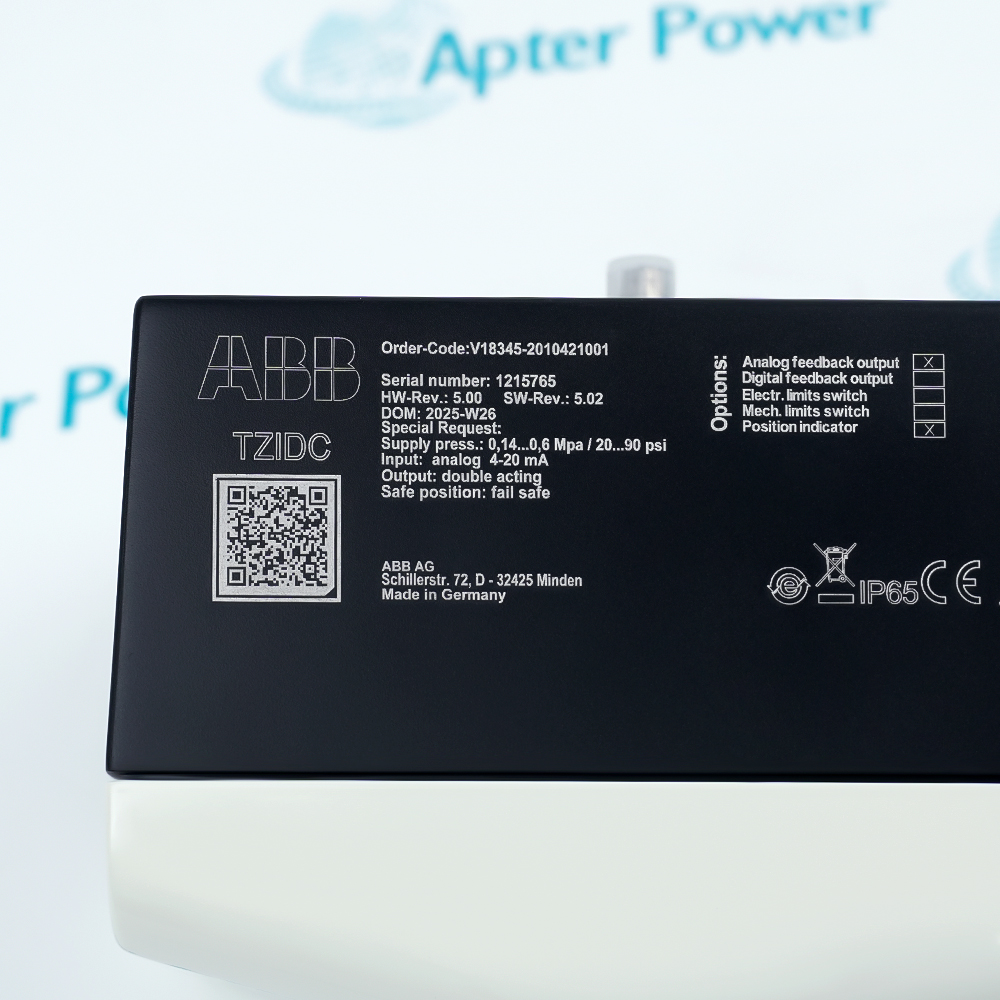

Technical specifications for TZIDC V18345-2010421001

  • Manufacturer:
    ABB
  • Part Number:
    TZIDC V18345-2010421001
  • Product Family:
    ABB Electrical
  • Product Type:
    TZIDC Double-Acting Digital Positioner with Analog Feedback
  • Stock:
    1
  • Housing and indicator:
    Varnished aluminum case with mechanical position indicator
  • Actuator mounting:
    Linear DIN/IEC 534/NAMUR or rotary VDI/VDE 3845
  • Setpoint input:
    4–20 mA, two-wire
  • Local communication:
    Connector for LCI adapter
  • Explosion-protection option:
    None
  • Electrical-failure response:
    Fail safe
  • Cable / air connections:
    1/2-14 NPT / 1/4-18 NPT
  • Position feedback:
    Plug-in 4–20 mA two-wire analog feedback module
  • Mechanical digital feedback:
    None
  • Design code:
    Standard
  • Supply-air range:
    1.4–6 bar (20–90 psi)
  • Actuator travel limit:
    Configurable within 0–100%, minimum span 20%
  • Travel-time extension:
    0–200 s, set separately by direction
  • Weight:
    3.748 lbs (1.7 kg)
  • Estimated shipping dimensions:
    17.2x11.5x11.2cm
  • Tariff Code:
    9032810000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Signal Path Pneumatic Action Feedback Installation

Features:

  • Processes a 4–20 mA two-wire setpoint for closed-loop pneumatic actuator positioning.
  • Uses double-acting pneumatics with fail-safe behavior after an electrical supply loss.
  • Returns valve position through the installed two-wire 4–20 mA analog feedback module.
ABB TZIDC V18345-2010421001 combines the TZIDC controller, I/P converter and pneumatic amplifier in one positioner.

Its mechanical indicator follows the feedback shaft independently of the electrical position-return signal.

NPT cable and air connections define the external wiring and compressed-air paths for this configuration.

The ABB TZIDC V18345-2010421001 Double-Acting Digital Positioner may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB TZIDC V18345-2010421001 Digital Positioner Manuals,Datasheets,LinkImportant Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Electronic-to-Pneumatic Control Chain

  • Setpoint Input: The two-wire 4–20 mA input supplies the position setpoint to the electronic controller.
  • Position Comparison: The controller compares the requested value with the feedback-shaft position.
  • Pneumatic Conversion: The I/P stage converts the resulting correction into pneumatic pressure for the actuator.

Double-Acting Air Circuit

  • Output Paths: Separate pneumatic paths operate the two sides of a double-acting actuator.
  • Fail-Safe Response: The fail-safe arrangement defines the air-path response when electrical power disappears.
  • Air Supply: Supply air enters through the 1/4-18 NPT connection and is metered by the internal amplifier.

Mechanical and Analog Position Return

  • Local Indicator: The mechanical disc provides a local indication linked to the feedback shaft.
  • Analog Return: The installed analog module provides a separate two-wire 4–20 mA position-return circuit.
  • Circuit Separation: Feedback and setpoint paths remain separate so each can be checked during commissioning.

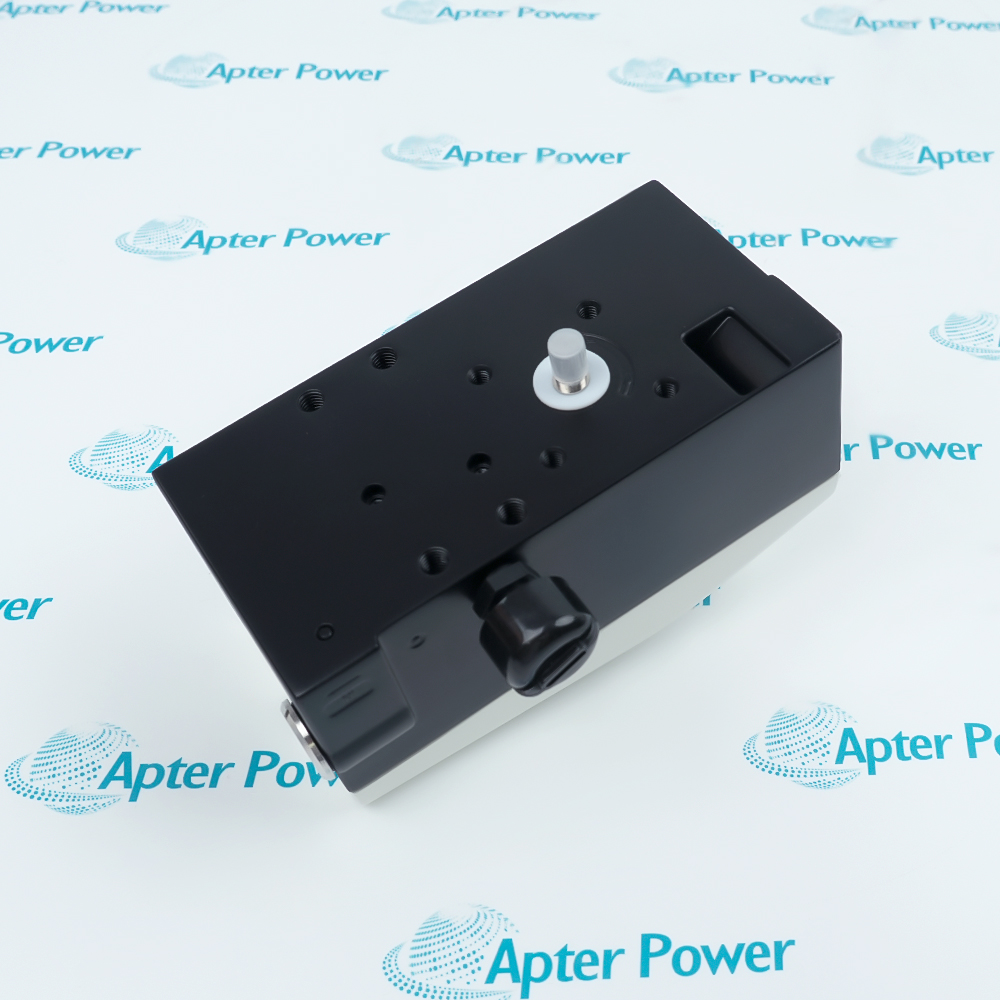

Actuator Mounting and Local Setup

  • Linear Mounting: The housing supports linear-actuator mounting to DIN/IEC 534/NAMUR arrangements.
  • Rotary Mounting: Rotary mounting follows the VDI/VDE 3845 mechanical interface.
  • Local Setup: The LCI adapter connection provides a local configuration path without replacing the setpoint wiring.
Description
ABB TZIDC V18345-2010421001 is a configurable digital positioner in the ABB TZIDC family for linear or rotary pneumatic actuators. This exact configuration combines the varnished aluminum housing and mechanical position indicator with double-acting, fail-safe pneumatic control.

The 4–20 mA two-wire setpoint entering ABB TZIDC V18345-2010421001 is processed by the position controller and converted through the I/P stage into the air-flow changes that move the actuator. When the requested position is reached, the pneumatic valve centers to hold the actuator while limiting steady air consumption.

For commissioning, ABB TZIDC V18345-2010421001 uses the local LCI adapter connection, while the installed analog-feedback module returns a separate 4–20 mA position signal. Its NPT electrical and pneumatic ports define the field connections, and the fail-safe output path determines the actuator response if electrical power is lost.
Alternative Names
V18345-2010421001 V183452010421001 V18345 2010421001 ABB V18345-2010421001 ABB TZIDC V18345-2010421001 TZIDC V18345 2010421001 TZIDC V18345-20-1-0-4-2-1-00-1 V18345-2010421001 TZIDC Digital Positioner
Technical notes
ABB TZIDC V18345-2010421001 combines double-acting fail-safe pneumatics, NPT connections and a 4–20 mA analog feedback module in the TZIDC housing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does ABB TZIDC V18345-2010421001 move a double-acting pneumatic actuator?
ABB TZIDC V18345-2010421001 compares the 4–20 mA setpoint with shaft feedback, then meters air through two output paths to correct actuator position.
Which feedback signals are available on ABB TZIDC V18345-2010421001?
A local mechanical indicator follows the shaft, while ABB TZIDC V18345-2010421001 also returns position through its installed two-wire 4–20 mA analog module.
What happens to ABB TZIDC V18345-2010421001 when electrical power is lost?
The fail-safe pneumatic configuration of ABB TZIDC V18345-2010421001 drives its outputs to the documented safety response instead of holding the last command electrically.
Where is ABB TZIDC V18345-2010421001 configured during commissioning?
Configuration can be performed locally through the LCI adapter connection on ABB TZIDC V18345-2010421001 while the normal setpoint circuit remains connected.
Which actuator interfaces accept ABB TZIDC V18345-2010421001?
ABB TZIDC V18345-2010421001 mounts to linear actuators using DIN/IEC 534/NAMUR arrangements or to rotary actuators using VDI/VDE 3845 hardware.
Why must the NPT connection code be checked for ABB TZIDC V18345-2010421001?
The exact ABB TZIDC V18345-2010421001 configuration uses 1/2-14 NPT cable entry and 1/4-18 NPT pneumatic ports, which determine the required glands and fittings.
