87TS01K-E GJR2368900R2200

/ 4.9
1001 reviews | Need a Specific Revision?

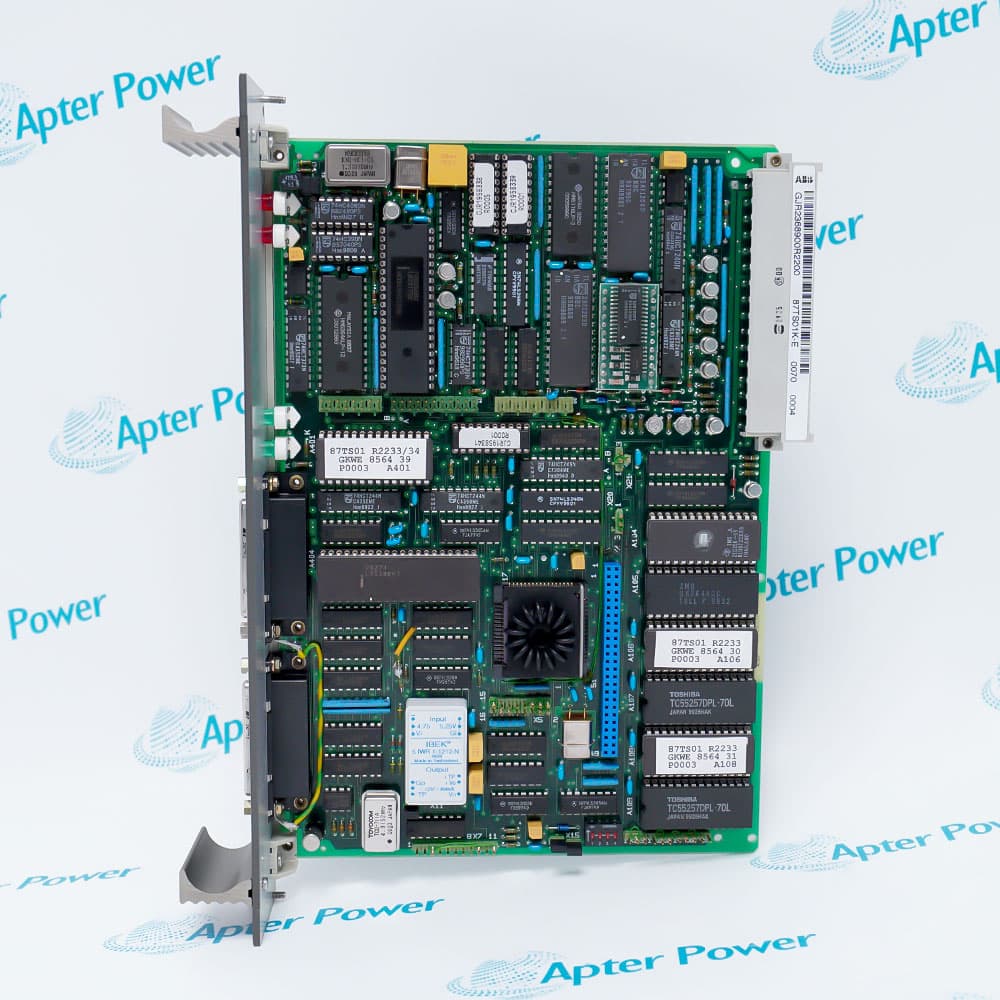

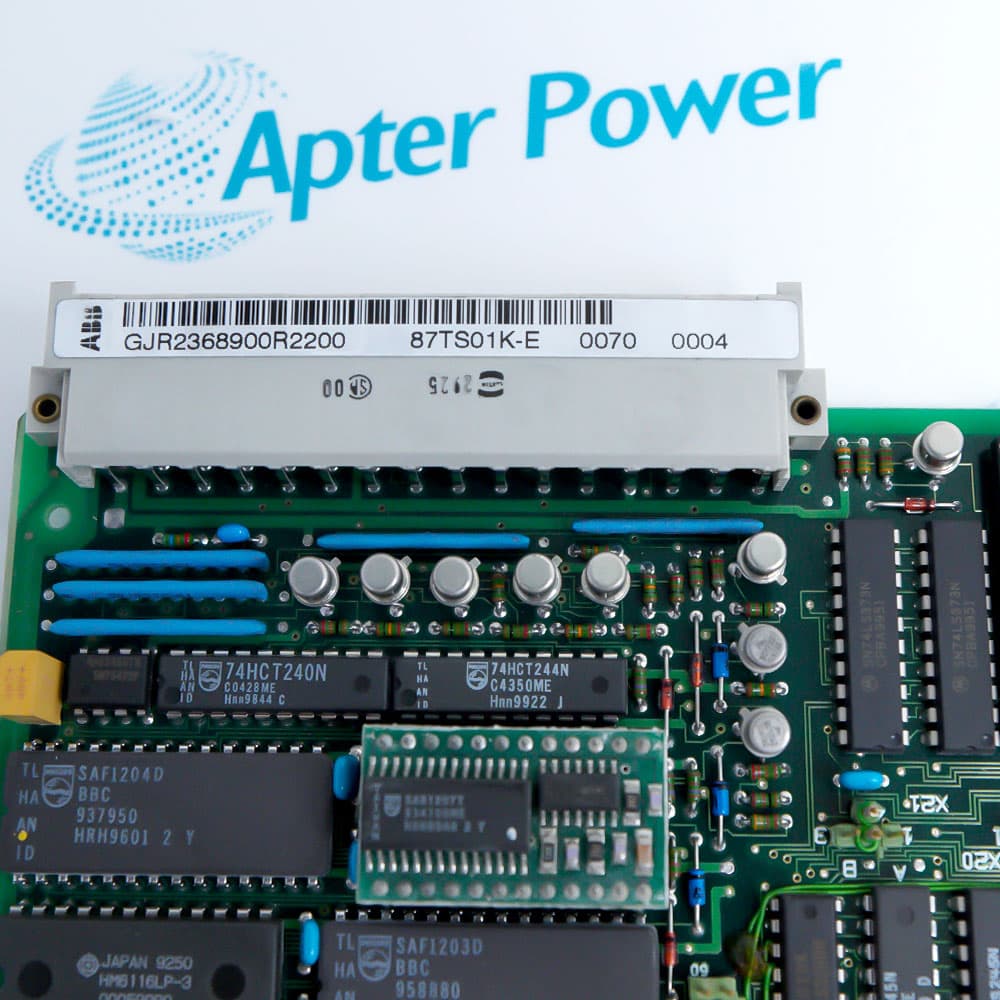

The ABB 87TS01K-E GJR2368900R2200 is a coupling module for Procontrol P14, featuring dual RS-232C/RS-422 serial interfaces with 300-19200 baud rate and 24V DC power.
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 87TS01K-E GJR2368900R2200
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 87TS01K-E GJR2368900R2200

  • Manufacturer:
    ABB
  • Part Number:
    87TS01K-E GJR2368900R2200
  • Product Family:
    ABB Procontrol
  • Product Type:
    Coupling Module
  • Power Supply:
    UD+ = +24 V DC
  • Current Consumption:
    IDtyp = 340 mA
  • Power Dissipation:
    Pvtyp = 8.2 W
  • Baud Rate:
    300 – 19200 baud
  • RS-232C Transmission Distance:
    Max. 20 m
  • Serial Interfaces:
    2 × RS-232C or RS-422 (X1, X2)
  • 2 × RS-232C or RS-422 (X1, X2):
    Max. ±25 V
  • Output Voltage (RS-232C):
    Max. ±12 V
  • Output Current:
    10 mA
  • Short-Circuit Current:
    Max. 150 mA
  • Operating Temperature:
    0°C to +70°C
  • Storage Temperature:
    -40°C to +85°C
  • Weight:
    0.5 kg
  • Estimated shipping dimensions:
    4x19.8x26.1cm
  • Tariff Code:
    8483600090
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Operating Environment Monitoring & Control

Features:

  • Two RS-232C/RS-422 ports with 300-19200 baud rate for flexible external connectivity
  • Interfaces external devices to Procontrol P14 bus with automatic telegram verification
  • Enables online module replacement without interrupting system operation
The 87TS01K-E GJR2368900R2200 is equipped with two serial ports (X1 and X2) that support both RS-232C and RS-422 protocols, selectable via configuration . This flexibility allows connection to a wide range of external devices: RS-232C for short-range connections up to 20 meters (e.g., local laptops or engineering terminals), and RS-422 for longer links where required. Baud rates are configurable from 300 to 19200 baud, with default setting ensuring compatibility with most industrial communication requirements.

The 87TS01K-E GJR2368900R2200 serves as a coupling module that connects the cabinet to a channel of the PROCONTROL remote bus . It automatically checks all telegrams received from the station bus to ensure error-free transmission . The module acts as an interface that adapts external process signals to the internal signal levels of the PROCONTROL system, protecting sensitive internal logic from external electrical noise or mismatched levels . It participates in data communication within the PROCONTROL system using standard interfaces.

The 87TS01K-E GJR2368900R2200 supports hot-swapping technology, allowing maintenance and replacement without interrupting system operation . Upon insertion, the module automatically loads its stored EEPROM configuration, loading the correct station bus parameters without requiring engineering downloads . This reduces mean time to repair (MTTR) for field technicians. The module also features comprehensive monitoring mechanisms that can detect transmitter power short circuits, line breaks, and internal hardware faults in real time, issuing immediate alarms via front panel indicator lights or the system bus.

The ABB 87TS01K-E GJR2368900R2200 ABB Coupling Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

ABB 87TS01K-E GJR2368900R2200 Coupling Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB 87TS01K-E GJR2368900R2200 Coupling Module Specs

General

  • Manufacturer ABB
  • Model 87TS01K-E GJR2368900R2200
  • Condition New Original ready stock
  • Product Family 87TS01I-E GJR2368900R2550,87TS01E GJR2368900R2340 87TS01K-E
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Generation (Primary Domain): Widely utilized in fossil-fuel plants, combined-cycle gas turbine (CCGT) stations, nuclear facilities, and hydroelectric plants.
  • Turbine Protection & Control: Used as a communication link for steam and gas turbine overspeed protection, open-loop, and closed-loop control systems.
  • Heavy Utilities: Implemented in massive waste-to-energy plants and industrial boiler control configurations.
  • Substation Automation: Embedded within large AC/DC high-voltage distribution facilities to bridge processing stations with substation monitoring layers.
  • Installation Environment: Standard Procontrol P13 multi-slot subracks inside rugged, EMC-shielded industrial cabinets.
  • Electrical Environment: Powered directly via the local bus backplane with internally regulated and isolated operational voltages (typically 24Vdc architecture).
  • Robustness & Immunity: Designed with robust physical layering to handle severe industrial electromagnetic interference (EMI) generated by high-power turbine generators and surrounding switches.
  • System-Wide Bridge: It translates internal P13 local bus traffic over to an external computer network via its front-panel serial interface configurations (RS-232c or RS-422).
  • HMI Communication Gateway: Serves as the crucial link allowing Process Operator Stations (POS) or PC-based SCADA systems to read real-time plant parameters and execute manual control overrides.
  • Configuration Port: Enables seamless interface with ABB Procontrol Programming, Diagnosis and Display Systems (PDDS) or Control Diagnosis Stations (CDS) to monitor the health of all decentralized local stations.
Description
The ABB 87TS01K-E GJR2368900R2200 is a coupling module designed for the Procontrol P14 distributed control system . This module serves as a communication gateway, enabling external devices such as computers or engineering stations to interface with the Procontrol station bus.

The ABB 87TS01K-E GJR2368900R2200 features two serial interfaces supporting RS-232C or RS-422 protocols with transmission rates from 300 to 19200 baud . The 87TS01K-E GJR2368900R2200 operates on a +24V DC supply with typical current consumption of 340 mA and power dissipation of 8.2 W.

The ABB 87TS01K-E GJR2368900R2200 automatically checks all telegrams received from the station bus to ensure error-free transmission . The 87TS01K-E GJR2368900R2200 acts as an interface that adapts external process signals to internal signal levels, protecting internal logic from external electrical noise.

The ABB 87TS01K-E GJR2368900R2200 features compact dimensions and operates within a temperature range of 0°C to +70°C. The 87TS01K-E GJR2368900R2200 is suitable for fossil fuel power plants, nuclear facilities, and large-scale industrial processes requiring high-speed data transfer.
Alternative Names
87TSO1K-E GJR23689OOR22OO 87TS0IK-E GJR2368900R2200 87TS01K E GJR2368900R2200 87TS01E GJR2368900R2340 87TS01K-E 87TS01I-E GJR2368900R2550 DSBC173A 3BSE005883R1 3BHE028761R2004 GDC806 A2004 GHV0360875R0035 810-281670-004
Technical notes
The ABB 87TS01K-E GJR2368900R2200 is a coupling module for Procontrol P14 DCS. It provides dual RS-232C/RS-422 interfaces (300-19200 baud), operates on +24V at 340 mA, and supports hot-swap. It features automatic telegram error checking and operates from 0°C to +70°C.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the 87TS01K-E GJR2368900R2200?
It connects external devices (computers, engineering stations) to the Procontrol P14 station bus via dual RS-232C/RS-422 interfaces for data communication
What communication interfaces does the 87TS01K-E GJR2368900R2200 support?
It features two serial ports supporting RS-232C (20m max) or RS-422 with baud rates from 300 to 19200 baud
What is the power requirement of the 87TS01K-E GJR2368900R2200?
It operates on +24V DC with typical current consumption of 340 mA and power dissipation of 8.2 W
Does the 87TS01K-E GJR2368900R2200 support online replacement?
Yes, it supports hot-swap functionality, allowing maintenance without system interruption
