Features:
- Connects Procontrol P14 cabinets to remote bus channels via RS485 interface
- Detects distorted telegrams, long transmitters, and measures signal levels
- Supports single/dual channels with up to 32 remote connections and 115,200 baud

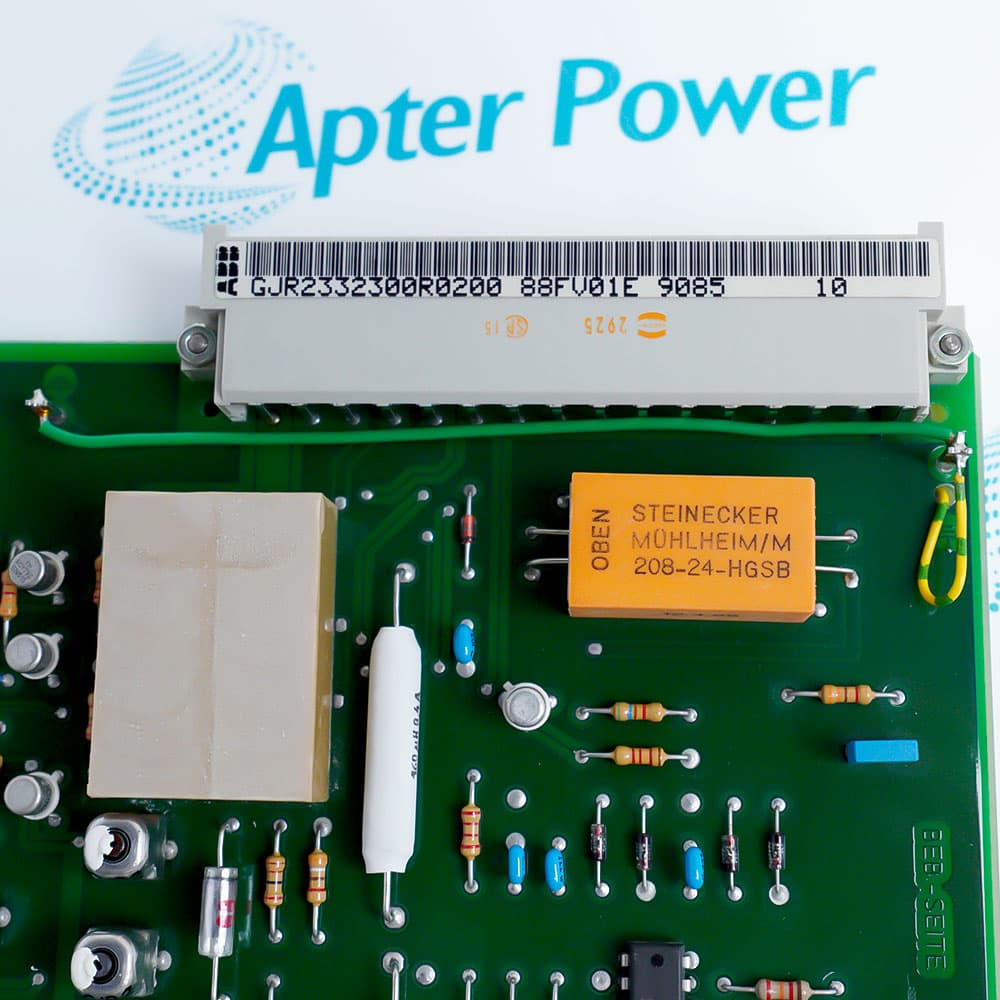

The 88FV01E GJR2332300R0200 serves as a master station modem module that connects cabinets to a channel of the Procontrol remote bus . The module transfers station bus data across the remote bus, ensuring seamless communication between the master control station and remote field devices in distributed control systems . It is typically used with the 88TK05 station bus coupling module and connects to the remote bus via a pair of incoming and outgoing dual-axis cables.
The 88FV01E GJR2332300R0200 incorporates comprehensive data monitoring mechanisms to ensure communication reliability . It continuously monitors telegrams received from the remote bus, detecting distorted characters to guarantee fault-free data transfer across the station bus . The module also monitors telegram transmitters to detect and prevent excessively long transmission signals, protecting the bus from being monopolized by a single faulty node . Additionally, it monitors noise transmitters for excessively long noise signals, ensuring interference does not disrupt the entire remote bus segment.
The 88FV01E GJR2332300R0200 supports flexible configuration options to suit various system requirements . It supports both single-channel and dual-channel configurations, with each channel capable of managing up to 32 remote bus connections. This scalability makes the 88FV01E GJR2332300R0200 suitable for systems ranging from small installations to large, complex automation networks. The module is manufactured in Switzerland or Sweden and operates reliably from -20°C to +70°C with storage capability from -40°C to +85°C, ensuring performance in harsh industrial environments.
The 88FV01E GJR2332300R0200 ABB Master Station Modem Module may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
ABB 88FV01E GJR2332300R0200 Master Station Modem Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB 88FV01E GJR2332300R0200 Master Station Modem Module Specs
General
- Manufacturer ABB
- Model 88FV01E GJR2332300R0200
- Condition New Original ready stock
- Product Family
88FN02B-E GJR2370800R0200,GJR2332200R0100 88FT01D,GJR2370800R0200 88FN02A-E
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- Power Plant Automation (Core Application): Deployed as the backbone communication gateway connecting the central control room with remote sections like boiler islands, turbine halls, and water treatment facilities.
- Large-Scale District Heating: Manages remote data transmission between widespread heat generation stations and central dispatch hubs.
- Hydroelectric and Dam Control: Links decentralized generation units located far away from the main command facility over long physical distances.
- Substation and Switchyard Networks: Coordinates real-time signaling between high-voltage switchgear equipment and the primary plant DCS.
- Bus Architecture Role: Acts as the master interface for managing remote bus lines (Fernbus) or localized intra-plant telemetry.
- Signal Modulation: Converts internal digital logic signals from the P13 backplane into robust frequency-modulated or phase-modulated analog signals capable of traveling miles without distortion.
- Media Connectivity: Typically connects to dedicated twisted-pair copper infrastructure, shielded coaxial setups, or specialized media converters (such as fiber optic modems) for maximum electrical isolation.
- Topology Support: Governs multidrop or point-to-point topologies, executing cyclic and acyclic data pooling to ensure time-critical plant metrics reach operator screens instantly.
- Intrinsic Fault Isolation: Built with galvanic separation on communication lines to prevent a localized electrical surge (like a lightning strike on external wiring) from destroying the entire DCS cabinet.
- Redundancy Management: Supports dual-channel or parallel line configurations. If one communication line fails, the module safely hot-swaps data routing to the backup line without interrupting plant operations.
- EMC / RFI Compliance: Certified to meet rigid industrial Electromagnetic Compatibility (EMC) standards, ensuring resistance against high-frequency radiation from power grids and major motor drives.
- Fail-Safe Integrity: Incorporates hardware watchdog timers and integrated loopback diagnostics. If communication breaks down entirely, it immediately signals a "Bus Fault" to the main controller to initiate pre-programmed safe shutdown sequences.
