    Apter Power delivers genuine ABB PROCONTROL modules to maintain high-speed network integration across vintage industrial automation systems.

GJR2397000R1210 88TK50A-E

/ 4.9
1001 reviews | Need a Specific Revision?

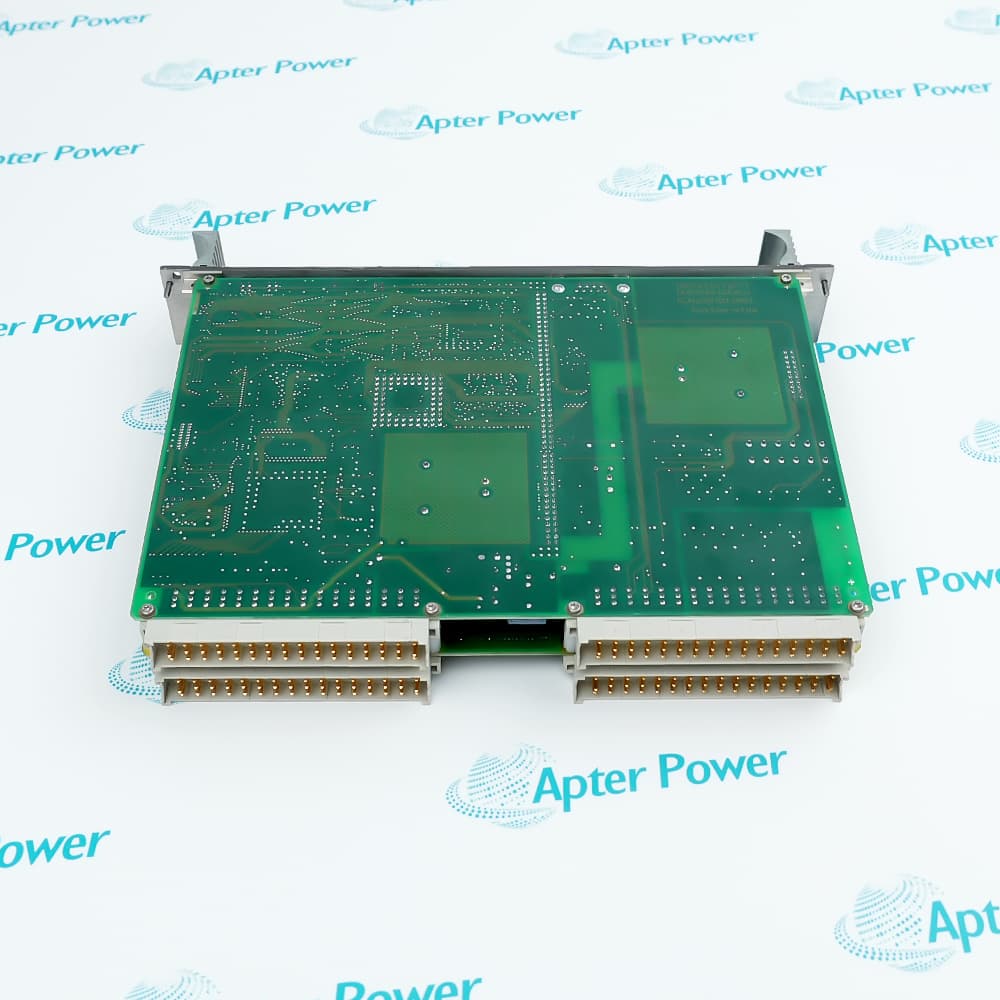

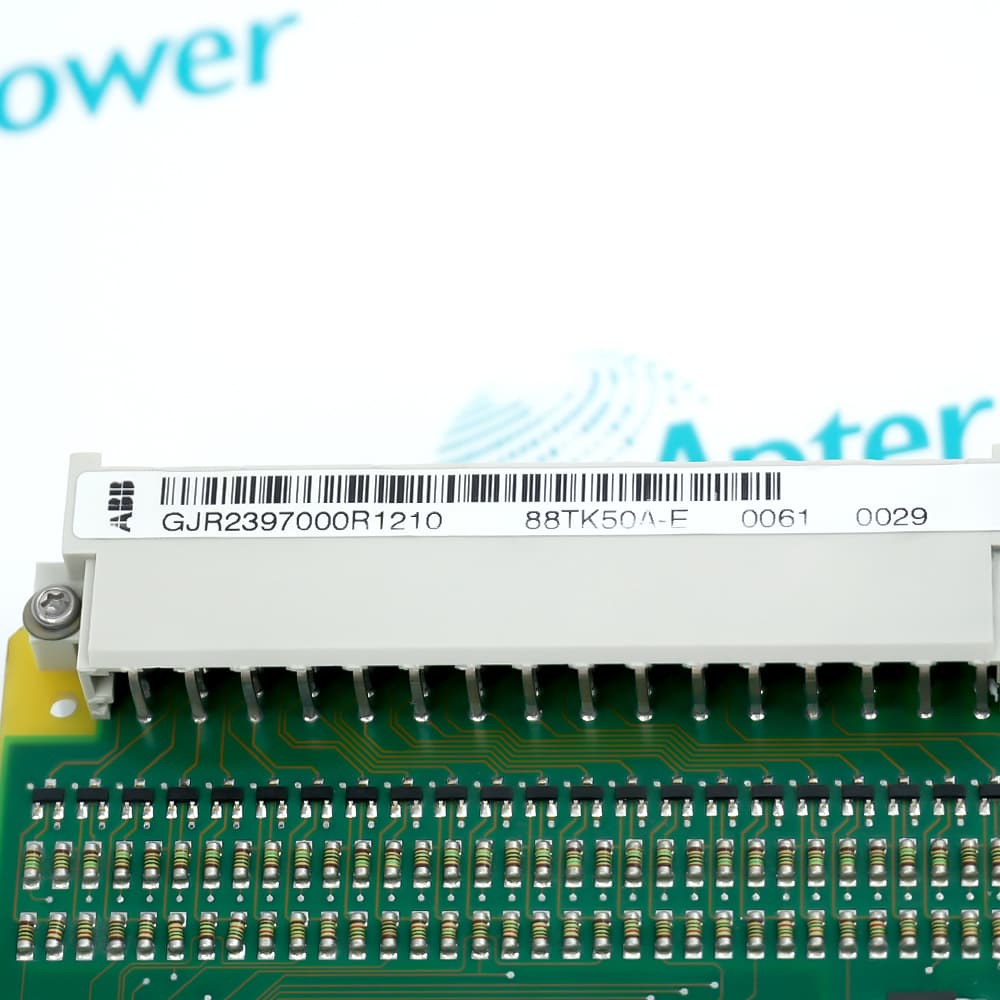

The ABB GJR2397000R1210 88TK50A-E coupling module is designed to integrate PROCONTROL control stations into industrial control networks.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for GJR2397000R1210 88TK50A-E
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for GJR2397000R1210 88TK50A-E

  • Manufacturer:
    ABB
  • Part Number:
    GJR2397000R1210 88TK50A-E
  • Product Family:
    ABB Procontrol
  • Product Type:
    Coupling Module
  • Stock:
    1
  • Operating voltage for module:
    USA/USB = 24 V
  • Current consumption:
    IS = 750 mA
  • Power dissipation:
    PV = 18 W
  • Reference potential for bus side:
    ZD = 0 V
  • Type of connection:
    Single MAC ---DAS
  • Transmission distance between 2 stations:
    Up to 2 km
  • Maximum number of stations:
    249
  • Extension of FDDI ring:
    Up to 100 km
  • Weight:
    0.8 kg
  • Estimated shipping dimensions:
    1.98x2.61x0.4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Operating Environment Monitoring & Control

Features:

  • Connectivity solution bridging PROCONTROL stations to FDDI-based remote bus infrastructure
  • Integrated optical-fiber communication with dual-channel redundancy support
  • Full compatibility with 24V PROCONTROL module ecosystem and ISO/IEC 9314 standards
The ABB GJR2397000R1210 88TK50A-E serves as the primary coupling module within a PROCONTROL station, establishing robust communication links between the station and the distributed remote bus network. It continuously manages high-integrity data exchange over FDDI ring topology compliant with ISO/IEC 9314 standards, supporting fiber-optic connections spanning up to 2 km between adjacent stations while maintaining overall ring integrity across maximum distances of 100 km. Advanced error protection mechanisms safeguard all transmissions through FDDI-standard generator polynomials and specialized CRC protection for PROCONTROL telegrams, achieving a hamming distance of d=6 for exceptional data reliability. The GJR2397000R1210 88TK50A-E supports both standalone operation and enhanced dual-channel configurations, with the latter providing redundant communication paths through secondary coupling modules for critical applications requiring maximum availability.

As the central communication hub for the entire station, this coupling module directly influences the operational integrity of the complete monitoring and control system. Each PROCONTROL installation requires one GJR2397000R1210 88TK50A-E for standard single-channel operation, or two units when implementing dual-channel redundancy. The module utilizes address assignments 60 or 61 depending on operational mode, with address 62 reserved for system-level functions, and offers flexible mounting options with compatibility for any slot position within standard PROCONTROL cabinets that provide dedicated reserved locations.

When deploying dual-channel station bus coupling, the architecture necessitates installation of a second GJR2397000R1210 88TK50A-E module to establish the redundant pathway. Beyond basic single-channel functionality, this configuration enables sophisticated automatic protocol management and seamless operational handoffs. The redundant coupling system continuously monitors communication health across both channels through dedicated station protocol control circuitry. Should the primary communication path exhibit instability or failure, the system automatically transfers data handling responsibilities to the secondary channel while generating appropriate status notifications through the potential-isolated monitoring interface for cabinet annunciations.

The GJR2397000R1210 88TK50A-E ABB  Coupling Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB GJR2397000R1210 88TK50A-E Coupling Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB GJR2397000R1210 88TK50A-E Coupling Module Specs

General

  • Manufacturer ABB
  • Model GJR2397000R1210 88TK50A-E
  • Condition New Original ready stock
  • Product Family 88TK50R,88TK50R1210,88TK50A-E/1210
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Station Coupling: Connects a PROCONTROL station to an FDDI fiber optic ring.
  • Redundant Networking: Supports redundant operation for high-availability systems, provided both modules use the same firmware.
  • Long-Distance Data Transfer: Facilitates high-speed communication between stations up to 2 km apart, with a total network length of up to 100 km.
  • Distributed Control Systems (DCS): Used in industrial automation environments that require reliable, large-scale data synchronization.
  • Voltage Support: Typically operates on a 24 V DC supply.
  • Industrial Hardening: Specifically designed for demanding industrial communication and control environments.
  • Network Standards: Complies with the ISO/IEC 9314 standard for FDDI ring configurations.
  • Protocol Management: Controls operational activities for data exchange within the station and manages telegram protocols.
  • Diagnostic Indicators: Features front-panel LEDs that display operating states and system disturbances.
  • Address Management: Allows for manual setting of module, station, and system addresses via hardware switches.
  • Data Protection: Uses a generator polynome and specific CRC (Cyclic Redundancy Check) protection to ensure data integrity during transmission.
  • Interfaces: Equipped with two standard station bus interfaces and one potential-isolated interface for cabinet annunciations.
Description
The ABB GJR2397000R1210 88TK50A-E is a specialized coupling module designed for integrating PROCONTROL stations into industrial control networks. This GJR2397000R1210 88TK50A-E module serves as a critical interface component that enables seamless communication between distributed control systems, specifically engineered for applications requiring reliable data exchange across extended distances in process automation environments.

This GJR2397000R1210 88TK50A-E coupling module is specifically designed for connecting PROCONTROL stations to the PROCONTROL remote bus utilizing FDDI (Fiber Distributed Data Interface) ring topology based on optical fiber technology, compliant with ISO/IEC 9314 standards. The GJR2397000R1210 88TK50A-E addresses the challenge of establishing robust communication links between geographically separated control stations, solving the problem of data integrity over long distances by supporting station spacing up to 2 kilometers while maintaining ring integrity across total network lengths not exceeding 100 kilometers. The module ensures protected data transmission through generator polynomial mechanisms specified in FDDI standards, with additional CRC protection for PROCONTROL telegrams packed within FDDI frames, achieving a hamming distance of d=6 for enhanced error detection capabilities.

The GJR2397000R1210 88TK50A-E  is equipped with comprehensive interface capabilities including two standard station bus interfaces, one FDDI ring interface conforming to ISO/IEC 9314 specifications, and provisions for dual-channel station bus coupling through a secondary coupling module. The GJR2397000R1210 88TK50A-E features a potential-isolated monitoring interface for cabinet annunciations, a dedicated test and service interface, and a potential-isolated input for deactivating optical transceivers when required. This GJR2397000R1210 88TK50A-E utilizes module addresses 60 or 61 depending on single-channel or dual-channel operational configuration, with address 62 reserved for specific system functions, offering flexible installation within any slot of the PROCONTROL cabinet with reserved slots available in standard cabinet configurations. The GJR2397000R1210 88TK50A-E is fully compatible with 24 V PROCONTROL modules and incorporates essential functional components including FDDI system interface, station bus interface, station protocol control, send and receive shared memory, address and operating mode configuration capabilities, monitoring interface, dual-channel coupling interface, and comprehensive diagnosis and annunciation functions to ensure reliable operation in demanding industrial automation environments.
Alternative Names
GJR2397000R1210 88TK50A-E 88TK50R 88TK50R1210 88TK50A-E/1210
Technical notes
The ABB GJR2397000R1210 88TK50A-E Coupling Module is a networking component designed to seamlessly connect a PROCONTROL station to a PROCONTROL remote bus utilizing an optical-fiber-based Fiber Distributed Data Interface (FDDI) ring compliant with the ISO/IEC 9314 standard. Engineered for long-distance industrial communication, this module supports a maximum distance of up to 2 km between individual stations and an impressive overall network ring length of up to 100 km, while simultaneously managing critical internal operational activities required for data exchange within the station.
