DDM3U-1-320V-30A-SR

/ 4.9
1001 reviews | Need a Specific Revision?

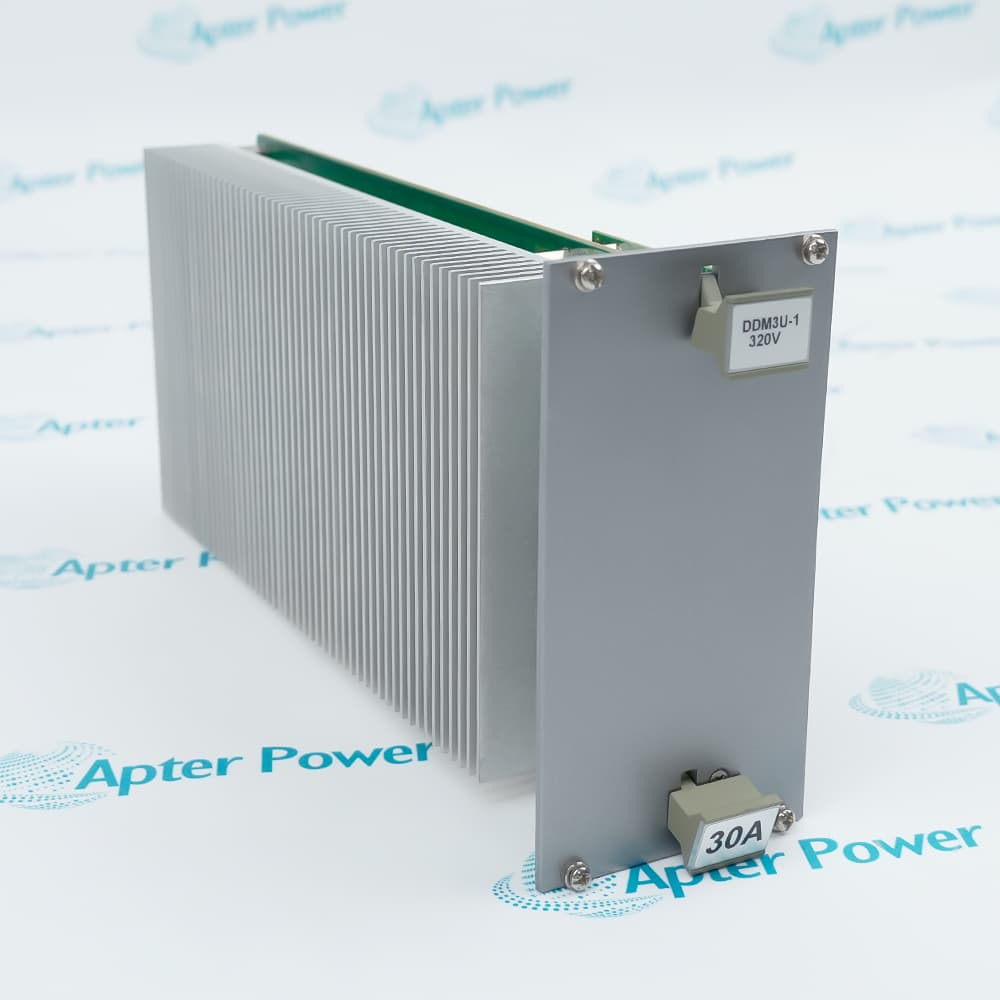

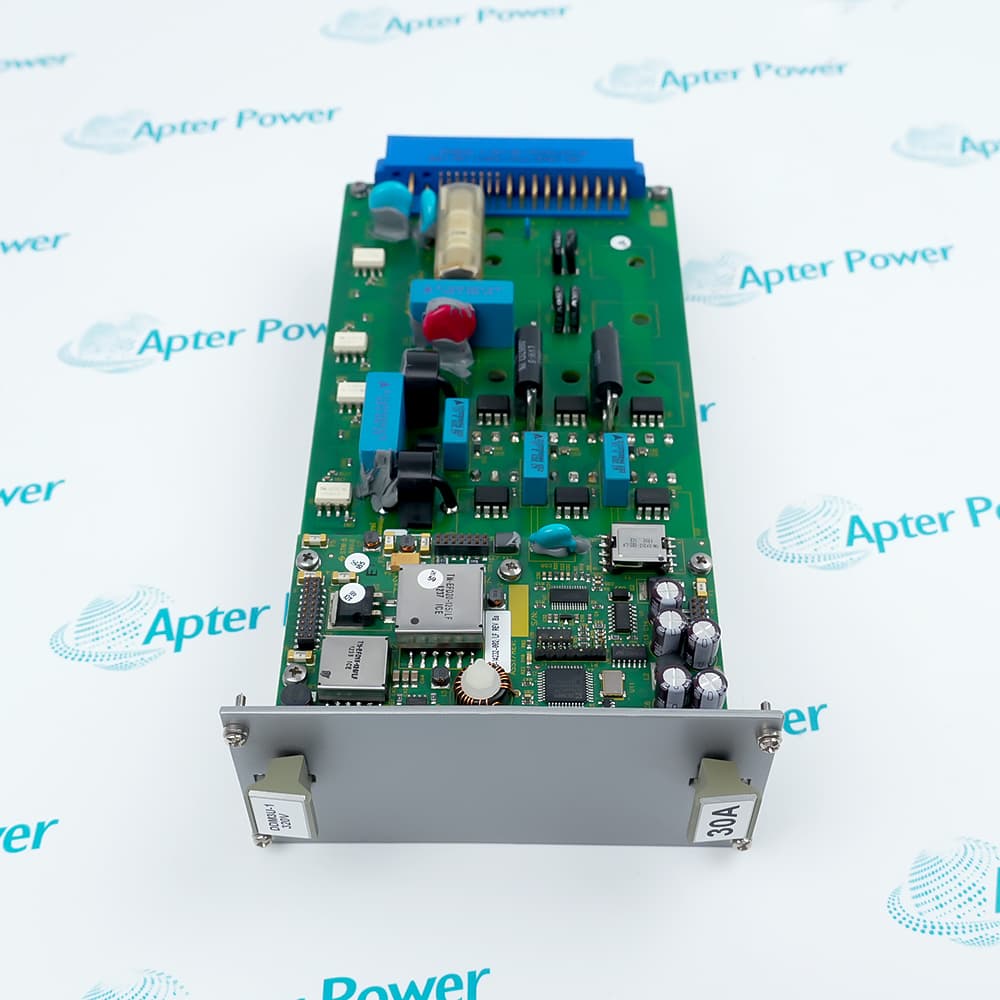

ACS Motion Control DDM3U-1-320V-30A-SR is a one-axis MC4U rack-mounted drive rated 30 A continuous and 60 A peak.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DDM3U-1-320V-30A-SR
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DDM3U-1-320V-30A-SR

  • Manufacturer:
    ACS Motion Control
  • Part Number:
    DDM3U-1-320V-30A-SR
  • Product Family:
    ACS Motion Control
  • Product Type:
    Single-Axis Rack-Mounted Motor Drive
  • Stock:
    1
  • Axis Count:
    1
  • Nominal DC-Bus Range:
    24...320 V DC
  • Minimum / Maximum Input:
    21 / 370 V DC
  • Continuous Current:
    30 A
  • Peak Current:
    60 A
  • Supported Motor Types:
    DC brushless, AC induction, and DC brush motors
  • Controller-Drive Interface:
    MC4U controller-drive interface
  • Safety Function:
    Safe Torque Off
  • Tariff Code:
    8501310000
  • Country of origin:
    Israel
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Control Motors Safety Application
  • One-axis rack-mounted motor drive for a documented MC4U control system
  • Controller-drive interface supports the documented SPiiPlusNT or SPiiPlusDC controller
  • Safe Torque Off supports integration into a separately validated machine-safety circuit

DDM3U-1-320V-30A-SR provides one motor-drive axis within an ACS Motion Control MC4U rack.

Its universal drive technology supports the documented DC brushless, AC induction, and DC brush motor types when the correct feedback and cabling are selected.

Confirm the controller, supply, rack position, motor-feedback combination, cooling, grounding, and Safe Torque Off wiring before commissioning.

Availability, condition, price, and shipping time for DDM3U-1-320V-30A-SR are confirmed during quotation.

ACS Motion Control DDM3U-1-320V-30A-SR MC4U Motor Drive Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The MC4U controller-drive interface commands the drive output current
  • SPiiPlusNT and SPiiPlusDC are the documented controller options for the MC4U system
  • The module provides one PWM axis or one digital axis in the documented rack configuration
  • DC brushless motors are supported by the universal servo-drive technology
  • AC induction motors are included in the documented motor types
  • DC brush motors are supported when the correct feedback and cabling are selected
  • Safe Torque Off is included in the documented MC4U drive capabilities
  • The safety circuit must be wired according to the MC4U installation documentation
  • Machine-level safety performance must be validated for the completed installation
  • Single-axis motion in a modular MC4U control system
  • Motor applications using one of the documented DC brushless, AC induction, or DC brush technologies
  • Installations requiring a rack-mounted drive and a separately validated Safe Torque Off circuit
Description
DDM3U-1-320V-30A-SR is an ACS Motion Control single-axis rack-mounted motor drive for a documented MC4U control system.

The module uses a nominal 24...320 V DC bus, accepts 21...370 V DC, and provides 30 A continuous and 60 A peak current. The documented motor types include DC brushless, AC induction, and DC brush motors.

Before replacement, verify the MC4U controller-drive interface, selected bus supply, motor and feedback combination, axis cabling, cooling, grounding, and Safe Torque Off circuit.
Alternative Names
DDM3U-1-320V-30A-SR DDM3U 1 320V 30A SR DDM3U1320V30ASR ACS DDM3U-1-320V-30A-SR ACS Motion Control DDM3U-1-320V-30A-SR MC4U DDM3U-1-320V-30A-SR DDM3U-1-320V-30A-SR Motor Drive ACS MC4U DDM3U-1-320V-30A-SR
Technical notes
ACS Motion Control DDM3U-1-320V-30A-SR requires the MC4U controller-drive interface, selected DC-bus supply, motor, feedback hardware, cabling, cooling, grounding, and Safe Torque Off circuit to be verified before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which ACS controller is documented for ACS Motion Control DDM3U-1-320V-30A-SR?
ACS documents the drive in an MC4U system controlled through the controller-drive interface by a SPiiPlusNT or SPiiPlusDC controller.
Which motor types can ACS Motion Control DDM3U-1-320V-30A-SR operate?
The official installation information lists DC brushless, AC induction, and DC brush motors for this one-axis drive configuration.
What DC-bus supply must be checked for ACS Motion Control DDM3U-1-320V-30A-SR?
Select the MC4U supply for the documented nominal 24...320 V DC operating range and keep the applied input within the published 21...370 V DC limits.
Does ACS Motion Control DDM3U-1-320V-30A-SR provide Safe Torque Off?
Yes. ACS lists Safe Torque Off for the MC4U drive system; the complete safety circuit must be designed and validated for the machine.
Can ACS Motion Control DDM3U-1-320V-30A-SR replace another DDM3U variant directly?
Do not treat another DDM3U catalog number as a direct substitute. Match the axis count, voltage designation, current rating, rack format, controller interface, and installed connectors.
What should be checked if ACS Motion Control DDM3U-1-320V-30A-SR is being fitted to an existing MC4U rack?
Verify the controller-drive interface, available rack position, DC-bus supply, motor and feedback wiring, cooling, grounding, and safety wiring against the MC4U installation documentation.
Which document should be used when commissioning ACS Motion Control DDM3U-1-320V-30A-SR?
Use the current ACS MC4U installation guide and the documentation for the installed controller, supply, motor, feedback, and safety configuration.
