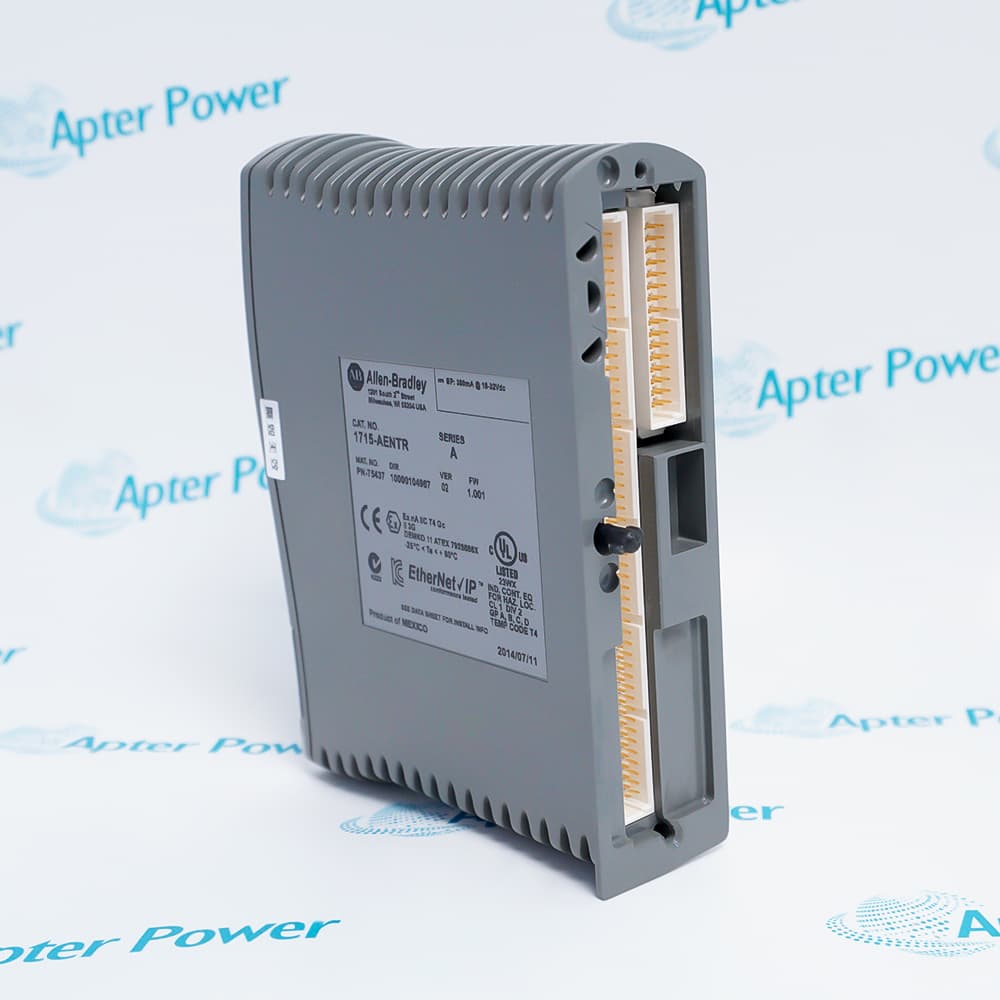

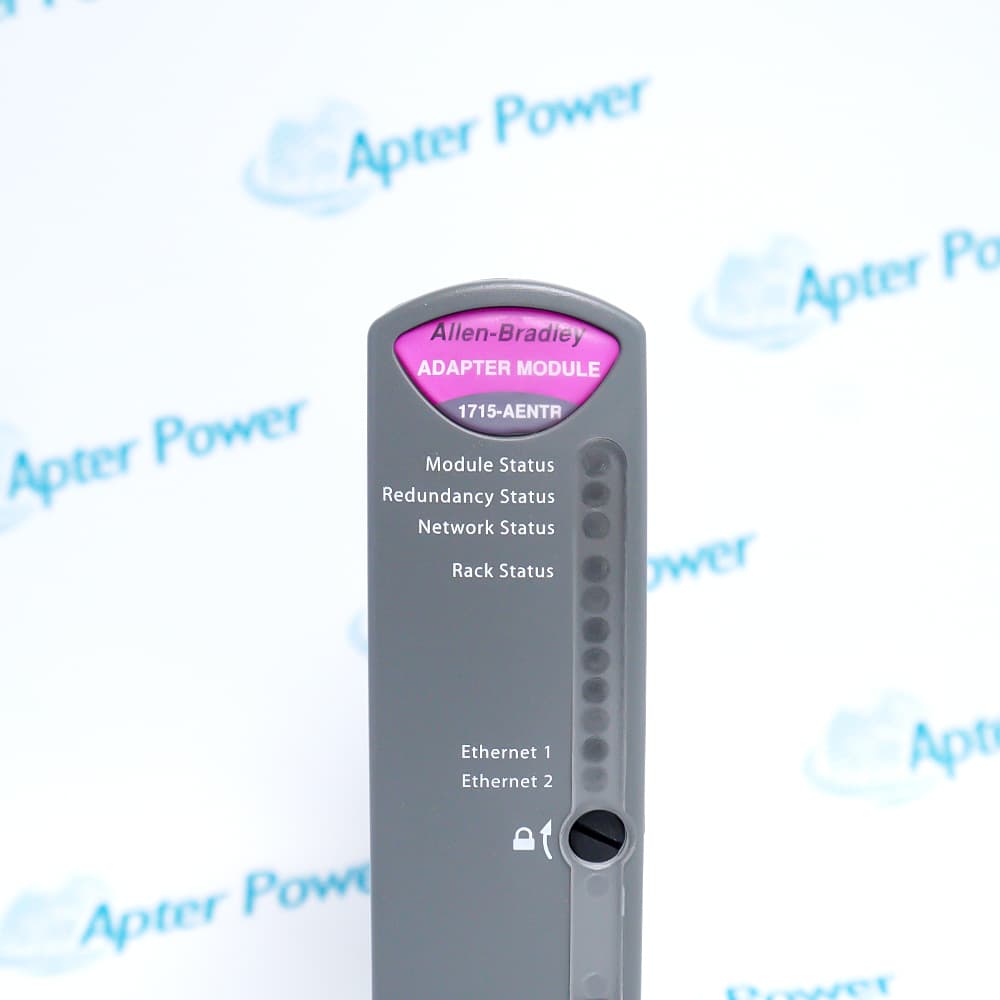

Allen-Bradley 1715-AENTR
Allen-Bradley 1715-AENTR
Allen-Bradley 1715-AENTR
Allen-Bradley 1715-AENTR
Allen-Bradley 1715-AENTR
Allen-Bradley 1715-AENTR
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

     Active / Available from OEM
    Apter Power supplies factory-grade Allen-Bradley hardware, delivering genuine network adapters to maximize uptime and maintain the strict safety integrity of your plant infrastructure.

1715-AENTR

/ 4.9
1001 reviews | Need a Specific Revision?
The 1715-AENTR communication adapter from Allen Bradley is designed for seamless integration within Ethernet/IP networks. This module supports a dual-channel configuration, making it robust for redundant I/O applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1715-AENTR
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1715-AENTR

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1715-AENTR
  • Product Family:
    Redundant I/O System
  • Product Type:
    EtherNet/IP Adapter
  • Stock:
    1
  • Channel Count:
    2 Channels
  • Topology Support:
    DLR, Star
  • Diagnostics:
    Built-in
  • Configuration:
    Plug-and-Play
  • Mounting Method:
    DIN Rail
  • Power Supply:
    18–30 V DC
  • Controller Support:
    ControlLogix
  • Module Style:
    Open-Style
  • Current Draw:
    380 mA
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    4x12.3x16.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Temperature & Humidity Range

Features:

  • Adapter for EtherNet/IP Network Communication in Redundant I/O Systems
  • Integrates Dual-Channel Communication with Flexible Network Topology Support
  • Functions in Conjunction with ControlLogix Controllers and 1715 Redundant I/O Modules
The Allen-Bradley 1715-AENTR operates as the EtherNet/IP Adapter in a 1715 Redundant I/O system, providing reliable network communication for all I/O modules within the system. It continuously facilitates data exchange over EtherNet/IP networks and distributes communication signals through the redundant I/O architecture to support steady state operation of all connected devices. Seamless communication redundancy is inherent with the 1715-AENTR, as the 1715 Redundant I/O system operates with a pair of 1715-AENTR adapters to ensure uninterrupted network connectivity in the event of a primary adapter failure.

The 1715-AENTR provides essential communication functions common to the entire redundant I/O rack, and is a critical component of the control path, directly affecting the proper, normal operation of the overall automation system. A pair of 1715-AENTR adapters are required per redundant I/O system to achieve the desired redundancy level. The 1715-AENTR features an open-style design and is mounted on a DIN rail for reliable and straightforward assembly in control cabinets.

For redundant communication applications, the 1715 Redundant I/O system requires a second 1715-AENTR adapter installed in the paired configuration. In addition to standard single adapter operation, the redundant configuration also performs automatic failover. The 1715-AENTR dual adapter configuration executes redundancy using the internal communication protocols specified in the adapter design.

The 1715-AENTR Allen-Bradley EtherNet/IP Adapter may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1715-AENTR EtherNet/IP Adapter Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1715-AENTR EtherNet/IP Adapter Specs

General

  • Manufacturer Allen-Bradley
  • Model 1715-AENTR
  • Condition New Original ready stock
  • Product Family 1715-IB16D,1715-IF16,1715-OB8DE
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Critical Process Systems: Used in oil, gas, chemical, and power industries where downtime is costly.
  • Safety Instrumented Systems: Implemented in emergency shutdown, fire, and gas systems up to SIL 2.
  • High-Availability Networks: Deployed in architectures requiring continuous uptime and hot-swappable modules.
  • Functional Safety: Certified for SIL 2 applications according to IEC 61508.
  • Hazardous Locations: Approved for Class I, Div 2 and ATEX/IECEx Zone 2.
  • Environmental Protection: Features Conformal Coating against moisture and chemical corrosion.
  • Marine Ratings: Compliant with major maritime standards including ABS and DNV.
  • Operating Temperature: -25 °C to +60 °C (-13 °F to +140 °F).
  • Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F).
  • Relative Humidity: 5% to 95% non-condensing.
Description
The Allen-Bradley 1715-AENTR is an EtherNet/IP communication adapter specifically designed to address the challenges of maintaining continuous communication in critical industrial automation environments where system downtime is unacceptable. The 1715-AENTR is engineered to handle the problem of single points of failure in I/O communication networks, ensuring that data flow remains uninterrupted even in the event of hardware or network path failures. The 1715-AENTR operates as part of the 1715 Redundant I/O system, which functions with a paired configuration of two 1715-AENTR adapters to deliver high-availability communication across the network, solving the critical issue of communication reliability in process control applications.

The 1715-AENTR adapter is equipped with two communication channels, providing enhanced data transmission capabilities for demanding industrial applications. Its open-style enclosure design offers installation flexibility, while the DIN rail mounting method ensures secure and straightforward assembly within standard control cabinets. The 1715-AENTR is widely applied in industries such as oil and gas, chemical processing, power generation, water and wastewater treatment, and pharmaceutical manufacturing, where redundant I/O systems are essential for maintaining operational continuity and safety compliance.

In terms of electrical specifications, the 1715-AENTR supports a DC power supply input range of 18 to 30 V DC, with a nominal current draw of 380 mA, enabling efficient energy management in automated environments. The 1715-AENTR is designed to connect seamlessly to ControlLogix controllers, reinforcing its integral role within advanced automation and control systems. For installation and integration, the 1715-AENTR features built-in diagnostic functions that assist operators with troubleshooting and routine maintenance tasks. Setup is streamlined through a plug-and-play configuration, which simplifies installation procedures and helps reduce system downtime during deployment. The 1715-AENTR supports flexible network topologies, including Device Level Ring (DLR) and star configurations, making the 1715-AENTR adaptable to a wide range of operational requirements and existing network infrastructures.
Revisions

Revision Part #

Also known as

1715-AENTR Ser A
1715-AENTR/A, Series A, Rev A
Alternative Names
1715AENTR 17I5-AENTR 17I5AENTR I715-AENTR I715AENTR I7I5-AENTR 1715-IB16D 1715-IF16 1715-OB8DE 1715-OF8I
Technical notes
The 1715-AENTR is a Bulletin 1715 Redundant I/O module EtherNet/IP Adapter. This module has an Ethernet/IP Adapter Communication Module. It supports 24 per Adapter Pair Modules with a Power Dissipation of 8 Watts Maximum. With a Shielded RJ45 Connector wire type at 12 AWG, this module weighs 420 grams.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Allen-Bradley 1715-AENTR?
The Allen-Bradley 1715-AENTR is an EtherNet/IP communication adapter designed for redundant 1715 I/O systems. It connects remote I/O chassis to a ControlLogix controller while providing high-availability network communication.
What is the primary function of the 1715-AENTR?
The 1715-AENTR serves as the communication bridge between ControlLogix controllers and remote 1715 I/O modules, ensuring reliable data exchange in redundant automation systems.
Why is the 1715-AENTR designed as a redundant adapter?
The adapter operates as a synchronized pair to eliminate single points of failure. If one communication path or adapter experiences a fault, the redundant partner helps maintain uninterrupted system operation.
