1752-L24BBBE

/ 4.9
1001 reviews | Need a Specific Revision?

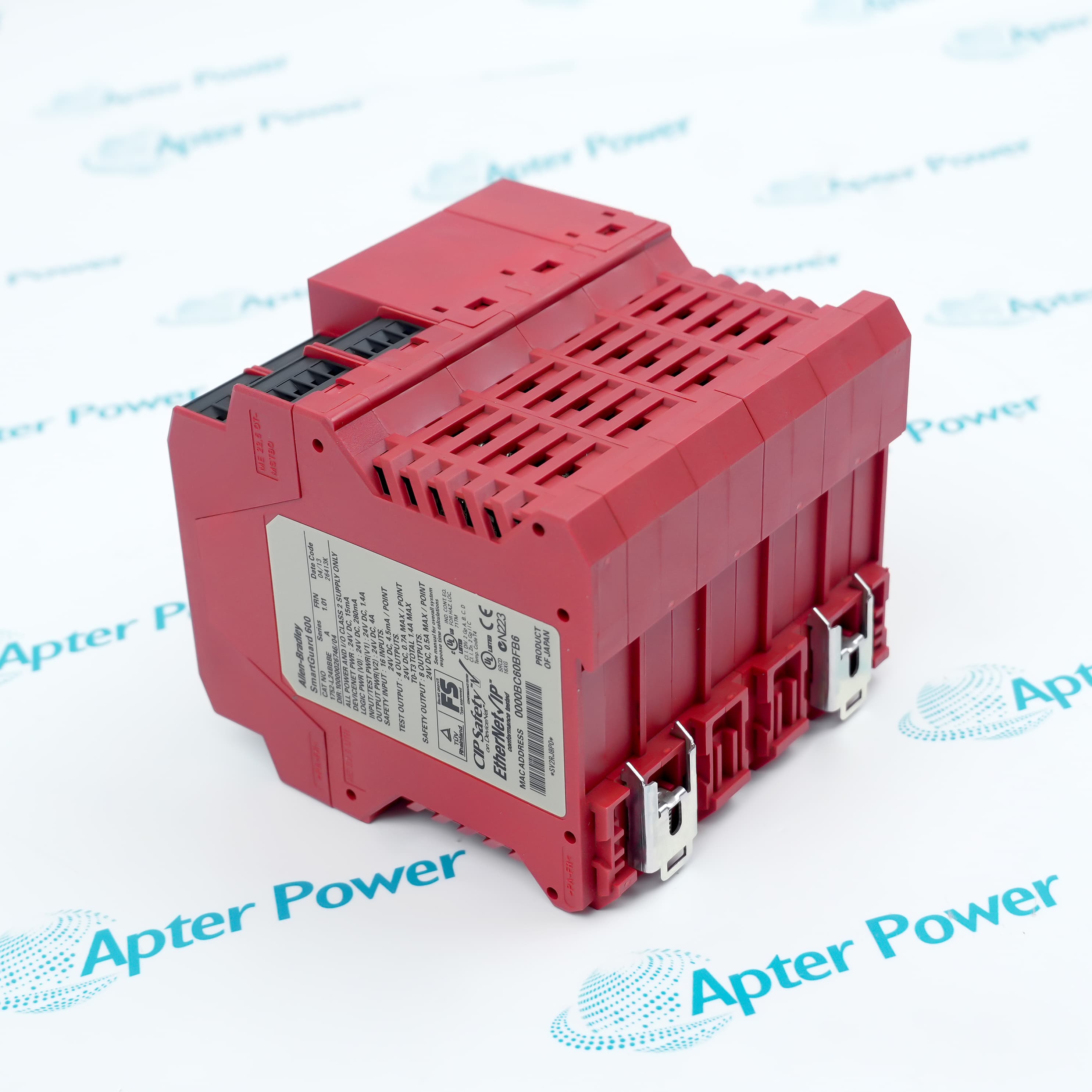

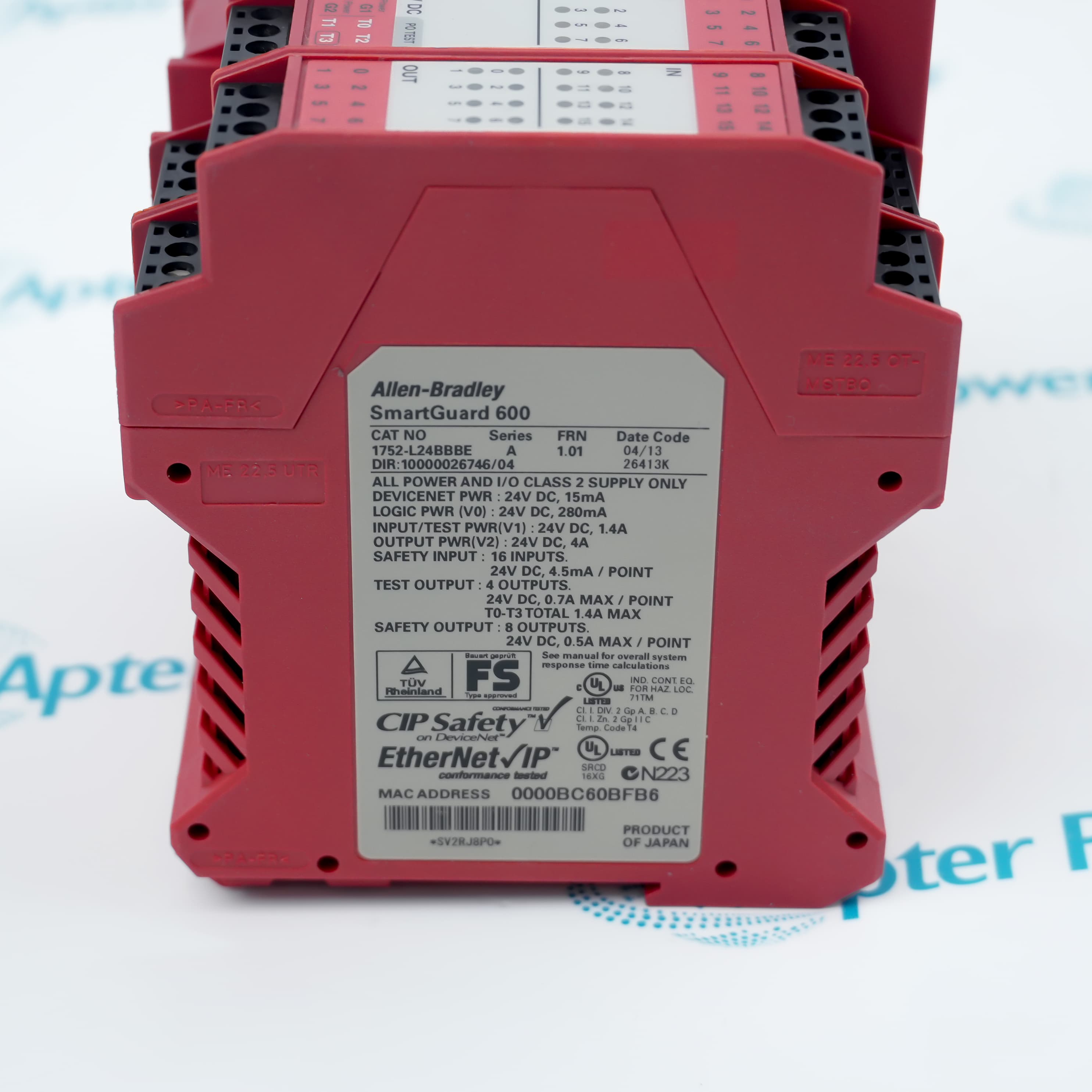

Allen-Bradley 1752-L24BBBE is a SmartGuard 600 safety controller with DeviceNet Safety, USB, and EtherNet/IP.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1752-L24BBBE
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1752-L24BBBE

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1752-L24BBBE
  • Product Family:
    SmartGuard 600 Controllers
  • Product Type:
    SmartGuard 600 Safety Controller
  • Stock:
    1
  • Digital inputs:
    16
  • Digital outputs:
    8
  • Test pulse sources:
    4
  • Networks:
    DeviceNet Safety and EtherNet/IP
  • Local programming ports:
    USB and EtherNet/IP
  • Supply voltage:
    20.4...26.4 V DC
  • DeviceNet voltage range:
    11...25 V DC
  • Internal logic current:
    280 mA at 24 V DC
  • Input type:
    Current sinking
  • Minimum on-state input:
    11 V DC
  • Dimensions:
    11.3 × 9.9 × 13.14 cm
  • Functional insulation test:
    600 V AC for 60 seconds between groups
  • Weight:
    0.575 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals I/O Network Mounting Application
  • Combines a local safety controller with DeviceNet Safety network capability
  • EtherNet/IP supports communication with the documented standard-control architecture
  • Sixteen safety inputs, eight safety outputs, and four test outputs are integrated in one controller

1752-L24BBBE is an Allen-Bradley SmartGuard 600 safety controller designed for machine-safety control and DeviceNet Safety systems.

Its EtherNet/IP interface supports controller programming and data exchange while the safety logic and local I/O execute the documented safety functions.

Before installation or replacement, verify the controller catalog number, safety signature, DeviceNet node settings, EtherNet/IP configuration, field-power arrangement, wiring, and validated safety requirements.

Availability, condition, price, and shipping time for 1752-L24BBBE are confirmed during quotation.

Allen-Bradley 1752-L24BBBE SmartGuard 600 Safety Controller Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The controller provides 16 current-sinking safety inputs
  • Eight safety outputs include cyclic shutdown and reconnect protection
  • Four test pulse sources support the documented input-test functions
  • DeviceNet operates within the documented 11...25 V DC network range
  • EtherNet/IP communication is provided through the 1752-L24BBBE Ethernet interface
  • A 100 Mbps Ethernet switch is recommended and BOOTP is enabled by default
  • Mount the controller horizontally on 35 mm DIN rail
  • Maintain 50 mm clearance above and below the controller
  • Maintain at least 5 mm clearance on each side for ventilation and wiring
  • Machine-safety control using local safety inputs and safety outputs
  • DeviceNet Safety systems with distributed safety devices
  • EtherNet/IP-connected automation systems requiring SmartGuard safety-status exchange
Description
1752-L24BBBE is an Allen-Bradley SmartGuard 600 safety controller for DeviceNet Safety and EtherNet/IP machine-control systems.

The controller provides 16 safety inputs, eight safety outputs, four test pulse sources, USB programming, and EtherNet/IP communication in a DIN-rail housing.

Before installation or replacement, confirm the complete catalog number, network addresses, safety configuration, power supplies, terminal wiring, mounting clearances, and saved project.
Revisions

Revision Part #

Also known as

1752-L24BBBE Series A
1752-L24BBBE/A, Series A
Alternative Names
1752-L24BBBE 1752L24BBBE 1752 L24BBBE Allen-Bradley 1752-L24BBBE AB 1752-L24BBBE SmartGuard 600 1752-L24BBBE
Technical notes
1752-L24BBBE requires the DeviceNet Safety configuration, EtherNet/IP address, power grouping, I/O wiring, safety signature, and validated machine-safety program to be checked before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1752-L24BBBE communicate over both DeviceNet Safety and EtherNet/IP?
Yes. The complete catalog number includes DeviceNet Safety and EtherNet/IP connectivity; verify both network configurations before commissioning.
What I/O is built into Allen-Bradley 1752-L24BBBE?
The controller provides 16 safety inputs, eight safety outputs, and four test pulse sources.
What supply range is required for Allen-Bradley 1752-L24BBBE?
The documented controller supply range is 20.4...26.4 V DC, while the DeviceNet network range is 11...25 V DC.
How should Allen-Bradley 1752-L24BBBE be mounted?
Install it horizontally on 35 mm DIN rail and preserve the documented 50 mm top/bottom and 5 mm side clearances.
Which configuration records should be retained before replacing Allen-Bradley 1752-L24BBBE?
Retain the safety project, safety signature, DeviceNet node settings, EtherNet/IP address, I/O mapping, and network parameters.
Does Allen-Bradley 1752-L24BBBE have an official engineering replacement?
Rockwell Automation marks the product Discontinued with an Engineering Replacement category, but the current product page does not list a replacement catalog number.
What should be checked before ordering Allen-Bradley 1752-L24BBBE?
Confirm the full catalog number, required networks, terminal and connector condition, saved safety project, firmware compatibility, and installed power arrangement.
