DFI-100-340F

/ 4.9
1001 reviews | Need a Specific Revision?

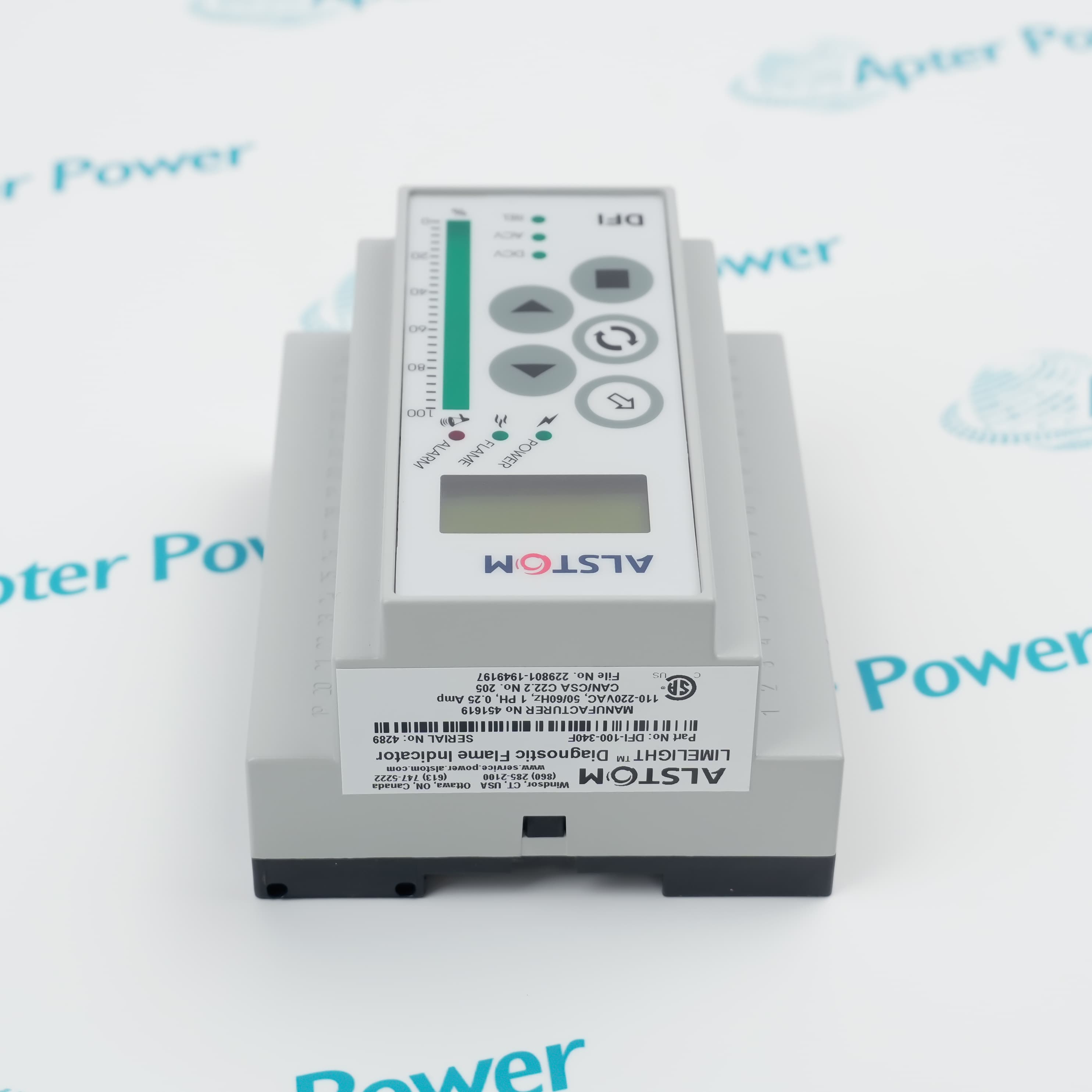

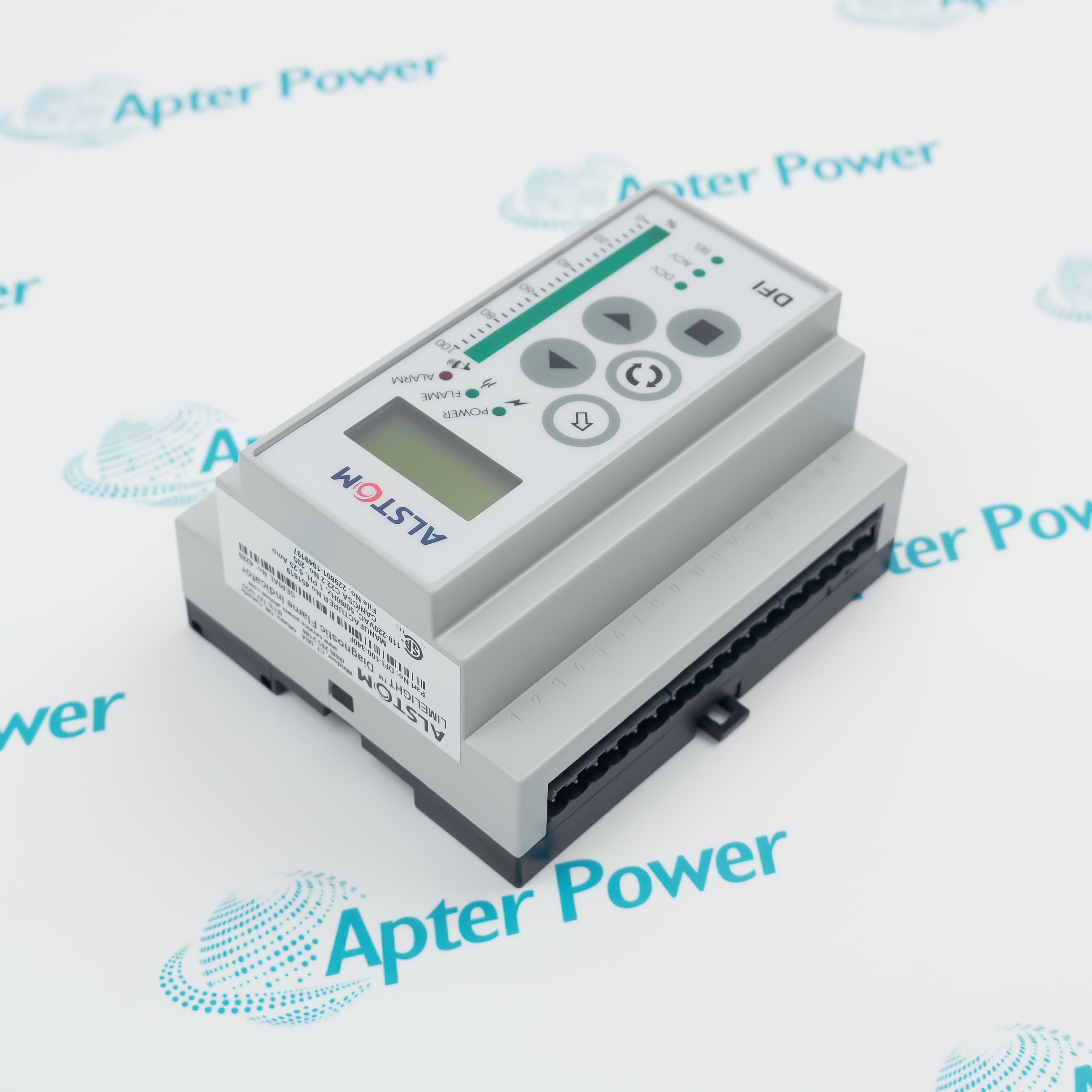

ALSTOM DFI-100-340F is a Limelight diagnostic flame indicator used to distinguish ignitor flame and no-flame conditions.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DFI-100-340F
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DFI-100-340F

  • Manufacturer:
    Alstom
  • Part Number:
    DFI-100-340F
  • Product Family:
    Alstom
  • Product Type:
    Diagnostic Flame Indicator
  • Stock:
    1
  • Primary function:
    Ignitor flame/no-flame discrimination
  • Installation Form Documented:
    Self-contained electronic package for an ignitor control cabinet or nearby junction box
  • Sensor Paths Documented:
    Flame-rod or optical-detector input
  • Operator Indications Documented:
    Power, Flame, Reliability, Fault, and configurable LED bar graph
  • Control Interfaces Documented:
    Flame relay, auxiliary relay, four dry-contact inputs, and loop-powered 4–20 mA output
  • Tariff Code:
    8537109090
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Flame Detection Display and Diagnostics System Interfaces Application
  • The Limelight DFI-100 platform discriminates between ignitor Flame and No Flame conditions
  • The self-contained electronics mount in an ignitor control cabinet or nearby junction box
  • The DFI-100 platform supports flame-rod and optical-detector sensing arrangements

DFI-100-340F is an ALSTOM Limelight diagnostic flame indicator for ignitor flame proving.

Manufacturer DFI-100 documentation describes a self-contained unit that analyzes a flame-rod or optical signal, indicates flame quality and faults, and provides relay and process interfaces to the surrounding burner system.

Because the accessible manufacturer manual describes the DFI-100 family rather than the complete -340F suffix, verify the physical nameplate, supply, terminal diagram, sensing method, configuration, and replacement revision before service.

Availability, condition, price, and shipping time for DFI-100-340F are confirmed during quotation.

ALSTOM DFI-100-340F Diagnostic Flame Indicator Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The DFI-100 is designed to discriminate between ignitor Flame and No Flame conditions
  • A flame-rod installation evaluates the changing flame-current signal produced by flame conductivity
  • An optical installation converts flame light through a compatible detector head for signal analysis
  • Front indicators report power, flame state, reliability, and detected fault conditions
  • The LED bar graph can represent intensity, frequency, AC value, or flame quality
  • The display and pushbuttons support local review and configuration of DFI operating information
  • The DFI-100 family provides flame and auxiliary relay interfaces for the burner system
  • Four dry-contact digital inputs are documented for ignitor-run and combustion permissive signals
  • A loop-powered 4-to-20-milliampere analog output is documented for external indication
  • Ignitor flame proving in utility and industrial burner-management systems
  • Flame-quality indication and troubleshooting for flame-rod sensing installations
  • Optical ignitor-flame monitoring with a compatible detector head and validated configuration
Description
DFI-100-340F is an ALSTOM Limelight diagnostic flame indicator used to determine ignitor Flame and No Flame conditions.

The DFI-100 architecture analyzes flame-rod or optical-detector signals, presents flame-quality and fault information, and exchanges status through relay, digital-input, and analog-output interfaces.

Before installation or replacement, confirm the complete -340F nameplate, input supply, sensing method, terminal diagram, relay logic, configured thresholds, burner permissives, and approved revision compatibility.
Alternative Names
DFI-100-340F DFI100340F DFI 100 340F ALSTOM DFI-100-340F Limelight DFI-100-340F
Technical notes
DFI-100-340F is an exact catalog identity, but the accessible ALSTOM manual covers the DFI-100 family and a later revision. Verify the -340F nameplate, supply rating, sensing method, and terminal diagram before installation or replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should the flame-proving relay behavior be verified on ALSTOM DFI-100-340F?
ALSTOM DFI-100 documentation defines the main relay as energized when flame is proven and de-energized when flame is lost. Confirm the DFI-100-340F terminal diagram before connecting this relay to the ignitor trip logic.
Can ALSTOM DFI-100-340F parameters be edited locally and remotely at the same time?
The documented DFI-100 interface uses an interlock to prevent simultaneous editing. If local program mode is requested while remote editing is active, a warning is displayed and the unit returns to normal mode.
Which RS-485 communication settings are documented for the ALSTOM DFI-100-340F family?
Later DFI-100 documentation specifies Modbus RTU communication at 19200 baud with 8 data bits and no parity. The Modbus slave address is configurable; confirm that these settings apply to the installed DFI-100-340F revision.
How does the documented First Out function relate to ALSTOM DFI-100-340F?
The DFI-100 First Out function can monitor the ignitor-run, combustion-air, trip-valve, and fuel-flow or pressure inputs. It records the first enabled input that opens before flame is lost and ignores an input that closes again before flame loss.
What happens when a documented internal self-test fails on ALSTOM DFI-100-340F?
ALSTOM DFI-100 documentation states that a failed self-test removes power from both output relays and initiates a reboot. If the fault remains, the unit continues cycling between reboot and self-test.
Which grounding details should be checked when wiring ALSTOM DFI-100-340F?
The DFI ground terminal must connect directly to cabinet ground. For a flame-rod installation, the wire-train ground must also connect directly to cabinet ground and must not be connected to the DFI ground terminal.
What should be checked before replacing ALSTOM DFI-100-340F?
Confirm the complete label, supply, sensing method, terminal diagram, relay logic, configured thresholds, burner permissives, and approved revision compatibility.
