Bauer SIRAX TV808 808-611100
Bauer SIRAX TV808 808-611100
Bauer SIRAX TV808 808-611100
Bauer SIRAX TV808 808-611100
Bauer SIRAX TV808 808-611100
Bauer SIRAX TV808 808-611100
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

SIRAX TV808 808-611100

/ 4.9
1001 reviews | Need a Specific Revision?

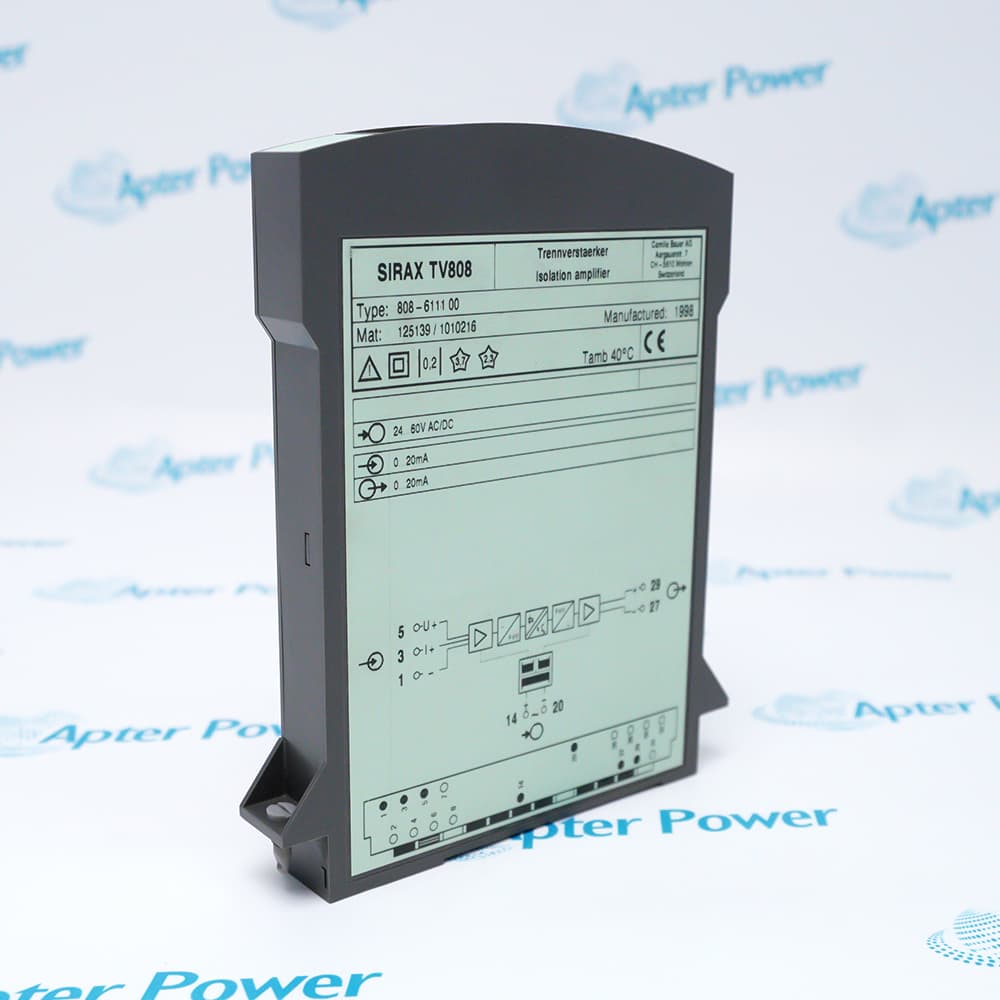

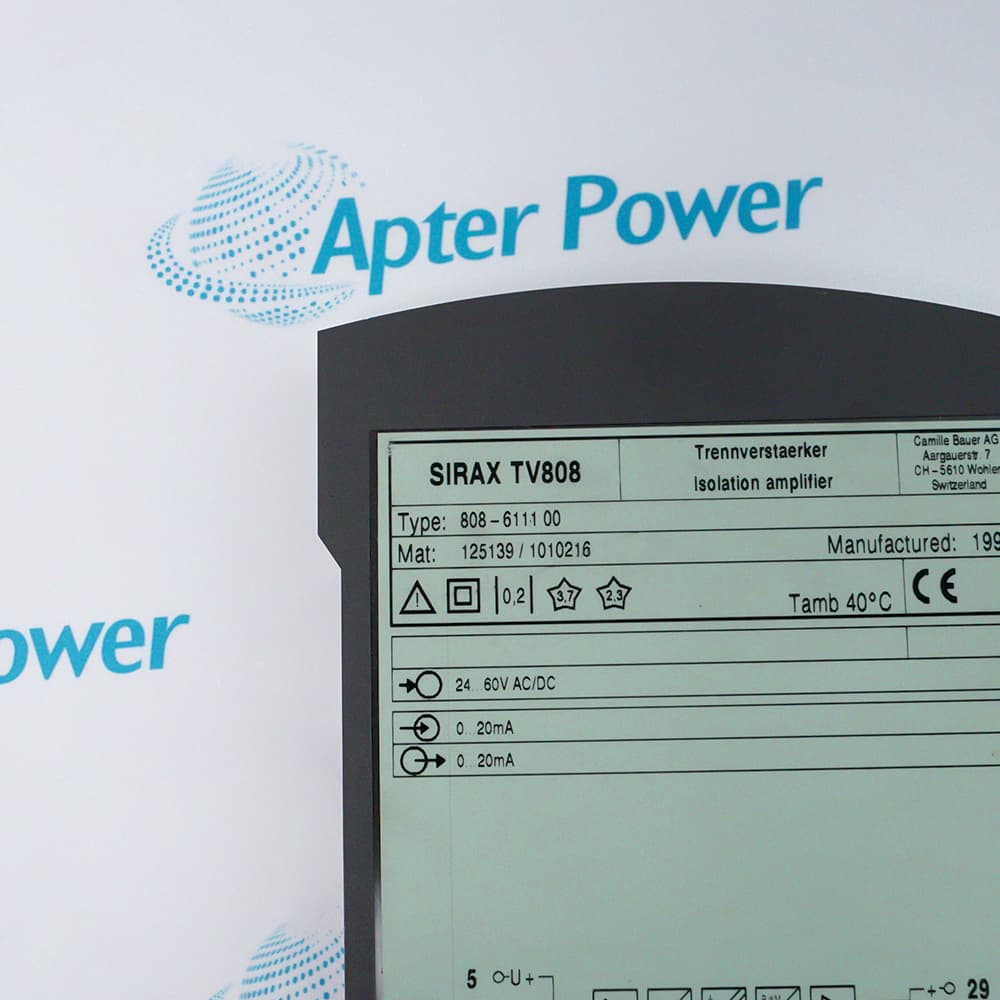

Bauer SIRAX TV808 808-611100 is a single-channel isolating amplifier that electrically separates, amplifies, and converts DC current or voltage signals.
Get a quick price for SIRAX TV808 808-611100
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SIRAX TV808 808-611100

  • Manufacturer:
    BAUER
  • Part Number:
    SIRAX TV808 808-611100
  • Product Family:
    BAUER
  • Product Type:
    Isolating Amplifier
  • Mechanical design:
    Housing B17 (for plugging onto backplane BP 902)
  • Number of channels:
    1 channel
  • Function:
    1 input, 1 electrically insulated output
  • DC current standard ranges:
    0…20 mA, 4…20 mA, ± 20 mA
  • Limit values:
    0…0.1 to 0…50 mA
  • DC voltage standard ranges:
    0…10 V, 2…10 V, ± 10 V
  • Limit values:
    0…0.06 to 0…40, Ex max. 30 V
  • Overload:
    DC current: continuously 2-fold, DC voltage: continuously 2-fold
  • Ri:
    100 kΩ
  • Burden voltage:
    12 V
  • Residual ripple in output current:
    0.5% p.p.
  • Response time:
    < 50 ms
  • Temperature:
    < ± 0.1% per 10 K
  • Longtime drift:
    < ± 0,3% / 12 months
  • Switch-on drift:
    < ± 0.2%
  • Ambient temperature:
    23 °C, ± 2 K
  • Power supply:
    24 V DC ± 10% and 230 V AC ± 10%
  • Operating voltage:
    < 300 V between all insulated circuits
  • Contamination level:
    2
  • Commissioning temperature:
    –10 to + 40 °C
  • Operating temperature:
    –25 to + 40 °C, Ex –20 to + 40 °C
  • Storage temperature:
    –40 to + 70 °C
  • Annual mean relative humidity:
    ≤ 75%
  • Weight:
    0.16 kg
  • Estimated shipping dimensions:
    1.7x15x11.8cm
  • Tariff Code:
    3812100000
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Environment Protection

Features:

  • Electrical isolation up to 2.3 kV ensures accurate signal transmission without interference
  • Configurable input/output ranges via jumpers provide high flexibility for various applications
  • Plug-in backplane design eliminates rewiring and reduces maintenance time
Bauer SIRAX TV808 808-611100 is widely applied in industrial automation environments where reliable signal isolation is essential. In complex control systems, differences in ground potential can introduce errors or damage sensitive equipment. Bauer SIRAX TV808 808-611100 addresses this challenge by providing secure electrical separation while maintaining signal integrity. The device supports both current and voltage inputs, making it suitable for integration with sensors, transmitters, and PLC systems. Stable performance and compliance with EMC standards ensure dependable operation in electrically noisy environments.

Signal conditioning capabilities of Bauer SIRAX TV808 808-611100 allow seamless conversion between different signal formats. This flexibility is particularly valuable in process industries where legacy equipment and modern control systems must coexist. Adjustable ranges and multiple configurations enable engineers to tailor the module to specific requirements without affecting accuracy. Fast response time ensures timely signal updates, which is critical for real-time control applications. High input resistance and low ripple further enhance measurement precision.

From an installation perspective, Bauer SIRAX TV808 808-611100 simplifies system design through its backplane mounting concept. All wiring connections remain on the backplane, allowing quick module replacement without disturbing existing wiring. The durable polycarbonate housing meets stringent safety standards and supports operation in harsh environments. Availability of intrinsically safe variants extends usability to hazardous locations, including applications requiring ATEX compliance. Overall, Bauer SIRAX TV808 808-611100 provides a balanced combination of reliability, flexibility, and safety for modern industrial systems.

The SIRAX TV808 808-611100 Bauer Isolating Amplifier may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bauer SIRAX TV808 808-611100 Isolating Amplifier Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bauer SIRAX TV808 808-611100 Isolating Amplifier Specs

General

  • Manufacturer Bauer
  • Model SIRAX TV808 808-611100
  • Condition New Original ready stock
  • Product Family SIRAX TV 808-615 / 808-611
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Signal anti-interference conversion: Converts susceptible DC voltage signals to anti-interference 4-20mA current signals.
  • DCS/PLC interface isolation: Installed on the front backplane of large distributed control systems to protect core control cards.
  • Field safety barrier replacement: When equipped with the [EEx ia] IIC intrinsically safe version, it can be used as explosion-proof signal isolation for instruments in hazardous areas.
  • Long-distance power remote control transmission: Provides high linearity power amplification for long-distance DC monitoring signals from power plants and substations.
  • Single Channel Single Output: Part number 611100 corresponds to a standard 1-channel input and 1-channel isolated output specification.
  • Low-Voltage Universal Power Supply: This hardware version uses a wide-range AC/DC power supply from 24 V to 60 V.
  • Industrial-Grade Wide Temperature Range: Supports stable operation in complex and harsh industrial environments ranging from -25 °C to +50 °C.
  • High precision and low drift: Basic measurement limit error ≤ ±0.2%, minimal time and temperature drift.
  • High-voltage surge protection: Provides strong insulation isolation of up to 2.3 kV between input and output.
  • Double insulation layer: Power supply provides ultra-strong electrical isolation of 3.7 kV for all measurement circuits.
  • Anti-ground loop protection: Completely eliminates ground potential differences between different devices, preventing ground loop signal interference.
  • Flame-retardant housing: The housing is made of Lexan 940 material, meeting the highest UL 94 V-0 flame retardant standard.
Description
Bauer SIRAX TV808 808-611100 functions as a plug-in isolating amplifier designed for precise conditioning of DC signals in industrial systems. With one input and one electrically insulated output, the module handles both current and voltage signals, supporting standard ranges such as 0…20 mA, 4…20 mA, ±20 mA, and 0…10 V. The unit allows conversion between signal types while maintaining high stability and minimizing transmission errors.

Signal isolation is a core capability of Bauer SIRAX TV808 808-611100, ensuring separation between input, output, and power supply circuits. Electrical insulation ratings reach up to 2.3 kV between input and output and 3.7 kV to the power supply, effectively preventing measurement inaccuracies due to leakage or ground loops. The device supports continuous overload up to two times the rated current or voltage, providing additional robustness in demanding environments.

Flexibility is achieved through selectable input and output configurations using plug-in jumpers, offering up to 36 standard combinations. Bauer SIRAX TV808 808-611100 also supports user-specific ranges, allowing adaptation to non-standard process requirements. With a response time below 50 ms and residual ripple limited to 0.5% peak-to-peak, the amplifier ensures fast and stable signal processing suitable for control and monitoring applications.

The mechanical design of Bauer SIRAX TV808 808-611100 features a B17 housing for mounting onto backplane BP 902. All electrical connections are made via a 96-pin DIN 41 612 connector, eliminating the need for rewiring during replacement and simplifying maintenance. The housing is made of Lexan 940 polycarbonate, meeting UL 94 V-0 flammability standards, ensuring safe operation in industrial environments.

Bauer SIRAX TV808 808-611100 operates with either 24 V DC or 230 V AC power supply and tolerates ±10% variation. The device maintains high accuracy with minimal drift, including long-term drift below ±0.3% per year and temperature influence under ±0.1% per 10 K. Operating temperatures range from –25 to +40 °C, with intrinsically safe versions available for hazardous areas, complying with DIN EN 50 020 standards and ATEX-related requirements.
Alternative Names
SIRAX TV8O8 8O8-6111OO SIRAX TV808 808-6III00 808-611100 808611100 SINEAX TV 808-12 SINEAX TV 808-115 SINEAX TV 808-1111 SINEAX TV 808-115 / 808-116 SIRAX TV 808-615 / 808-611
Technical notes
Utilizing physically hardwired internal jumpers to define custom signal ranges, the Camille Bauer SIRAX TV808 808-611100 ensures flawless process reliability with a high 3.7 kV test isolation and flexible 24-60 V AC/DC operational power.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why choose Bauer SIRAX TV808 808-611100 for signal isolation tasks?
High insulation levels and stable performance reduce interference and improve measurement reliability in complex industrial environments.
How does Bauer SIRAX TV808 808-611100 support different signal types?
Multiple input and output combinations are selectable via plug-in jumpers, allowing conversion between current and voltage signals.
What industries typically use Bauer SIRAX TV808 808-611100?
Process control, energy systems, and manufacturing lines frequently apply Bauer SIRAX TV808 808-611100 for signal conditioning tasks.
How does Bauer SIRAX TV808 808-611100 handle overload conditions?
Continuous overload up to twice the rated input or output is supported without compromising device integrity.

Product Browsing History
