21000-16-10-00-167-04-02

/ 4.9
1001 reviews | Need a Specific Revision?
Bently Nevada 21000-16-10-00-167-04-02 is an aluminum probe housing with a 3300 XL 8 mm probe, 1.0 m cable and 16.7 in penetration for external machine-case mounting.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for 21000-16-10-00-167-04-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 21000-16-10-00-167-04-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    21000-16-10-00-167-04-02
  • Product Family:
    21000, 24701, and 164818 Proximity Probe Housing A
  • Product Type:
    Proximity Probe Housing Assembly
  • Stock:
    1
  • Housing family:
    21000 proximity probe housing
  • Housing body material:
    Aluminum
  • Probe sleeve material:
    304 stainless steel
  • Probe option code A:
    16
  • Installed probe:
    3300 XL 8 mm reverse-mount probe
  • Cable-length option code B:
    10
  • Probe cable length:
    1.0 m (39 in)
  • Standoff option code C:
    00
  • Standoff adapter:
    Not included
  • Penetration option code D:
    167
  • Probe penetration:
    16.7 in
  • Fitting option code E:
    04
  • Included fitting:
    One 3/4-14 NPT plug
  • Mounting-thread option code F:
    02
  • Mounting thread:
    3/4-14 NPT
  • Dome cover:
    Threaded to housing body
  • Conduit interface:
    Threaded conduit connection ports
  • Sealing components:
    O-rings and thread seal
  • Long-sleeve requirement:
    Support required above 12 in penetration
  • Applicable industry standard:
    API 670 external probe housing arrangement
  • Explosion-proof boundary:
    Only CA versions carry CSA explosion-proof rating
  • Probe temperature range:
    -51 to +177 °C
  • Recommended newer housing:
    31000 / 32000 when explosion-proof housing is not required
  • Weight:
    2.7558 lbs (1.25 kg)
  • Estimated shipping dimensions:
    8.3x8.3x62.5cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Compatibility Environment Standards

Features:

  • Aluminum housing body supports external mounting of a 3300 XL 8 mm proximity probe.
  • The configured 1.0 m cable and 16.7 in penetration define the installed reach.
  • Threaded dome, conduit ports and sealing components protect the reverse-mount probe assembly.
The selected ordering code combines a standard 21000 aluminum housing with the A16 probe option, B10 cable option and no standoff adapter. A single 3/4-14 NPT plug and the matching NPT mounting thread complete the assembly.

The housing establishes a protected mechanical path for the probe between the machine case and external conduit connection. It is intended for condition-monitoring installations that need stable probe positioning outside the bearing housing.

Because the penetration exceeds 12 in, a support must be fitted near the probe to avoid sleeve resonance. Hazardous-area projects must select an approved CA version instead of assuming this base code carries explosion-proof certification.

Availability is checked against the complete seven-field housing assembly code.
Verified resources for Bently Nevada 21000-16-10-00-167-04-02:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Mounts a proximity probe externally on bearing housings or machine cases with limited internal access.
  • Provides a long probe sleeve where the measurement point is recessed from the outer mounting surface.
  • Supports vibration and shaft-position monitoring installations built around the 3300 XL 8 mm transducer system.
  • The A16 option specifies a 3300 XL 8 mm reverse-mount probe with the documented connector arrangement.
  • The B10 cable choice must be coordinated with the extension cable and Proximitor sensor used in the channel.
  • Mechanical interchange requires the same mounting thread, penetration, fitting and standoff options.
  • Long sleeves require secure support to prevent vibration from introducing probe-motion error.
  • The probe operating and storage range extends from -51 to +177 °C under the transducer limits.
  • Conduit sealing and O-ring condition should be inspected wherever moisture or contaminants are present.
  • The 21000 housing arrangement is documented for API 670 external proximity-probe installations.
  • This standard order code does not carry the CA prefix required for CSA explosion-proof versions.
  • Product-specific approvals must be confirmed in the current Bently Nevada approvals guide before hazardous-area use.
Description

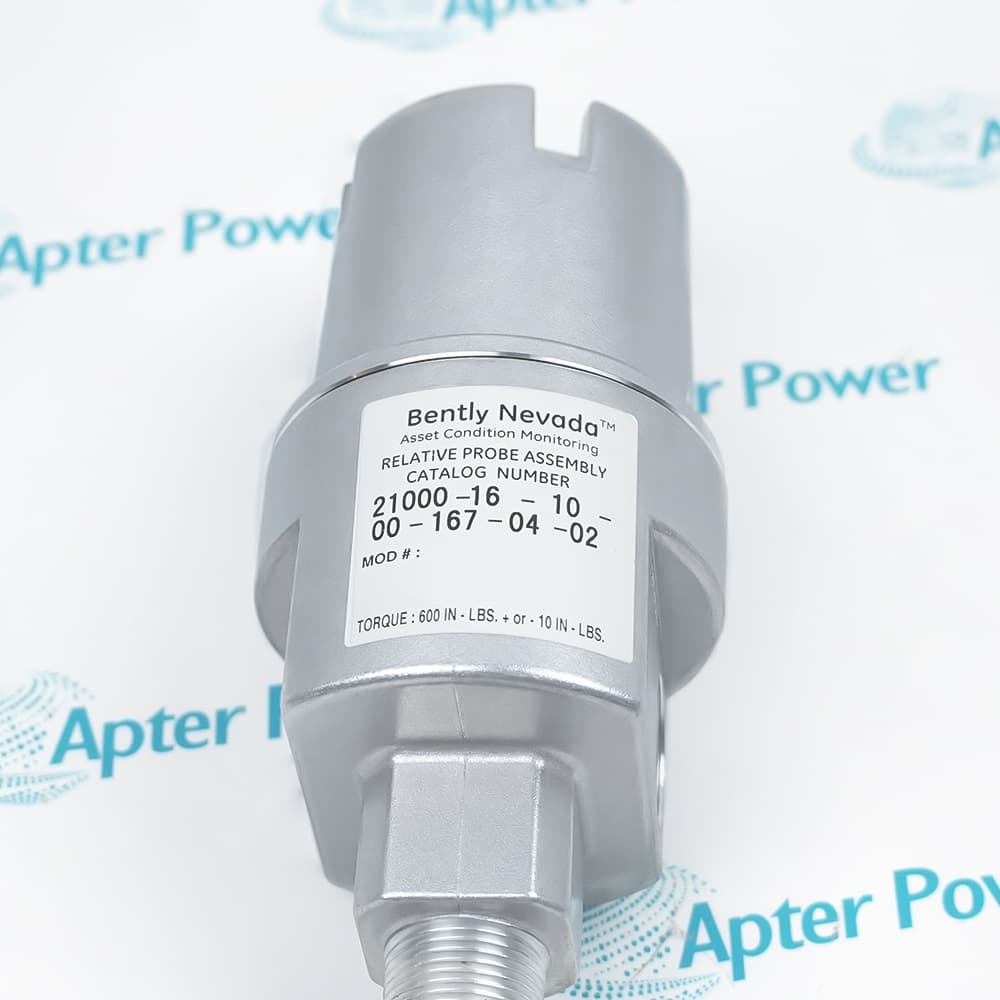

Bently Nevada 21000-16-10-00-167-04-02 is a model 21000 aluminum proximity probe housing assembly built around a reverse-mount 3300 XL 8 mm probe. The complete ordering code specifies a 1.0 m probe cable, no standoff adapter and a 16.7 in penetration length for external machine-case mounting.

The housing combines a threaded dome cover, conduit connection ports, sealing components and a 304 stainless-steel probe sleeve. Its selected fitting option supplies one 3/4-14 NPT plug, while the 3/4-14 NPT mounting thread establishes the machine interface for the installed assembly.

The specified penetration is longer than 12 in, so the official guidance requires additional sleeve support to control resonance. This base 21000 configuration must not be presented as a CA21000 explosion-proof assembly; hazardous-area selection requires a separately approved ordering code and installation review.
Alternative Names
Bently Nevada 21000-16-10-00-167-04-02 21000 16 10 00 167 04 02 210001610001670402 21000-16-10-00-167-04-02 housing Bently 21000 3300 XL 8 mm housing 21000 aluminum probe housing assembly BN 21000-16-10-00-167-04-02 Bently Nevada 16.7 in probe housing
Technical notes
Bently Nevada 21000-16-10-00-167-04-02 has a 16.7 in penetration length, which exceeds the 12 in unsupported limit and requires sleeve support near the probe. Do not apply CA21000 explosion-proof approval claims to this standard 21000 ordering code.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is the ordering code for Bently Nevada 21000-16-10-00-167-04-02 decoded?
It identifies a 3300 XL 8 mm probe, 1.0 m cable, no standoff, 16.7 in penetration, one 3/4-14 NPT plug and a 3/4-14 NPT mounting thread.
Why does Bently Nevada 21000-16-10-00-167-04-02 need extra sleeve support?
Its 16.7 in penetration exceeds the 12 in limit stated for unsupported sleeves, so support near the probe is required to prevent resonance.
Is Bently Nevada 21000-16-10-00-167-04-02 an explosion-proof housing?
No CA prefix is present in this ordering code. The official data restricts the CSA explosion-proof rating to CA versions ordered with qualifying options.
What installation is Bently Nevada 21000-16-10-00-167-04-02 intended for?
It supports external mounting of a proximity probe on machinery where the aluminum housing, long sleeve and specified NPT connection suit the machine-case geometry.
Which document verifies Bently Nevada 21000-16-10-00-167-04-02 options?
Use Datasheet 141600 Rev. AA in the Manuals tab; its ordering tables define each A through F option and the long-sleeve support rule.
What should be supplied for a Bently Nevada 21000-16-10-00-167-04-02 quote?
Include the full seven-field code, quantity, target machine, destination and any hazardous-area requirement so the offered assembly is not confused with a CA-approved version.
