Features:
- Probe arrangement: The 16 option specifies a 3300 XL 8 mm probe configuration.
- Penetration: The 114 option denotes 11.4 in of probe penetration.
- Mounting: The 02 option selects a 3/4-14 NPT thread.

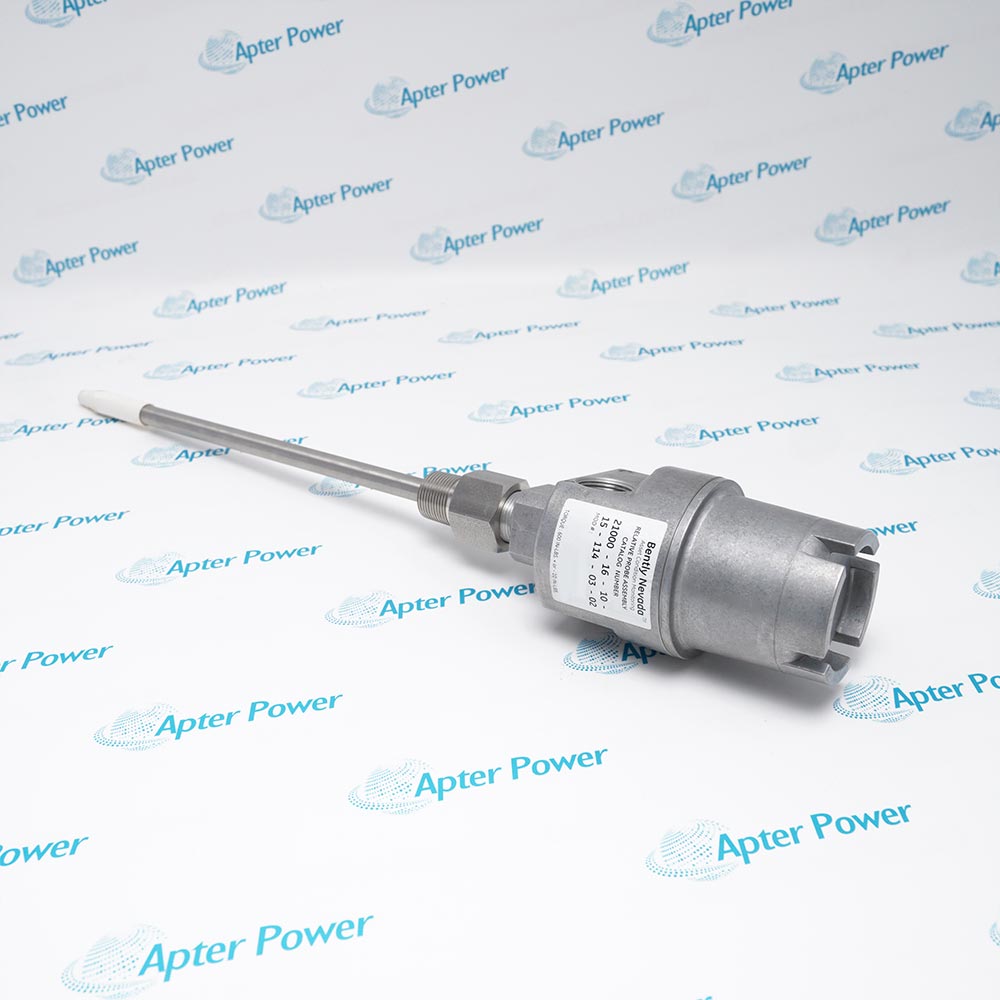

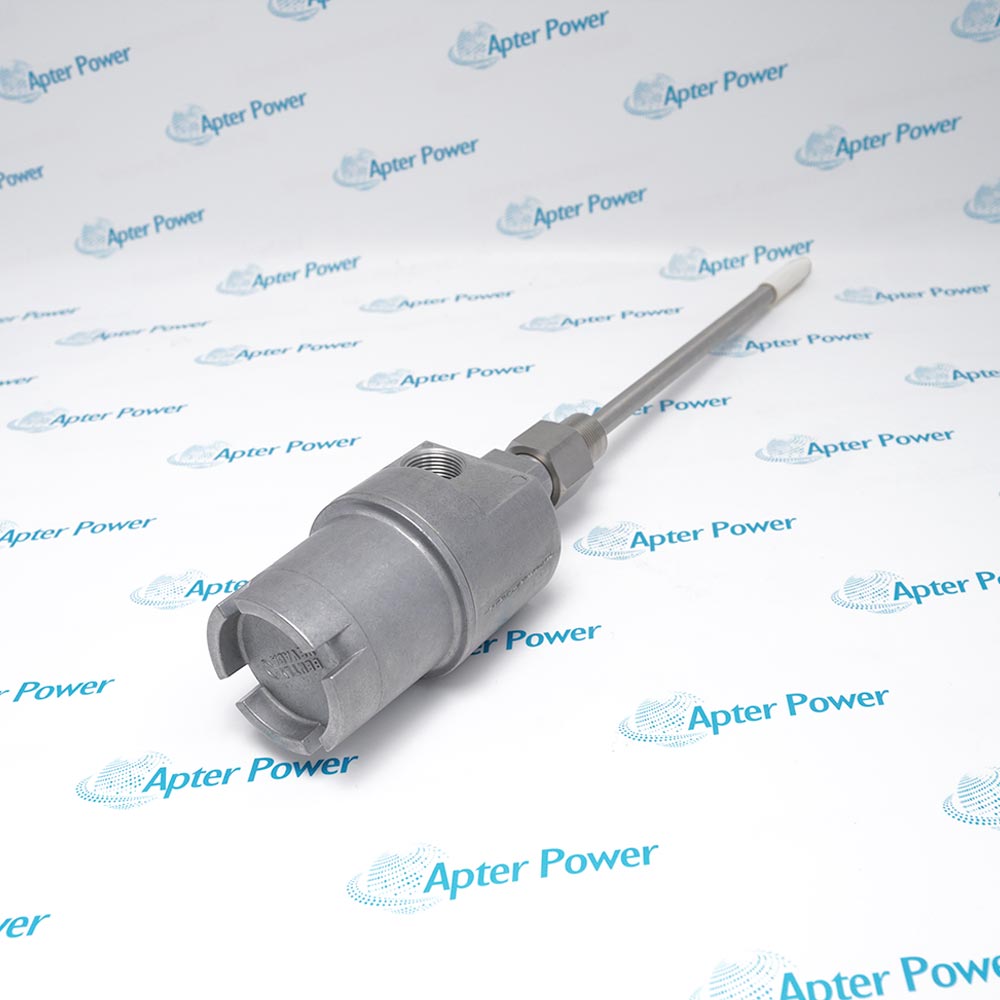

Bently Nevada 21000-16-10-15-114-03-02 is a 21000 housing assembly for a 3300 XL 8 mm proximity probe.
The complete configuration includes a 1.0 m probe-cable option and the documented fittings package.
Its minimum standoff plus penetration exceeds 12 in, so the series drawing calls for sleeve support near the probe.
Apter Power can quote the Bently Nevada 21000-16-10-15-114-03-02 Probe Housing Assembly and provide sleeve-support documentation for its 11.4 in penetration option.
Bently Nevada 21000-16-10-15-114-03-02 21000 Probe Housing Manuals,Datasheets,Link
Important Notice: Accessories, manuals and cables are included only when specified in the stock-item description. Prices are shown in USD.
- Probe selection: Code 16 specifies a 3300 XL 8 mm probe with connector.
- Probe lead: Code 10 selects a 1.0 m lead.
- Penetration option: Code 114 sets the D dimension to 11.4 in.
- Lead-to-sleeve rule: The selected probe lead must remain longer than the installed sleeve.
- E03 fittings: Includes one 3/4-14 NPT plug and one 3/4-14 to 1/2-14 NPT reducer.
- Cable seal grip: Supplied grommets cover 1/8–3/16, 1/4–5/16 and 5/16–3/8 in cable sizes.
- F02 mounting thread: The housing uses 3/4-14 NPT, required with the nonzero C15 standoff option.
- Approval boundary: E03 fittings on a non-CA 21000 code do not establish CSA explosion-proof approval.
- C standoff: Code 15 specifies a minimum 1.5 in (38 mm) standoff.
- D penetration: Code 114 specifies 11.4 in of probe penetration.
- Combined geometry: Minimum C plus nominal D is 12.9 in; the manufacturer calls for support near the probe when C+D exceeds 12 in.
- Adjustment consequence: Even D adjusted -0.5 in leaves C+D at 12.4 in; support near the probe remains required.
- External probe mounting: The 21000 housing positions a 3300 XL 8 mm probe at a machinery measurement point.
- Threaded machinery ports: The specified 3/4-14 NPT thread defines the mounting interface.
- Configured depth: The 11.4 in penetration option serves the corresponding installed probe position.
