  • Lifecycle status

    Active / Available from OEM
    Apter Power provides quotations, technical documents, procurement support and probe-housing configuration guidance.

21000-34-05-00-015-04-02

/ 4.9
1001 reviews | Need a Specific Revision?

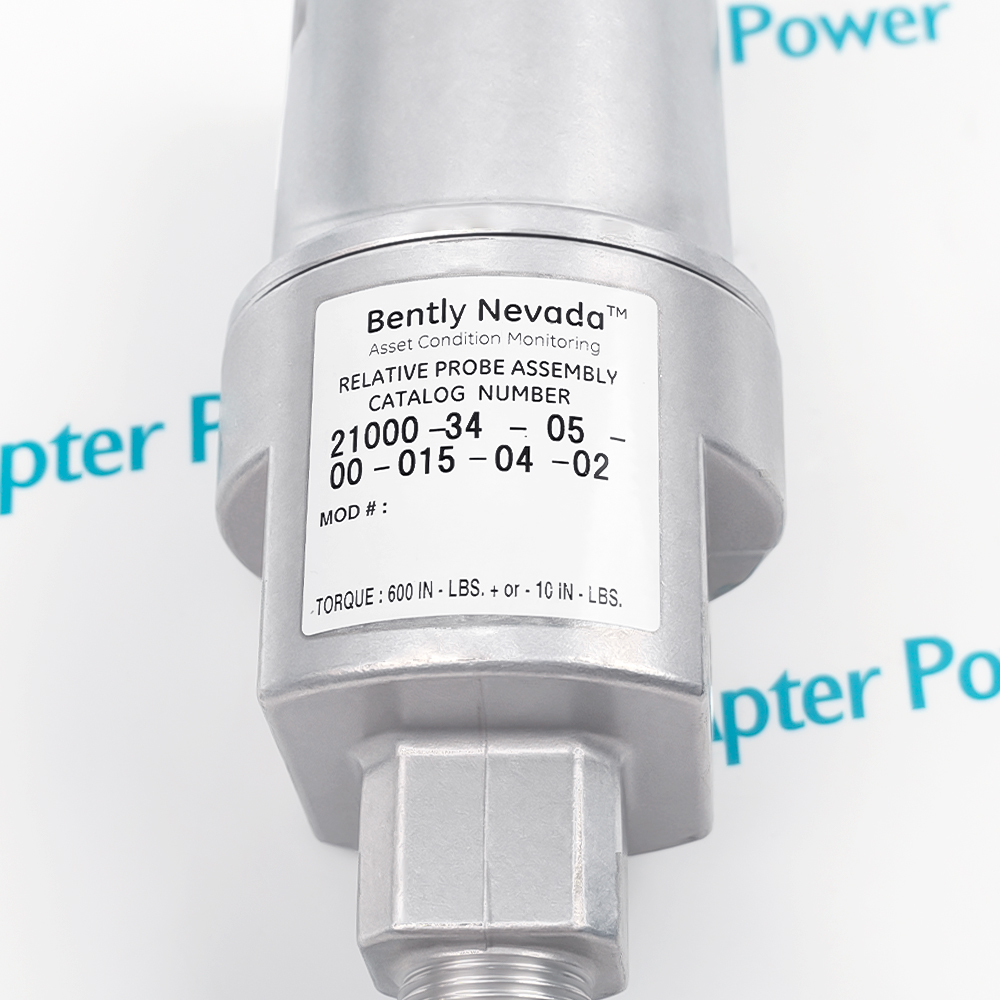

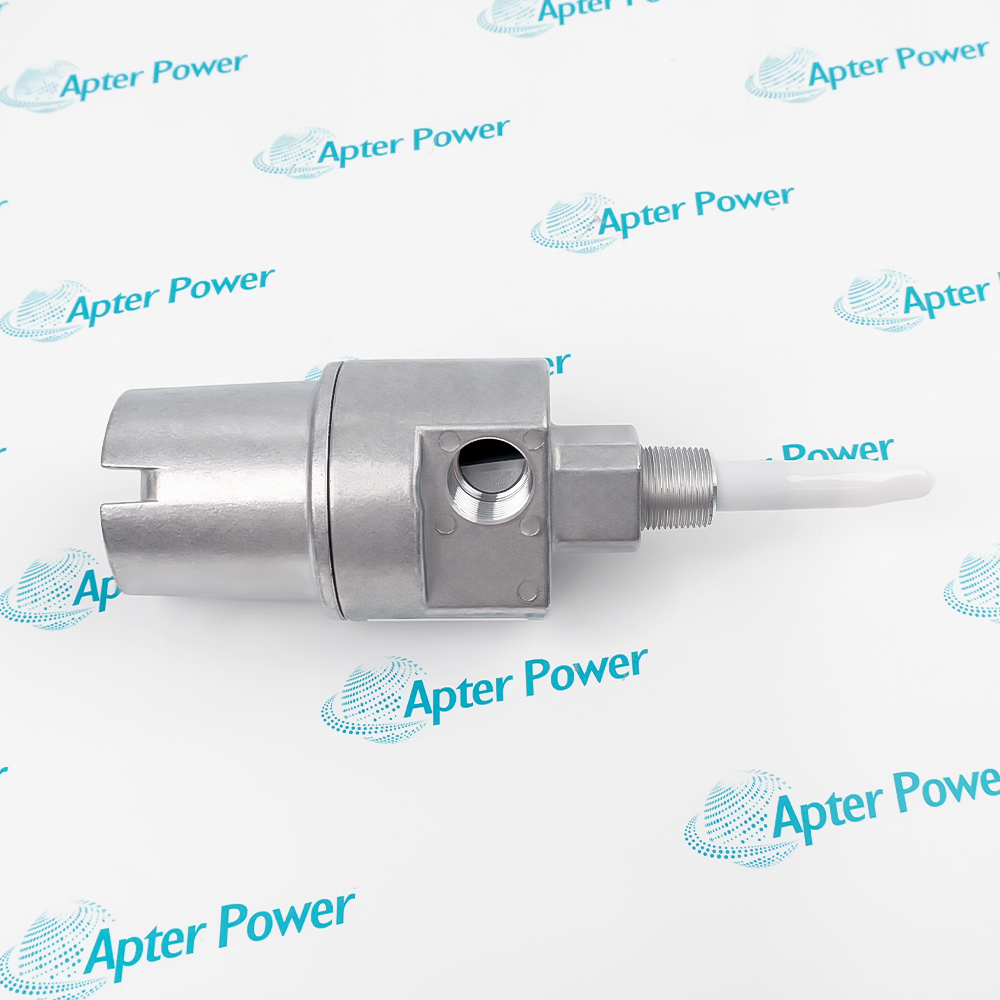

Bently Nevada 21000-34-05-00-015-04-02 is a probe housing assembly configured with a 0.5 m 3300 XL 8 mm probe and 3/4-14 NPT mounting thread.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 21000-34-05-00-015-04-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 21000-34-05-00-015-04-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    21000-34-05-00-015-04-02
  • Product Family:
    21000, 24701, and 164818 Proximity Probe Housing A
  • Product Type:
    Proximity Probe Housing Assembly
  • Stock:
    1
  • Mounting Thread:
    3/4-14 NPT
  • Fittings:
    One 3/4-14 NPT plug only
  • Probe Penetration:
    1.5 in
  • Standoff Adapter:
    No standoff adapter
  • Probe Cable Length:
    0.5 m (20 in)
  • Probe with Connector:
    3300 XL 8mm probe with connector protector, selectable hazardous area approvals
  • Weight:
    1.1 kg
  • Estimated shipping dimensions:
    80 x 15 x 10 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Probe Configuration Housing Interface Selection Boundaries Product Applications

Features:

  • Configured 3300 XL 8 mm probe with connector protector.
  • One-half-metre probe cable and 1.5 in penetration length.
  • Three-quarter-inch NPT mounting and conduit-fitting configuration.
The housing protects the reverse-mounted probe connection outside the machine case.

Each order-code field defines a mechanical, cable or fitting choice that affects installation.

Exact selection should follow the machine drawing and the installed housing record.

Apter Power supports exact-part quotation, technical-document requests and probe-housing configuration matching for Bently Nevada 21000-34-05-00-015-04-02.
Bently Nevada 21000-34-05-00-015-04-02 Proximity Probe Housing Assembly Manuals,Datasheets,Link
  • Code 34 identifies the documented 3300 XL 8 mm probe option.
  • Code 05 selects a 0.5 m cable.
  • Code 015 sets the 1.5 in probe penetration.
  • Code 02 selects a 3/4-14 NPT mounting thread.
  • Code 04 supplies one 3/4-14 NPT plug only.
  • Code 00 specifies no standoff adapter.
  • Probe reach must suit the machine-case geometry.
  • Conduit entry and plug arrangement must match the field installation.
  • Hazardous approvals depend on the selected complete assembly.
  • External proximity-probe protection on rotating machinery.
  • Weather-exposed or conduit-connected probe installations.
  • Configured 21000 housing replacement during planned maintenance.
Description
A machine case fitted for a 3/4-14 NPT mounting thread can use 21000-34-05-00-015-04-02 as an external protective housing for the specified reverse-mounted proximity probe.

Its order code combines a 3300 XL 8 mm probe with connector protector, 0.5 m cable, no standoff, 1.5 in penetration and one 3/4-14 NPT plug in 21000-34-05-00-015-04-02.

Apter Power can compare the machine tapping, probe reach, conduit fitting and approval requirements before quoting 21000-34-05-00-015-04-02.
Alternative Names
21000 34 05 00 015 04 02 210003405000150402 21000-3405-00-01504-02 Bently Nevada 21000-34-05-00-015-04-02 21000-34-05-00-015-04-01 21000-34-05-00-015-04-04 21000-34-05-00-015-03-02 21000-34-05-00-015-02-02
Technical notes
21000-34-05-00-015-04-02 combines several order-code decisions that affect mechanical fit. Mounting thread, probe penetration, cable length, conduit plug and approval option should all match the machine drawing; Apter Power can review that evidence before quotation. This prevents a similar-looking housing with a different machine fit from being introduced.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does the 34 option specify in 21000-34-05-00-015-04-02?
It identifies the documented 3300 XL 8 mm probe configuration with connector protector and selectable hazardous-area approvals.
How much probe cable is included with 21000-34-05-00-015-04-02?
The 05 option specifies a 0.5 m probe cable.
Which mounting thread does 21000-34-05-00-015-04-02 use?
The final 02 option specifies a 3/4-14 NPT mounting thread.
Does 21000-34-05-00-015-04-02 include a standoff adapter?
No. The 00 order-code position specifies no standoff adapter.
What probe penetration is configured for 21000-34-05-00-015-04-02?
The 015 option specifies a 1.5 in penetration length; compare it with the machine drawing before replacement.
Which fitting is supplied with 21000-34-05-00-015-04-02?
The 04 option provides one 3/4-14 NPT plug only; other fitting combinations use different codes.
What should I send for a 21000-34-05-00-015-04-02 quotation?
Send the machine tapping, required probe reach, conduit arrangement, area classification and a photo of the complete installed label.
