        31000-26-05-20-041-01-02
        31000-26-05-20-041-01-02
        31000-26-05-20-041-01-02
        31000-26-05-20-041-01-02
        31000-26-05-20-041-01-02
        31000-26-05-20-041-01-02
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          OEM Lifecycle Status Not Confirmed
          Apter Power can prepare an exact-configuration quotation and help align housing documentation with your installed probe system.

        31000-26-05-20-041-01-02

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        Bently Nevada 31000-26-05-20-041-01-02 is a through-case proximity-probe housing assembly configured with a 3300 XL NSv probe for radial vibration or Keyphasor measurement.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for 31000-26-05-20-041-01-02
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 31000-26-05-20-041-01-02

        • Manufacturer:
          Bently Nevada
        • Part Number:
          31000-26-05-20-041-01-02
        • Product Family:
          31000 and 32000 Proximity Probe Housing Assemblies
        • Product Type:
          Proximity Probe Housing Assembly
        • Stock:
          1
        • Probe selection:
          3300 XL NSv probe (option 26)
        • Probe cable length:
          0.5 m (option 05)
        • Standoff adapter length:
          2.0 in (option 20)
        • Probe penetration:
          4.1 in (option 041)
        • Conduit fitting set:
          One 3/4-14 NPT fitting; two plugs (option 01)
        • Mounting thread:
          3/4-14 NPT (option 02)
        • Sleeve adjustment range:
          ±0.5 in
        • Housing protection:

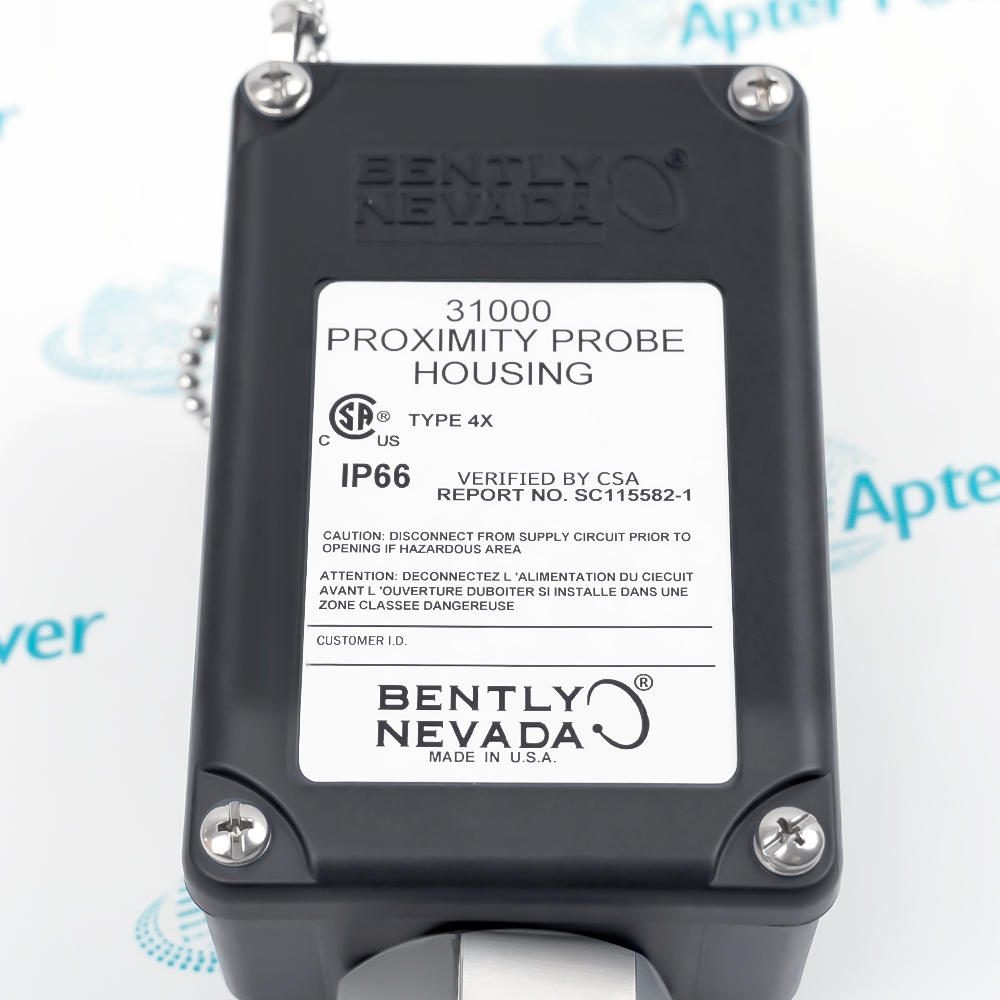

          Type 4X / IP66 housing
        • Housing material:
          Glass-reinforced PPS with conductive fibers
        • Retaining-nut torque:
          29.4 N·m recommended
        • NSv probe operating temperature:
          -34°C to +177°C (probe only)
        • Tariff Code:
          Please confirm the destination before shipping
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Probe Choice Case Mounting Cable Routing Product Applications

        Features:

        • Probe choice: The order code selects a 3300 XL NSv probe, rather than an empty housing.
        • Mounting form: The English-series assembly passes through the machine case for an external probe position.
        • Conduit entry: This configuration has one fitting and two plugged entries.
        The selected probe and housing are specified as one ordering configuration, so the installed probe family is the first selection check.

        Through-case placement lets the measurement point be planned against the casing opening without treating the housing as an internal instrument module.

        The physical entry arrangement matters when the cable route is drawn; the full order code distinguishes this assembly from other family options.

        Apter Power can help source the Bently Nevada 31000-26-05-20-041-01-02 Proximity Probe Housing Assembly with an exact-configuration quotation and technical documentation.
        Bently Nevada 31000-26-05-20-041-01-02 Proximity Probe Housing Assembly Manuals,Datasheets,Link
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • NSv path: Option 26 selects the 3300 XL NSv probe; a housing ordered for another probe family is a different configuration.
        • Connector protection: The OEM assigns a separate option to an NSv probe with connector protector; this code does not select that accessory.
        • Probe cable: The selected 0.5 m probe cable sets the available routing inside the housing and the applicable length-limit table.
        • Standoff reach: The 2.0 in adapter moves the housing back from the casing; match this offset to the prepared machine opening.
        • Probe penetration: The 4.1 in D option defines the probe's nominal inward reach, with the manufacturer's limited sleeve-adjustment range.
        • Required thread: The 3/4-14 NPT mounting option is the OEM-required choice when this standoff is ordered.
        • Cable-length envelope: The selected C+D total is 6.1 in, within the 15.5 in maximum listed for a 0.5 m probe cable.
        • Fixed conduit: The selected E01 set supplies a 3/4-14 NPT fitting for hardline conduit or metal tubing entering the housing.
        • Unused entries: Two plugs are part of this fitting set, so the planned cable exit is one fitted entry rather than two.
        • Flexible-conduit distinction: Flexible conduit with integral fittings calls for E00 instead; this E01 configuration is a different routing choice.
        • Radial vibration: Use this through-case housing at a radially mounted proximity-probe measurement point.
        • Keyphasor measurement: Radially mounted Keyphasor transducers are another typical housing application.
        • Axial-position boundary: Dual-probe shaft axial-position measurement calls for a different housing family, not this selection.
        Description
        At a through-machine-case monitoring point, the Bently Nevada 31000-26-05-20-041-01-02 places a 3300 XL NSv probe in an externally mounted housing. The ordered assembly gives the probe a defined path through the casing for radial vibration or Keyphasor measurement, rather than leaving the probe selection open at installation.

        The housing makes the probe and its extension cable accessible from outside the machine. With 31000-26-05-20-041-01-02, a technician can adjust the probe gap or replace the probe without dismantling the machine, a useful service distinction when the measurement point is already installed.

        Glass-reinforced PPS and stainless-steel elements form the housing construction around this configured probe. The selected standoff, penetration and conduit-entry choices in 31000-26-05-20-041-01-02 give a purchaser specific mounting and routing details to compare with the existing case opening; it should be requested as this complete configuration, not merely as an unconfigured family housing.
        Alternative Names
        Bently Nevada 31000 26 05 20 041 01 02 Baker Hughes 31000 26 05 20 041 01 02 BN 31000 26 05 20 041 01 02 31000 26 05 20 041 01 02 31000/26/05/20/041/01/02 310002605200410102 31000-26-5-20-041-01-02 31000-26-05-20-41-01-02
        Technical notes
        For a hazardous-area project, 31000-26-05-20-041-01-02 should be treated as a mechanical and environmental housing, not an explosion-proof enclosure. Baker Hughes links intrinsically safe use to an approved transducer system and appropriate barriers; the NSv probe option alone does not approve the assembled installation. Apter Power can help compare the specified protection method with the housing and system documents before quotation.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Our machine casing moves separately from the bearing. Would 31000-26-05-20-041-01-02 give us an accurate radial-vibration reading?
        The housing does not correct movement between the casing and bearing. An accurate relative-vibration signal requires the casing to be fixed to the bearing, so resolve that reference relationship before choosing this mounting point.
        Can I source a replacement probe sleeve for 31000-26-05-20-041-01-02 from the order code if the old sleeve is unavailable to measure?
        Yes. For the English NSv arrangement, the sleeve formula gives 020 + 041 + 026 = 087, yielding sleeve part 108883-087. Use that calculated code for the enquiry, and reconcile it with any surviving installation record before purchase.
        Our probe location can reach -40°C in service. Is 31000-26-05-20-041-01-02 the right NSv selection?
        Not on the published NSv probe operating limit: the selected probe is rated from -34°C to +177°C. A -40°C operating point falls below that probe range, even though the datasheet lists a lower storage limit; select against the operating condition, not storage.
        Can 31000-26-05-20-041-01-02 serve as a pressure boundary on our machine case?
        The plastic housing is not designed to resist internal or external pressure. Its Type 4X/IP66 environmental rating is not a pressure rating, and the OEM’s differential-seal discussion names an 8 mm probe rather than this NSv selection. Use a separately engineered pressure-boundary solution for that duty.
        Will 31000-26-05-20-041-01-02 tolerate continuous hot-water or steam exposure during our wash process?
        The OEM does not guarantee that duty. It reports that brief exposure around 95°C should not significantly affect PPS strength, while longer contact may permanently reduce it; actual post-exposure housing performance was not tested. For sustained exposure, choose a material and protection arrangement established for that process.
        We need the probe-cable part and serial labels readable after installation. Does 31000-26-05-20-041-01-02 meet that layout?
        The selected 6.1 in C+D length exceeds the 2.5 in limit for retaining label visibility outside the sleeve with a 0.5 m cable. The assembly remains within the general cable-length limit, but this label-access requirement is not established; plan another identification method or revise the geometry before ordering.
