Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power supplies genuine corrosion-resistant PPS transducer enclosures ensuring optimal harsh environment machinery protection.

32000-28-05-00-120-03-02

/ 4.9
1001 reviews | Need a Specific Revision?

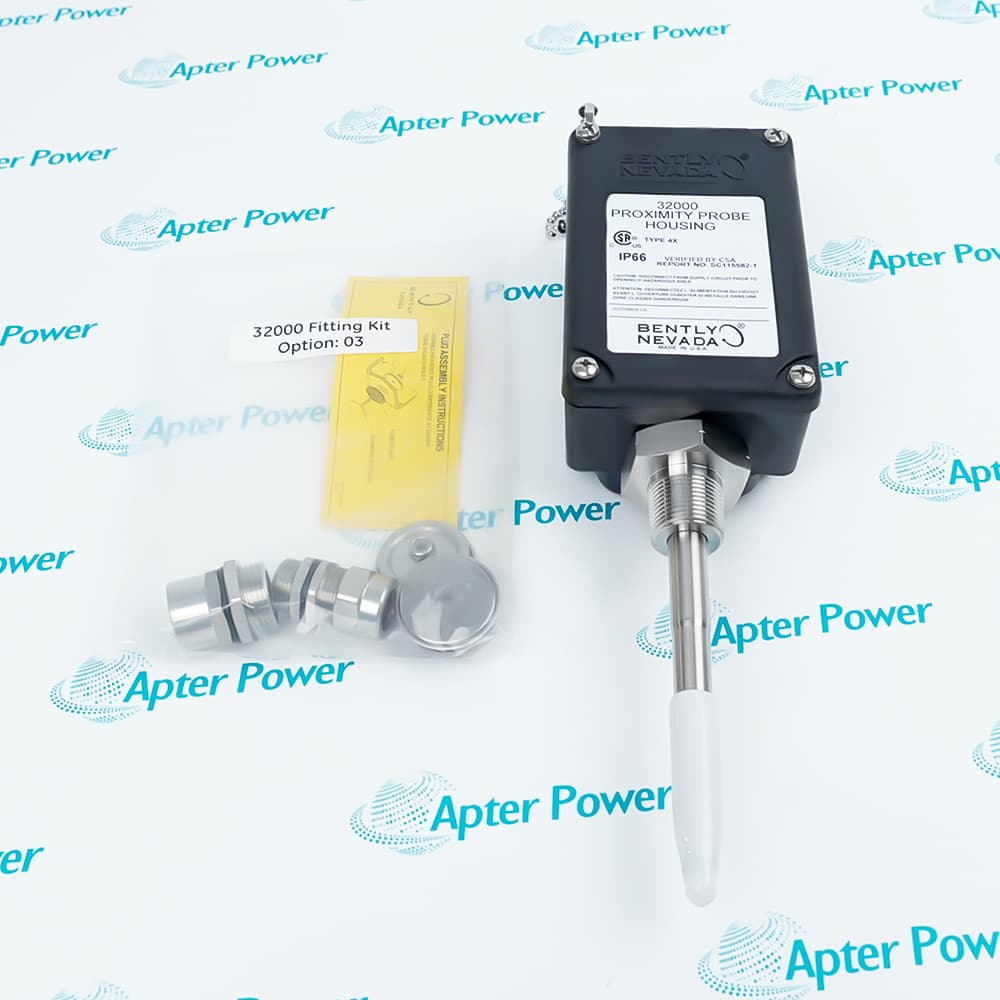

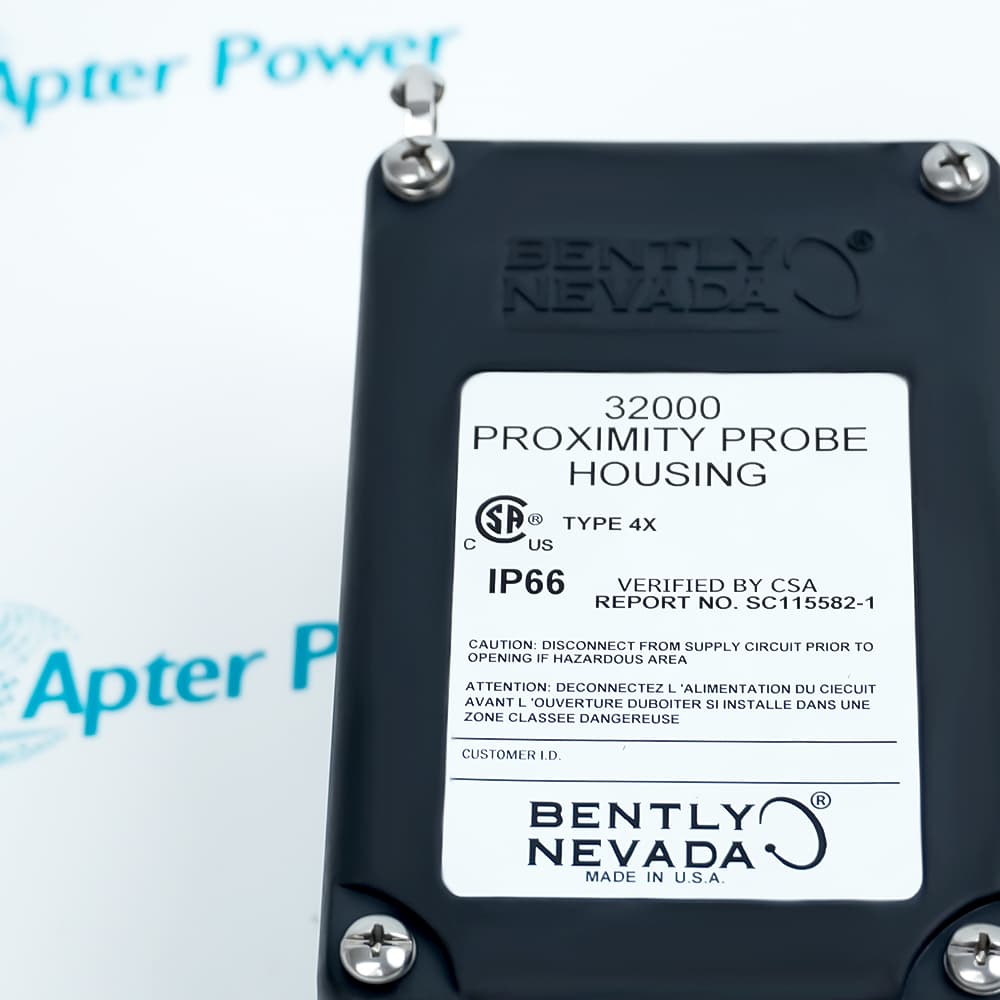

The 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly is specifically engineered for industrial machinery monitoring applications where proximity probes must be mounted through the machine case.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 32000-28-05-00-120-03-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 32000-28-05-00-120-03-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    32000-28-05-00-120-03-02
  • Product Family:
    31000 and 32000 Proximity Probe Housing Assemblies
  • Product Type:
    Proximity Probe Housing Assembly
  • Stock:
    2
  • Probe with Connector:
    3300 XL 8 mm probe, multiple approvals
  • Probe Cable Length:
    0.5 m (20 in)
  • Probe Penetration Option:
    120 mm
  • Mounting Thread:
    3/4-14 NPT
  • Fittings:
    Two plugs, one M20 fitting One cable seal grip with grommets for armored probe cable
  • Weight:
    1.5 kg
  • Estimated shipping dimensions:
    37x9x8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Compatibility & Interoperability Operating Environment

Features:

  • Protective housing for 3300 XL 8 mm proximity probe installation through machine casing
  • Enables external probe access and gap adjustment without machine disassembly
  • Compatible with radial vibration and Keyphasor measurement applications
Designed for seamless integration with the 3300 XL Proximity Transducer System and compatible Bently Nevada monitoring instrumentation, the 32000-28-05-00-120-03-02 provides a standardized housing solution for radial vibration and Keyphasor measurement applications. When deployed for radial vibration monitoring, the 32000-28-05-00-120-03-02 ensures accurate relative vibration signal acquisition by maintaining precise probe positioning through the machine case, provided the casing is properly affixed to the bearing housing.

The 32000-28-05-00-120-03-02 operates as a critical mechanical component in the proximity probe measurement path, directly influencing the integrity and continuity of machinery protection systems. Constructed from polyphenylene sulfide (PPS), an advanced high-strength thermoplastic with excellent corrosion resistance, combined with corrosion-resistant stainless steel elements, the 32000-28-05-00-120-03-02 withstands aggressive industrial environments including petrochemical and oil & gas facilities. The housing configuration includes two plugs, one M20 fitting, and one cable seal grip with grommets specifically designed for armored probe cable, with a 3/4-14 NPT mounting thread for standard industrial installation.

For hazardous area applications, the 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly can be configured for intrinsic safety when installed with an approved transducer system and appropriate I.S. barriers. The 32000-28-05-00-120-03-02 features a probe cable length of 0.5 m (20 in) and a probe penetration option of 120 mm, accommodating various machine case thicknesses and installation requirements. The 32000-28-05-00-120-03-02 is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings, ensuring adherence to industry benchmarks for rotating machinery protection.

The 32000-28-05-00-120-03-02 Bently Nevada Proximity Probe Housing Assembly may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly Specs

General

  • Manufacturer Bently Nevada
  • Model 32000-28-05-00-120-03-02
  • Condition New Original ready stock
  • Product Family 32000-28-05-00-120-03-00,32000-28-05-00-120-03-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Measurements: Typically used for radially mounted transducers to measure vibration or as a Keyphasor for timing signals.
  • External Access: Specifically designed to allow gap adjustment or probe replacement from outside the machine, avoiding the need for machine disassembly.
  • Industrial Sectors: Common in oil and gas and power production for machinery protection and condition monitoring.
  • Transducer Systems: Compatible with 3300 XL 8 mm Proximitor Sensors.
  • Standards: Fully compliant with the American Petroleum Institute (API) 670 Standard for externally mounted proximity probe housings.
  • Hazardous Areas: Suitable for use in intrinsically safe applications when used with approved transducer systems and I.S. barriers.
  • Interchangeability: The 3300 XL 8 mm system supports full interchangeability, allowing probes, extension cables, and Proximitor sensors to be swapped without requiring bench calibration.
  • Temperature Range: Housing: -51 °C to +105 °C (-60 °F to +221 °F). Probe Tip: Capable of withstanding up to +177 °C (+350 °F).
  • Ingress Protection: Rated IP66 and Type 4X, ensuring protection against dust, rain, and hose-directed water.
  • Chemical Resistance: Constructed from Polyphenylene Sulfide (PPS) and stainless steel to resist corrosion from industrial fluids and harsh atmospheric conditions.
  • Pressure Rating: Designed to maintain a seal against differential pressure between the machine interior and the housing body.
Description
The Bently Nevada 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly is a specialized industrial solution designed for mounting proximity probes through machine cases. This specific configuration, 32000-28-05-00-120-03-02, is equipped with a 3300 XL 8 mm probe featuring multiple approvals and a 0.5-meter (20 in) probe cable. The assembly is defined by a probe penetration depth of 120 mm and utilizes a 3/4-14 NPT mounting thread. For connectivity and protection, the 32000-28-05-00-120-03-02 includes two plugs, one M20 fitting, and a cable seal grip with grommets specifically designed for armored probe cables.

The 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly is primarily utilized for radially mounted transducers to facilitate vibration or Keyphasor measurements. When used for radial vibration, the 32000-28-05-00-120-03-02 ensures accurate relative vibration signals provided the machine casing is affixed to the bearing. This assembly is built to withstand harsh environments, constructed from high-strength polyphenylene sulfide (PPS) and corrosion-resistant stainless steel. Furthermore, the 32000-28-05-00-120-03-02 is fully compliant with the American Petroleum Institute’s (API) 670 Standard and is suitable for intrinsically safe hazardous area applications when paired with approved transducer systems and I.S. barriers.

This 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly is specifically designed to handle the challenge of maintaining and adjusting sensors in enclosed industrial machinery without requiring a complete system shutdown. It solves the problem of internal sensor inaccessibility by allowing external access to the proximity probe and its extension cable. By implementing the 32000-28-05-00-120-03-02, operators can perform critical gap adjustments or probe replacements without the time-consuming disassembly of the machine, significantly reducing maintenance downtime and labor costs.
Alternative Names
32OOO-28-O5-OO-12O-O3-O2 32000-28-05-00-I20-03-02 32000 28 05 00 120 03 02 32000-28-05-00-120-03-00 32000-28-05-00-120-03-01 32000-28-05-00-035-01-02 32000-28-05-00-120-03-03 32000-28-05-00-060-03-02
Technical notes
The 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly is recommended when mounting proximity probes through the machine case and is typically used for radially mounted transducers, whether for vibration or Keyphasor measurements. When using the 32000-28-05-00-120-03-02 to measure radial vibration, ensure that the machine casing is affixed to the bearing in order to get an accurate relative vibration signal.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is the 32000-28-05-00-120-03-02 important in machinery monitoring?
It provides a durable, standards-compliant, and maintenance-friendly solution for mounting proximity probes in industrial equipment. By enabling accurate vibration and rotational measurements while minimizing service interruptions, it supports efficient condition monitoring and machinery protection strategies.
What advantages does the 32000-28-05-00-120-03-02 provide during maintenance?
One of its major benefits is external accessibility. It allows technicians to adjust the probe gap or replace the probe without disassembling the machine. This reduces downtime and simplifies maintenance procedures in critical industrial operations.
What applications is this 32000-28-05-00-120-03-02 best suited for?
It is commonly used for radially mounted transducers in machinery monitoring systems, particularly for vibration measurements and Keyphasor applications. Its design allows accurate monitoring of rotating equipment while maintaining ease of access for maintenance and calibration.
