    For 330171-00-12-05-01-05, Apter Power offers quotations, product manuals, and system matching.

330171-00-12-05-01-05

/ 4.9
1001 reviews | Need a Specific Revision?

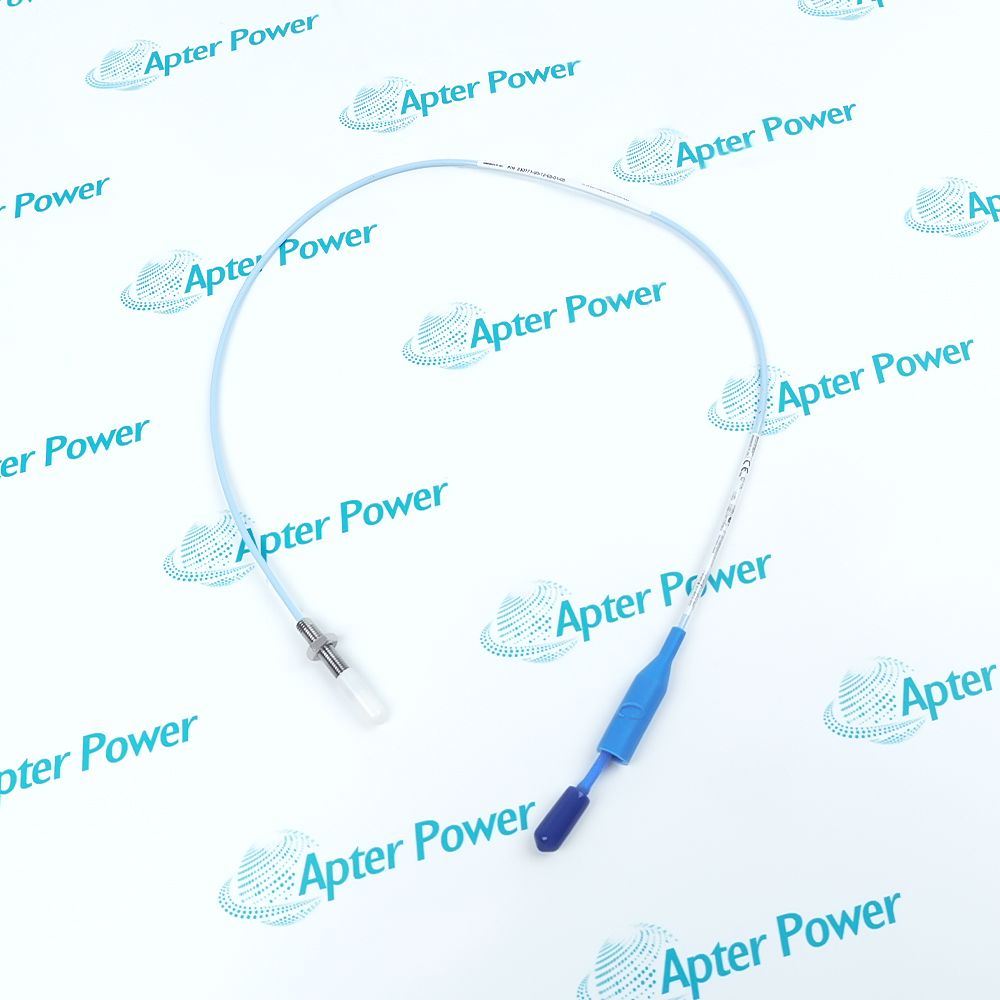

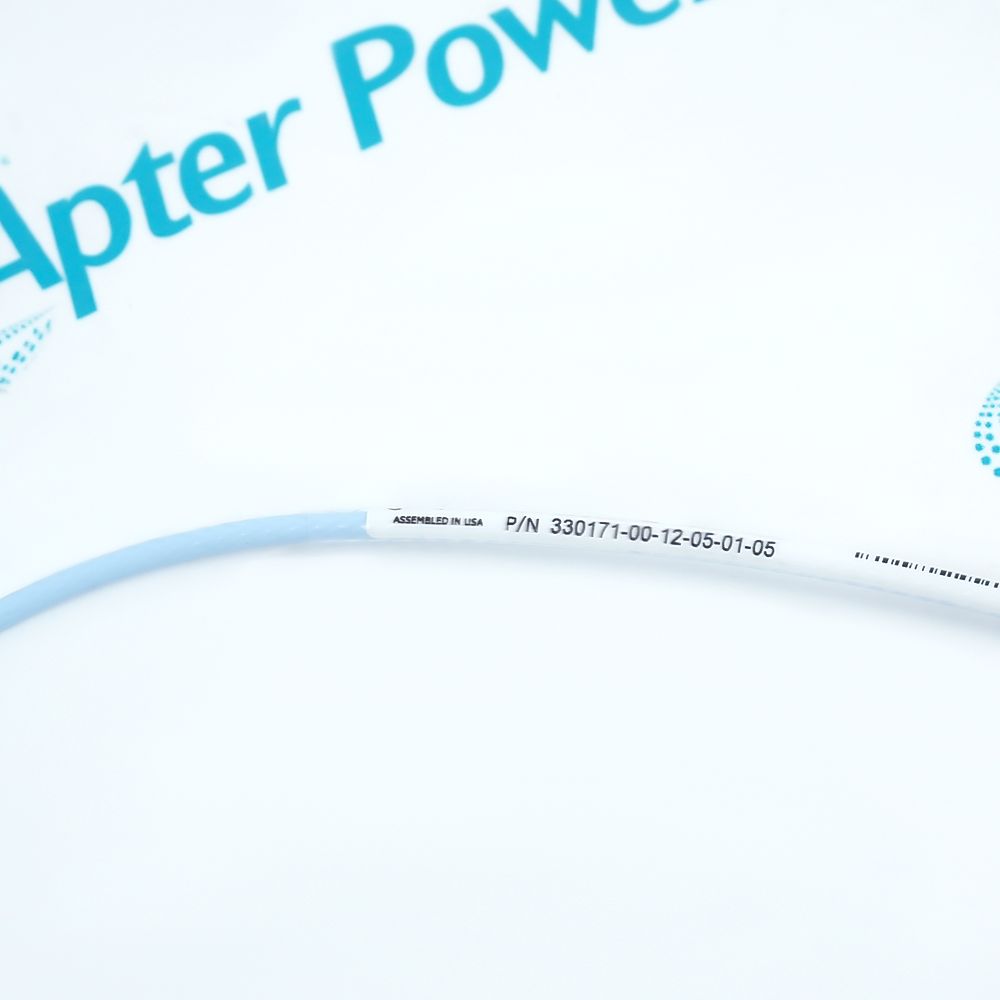

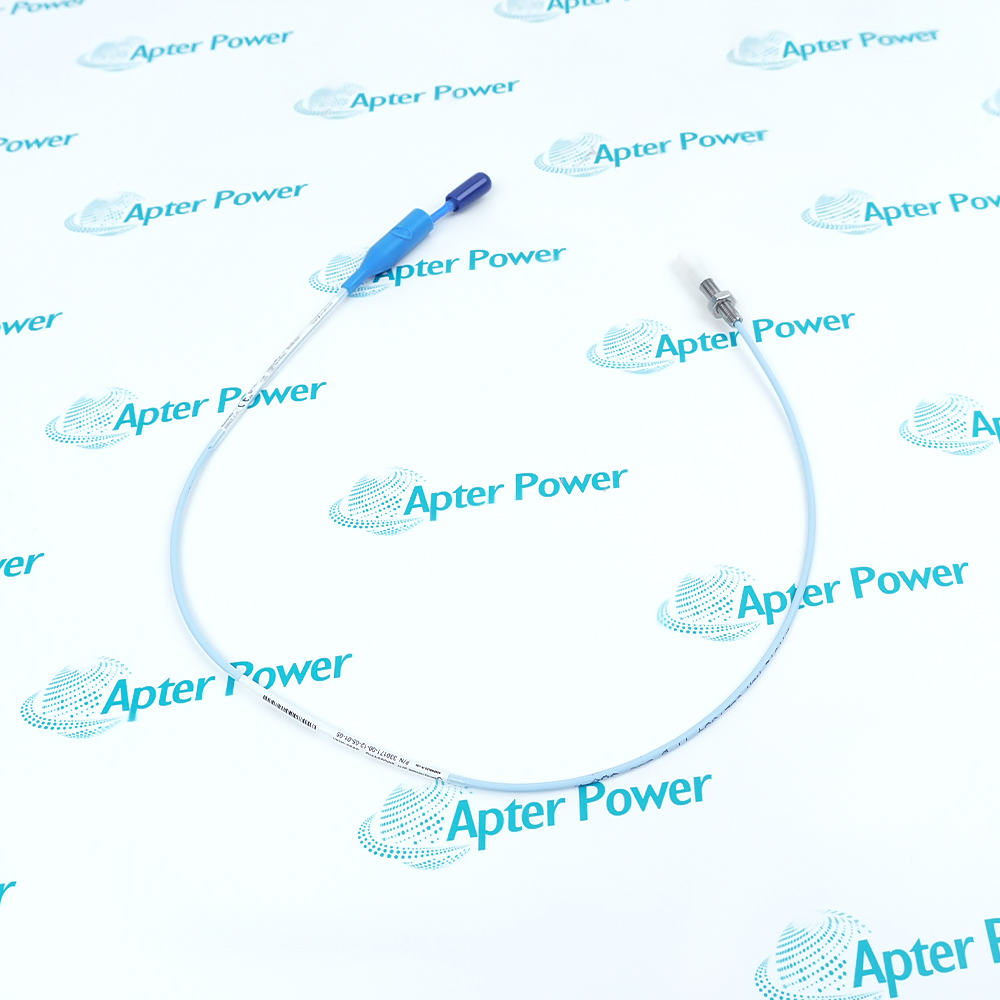

Bently Nevada 330171-00-12-05-01-05 is a 3300 5 mm proximity probe for converting shaft-to-tip distance into the signal used by a matched transducer system.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 330171-00-12-05-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330171-00-12-05-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330171-00-12-05-01-05
  • Product Family:
    3300 5mm Probe
  • Product Type:
    3300 5 mm Proximity Probe
  • Stock:
    1
  • Probe thread:
    1/4-28 UNF
  • Cable armor:
    Without armor
  • Unthreaded length:
    0.0 in
  • Overall case length:
    1.2 in
  • Probe lead length:
    0.5 m
  • Connector option:
    Miniature coaxial ClickLoc connector with protector
  • Cable construction:
    Standard 75-ohm triaxial cable with FEP insulation
  • Approval option:
    Multiple approvals
  • System linear range:
    2.0 mm (80 mils), from 0.25 to 2.3 mm
  • Recommended gap:
    1.27 mm (50 mils)
  • Incremental scale factor:
    7.87 V/mm (200 mV/mil), typical
  • Frequency response:
    0 to 10 kHz, +0/-3 dB
  • Minimum flat target:
    15.2 mm (0.6 in) diameter
  • Probe temperature range:
    -35 to +177 °C (-31 to +351 °F)
  • Minimum cable bend radius:
    25.4 mm (1.0 in)
  • Weight:
    0.088 lbs (0.04 kg)
  • Estimated shipping dimensions:
    1.1x1x68cm
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Order Code Signal Path Mounting Limits

Features:

  • Non-armored 1/4-28 UNF probe with a 1.2-inch threaded case
  • 0.5 m standard triaxial lead with a protected ClickLoc connection
  • Multiple-approval option for the configured 3300 5 mm probe
The 330171-00-12-05-01-05 order code fixes both the mechanical case and the attached lead, so the supplied probe can be checked against the mounting point before the transducer loop is assembled.

With zero unthreaded length, the threaded case carries the probe body through the mounting hardware rather than leaving a plain section ahead of the thread.

The connector protector shields the miniature ClickLoc joint, while the extension cable selected for the installation completes the required electrical path to the Proximitor Sensor.

The Bently Nevada 330171-00-12-05-01-05 3300 5 mm Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330171-00-12-05-01-05 3300 5 mm Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Configured Order Blocks

  • Base family: 330171 identifies a 3300 5 mm probe with 1/4-28 UNF thread and no cable armor.
  • Case geometry: Blocks 00 and 12 specify no unthreaded section and a 1.2-inch overall case.
  • Attached lead: Block 05 assigns a 0.5 m probe lead before the extension-cable connection.
  • Connection: Block 01 supplies a standard cable, ClickLoc connector and connector protector.
  • Approval set: The final 05 block selects the multiple-approval configuration.

Probe-to-Electronics Chain

  • Target gap: Shaft movement changes the distance between the conductive target and the 5 mm probe tip.
  • Probe lead: The 0.5 m triaxial lead carries the probe signal to the detachable cable joint.
  • Extension cable: The selected extension cable completes the required system length without altering the probe body.
  • Proximitor Sensor: Matched electronics convert the probe response into the usable displacement signal.

Mechanical Setup Checks

  • Thread: Use the 1/4-28 UNF case with compatible mounting hardware.
  • Engagement: Keep threaded engagement within the documented 0.375-inch maximum.
  • Cable route: Maintain at least a 25.4 mm bend radius at turns in the attached lead.
  • Target face: Provide a flat conductive target at least 15.2 mm in diameter.

Measurement Boundaries

  • Linear window: Operate within the documented 0.25 to 2.3 mm probe-to-target range.
  • Reference gap: A 1.27 mm nominal gap places the target near the center of the linear span.
  • Dynamic response: The transducer system response extends from 0 to 10 kHz at +0/-3 dB.
  • Probe temperature: The probe and its integral lead are rated from -35 to +177 °C.
Description
Bently Nevada 330171-00-12-05-01-05 is a 3300 5 mm proximity probe that forms the sensing end of a matched transducer system. Its threaded case positions the PPS tip beside the machine shaft, where changes in tip-to-target distance become the electrical signal processed by the connected Proximitor Sensor.

Within the measurement chain, 330171-00-12-05-01-05 connects through its 0.5 m standard triaxial lead and miniature coaxial ClickLoc connector. The extension cable and Proximitor Sensor must complete the specified system length, because the probe, cable and electronics operate as one calibrated loop.

The order code of 330171-00-12-05-01-05 defines a non-armored 1/4-28 UNF probe with no unthreaded section, a 1.2-inch overall case and a connector protector. This compact case configuration separates the mounting geometry from the lead path while protecting the detachable connection.

For shaft setup, 330171-00-12-05-01-05 uses a 1.27 mm recommended gap within the 0.25 to 2.3 mm linear range. A flat target at least 15.2 mm in diameter preserves the intended field geometry, while the 25.4 mm minimum cable bend radius prevents the lead from being folded sharply at the probe body.
Alternative Names
3301710012050105 330171 00 12 05 01 05 330171-0012050105 Bently Nevada 330171-00-12-05-01-05 330171-00-12-05-01-05 3300 5 mm Probe Bently Nevada 330171 00 12 05 01 05 3300 5 mm Probe 330171-00-12-05-01-05 33017I-00-12-05-01-05
Technical notes
Bently Nevada 330171-00-12-05-01-05 uses a 0.5 m standard lead and protected ClickLoc connector. Match the completed cable length to the connected Proximitor Sensor before installation.
