330703-000-060-10-11-00

/ 4.9
1001 reviews | Need a Specific Revision?

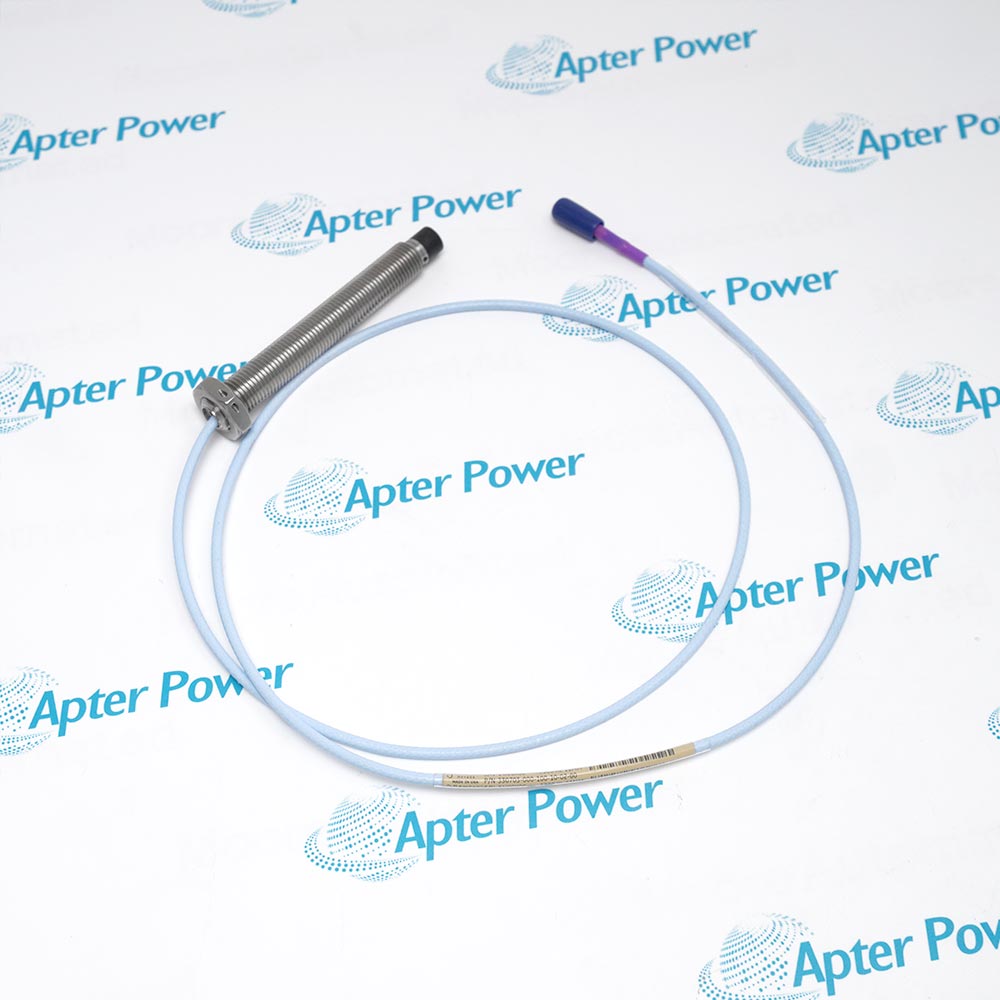

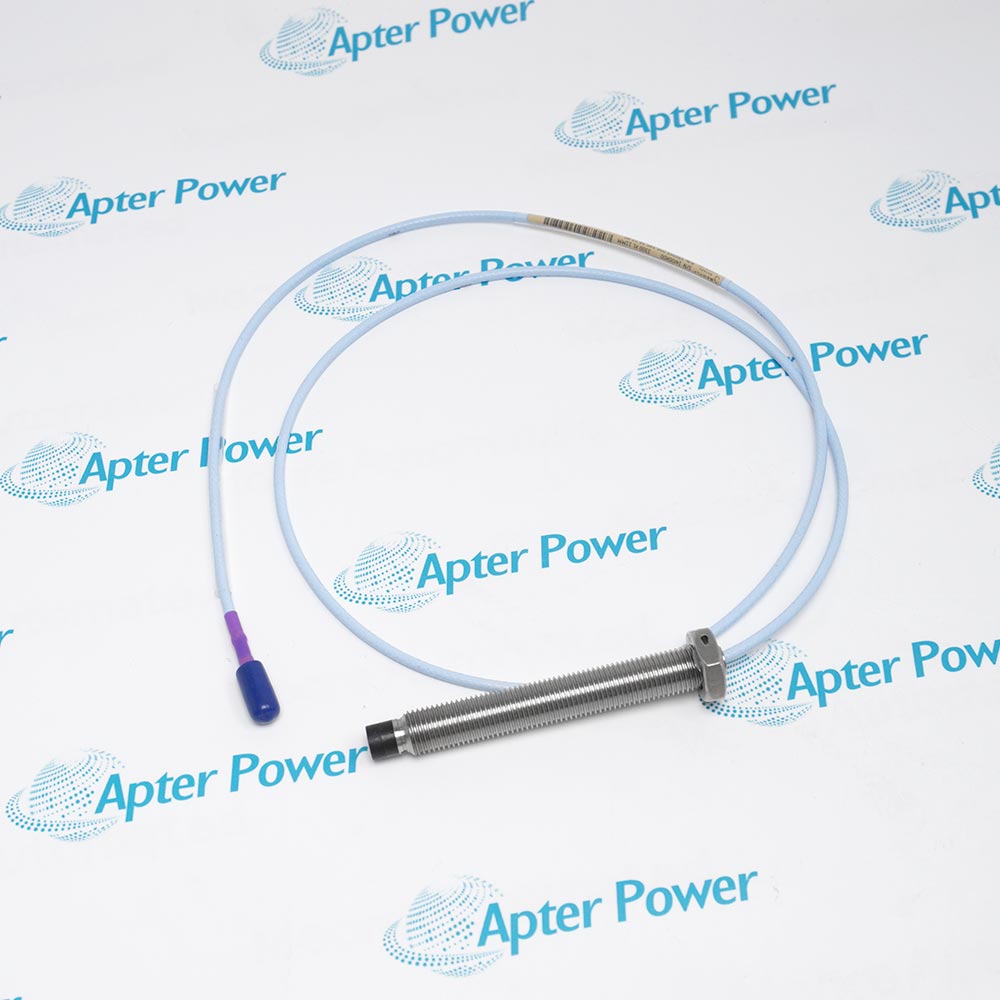

The Model 330703-000-060-10-11-00 is a 3300 XL 11 mm proximity probe featuring M14 x 1.5 metric mounting threads without armor, designed for industrial machinery monitoring applications requiring larger diameter probe construction.
Get a quick price for 330703-000-060-10-11-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330703-000-060-10-11-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330703-000-060-10-11-00
  • Product Family:
    3300 XL 11mm Proximity Transducer System
  • Probe Type:
    3300 XL 11 mm Proximity Probe
  • Mounting Thread:
    M14 x 1.5
  • Unthreaded Length:
    0 mm
  • Overall Case Length:
    60 mm
  • Total Length:
    1.0 meter (3.3 feet)
  • Connector Type:
    Miniature coaxial ClickLoc
  • Cable Type:
    FluidLoc cable
  • Agency Approvals:
    Not required
  • Weight:
    0.15 kg
  • Estimated shipping dimensions:
    2.2x2x118cm
  • Tariff Code:
    8525891900
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications

Features:

  • 11 mm probe with M14 x 1.5 metric threads and flush-mount design
  • FluidLoc cable with pre-installed connector protector
  • Patented TipLoc, CableLoc, and gold-plated ClickLoc connectors
The 330703-00-060-10-11-00 provides essential sensing functions critical to the entire monitoring path, serving as the primary interface between the rotating machinery and the monitoring system, directly affecting the proper, normal operation of the overall protection system. One 330703-00-060-10-11-00 probe is required per measurement point, installed flush in the machine casing with the M14 x 1.5 metric mounting threads. The 330703-00-060-10-11-00 features a zero unthreaded length and 60 mm overall case length, providing a balanced profile suitable for flush-mounted international installations requiring metric thread compatibility and larger 11 mm probe benefits.

The 3500/15 provides essential power functions common to the entire rack, and is a critical For applications requiring fluid containment and enhanced environmental protection, the 330703-00-060-10-11-00 incorporates the FluidLoc cable option spanning its 1.0 meter total length. This specialized cable construction prevents oil and process fluids from migrating through the cable interior and leaking from the machine casing. In addition to standard signal transmission, the pre-installed connector protector on the 330703-00-060-10-11-00 provides increased environmental protection against moisture and contaminants. The locknut with pre-drilled safety wire holes allows for positive locking and safety wiring in critical high-vibration applications.

The 330703-00-060-10-11-00's rugged construction ensures reliable operation in demanding industrial environments. Using patented TipLoc molding method, the probe provides robust tip-to-body bonding, while the patented CableLoc design securely attaches the cable with 330 N pull strength. The gold-plated brass ClickLoc connectors on the 330703-00-060-10-11-00 lock into place, preventing connection loosening from vibration, and enable tool-free installation. The combination of fluid containment, environmental protection, and robust mechanical design makes this probe ideal for challenging monitoring applications in industries where oil leakage prevention and moisture resistance are critical requirements.

The 330703-00-060-10-11-00 Bently Nevada 11 mm Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330703-00-060-10-11-00 11 mm Probe Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330703-00-060-10-11-00 11 mm Probe Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330703-00-060-10-11-00
  • Condition New Original ready stock
  • Product Family 330703-00-060-10-01-00,330703-00-060-10-02-00,330703-00-060-10-11-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Description
The Model 330703-000-060-10-11-00 is a precision-engineered 3300 XL 11 mm proximity probe configured with M14 x 1.5 metric mounting threads and zero unthreaded length for flush mounting applications requiring fluid containment and enhanced environmental protection. This non-armored version features an overall case length of 60 mm, providing a balanced profile suitable for installations with standard clearance requirements. The total length of the 330703-000-060-10-11-00 is 1.0 meter (3.3 feet), offering sufficient reach from the measurement point to the connection point while maintaining signal integrity.

What distinguishes the 330703-000-060-10-11-00 is its integration of the FluidLoc cable option combined with a pre-installed connector protector. The FluidLoc cable creates a barrier against oil and other process liquids migrating through the cable interior and potentially leaking from the machine casing, which is essential for maintaining environmental integrity in rotating machinery applications where bearing lubrication or process fluids are present.

Mechanical robustness is a defining characteristic of the 330703-000-060-10-11-00, featuring the patented CableLoc design that securely attaches the probe cable to the probe tip with an impressive 330 N (75 lb) pull strength, ensuring the cable remains securely attached even under significant mechanical stress during installation and operation.

The connector system on the 330703-000-060-10-11-00 features a miniature coaxial ClickLoc connector with gold-plated brass contacts, enabling rapid, tool-free installation while delivering a secure locking mechanism. The FluidLoc cable of the 330703-000-060-10-11-00 provides reliable signal transmission while preventing fluid migration along the cable path, and the pre-installed connector protector ensures contamination-free connections in challenging environments.
Alternative Names
330703-000-060-10-01-00 330703-000-060-10-02-00 330703-000-060-10-12-00 330703-000-060-10-11-05
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the key dimensional and mechanical specifications for the 330703-000-060-10-11-00 probe?
The 330703-000-060-10-11-00 features M14 x 1.5 metric mounting threads, a zero unthreaded length (0 mm) for flush mounting applications, and an overall case length of 60 mm. The total length of the probe assembly, including the integral FluidLoc cable, is 1.0 meter (3.3 feet), terminated with a miniature coaxial ClickLoc connector featuring gold-plated brass contacts and a pre-installed connector protector. The probe incorporates patented TipLoc molding method and CableLoc design providing 330 N (75 lb) pull strength, and includes a standard locknut with pre-drilled safety wire holes.
What fluid containment and environmental protection features are included on the 330703-000-060-10-11-00?
The 330703-000-060-10-11-00 features the FluidLoc cable option, which is specifically designed to prevent oil and other liquids from leaking out of the machine through the cable's interior. Additionally, the probe includes a pre-installed connector protector that provides additional protection of the connectors in humid or moist environments. Connector protectors are recommended for all installations to provide increased environmental protection, making this probe ideal for applications requiring both fluid containment and moisture protection.
What patented mechanical features are incorporated into the 330703-000-060-10-11-00 design?
The 330703-000-060-10-11-00 incorporates two key patented technologies: the TipLoc molding method which provides a robust bond between the probe tip and the probe body, and the CableLoc design which securely attaches the probe cable to the probe tip with an impressive 330 N (75 lb) pull strength. Additionally, the probe includes a standard locknut with pre-drilled safety wire holes for positive locking in high-vibration applications. All components feature gold-plated brass ClickLoc connectors that lock into place, preventing connection loosening from vibration.
What thread options and configurations are available for the 330703-000-060-10-11-00?
The 330703-000-060-10-11-00 features M14 x 1.5 metric mounting threads as part of the 3300 XL 11 mm probe family, which is available in varying case configurations including armored and unarmored versions with multiple thread options such as ½-20, 5⁄8-18, M14 x 1.5, and M16 x 1.5. Reverse mount versions of the 3300 XL 11 mm probe come standard with either 3⁄8-24 or M10 x 1 threads for specialized applications. The FluidLoc cable and connector protector features of this model provide enhanced protection for demanding applications.
