    Apter Power sources authentic Bently Nevada diagnostic probes to maximize rotating equipment lifespans.

330101-00-20-20-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

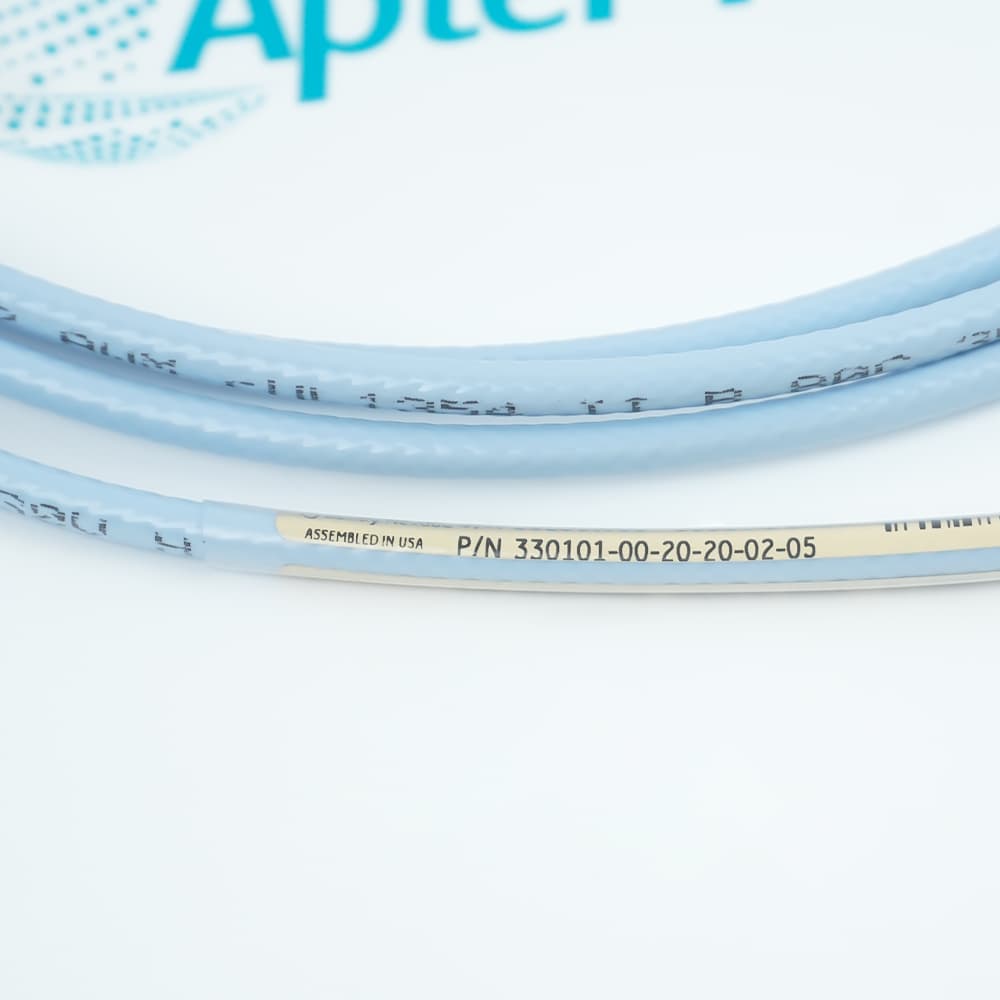

The 330101-00-20-20-02-05 is a 2.0 in probe with a 2.0 m (6.6 ft) standard cable, 0.0 in unthreaded length, a miniature coaxial ClickLoc connector, and CSA/ATEX/IECEx approvals.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330101-00-20-20-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330101-00-20-20-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330101-00-20-20-02-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    Proximity Probe
  • Stock:
    2
  • Unthreaded Length:
    0.0 in.
  • Overall Case Length:
    2.0 in.
  • Total Length:
    2.0 meters (6.6 feet)
  • Connector-Type:
    Miniature coaxial ClickLoc connector
  • Cable-Type:
    standard cable
  • TipLoc Design Purpose:
    Provides a stronger bond between the probe tip and probe body
  • CableLoc Design Purpose:
    Ensures 330 N (75 lbf) pull strength for secure cable attachment
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    18x18x2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Installation Application Environmental Monitoring

Features:

  • Provides eddy current proximity measurement with output voltage directly proportional to distance between probe tip and conductive surface, supporting both static position and dynamic vibration measurement.
  • Complies with API 670 standard for mechanical configuration, linear range, accuracy, and temperature stability in standard 5-meter system configuration.
  • Designed with interchangeable system architecture including probe, extension cable, and Proximitor sensor without individual component matching or bench calibration requirement.
The Bently Nevada 330101-00-20-20-02-05 3300 XL 8 mm Proximity Probe is part of a complete 3300 XL 8 mm proximity transducer system designed for precise measurement of vibration and position. The Bently Nevada 330101-00-20-20-02-05 provides an output voltage proportional to the distance between the probe tip and conductive surface. It is used in applications involving fluid-film bearing machines as well as Keyphasor reference and speed measurements.

The Bently Nevada 330101-00-20-20-02-05 is constructed with a 2.0 meter total length (6.6 feet), unthreaded length of 0.0 in, and overall case length of 2.0 in. It uses a miniature coaxial ClickLoc connector and a 75Ω triaxial FEP insulated probe cable. The probe tip is made of Polyphenylene sulfide (PPS), and the case material is AISI 303 or 304 stainless steel, with optional armor available in flexible AISI 302 or 304 stainless steel with FEP outer jacket.

The Bently Nevada 330101-00-20-20-02-05 system includes a probe, extension cable, and Proximitor sensor as a complete measurement chain. It supports CSA, ATEX, and IECEx agency approvals and provides fully interchangeable components without the need for calibration matching. The Bently Nevada 330101-00-20-20-02-05 ensures consistent measurement performance across vibration, position, and speed monitoring applications.

The 330101-00-20-20-02-05 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-20-20-02-05 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330101-00-20-20-02-05 3300 XL 8 mm Proximity Probe Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330101-00-20-20-02-05
  • Condition New Original ready stock
  • Product Family 330101-00-20-20-02-00,330101-00-20-20-02-CN,330101-00-20-20-01-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Reverse Thread Fastening: Employs a special thread specification, using a precision fine-tuning nut to ensure optimal linear clearance between the probe tip and the measured end face.
  • Connector Locking: Equipped with a ClickLoc connector, using a physical structure to prevent cable loosening due to long-term high-frequency vibration.
  • Probe Tip Protection: The probe tip is encapsulated in high-performance PPS material, effectively resisting damage from dust, oil, and minor physical impacts.
  • Bracket Rigidity Requirements: Must be installed on a sufficiently rigid bracket to eliminate interference from the bracket's own vibration on the measurement results.
  • Radial Vibration Measurement: Mounted on a sliding bearing bracket, used for real-time monitoring of the relative vibration displacement of rotating machinery shafts.
  • Axial Displacement Monitoring: Measures the axial position change of the shaft relative to the thrust bearing, preventing rotor-stator collision and wear.
  • Key Phase Signal Acquisition: Provides a pulse signal per revolution, using keyways or protrusions on the shaft, for calculating speed and phase analysis.
  • Eccentricity Monitoring: Monitors the bending of the main shaft during turbine startup or shutdown, ensuring the unit accelerates within a safe range.
  • Oil Mist Corrosion Resistance: The housing design provides excellent chemical corrosion resistance, allowing for long-term operation in environments filled with lubricating oil mist and various industrial solvents.
  • Automatic Temperature Drift Compensation: The internal circuitry, in conjunction with the preamplifier, automatically compensates for electrical parameter drift caused by ambient temperature fluctuations, ensuring measurement accuracy.
  • Fully Sealed Encapsulation: The probe achieves a stringent protection rating, preventing condensation or process liquids from seeping into the induction coil and causing failure.
  • Suitable for Hazardous Areas: Explosion-proof certified, allowing safe deployment as a core monitoring element in areas containing flammable and explosive hazardous chemicals.
Description
The Bently Nevada 330101-00-20-20-02-05 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF threads, without armor, designed for vibration and position measurement on fluid-film bearing machines. It features a 0.0-inch unthreaded length and a 2.0-inch overall case length, with a 2.0-meter integral cable.

The 330101-00-20-20-02-05 incorporates patented TiLoc molding for a robust bond between the probe tip and body, and CableLoc technology providing 330 N (75 lbf) pull strength. The gold-plated ClickLoc connector (option 02) requires only finger-tight torque and features a locking mechanism to prevent loosening.

The 330101-00-20-20-02-05 carries CSA, ATEX, and IECEx approvals (option 05) for hazardous area installations. It is factory calibrated to AISI 4140 steel by default, with other target material calibrations available upon request. The 2.0-meter cable provides extended reach for flexible installation.

The 330101-00-20-20-02-05 is fully interchangeable with both XL and non-XL 3300 series 5 mm and 8 mm components, eliminating bench calibration. It complies with API 670 Standard and operates from -51°C to +177°C, making it suitable for demanding industrial applications such as turbines and compressors.
Alternative Names
33O1O1-OO-2O-2O-O2-O5 330I0I-00-20-20-02-05 330101 00 20 20 02 05 330101-00-20-20-02-00 330101-00-20-20-02-CN 330101-00-20-20-02-RU 330101-00-20-20-02-BR 330101-00-16-10-02-00
Technical notes
Bently Nevada 330101-00-20-20-02-05 3300 XL 8 mm Proximity Probe has unthreaded length 0.0 in, overall case length 2.0 in, total length 2.0 meters (6.6 feet), connector type miniature coaxial ClickLoc connector, probe tip material Polyphenylene sulfide (PPS), probe case material AISI 303 or 304 stainless steel, probe cable 75Ω triaxial FEP insulated.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the maximum length of 330101-00-20-20-02-05?
The maximum length of thread engagement is 0.563 in.
What is the altitude limit for 330101-00-20-20-02-05?
The maximum altitude is 2000 meters.
What cable lengths are available for 330101-00-20-20-02-05?
Available lengths include 0.5, 1, 1.5, 2, 3, 5, and 9 meters.
What material is the 330101-00-20-20-02-05 tip made of?
The probe tip is made of polyphenylene sulfide (PPS).
