Features:
- Versatile 3.6-inch case length with 1.0m cable for standard mounting.
- CSA, ATEX, IECEx certified for installation in explosive atmospheres with option 05.
- Patented TiLoc and CableLoc technologies for robust mechanical durability.

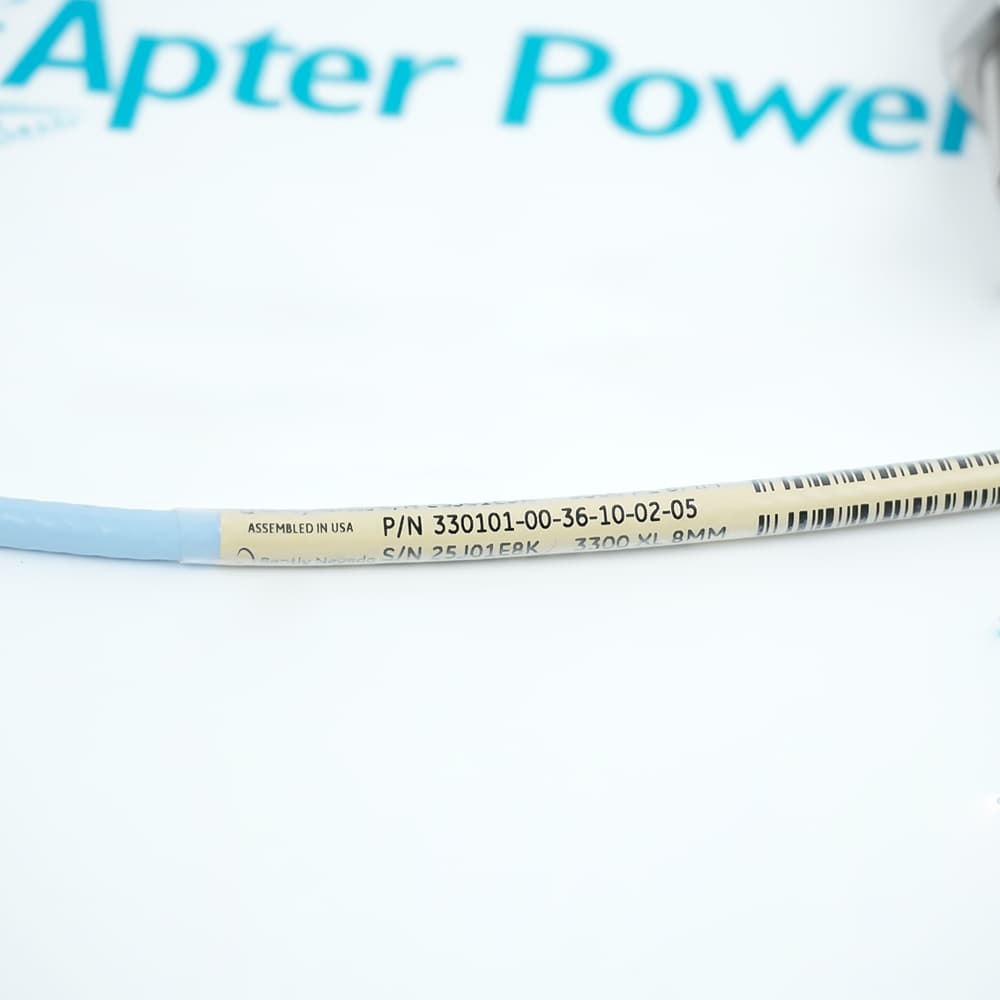

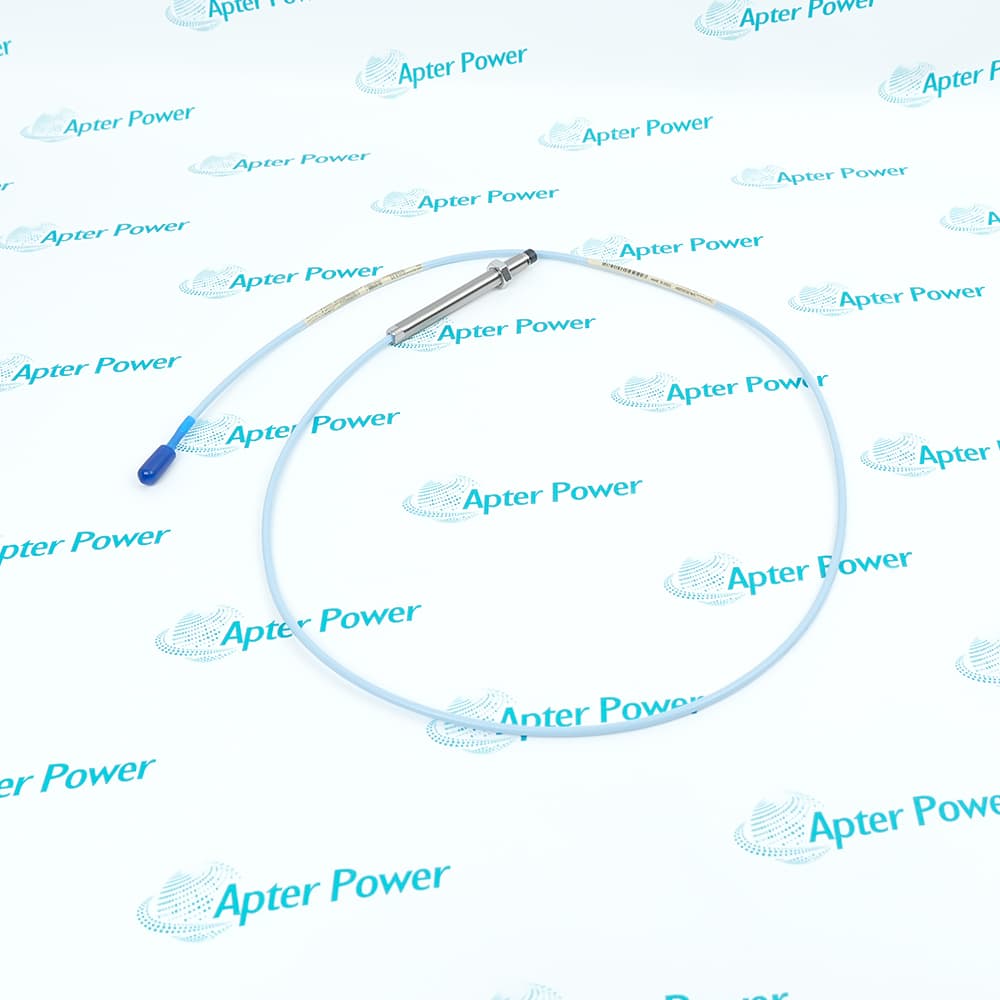

The 330101-00-36-10-02-05 is an 8 mm proximity probe engineered for reliable vibration and position measurement on fluid-film bearing machines such as turbines, compressors, and generators. With a 3.6-inch overall case length, 0.0-inch unthreaded length, and 1.0-meter (3.3-foot) integral cable, it provides a versatile solution for standard mounting applications. The 3/8-24 UNF threads without armor offer a lightweight yet durable design. The probe is fully interchangeable with both XL and non-XL 3300 series components, eliminating the need for bench calibration. The 1.0-meter cable length is compatible with corresponding Proximitor sensor configurations.
The 330101-00-36-10-02-05 carries CSA, ATEX, and IECEx approvals (option 05), making it suitable for installation in potentially explosive atmospheres including Class I Zone 0 and Zone 2 environments. These certifications ensure the 330101-00-36-10-02-05 can be safely deployed in refineries, chemical plants, and other hazardous industrial facilities. The 330101-00-36-10-02-05 is factory calibrated to AISI 4140 steel by default, with other target material calibrations available upon request.
The 330101-00-36-10-02-05 incorporates patented TiLoc molding for a robust bond between the probe tip and the probe body, ensuring long-term reliability under vibration and mechanical stress. The CableLoc design provides 330 N (75 lbf) pull strength, securely attaching the probe cable to the probe tip to prevent accidental disconnection. The gold-plated ClickLoc connector with standard cable (option 02) requires only finger-tight torque and features a locking mechanism to prevent loosening. The 330101-00-36-10-02-05 operates from -51°C to +177°C and complies with API 670 Standard for mechanical configuration and accuracy.
The 330101-00-36-10-02-05 Bently Nevada Proximity Probe may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-36-10-02-05 Proximity Probe Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
Bently Nevada 330101-00-36-10-02-05 Proximity Probe Specs
General
- Manufacturer GE / Bently Nevada
- Model 330101-00-36-10-02-05
- Condition New Original ready stock
- Product Family
330101-00-36-10-02-00,330101-00-36-10-02-CN,330101-00-36-10-02-RU
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- Power Generation: Monitors steam turbines, gas turbines, and generators.
- Oil & Gas / Petrochemical: Applied to centrifugal compressors, turbo-expanders, and pumps.
- Heavy Manufacturing: Used in large fans, blowers, and electric motors.
- Radial Vibration: Measures shaft dynamic motion inside fluid-film bearings.
- Early Fault Detection: Identifies rotor unbalance, shaft misalignment, fluid-film bearing instability (oil whirl/whip), and mechanical looseness.
- Automated Machinery Protection: Triggers emergency alarms or automatic machinery shutdown (trips) if vibration amplitudes or axial displacements exceed safe thresholds.
- Advanced Diagnostics: Supplies raw waveform data used by asset management software to generate Orbit plots, Bode plots, and Waterfall plots for root-cause failure analysis.
- Sensor Self-Health Monitoring: The connected Proximitor sensor constantly validates the "Gap Voltage" (DC bias). If a cable snaps or short-circuits, the system detects a "Not OK" status, preventing false machinery trips.
- Mechanical Clearance: The probe must be rigidly mounted to prevent bracket resonance. Ensure the probe tip is perpendicular to the shaft observed surface.
- Gap Voltage Adjustment:Adjust the physical distance between the probe tip and the shaft until the Proximitor sensor outputs a standard DC bias voltage of approximately -10 VDC (which represents the middle of its linear range).
- Target Material: The standard calibration is for AISI 4140 steel. If the shaft is made of a different material, the Proximitor sensor must be recalibrated, or scale factors must be adjusted in the software.
- Cross-Talk Prevention: Maintain a minimum physical distance between adjacent probe tips (typically at least 40 mm apart) to prevent electromagnetic interference (cross-talk).
