Features:
- Interface Between the Machine Surface and 3300 XL Proximitor® Sensor System
- Combines Capability of Vibration Detection with Environmental Protection
- Operates in Conjunction with the 3300 XL 8mm Transducer System and Standard 3500 Monitoring System

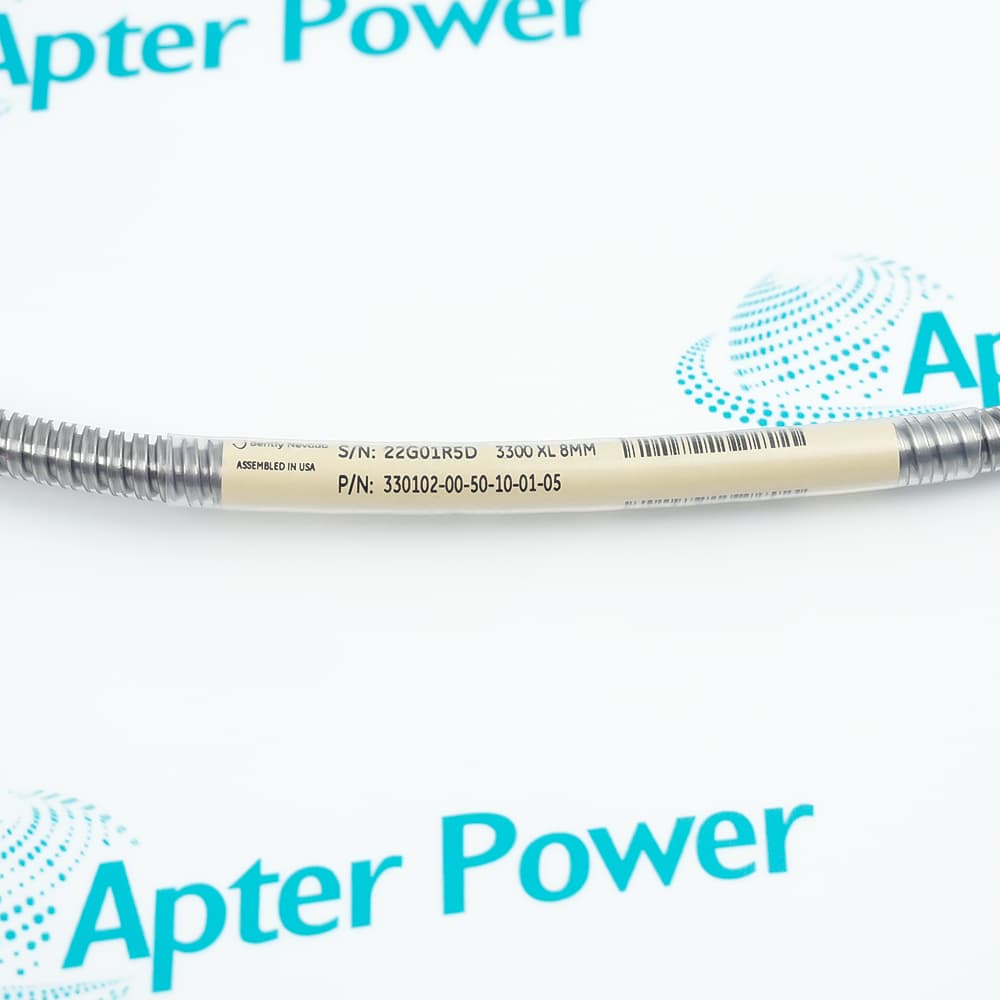

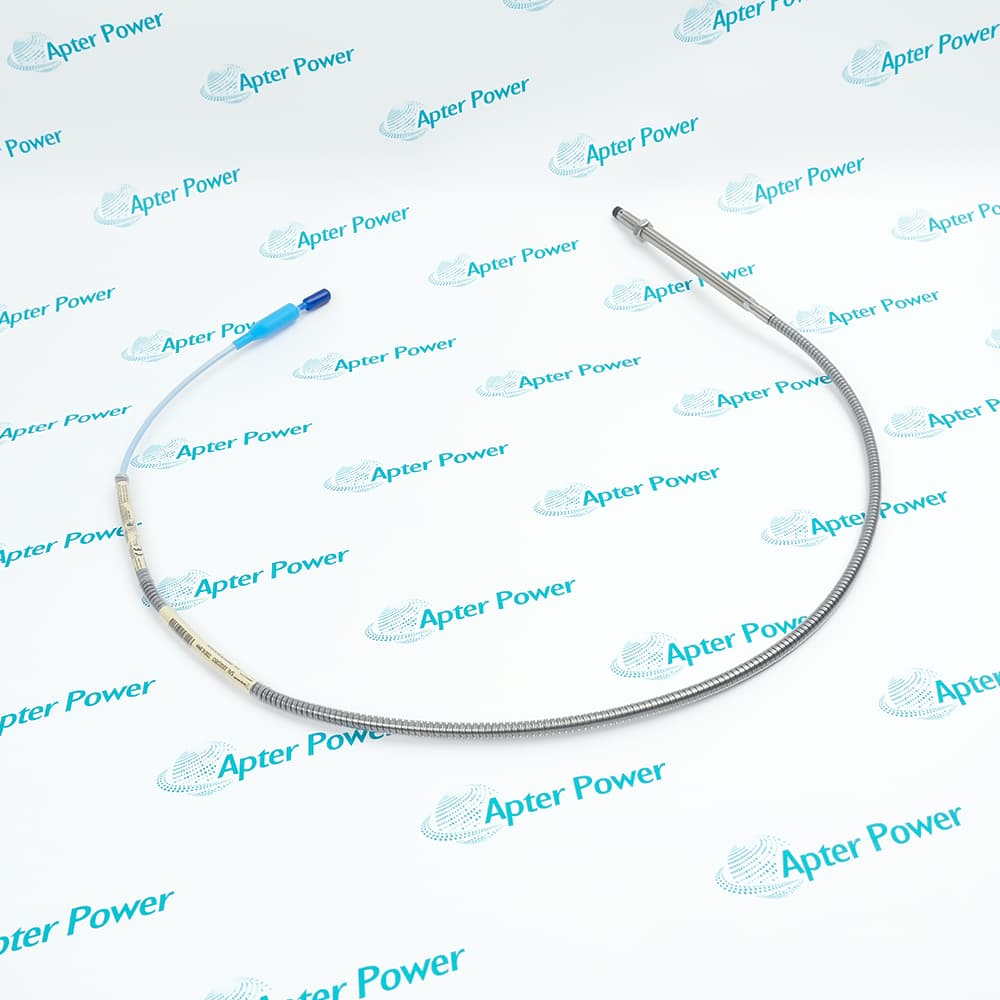

The 330102-00-50-10-01-05 operates as the 8mm Proximity Probe in a 3300 XL 8mm transducer system, providing reliable displacement measurement of rotating machinery components. It continuously detects eddy current variations across 0.25 to 2.3 mm linear range while maintaining signal accuracy through PPS probe tip and FEP-armored cable construction. Seamless signal transmission is standard with the 330102-00-50-10-01-05, however using an optional ClickLoc™ connector design will ensure superior pull strength at the connection point in demanding industrial environments. The 330102-00-50-10-01-05 has made improvements in several areas over previous probe designs in addition to incorporating gold-plated connector technology within the 3300 XL system.
The 330102-00-50-10-01-05 provides essential sensing functions common to the entire transducer system, and is a critical component of the measurement path, directly affecting the accuracy and reliability of the overall vibration monitoring system. One 330102-00-50-10-01-05 probe is required per measurement channel depending on the desired monitoring point. The 330102-00-50-10-01-05 occupies no rack slots and is always mounted directly on the machine bearing housing (typically in a 3/8-24 UNF threaded mounting position).
For complete system operation, the 3300 XL 8mm system requires the 330102-00-50-10-01-05 proximity probe to convert mechanical displacement into electrical signals. In addition to standard vibration measurement, the 330102-00-50-10-01-05 configuration also performs environmental sealing. The 330102-00-50-10-01-05 probe assembly executes protection using the Viton O-ring pressure seal specified in the probe specifications. Using this method, the proximity probe continually guards against oil and moisture ingress up to 34 bar (500 psi) pressure. If the system detects that the probe signal is compromised (outside configured gap voltage of -9 Vdc or sensitivity tolerance of 7.87 V/mm), it will indicate a fault condition in the monitoring system and require probe inspection.
The 330102-00-50-10-01-05 Bently Nevada 8mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330102-00-50-10-01-05 Proximity Probe Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
Bently Nevada 330102-00-50-10-01-05 8mm Proximity Probe Specs
General
- Manufacturer Bently Nevada
- Model 330102-00-50-10-01-05
- Condition New Original ready stock
- Product Family 330102-00-50-10-01-00,330102-00-50-10-01-CN,330102-00-50-10-01-BR
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Radial Vibration: Measuring shaft movement within bearings to detect imbalance or misalignment.
- Axial (Thrust) Position: Monitoring the longitudinal movement of shafts to prevent catastrophic mechanical failure.
- Tachometer & Speed Measurements: Providing data for zero-speed and rotational speed monitoring.
- Keyphasor Signals: Acting as a phase reference to provide timing information for vibration analysis.
- Temperature Range: Typically operates from -51°C to +177°C (-60°F to +351°F). Short-term exposure to temperatures up to +250°C (+482°F) is possible for under 24 hours.
- Pressure Resistance: Features a Viton® O-ring designed to seal differential pressure between the probe tip and case.
- Hazardous Areas: Certified for use in dangerous environments with CSA, ATEX, and IECEx approvals.
- Humidity & Corrosion: Rated IP67 for protection against dust and moisture, with a probe tip made of Polyphenylene Sulfide (PPS) and a stainless steel body (AISI 304).
- Eddy Current Principle: Provides an output voltage directly proportional to the distance between the probe tip and a conductive target.
- System Integration: Compatible with Bently Nevada Monitoring Systems like the 3500 series, enabling seamless health monitoring and automated shutdown triggers.
- Interchangeability: Allows for the replacement of probes, cables, and Proximitor® sensors without requiring individual bench calibration.
- High Sensitivity: Standard sensitivity of 200 mV/mil (7.87 V/mm) ensures precise detection of even minute shaft movements.
