    Apter Power provides genuine Bently Nevada proximity sensors to maintain continuous machinery protection across critical industrial assets.

330103-00-03-10-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

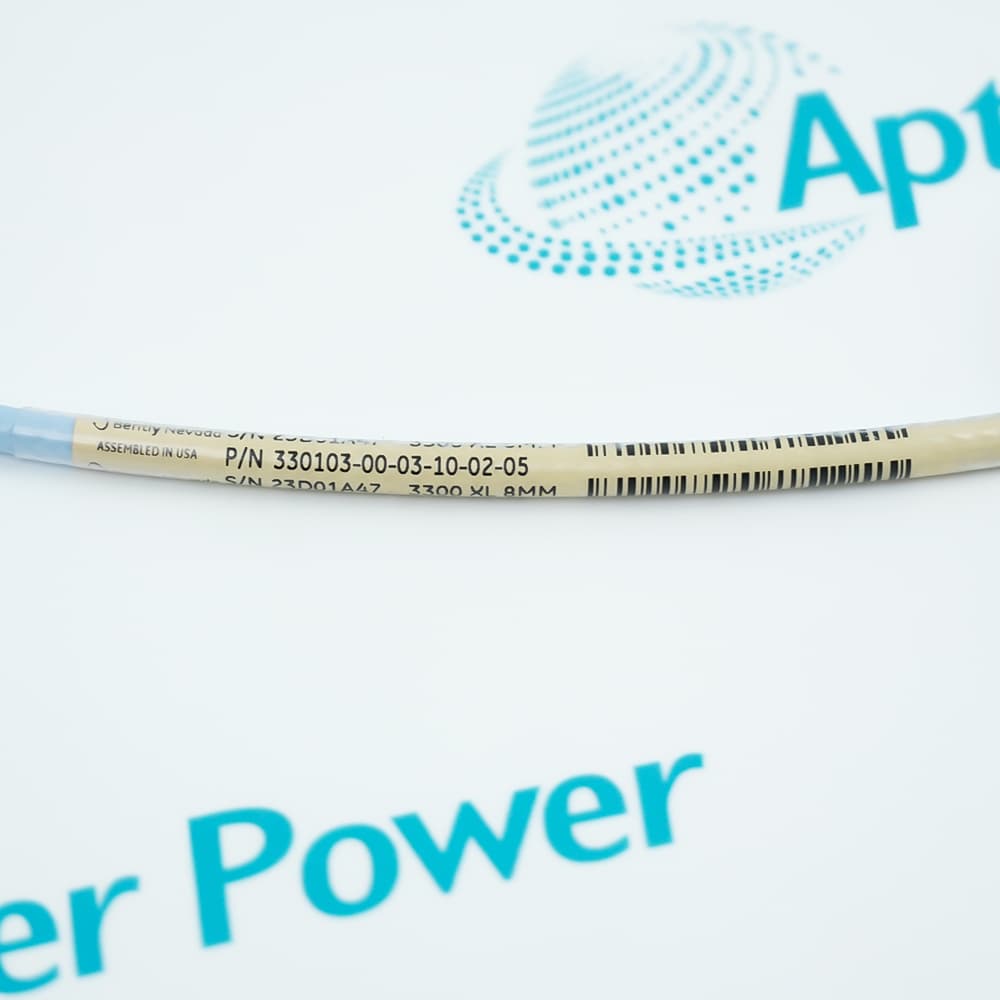

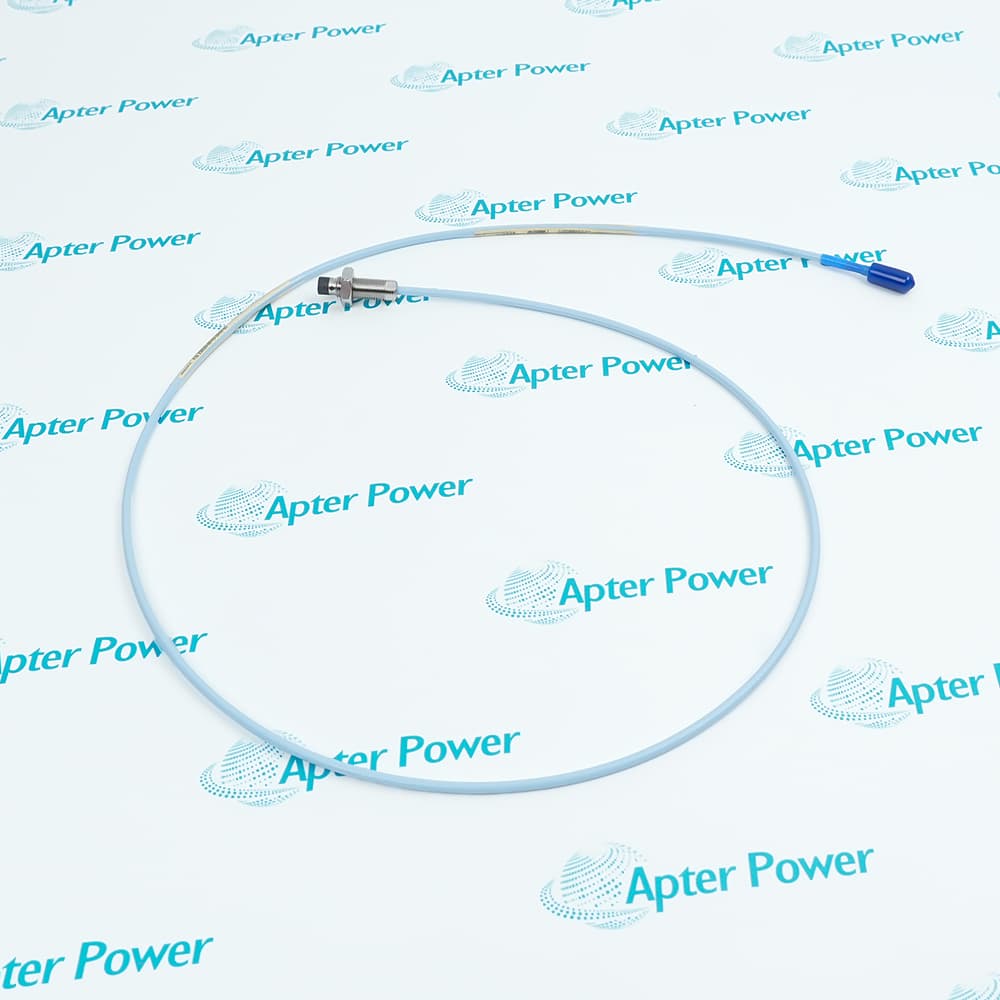

330103-00-03-10-02-05 is a 3300 XL 8 mm Proximity Probe from the Bently Nevada 3300 XL series. This model is a 3300 XL 8 mm probe with an M10 × 1 threaded design, supplied without armor.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330103-00-03-10-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330103-00-03-10-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330103-00-03-10-02-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    3300 XL 8 mm Proximity Probe
  • Stock:
    1
  • Unthreaded Length:
    0 mm
  • Overall Case Length:
    30 mm
  • Total Length:
    1.0 meter (3.3 feet)
  • Connector -Type:
    Miniature coaxial ClickLoc connector
  • Cable-Type:
    standard cable
  • Performance Test Load:
    10 kΩ
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    1.8x1.5x113cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Monitoring & Control Configuration & Programming

Features:

  • Interface Between the Rotating Machinery Surface and 3300 XL Proximitor Sensor
  • Combines High-Precision Eddy Current Sensing with Robust Industrial Durability
  • Operates in Conjunction with the 3300 XL Extension Cables and Proximitor Monitoring Systems
The 330103-00-03-10-02-05 operates as an 8 mm Proximity Probe within a 3300 XL Transducer System, providing reliable non-contact vibration and position data for critical assets. It continuously senses the gap between the probe tip and the target material (typically 4140 steel) and transmits this displacement signal through a 1.0-metre integral cable to a Proximitor Sensor. High-accuracy measurement is standard with the 330103 series; however, this specific configuration utilizes a 30 mm threaded case with M10 x 1 metric threads to allow precise mechanical gapping in restricted housing environments. The 3300 XL design has made improvements in thermal stability and moisture resistance over previous 8 mm designs, incorporating a patented TipLoc molding method.

The 330103-00-03-10-02-05 provides essential sensing functions for the monitoring chain and is a critical component of the vibration measurement path, directly affecting the accuracy of the overall machinery protection system. One probe is required per measurement point (e.g., Radial Vibration or Axial Thrust) depending on the desired monitoring strategy. The 330103-00-03-10-02-05 occupies a physical mounting hole on the machine bearing housing and is typically installed using a bracket or threaded directly into the casing.

For Hazardous Area applications, the 330103-00-03-10-02-05 includes the -05 Multiple Agency Approval option. In addition to standard industrial performance, this configuration complies with CSA, ATEX, and IECEx certifications for use in explosive atmospheres. The 3300 XL 8 mm system executes signal transduction using the specialized gold-plated ClickLoc connectors specified in the hardware options. Using this method, the proximity system ensures a vibration-resistant connection between the probe and extension cable. If the system detects a change in the eddy current field, it will immediately output a proportional voltage to the monitor to reflect the dynamic position of the shaft.

The 330103-00-03-10-02-05 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330103-00-03-10-02-05 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330103-00-03-10-02-05 3300 XL 8 mm Proximity Probe Specs

General

  • Manufacturer Bently Nevada
  • Model 330103-00-03-10-02-05
  • Condition New Original ready stock
  • Product Family 330103-00-03-10-02-00,330103-00-03-10-02-CN
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Vibration Monitoring: Measuring the dynamic motion of a shaft within its bearings to detect imbalances or misalignments.
  • Axial (Thrust) Position: Tracking the longitudinal movement of a shaft to prevent catastrophic internal contact within a machine.
  • Keyphasor & Speed Measurements: Providing accurate timing signals for synchronization, phase analysis, and rotational speed calculation.
  • Target Environments: Ideally suited for fluid-film bearing machines like turbines, centrifugal compressors, pumps, and large motors.
  • System Integration: Typically connected to a 3300 XL Proximitor Sensor and then to a monitoring system like the Bently Nevada 3500 Machinery Protection System.
  • Signal Output: Generates a standard scale factor of 200 mV/mil (7.87 V/mm), which is compatible with most industrial vibration monitors.
  • Machinery Protection: Used to trigger alarms or "trips" (automatic shutdowns) if vibration levels or shaft positions exceed safety thresholds defined by API 670 standards.
  • Mechanical Gapping: The probe must be physically positioned at a specific distance from the target. A common recommended gap is -9 Vdc (approximately 1.27 mm or 50 mils) to ensure it sits in the center of its linear range.
  • Interchangeability: The 3300 XL series allows for the probe, extension cable, and Proximitor sensor to be swapped without the need for bench calibration or individual component matching.
  • Monitor Configuration: In systems like the Orbit 60 or 3500, users use specialized software to select the "3300 XL 8mm" transducer type and set the appropriate alert and danger setpoints.
  • Calibration: The system is factory-calibrated for AISI 4140 steel. If the target material differs (e.g., stainless steel or tungsten carbide), the monitor must be programmed with a custom scale factor to maintain accuracy.
Description
330103-00-03-10-02-05 is a 3300 XL 8 mm Proximity Probe from the Bently Nevada 3300 XL series. This model is a 3300 XL 8 mm probe with an M10 × 1 threaded design, supplied without armor, and is designed for reliable proximity and displacement measurement in industrial monitoring applications.

From a mechanical standpoint, 330103-00-03-10-02-05 features an unthreaded length of 0 mm and an overall case length of 30 mm, offering a compact form factor suitable for installations with limited space. The probe is provided with a total cable length of 1.0 meter (3.3 feet), supporting standard routing and connection requirements.

In terms of connection and cabling, 330103-00-03-10-02-05 is equipped with a miniature coaxial ClickLoc connector, ensuring secure and stable signal transmission. The probe uses a standard cable, maintaining compatibility with the 3300 XL proximity sensing system.

Regarding compliance and safety, 330103-00-03-10-02-05 carries CSA, ATEX, and IECEx approvals, meeting recognized international standards for use in hazardous or regulated industrial environments.
Alternative Names
330103 00 03 10 02 05 330103-00-03-10-02-00 330103-00-03-10-02-CN 330103-00-03-10-02-BR 330103-00-03-10-02-RU 330103-00-03-10-01-05
Technical notes
The Bently Nevada 330103-00-03-10-02-05 is designed for reliability and can withstand harsh industrial environments. It features a robust polyphenylene sulfide (PPS) probe tip optimized for standard AISI 4140 steel targets and can be used as part of a complete proximity sensor system requiring a compatible -24VDC Proximitor sensor with a maximum current of 12mA.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is there an option to prevent fluid leakage through the cable?
Yes, the FluidLoc option prevents oil and other liquids from leaking through the cable interior.
What temperature range does the performance specification of 330103-00-03-10-02-05 apply to?
Performance applies between +18˚C and +27˚C (+64˚F to +80˚F).
What target materials are required for 330103-00-03-10-02-05 to ensure accurate system performance?
The system must use an AISI 4140 steel target.
After the quotation is confirmed, can the actual product 330103-00-03-10-02-05 be verified?
Yes. Once the quotation is confirmed, we will promptly provide real photos of the original packaging, including labels, part numbers, and packaging condition, to ensure full consistency with your requirements.
