    Apter Power provides brand-new, factory-current Bently Nevada proximity probes, delivering an authentic and immediate replacement source for critical shaft displacement monitoring.

330104-06-13-05-01-05

/ 4.9
1001 reviews | Need a Specific Revision?
The 330104-06-13-05-01-05 is a 3300 XL 8 mm proximity probe featuring an M10 x 1 metric thread with armor protection. This model includes a 0.5 meter (1.6 feet) total length with an unthreaded length of 60 mm and overall case length of 130 mm.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330104-06-13-05-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330104-06-13-05-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330104-06-13-05-01-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    3300 XL 8 mm proximity probe
  • Stock:
    1
  • Thread Type:
    M10 x 1 (with armor)
  • Total Length:
    0.5 meter (1.6 feet)
  • Unthreaded Length:
    60 mm
  • Overall Case Length:
    130 mm
  • Cable Type:
    Standard cable
  • Agency Approvals:
    CSA, ATEX, IECEx
  • Weight:
    0.18 kg
  • Estimated shipping dimensions:
    1.8x1.5x121cm
  • Tariff Code:
    9030900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Firmware and Updates Configuration

Features:

  • 130 mm overall case length with 60 mm unthreaded section provides exceptional reach and installation flexibility for deep-well mounting.
  • Armor protection with M10 x 1 metric thread delivers mechanical durability and standard metric mounting compatibility.
  • CSA, ATEX, and IECEx approvals enable global hazardous area deployment without region-specific variants.
The 330104-06-13-05-01-05 is engineered for installations where the measurement point sits deep inside the machine casing. Its 130 mm overall case length allows the probe to pass through thick turbine casings, heavy compressor walls, or multiple insulation layers without requiring standoffs or custom adapters.

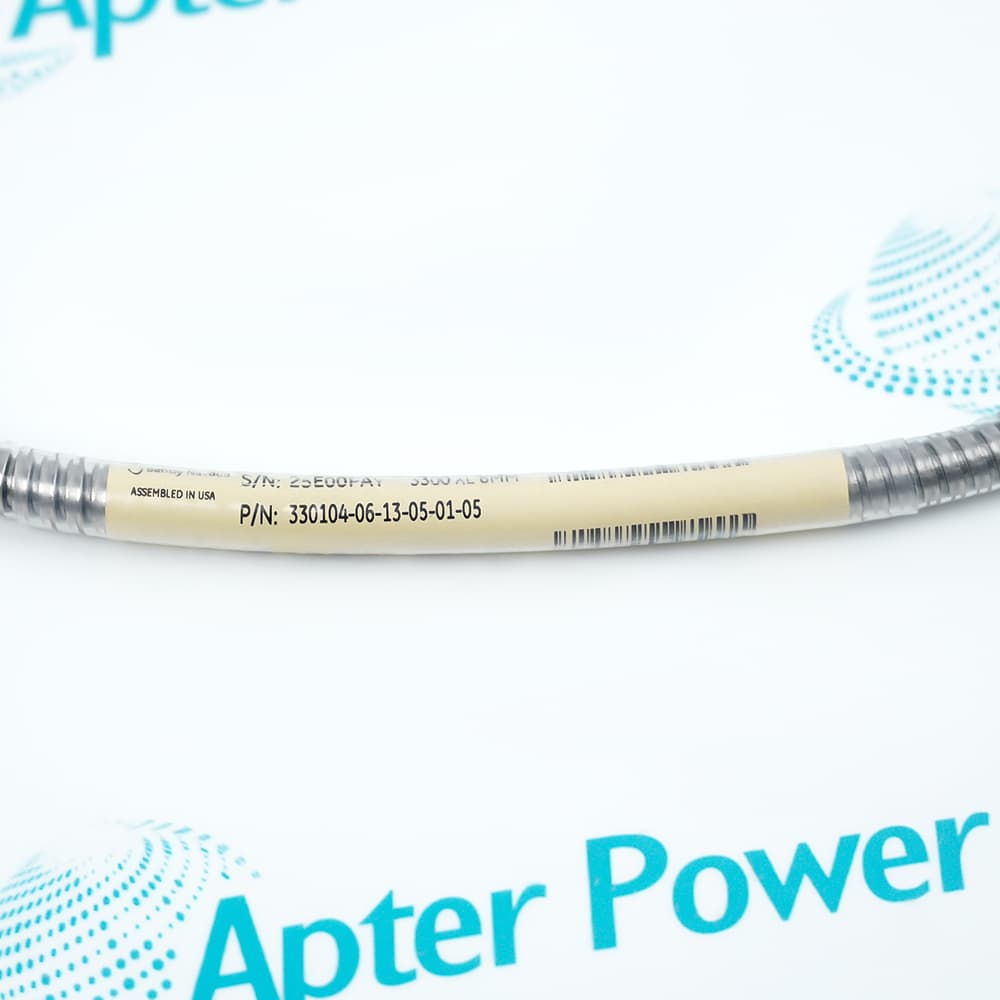

The 330104-06-13-05-01-05 features armor protection that shields the probe against crushing, abrasion, and impact damage during installation and operation. This is particularly valuable in applications where cables must be routed through restrictive conduit or where the probe may be subject to rough handling during maintenance. The M10 x 1 metric thread matches standard metric ports, ensuring a secure fit without adapters.

The 330104-06-13-05-01-05 carries CSA, ATEX, and IECEx approvals, making it suitable for deployment in explosive environments across North America, Europe, and international markets. This multi-agency certification eliminates the need for region-specific probe variants, simplifying global procurement, reducing inventory complexity, and ensuring compliance regardless of where the equipment is installed.

The 330104-06-13-05-01-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-06-13-05-01-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330104-06-13-05-01-05 3300 XL 8 mm Proximity Probes Specs

General

  • Manufacturer Bently Nevada
  • Model 330104-06-13-05-01-05
  • Condition New Original ready stock
  • Product Family 330104-06-13-05-12-05,330104-06-13-05-02-05,330104-06-13-05-01-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Reverse Installation: Model 13 (1.3-inch housing) features a reverse installation design, allowing the probe to be screwed into the bracket or sleeve from outside the machine. This greatly facilitates clearance adjustment without disassembling the machine cover.
  • Radial Vibration: Monitors the dynamic displacement of the bearing's inner shaft.
  • Axial Thrust: Measures the longitudinal position of the rotor relative to the thrust bearing.
  • Firmware-less: The probe internally contains only the sensing coil and coaxial cable, without a microprocessor or storage chip, therefore there is no need for firmware updates.
  • Steam/Gas Turbine Control: Widely used in turbine speed control and protection systems in the global power and petrochemical industries, ensuring uninterrupted power supply to core logic.
  • Hardware Upgrades: To improve system performance, the connected Proximitor is typically upgraded. For example, replacing an older 3300 preamplifier with a 3300 XL preamplifier can provide better linearity and electromagnetic interference immunity.
  • System Length Matching: The 05 (0.5 m) probe length in the model number must match the correct length of the preamplifier (e.g., 5 m or 9 m system). Length mismatch will result in severe linearity errors.
  • Gap Voltage: During installation, the probe position must be adjusted so that the static output voltage is at the midpoint of linearity (typically -10.0 V DC).
  • Safety and Certifications (-05 Option): This model is equipped with multiple approvals. When installed in hazardous areas, ensure compliance with intrinsic safety wiring specifications.
Description
The 330104-06-13-05-01-05 combines a 130 mm overall case length with a 60 mm unthreaded section, providing exceptional reach and installation flexibility for deep mounting applications. Its M10 x 1 metric thread fits standard metric ports, while the armor protection shields the probe against crushing, abrasion, and impact damage. The integrated connector protector seals the connection against moisture and dust, reducing field sealing work.

With its 130 mm case and 60 mm unthreaded section, the 330104-06-13-05-01-05 reaches through thick machine casings, insulation layers, or double-walled equipment while accommodating varying casing thicknesses. This combination eliminates the need for standoffs or custom adapters in most deep-well applications.

The 8 mm construction of the 330104-06-13-05-01-05 provides thicker encapsulation of the probe coil in molded PPS plastic than 5 mm alternatives, delivering superior resistance to physical abuse. The larger body diameter contributes to structural rigidity, helping maintain measurement accuracy in high-vibration environments.

This probe is fully backward compatible with non-XL 3300 series 5 mm and 8 mm components, allowing seamless upgrades from legacy installations. The 330104-06-13-05-01-05 solves the pain point of deep mounting in hazardous areas by combining extended reach.
Alternative Names
330104 06 13 05 01 05 330104-06-13-05-01-00 330104-06-13-05-01-CN 330104-06-13-05-01-BR 330104-06-13-05-01-RU 330104-06-13-05-02-05 330104-06-13-10-01-05 330104-06-13-05-11-05
Technical notes
The Bently Nevada 330104-06-13-05-01-05 accurately measures hydrodynamic bearing vibration, shaft axial position, and key phase velocity data in rotating machinery. It is rigorously protected by a robust AISI 302/304 stainless steel armor to resist mechanical wear.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What installation advantage does the 60 mm unthreaded section provide?
It accommodates varying casing thicknesses and allows proper probe positioning without requiring custom thread lengths or spacers.
What approvals does this 330104-06-13-05-01-05 probe carry?
CSA, ATEX, and IECEx approvals, enabling deployment in hazardous areas across North America, Europe, and international markets.
How does the armor protection benefit this 330104-06-13-05-01-05 probe?
Shields the probe against crushing, abrasion, and impact damage during installation and operation in demanding industrial environments.
What is the total length of this 330104-06-13-05-01-05 probe?
0.5 meter (1.6 feet)—a compact integral cable suitable for installations where the Proximitor sensor is located near the probe.
