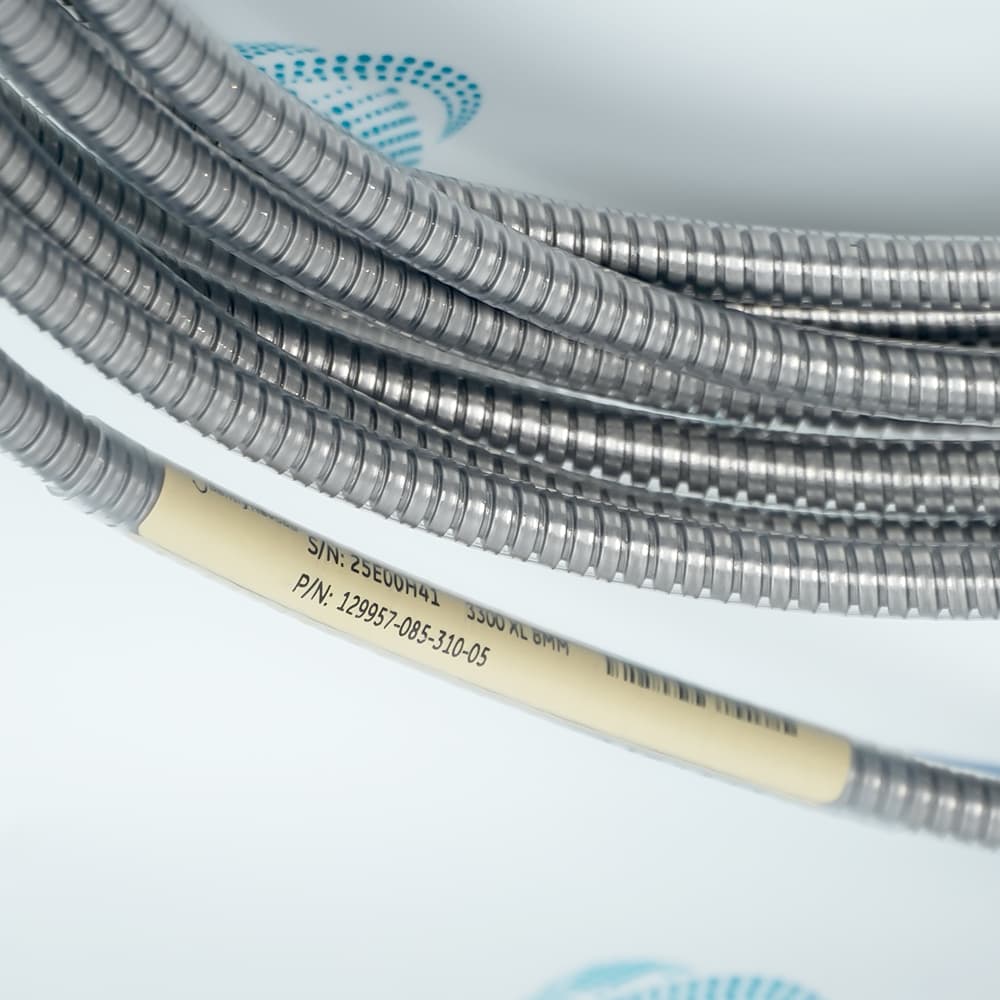

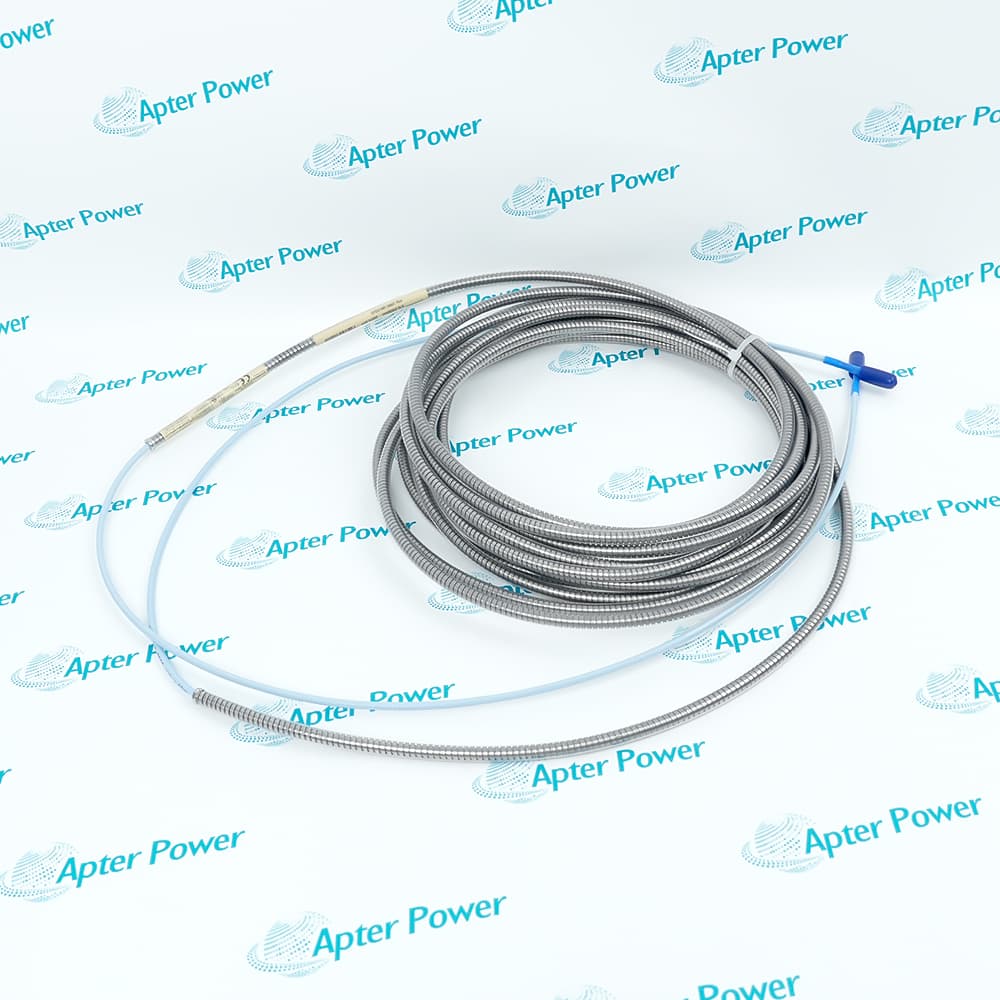

Bently Nevada 129957-085-310-05
Bently Nevada 129957-085-310-05
Bently Nevada 129957-085-310-05
Bently Nevada 129957-085-310-05
Bently Nevada 129957-085-310-05
Bently Nevada 129957-085-310-05
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Maintain robust connectivity for your critical monitoring assets using Apter Power's genuine Bently Nevada extension cable inventory.

129957-085-310-05

/ 4.9
1001 reviews | Need a Specific Revision?
The Bently Nevada 129957-085-310-05, as a precision calibration component, is an essential electrical connection between the proximity probe and the Proximitor sensor.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 129957-085-310-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 129957-085-310-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    129957-085-310-05
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    Extension cable
  • Stock:
    1
  • Cable Length:
    8.5 Meters (27.9 Feet)
  • Cable Type:
    75 Ω Triaxial, PFA (Teflon) Insulated
  • Connector Material:
    Gold-plated brass or beryllium copper
  • Minimum Bend Radius:
    25.4 mm (1.0 in)
  • Maximum Tensile Strength:
    270 N (60 lbf) at connector
  • Maximum Torque:
    0.565 N·m (5 in·lb)
  • Weight:
    0.8 kg
  • Estimated shipping dimensions:
    16x16x12cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Compatibility & Interoperability Performance & Efficiency

Features:

  • Link Between the Proximity Probe and the 3300 XL Proximitor Sensor
  • Provides 8.5-Meter Electrical Length with Factory-Calibrated Signal Integrity
  • Compatible with the 3300 XL 8mm Eddy Current Proximity Transducer System
The 129957-085-310-05 functions as the 3300 XL 8mm Extension Cable within the Bently Nevada proximity sensor system, establishing the essential coaxial connection between the probe tip and the Proximitor sensor. It maintains the precisely matched electrical length required for accurate eddy current signal transmission, ensuring that vibration and position data remain uncompromised across the full 8.5-meter span. The 129957-085-310-05 incorporates PFA insulation and a compatible locking connector design, allowing it to withstand oil immersion, moisture exposure, and chemical contaminants commonly encountered in heavy industrial environments.

The 129957-085-310-05 delivers the critical signal pathway for the entire transducer assembly, and is a vital element of the measurement chain, directly influencing the precision and stability of the overall monitoring system. One 129957-085-310-05 extension cable is required per probe installation where the standard integral cable length is insufficient to reach the Proximitor mounting location. The 129957-085-310-05 occupies no rack slot, as it is a field-installed cabling component routed externally between the machine casing and the sensor interface.

For installations requiring extended reach, the 129957-085-310-05 provides a factory-calibrated 8.5-meter electrical length that eliminates the need for field splicing or custom cable fabrication. In addition to standard single-cable operation, the 129957-085-310-05 maintains the characteristic impedance and capacitance specifications required by the 3300 XL system. Using this method, the extension cable preserves the factory-matched electrical properties between the probe, cable, and Proximitor. If the system detects any degradation in signal quality due to cable damage or connector corrosion, the 129957-085-310-05 can be replaced independently without requiring recalibration of the entire transducer assembly.

The 129957-085-310-05 Bently Nevada Extension cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 129957-085-310-05 Extension cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 129957-085-310-05 Extension cable Specs

General

  • Manufacturer Bently Nevada
  • Model 129957-085-310-05
  • Condition New Original ready stock
  • Product Family 129957-085-057-05,330130-085-00-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Vibration & Position Measurement: Primarily used on fluid-film bearing machines to monitor radial vibration and axial position.
  • Speed & Phase Reference: Serves as a connection for Keyphasor reference and speed measurements.
  • Industrial Environments: Engineered for high-stress areas like gas turbines, steam turbines, and compression systems.
  • Hazardous Areas: Approved for installation in hazardous locations with both North American and European certifications.
  • System Integration: Specifically compatible with the 3300 XL 8mm Proximity Transducer System.
  • Backward Compatibility: Fully interchangeable with older, non-XL 3300 series 5 mm and 8 mm components.
  • Interchangeability: Probes, extension cables, and sensors can be swapped without the need for manual bench calibration.
  • Connectors: Features gold-plated ClickLoc connectors that lock into place with finger-tight torque, preventing accidental loosening.
  • Temperature Stability: Standard operating range from -35°C to +200°C (-31°F to +392°F).
  • Mechanical Durability: Patented CableLoc design provides 330 N (75 lbf) of pull strength to ensure the connection remains secure.
  • RFI/EMI Immunity: Provides high resistance to radio frequency interference, allowing installation in fiberglass housings without additional shielding.
  • Standards Compliance: Fully complies with API 670 Standard (4th Edition) for mechanical configuration and accuracy when used in a complete 5-meter system.
Description
The Bently Nevada 129957-085-310-05 is a specialized 8.5-meter extension cable engineered for the 3300 XL 8mm Proximity Transducer System. As a precision-calibrated component, the 129957-085-310-05 functions as the essential electrical link between a proximity probe and a Proximitor sensor. This specific 129957-085-310-05 model features high-quality coaxial construction with PFA insulation, ensuring that the 129957-085-310-05 maintains signal integrity while resisting environmental hazards like oil, moisture, and chemical exposure in demanding industrial settings.

The 129957-085-310-05 is specifically designed to handle the challenge of signal attenuation and impedance mismatching in large-scale rotating machinery. In many industrial layouts, the distance between the monitoring point on a turbine or compressor and the control cabinet is significant. The 129957-085-310-05 solves this problem by providing a standardized 8.5-meter electrical length that allows for flexible sensor placement without sacrificing the accuracy of vibration or position data. By using the 129957-085-310-05, engineers ensure that the proximity system remains perfectly tuned for measuring critical parameters like radial vibration and axial thrust.

In practical application scenarios, the 129957-085-310-05 is indispensable for monitoring high-speed centrifugal compressors and steam turbines where space constraints require the Proximitor to be mounted away from the machine casing. The 129957-085-310-05 solves the issue of mechanical wear and cable degradation in high-vibration zones through its robust connector design and protective shielding. By integrating the 129957-085-310-05 into a condition monitoring strategy, plants can prevent catastrophic machine failure through reliable, real-time data transmission provided by this dedicated 129957-085-310-05 extension cable.
Alternative Names
129957-085-057-05 330130-085-00-05 330130-080-00-00 129716-173-037-15-05 129715-138-040-05-CN 12995708531005 I29957-085-3I0-05 129957-O85-31O-O5
Technical notes
The 129957-085-310-05 sensor enables flexible sensor placement without sacrificing measurement accuracy of vibration or position data by providing a standardized 8.5-meter electrical length. Using the 129957-085-310-05 ensures that proximity sensor systems accurately measure key parameters such as radial vibration and axial thrust.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How long is Bently Nevada 129957-085-310-05?
Bently Nevada 129957-085-310-05 has a cable length of 8.5 meters, equivalent to approximately 27.9 feet.
What problem does the 129957-085-310-05 solve in large rotating machinery?
It is specifically designed to address signal attenuation and impedance mismatching issues. By providing a standardized 8.5-meter electrical length, it enables flexible installation while preserving measurement accuracy.
Can Bently Nevada 129957-085-310-05 be bent during installation?
Yes. Bently Nevada 129957-085-310-05 may be routed with a minimum bend radius of 25.4 mm, or 1.0 inch.
