Features:
- Connects the 3300 XL Proximitor Sensor to the Probe Target Surface
- Extends the Electrical Path Between Probe and Proximitor Sensor
- Operates in Conjunction with the 3300 XL 8mm Proximity Transducer System

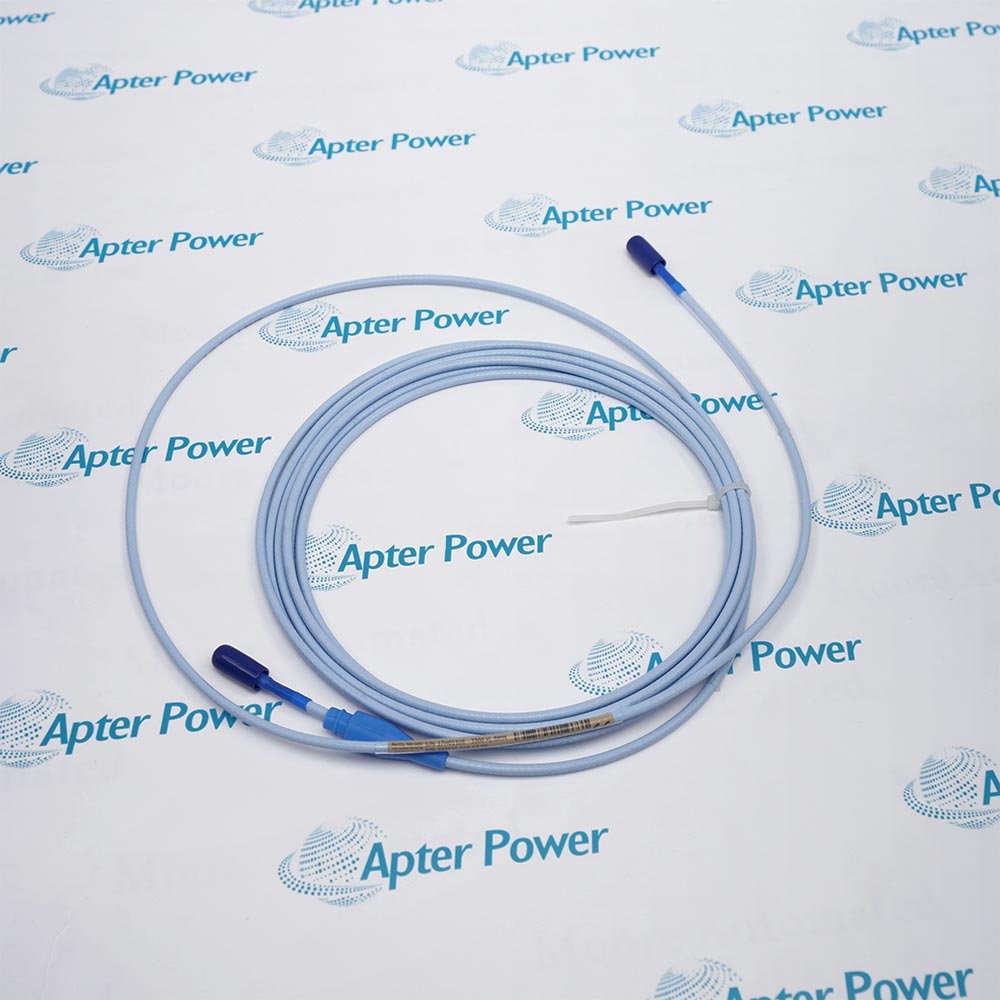

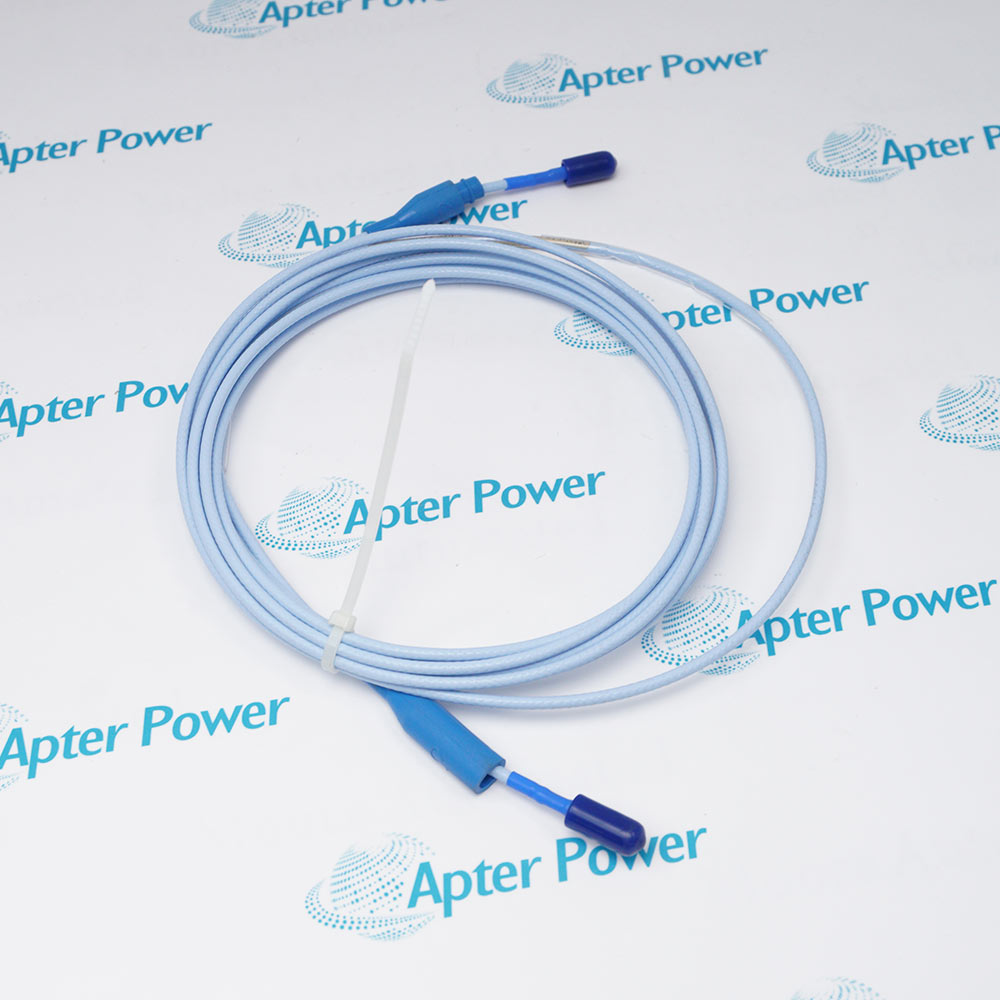

The 330130-040-02-00 functions as the standard extension cable within the 3300 XL proximity transducer system, providing a reliable electrical connection between the probe and the Proximitor sensor. It continuously transmits the modulated RF signal from the probe tip to the Proximitor sensor across a 4.0 meter (13.1 feet) cable length, maintaining signal integrity through triaxial cable construction with coaxial center conductors. The 330130-040-02-00 utilizes patented SignalGuard technology to prevent signal degradation, ensuring accurate vibration and position measurements throughout the entire system. Standard single cable installation is typical with the 330130-040-02-00, however using an optional armor or conduit configuration will provide additional mechanical protection in harsh industrial environments.
The 330130-040-02-00 provides essential signal transmission functions common to the entire measurement path, and is a critical component of the monitoring loop, directly affecting the proper, normal operation of the overall transducer system. One 330130-040-02-00 extension cable is required per probe channel depending on the required distance between probe installation point and Proximitor sensor mounting location. The 330130-040-02-00 occupies no rack slot space as it is a field-wired component and is always connected between the probe lead and the Proximitor sensor's probe input connector.
For applications requiring longer cable runs, the 3300 XL system allows combining the 330130-040-02-00 with other standard extension cable lengths (available in various configurations from 3.0 to 8.5 meters). In addition to standard single cable operation, the total cable length including probe, extension cable, and Proximitor sensor must not exceed the system-specified maximum to maintain measurement accuracy. The 3300 XL system executes signal conditioning using the internal circuitry specified in the Proximitor sensor design. Using this method, the 330130-040-02-00 continually preserves the electrical characteristics required for accurate eddy current measurement. If the system detects that the total cable length exceeds specifications, it will automatically compromise measurement linearity and place the channel outside configured accuracy tolerances.
The 330130-040-02-00 Bently Nevada 3300 XL standard extension cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-040-02-00 3300 XL standard extension cable Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-040-02-00 3300 XL standard extension cable Specs
General
- Manufacturer Bently Nevada
- Model 330130-040-02-00
- Condition New Original ready stock
- Product Family 330130-040-02-05,330130-040-02-CN
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Radial Vibration: Monitoring shaft stability in fluid-film bearing machines (turbines, compressors, pumps).
- Axial Position (Thrust): Measuring shaft movement to prevent internal machine contact.
- Keyphasor/Speed Measurements: Providing timing signals for phase and RPM tracking.
- High-Temperature Environments: The FEP (Fluoroethylene Propylene) insulation is designed for chemical resistance and operating temperatures from -51°C to +177°C (-60°F to +350°F).
- System Integration: Fully compatible with 3300 XL 8 mm Probes and 3300 XL Proximitor Sensors.
- Backward Compatibility: It can be used interchangeably with older non-XL 3300 5 mm and 8 mm components without requiring manual recalibration.
- Total Electrical Length: Must be matched to the sensor. This 4.0m cable is typically paired with a 1.0m probe to reach a 5-meter system configuration, or a 5.0m cable for a 9-meter system.
- Interchangeability: Allows for the replacement of individual components (probe, cable, or sensor) while maintaining linear accuracy.
- API 670 Standard: Complies with the American Petroleum Institute (API) 670 requirements for transducer accuracy and mechanical design.
- CE Mark: Includes RFI/EMI shielding to satisfy European EMC directives, preventing signal interference in industrial settings.
- Mechanical Integrity: Features patented Click-Loc connectors that prevent loosening and Gold-plated brass construction for corrosion resistance.
- Environmental Standards: Meets IEC 68-2-3 for humidity/damp heat and IEC 60529 (IP66/IP68 equivalent when properly installed) for dust and water ingress.
