    Apter Power distributes original Bently Nevada sensor cables, keeping heavy turbomachinery protection systems fully responsive.

330130-080-00-CN

/ 4.9
1001 reviews | Need a Specific Revision?

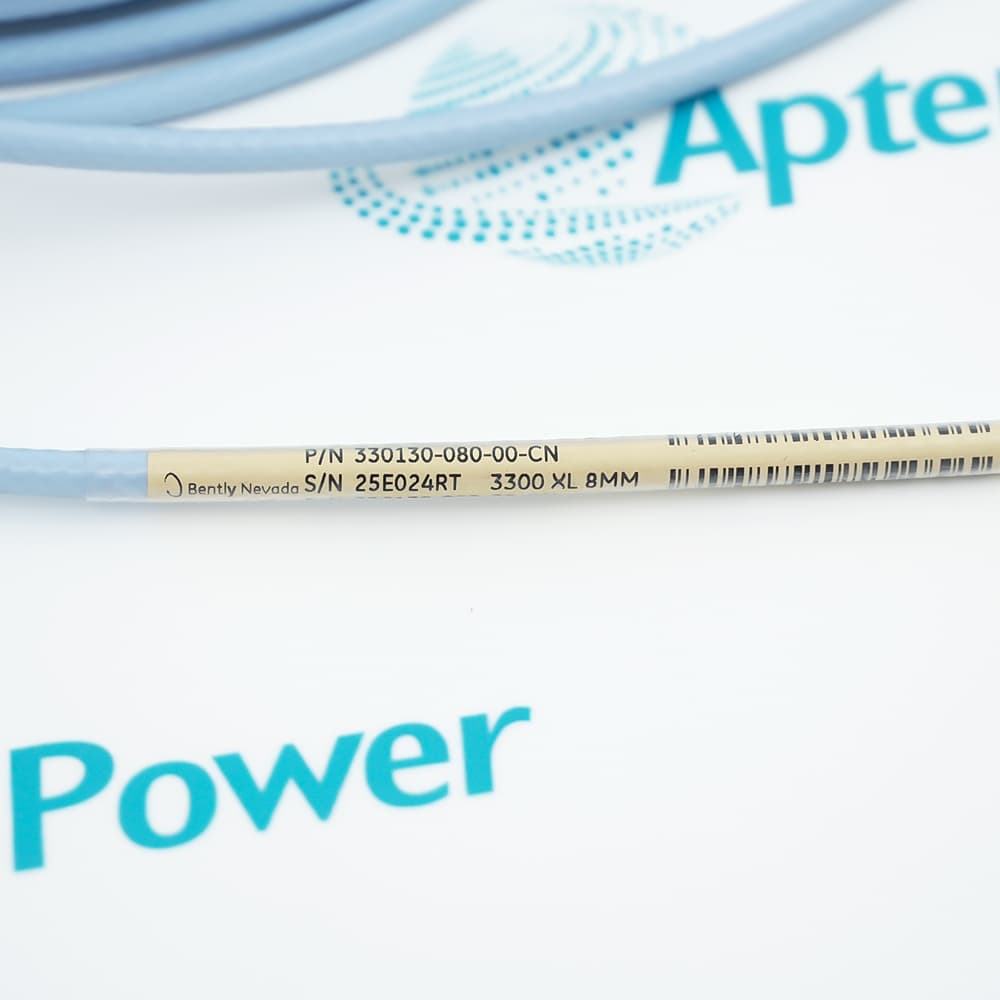

The 3300 XL Standard Extension Cable, model 330130-080-00-CN, is designed to support reliable signal transmission in 3300 XL proximity measurement systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-080-00-CN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-080-00-CN

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-080-00-CN
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    Extension Cable
  • Stock:
    2
  • Cable Length:
    8.0 meters (26.2 feet)
  • Connector Protector and Cable:
    Standard cable
  • Agency Approval:
    CSA, ATEX, IECEx Approvals
  • Standard cable:
    75 Q triaxial, fluoroethylene propylene (FEP) insulated
  • Extended Temperature Range cable:
    75Ω triaxial, perfluoroalkoxy (PFA) insulated.
  • Minimum Cable Bend Radius:
    25.4 mm (1.0 in)
  • Connector Material:
    Gold-plated brass or goldplated beryllium copper.
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    21x21x2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Diagnostics and Protection Upgrade Procedures

Features:

  • Provides reliable probe‑to‑Proximitor connection with 330 N pull strength and ClickLoc connector.
  • Standard construction with FEP insulation; connector protector not included (option 00).
  • Customer‑specific option requiring verification of exact specifications.
The 330130-080-00-CN is an 8.0‑meter extension cable that connects a 3300 XL proximity probe to its Proximitor sensor, ensuring high‑integrity signal transmission for critical vibration and position monitoring over longer distances. The cable incorporates CableLoc technology, providing 330 N (75 lbf) pull strength to securely attach the cable and prevent accidental disconnection. The gold‑plated ClickLoc connector ensures a corrosion‑resistant, secure connection with a locking mechanism to prevent loosening.

The 330130-080-00-CN features standard cable construction (no armor) with FEP insulation and double‑shielded construction to minimize signal degradation. The "00" option indicates that no connector protector is included. When using this cable without a connector protector, ensure the connection is protected from moisture and contaminants through other means, as silicone tape is not recommended for turbine oil exposure. The cable operates over a wide temperature range, making it suitable for demanding industrial applications.

The "CN" suffix on the 330130-080-00-CN indicates a custom modification or customer‑specific option, which may include special cable lengths, connector configurations, or other application‑specific requirements. This customization allows the cable to be tailored for unique installation conditions. The exact specifications of the "CN" modification must be verified against the original order documentation to ensure correct application. The cable is fully interchangeable with both XL and non‑XL 3300 series extension cables.

The 330130-080-00-CN Bently Nevada Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330130-080-00-CN Extension Cable Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-080-00-CN Extension Cable Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330130-080-00-CN
  • Condition New Original ready stock
  • Product Family 330130-080-00-00,330130-080-00-05,330130-080-00-RU
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Large-Scale Turbomachinery: Widely used on utility-scale steam turbines, utility gas turbines, and massive industrial generators where the distance between the embedded casing probe and the external terminal junction box requires a long 8-meter span.
  • Hydroelectric Power Generators: Transmits radial vibration and axial thrust parameters from deep within the generator pits of large hydro units.
  • Process Machinery: Deployed on high-power centrifugal compressors, multi-stage boiler feed pumps, and large induction motors in oil refineries and chemical plants.
  • Advanced Triaxial Shielding: Manufactured with high-density coaxial shielding that provides exceptional resistance to external Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) generated by nearby high-voltage machinery.
  • Upstream Loop Diagnostics (OK Circuit): The cable's precise DC resistance allows connected Bently Nevada 3500 or Orbit 60 racks to perform continuous Not OK / Open Circuit / Short Circuit Diagnostics. If the cable is severed or internally shorted, the monitor rack immediately suppresses false alarms, alerts operators to an instrumentation fault, and blocks accidental machine trips.
  • Corrosion Protection: Equipped with gold-plated brass ClickLoc coaxial connectors. This plating ensures low electrical contact resistance and prevents oxidation or galvanic corrosion when exposed to aggressive industrial atmospheres.
  • System Length Verification (Crucial Rule): Because this is an 8.0-meter cable (080), it must be paired exclusively with a 1.0-meter proximity probe and a 9.0-meter Proximitor Sensor. Mixing this cable with a 5-meter system sensor will completely uncalibrate the loop and yield corrupt data.
  • Bend Radius Limits: Avoid sharp kinks during routing. Maintain a minimum bending radius of 25.4 mm (1.0 inch) for standard routing to prevent internal dielectric damage.
  • Connector Isolation: Since this specific model suffix is 00 (no factory connector protectors), you must manually isolate the connector joint. Wrap the connection point with self-fusing silicone tape or utilize an aftermarket connector insulation sleeve to prevent it from grounding out against metal cable conduits or machinery casings.
Description
The 3300 XL Standard Extension Cable, model 330130-080-00-CN, is designed to support reliable signal transmission in 3300 XL proximity measurement systems. This standard extension cable provides dependable connectivity between system components in industrial monitoring applications.

The 330130-080-00-CN features a cable length of 8.0 meters (26.2 feet), offering extended reach for flexible installation and convenient routing in machinery and equipment setups.

This extension cable is supplied with a connector protector and uses a standard cable construction, ensuring durability and compatibility with related 3300 XL components.

The 330130-080-00-CN carries CSA, ATEX, and IECEx approvals, making it suitable for use in regulated and hazardous-area environments where certified accessories are required.
Alternative Names
33O13O-O8O-OO-CN 330I30-080-00-CN 330130 080 00 CN 330130-080-00-00 330130-080-00-05 330130-080-00-RU 330130-040-00-00 330130-045-00-00
Technical notes
The Bently Nevada 330130-080-00-CN is an 8.0‑meter (26.2‑foot) extension cable designed for the 3300 XL 8 mm Proximity Transducer System, providing a reliable, low‑noise connection between a 3300 XL proximity probe and its associated Proximitor sensor.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the 330130-080-00-CN?
The 330130-080-00-CN is an 8.0‑meter extension cable that connects a 3300 XL proximity probe to the Proximitor sensor, ensuring reliable signal transmission in the 3300 XL 8 mm transducer system.
What are the key specifications of the 330130-080-00-CN?
The 330130-080-00-CN is an 8.0‑meter (26.2‑foot) extension cable with standard cable construction (no armor) and a gold‑plated ClickLoc connector, but without a connector protector (option 00).
Is the 330130-080-00-CN interchangeable with other 3300 series extension cables?
Yes, the 330130-080-00-CN is fully interchangeable with both XL and non‑XL 3300 series extension cables, eliminating the need for bench calibration.
What does the "CN" suffix indicate on the 330130-080-00-CN?
The "CN" suffix on the 330130-080-00-CN indicates a custom modification or customer‑specific option; its exact specifications must be verified against the original order documentation.
