Features:
- Interface Between the Proximity Probe and Monitoring System Electronics
- Combines Capability of Signal Conditioning with Extended Cable Reach Support
- Operates in Conjunction with the 3300 XL 8mm Proximity Probe and Extension Cable

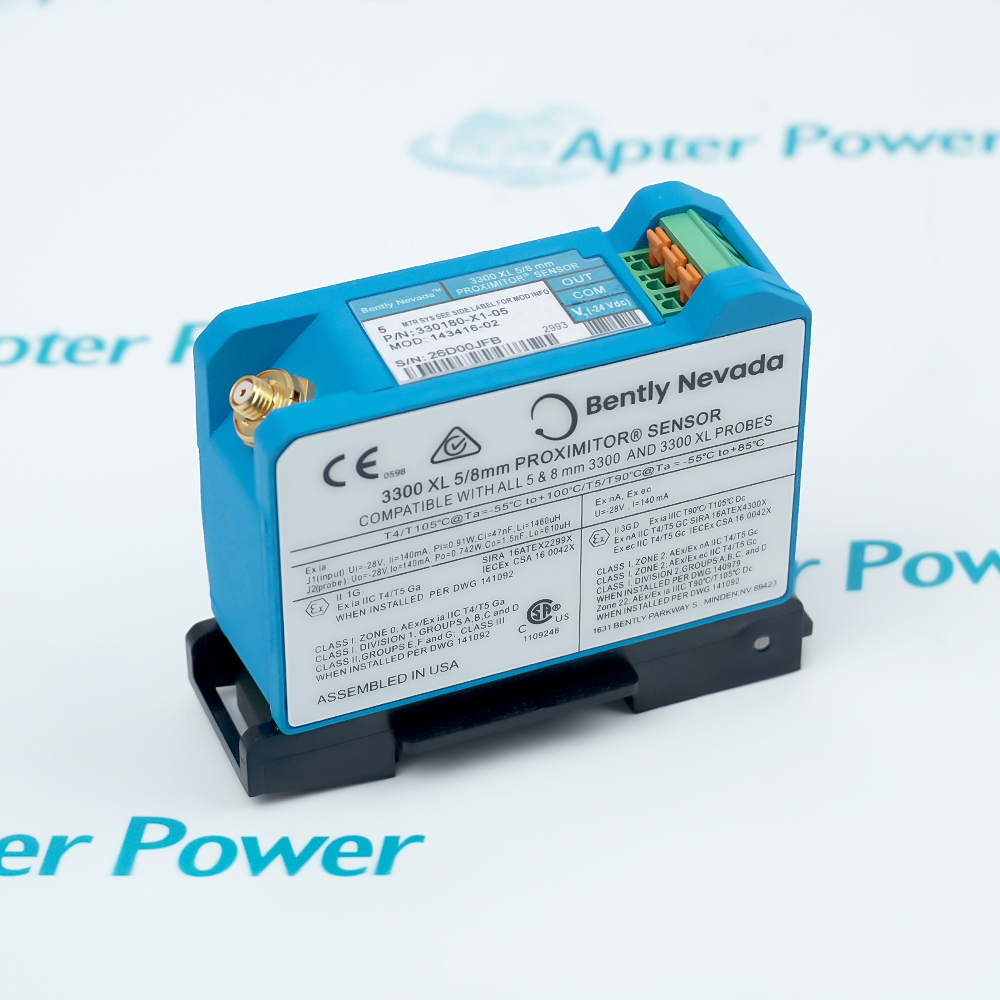

The 330180-52-00 operates as the 3300 XL Proximitor Sensor in a machinery protection system, providing reliable signal conditioning for proximity-based vibration and displacement measurements. It continuously processes incoming eddy current signals from the probe and converts these to standardized output voltages proportional to target distance, distributing this conditioned signal to support steady state monitoring of rotating equipment. Seamless signal integration is standard with the 330180-52-00, however using the full 5.0 meters (16.4 feet) system length will allow flexible installation in complex machinery arrangements where the monitoring electronics must be positioned remotely from the measurement point. The 330180-52-00 has made improvements in several areas over previous proximitor designs in addition to incorporating extended cable capability within the 3300 XL system.
The 330180-52-00 provides essential signal conditioning functions common to the entire measurement chain, and is a critical component of the monitoring path, directly affecting the proper, normal operation of the overall vibration monitoring system. One 330180-52-00 proximitor sensor is required per measurement point depending on the desired monitoring coverage. The 330180-52-00 occupies minimal installation space with no mounting hardware included and is typically located in a protected enclosure near the monitored equipment.
For extended reach applications, the 3300 XL system requires the 330180-52-00 proximitor sensor installed with the full 5.0-meter cable system. In addition to standard signal conditioning operation, the extended configuration also performs reliable transmission over longer distances. The 330180-52-00 extended cable system executes signal integrity maintenance using the internal circuitry specified in the proximitor design. Using this method, the extended cable system continually monitors the quality of signal transmission. If the system detects that the probe signal is within the linear range (within configured gap voltage/tolerance levels), it will automatically provide accurate displacement output and support continuous machinery health assessment.
The 330180-52-00 Bently Nevada 3300 XL Proximitor Sensor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330180-52-00 3300 XL Proximitor Sensor Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330180-52-00 3300 XL Proximitor Sensor Specs
General
- Manufacturer Bently Nevada
- Model 330180-52-00
- Condition New Original ready stock
- Product Family 330180-51-00,330180-50-00,330180-52-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- 330180: Base model for the 3300 XL Proximitor Sensor.
- -52: Indicates a 5.0-meter (16.4 feet) total system length with no mounting hardware included.
- -00: Specifies that no agency approvals (like ATEX or CSA) are required for this unit.
- Fluid-Film Bearing Machines: Primary use for measuring radial vibration and axial position on turbines, compressors, and pumps.
- Keyphasor & Speed Measurements: Used to provide phase reference and rotational speed data.
- Asset Management: Integral for Asset Performance Management by monitoring equipment health to prevent catastrophic failure.
- Signal Accuracy: Provides an output voltage directly proportional to the distance between the probe tip and the target.
- RFI/EMI Immunity: Highly resistant to radio frequency interference, allowing installation in fiberglass housings without extra shielding.
- Interchangeability: Fully compatible and interchangeable with other 3300 XL components (probes and cables) without needing bench calibration.
- Ease of Wiring: Features "SpringLoc" terminal strips that require no tools and eliminate the risk of screws loosening over time.
- Temperature Stability: Meets API 670 standards for linear range and accuracy across a wide temperature range (-51°C to +100°C).
