        330180-X1-05 MOD:145004-66

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

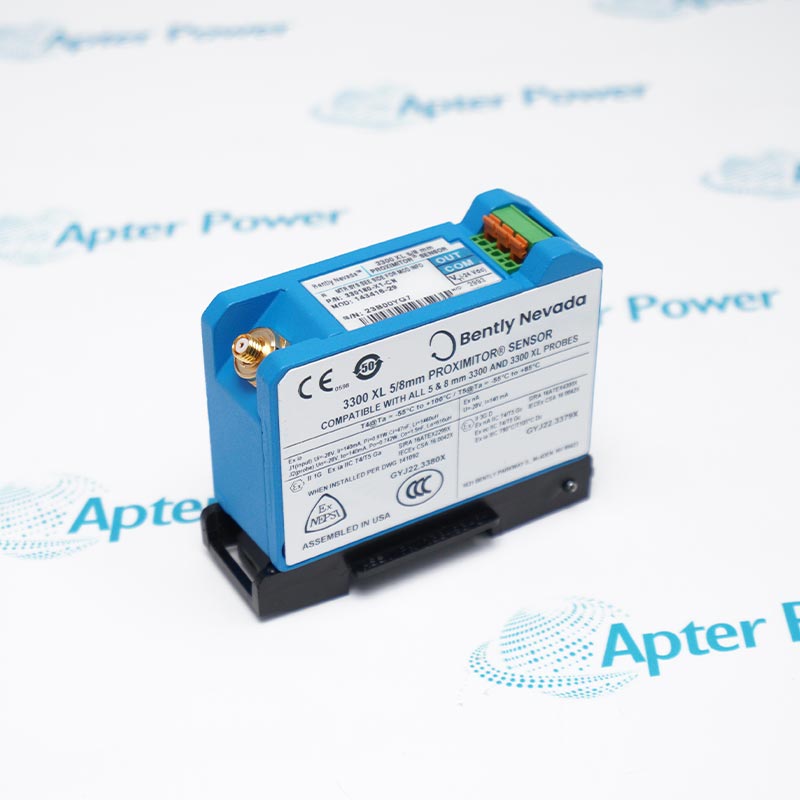

        The 330180-X1-05 MOD:145004-66 is a Bently Nevada 3300 XL Proximitor Sensor with 1.0 meter system length, DIN mount, and CSA/ATEX/IECEx approvals for hazardous area vibration monitoring.
        Get a quick price for 330180-X1-05 MOD:145004-66
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 330180-X1-05 MOD:145004-66

        • Manufacturer:
          Bently Nevada
        • Part Number:
          330180-X1-05 MOD:145004-66
        • Product Family:
          3300 XL Proximitor Sensor
        • Product Type:
          Proximitor Sensor
        • System Length:
          1.0 meter (3.3 feet)
        • Mounting Option:
          DIN mount (X1 = option 11)
        • Agency Approval:
          CSA, ATEX, IECEx Approvals
        • Calibration (default):
          AISI 4140 steel
        • Weight:
          0.2 kg
        • Estimated shipping dimensions:
          8.8x3.5x7cm
        • Tariff Code:
          8531901000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Diagnostics & Machine Protection Installation & Upgrades

        Features:

        • Designed for 1.0m total system length (probe + extension cable); snaps onto 35 mm DIN rail; SpringLoc terminals for vibration‑resistant wiring.
        • Certified for Zone 2 and Class I Division 2 locations; “05” suffix indicates multiple global approvals; high RFI immunity allows fiberglass housings.
        • Fully compatible with 3300 XL 8 mm probes and extension cables; backward compatible with non‑XL 3300 series components; no bench calibration required.
        The 330180-X1-05 MOD:145004-66 is a Proximitor sensor designed for a total system length of exactly 1.0 meter. In the 3300 XL system, the total length is the sum of the probe cable length plus the extension cable length (if used). For example, a probe with 0.5m integral cable plus a 0.5m extension cable equals 1.0m. Alternatively, a probe with 1.0m integral cable can be used without an extension cable. The “X1” in the part number indicates DIN rail mounting (option 11). The sensor snaps directly onto a standard 35 mm DIN rail, allowing dense installation in control cabinets. The SpringLoc terminal strips provide screwless, vibration‑resistant field wiring connections – a spring clamp maintains constant pressure on the wire, eliminating the risk of screw loosening due to machine vibration.

        The 330180-X1-05 MOD:145004-66 carries the “05” suffix, indicating multiple hazardous area approvals: CSA (Canada), ATEX (Europe), and IECEx (international). These certifications allow the sensor to be installed in Zone 2 gas explosive atmospheres and Class I Division 2 locations (North America). In such areas, ordinary electronic equipment would require explosion‑proof enclosures, adding significant cost and weight. The Proximitor sensor’s design meets the requirements for “non‑incendive” or “nA” protection, meaning it does not produce sparks or high temperatures under normal operation. Additionally, the sensor has high immunity to radio frequency interference and electromagnetic interference (RFI/EMI).

        The 330180-X1-05 MOD:145004-66 is part of Bently Nevada’s 3300 XL system, which is designed for complete component interchangeability. In older transducer systems, each probe, extension cable, and Proximitor sensor had to be individually calibrated and matched to achieve specified accuracy. The 3300 XL system eliminates this requirement. Any 3300 XL 8 mm probe works with any 3300 XL extension cable and any 3300 XL Proximitor sensor – no bench calibration or component matching is needed. The sensor is also backward compatible with non‑XL 3300 series 5 mm and 8 mm components. This compatibility is critical for plant maintenance: a spare sensor can be taken from stock and installed without waiting for calibration or performing on‑site adjustments. The mixing XL and non‑XL components limits performance to non‑XL specifications, but the system remains functional.

        The 330180-X1-05 MOD:145004-66 Bently Nevada Proximitor Sensor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

        Bently Nevada 330180-X1-05 MOD:145004-66 Proximitor Sensor Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
        Bently Nevada 330180-X1-05 MOD:145004-66 Proximitor Sensor Specs

        General

        • Manufacturer Bently Nevada
        • Model 330180-X1-05 MOD:145004-66
        • Condition New Original ready stock
        • Product Family 330180-10-00,330180-50-05,330180-51-05
        Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
        • Power Generation: Used on steam turbines, gas turbines, and massive hydro-generators.
        • Oil & Gas / Petrochemical: Applied to centrifugal compressors, turbo-expanders, and high-pressure pumps.
        • Heavy Industry: Installed in large fans, blowers, and gearboxes within steel or cement plants.
        • Early Fault Detection: Instantly identifies unbalance, shaft misalignment, oil whirl/whip, and bearing clearance degradation.
        • Automated Trip Interlocking: Interfaced with a monitoring system (like Bently Nevada 3500), the signal triggers alarms or machine shutdowns if vibration thresholds are breached.
        • NOT OK Circuitry: Constantly verifies the physical integrity of the loop (probe, cable, and sensor).
        • Fault Isolation: If a field wire snaps or short-circuits, the monitor identifies a sensor failure ("NOT OK" status) instead of triggering a false machinery vibration trip.
        • System Length Matching: Ensure the total electrical length matches your hardware configuration. For example, a 5-meter Proximitor requires a combined probe and extension cable length of exactly 5 meters.
        • Mechanical Mounting: Snap the sensor onto standard 35mm DIN-rails. The integrated mounting base provides isolation, meaning no extra isolator plates are required.
        • Field Wiring: Use the integrated SpringLoc terminal strips. Insert the wires without screw-type drivers to eliminate problems caused by loose connections in high-vibration zones.
        • Physical Gapping: Adjust the physical gap between the probe tip and the target shaft surface to roughly 1.27 mm (50 mils), ensuring it sits in the middle of the linear voltage operating range.
        Description
        The 330180-X1-05 MOD:145004-66 is a 3300 XL Proximitor Sensor for Bently Nevada’s eddy current proximity transducer system. It conditions the signal from an 8 mm probe and extension cable to provide a voltage output proportional to the distance between the probe tip and a conductive target. The sensor is mounted on a DIN rail (option 11). The system length is 1.0 meter.

        When using the 330180-X1-05 MOD:145004-66, engineers can connect the sensor to a 3300 XL 8 mm probe and extension cable. The system length must match: probe cable length + extension cable length = Proximitor sensor total length (1.0 meter). The sensor has SpringLoc terminal strips for fast, robust wiring without special tools. It is highly immune to radio frequency interference, allowing installation in fiberglass housings without special shielded conduit.

        The 330180-X1-05 MOD:145004-66 is supplied from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request. The sensor is backward compatible with non‑XL 3300 series components, but mixing XL and non‑XL components limits performance to non‑XL specifications.

        For legacy Bently Nevada 3300 XL system expansions or repairs, the 330180-X1-05 MOD:145004-66 provides a direct replacement Proximitor sensor. The “X1” in the part number indicates DIN mount (option 11). The “05” approvals include CSA, ATEX, and IECEx for hazardous area installations (Zone 2, Class I Division 2).
        Alternative Names
        330180-10-00 330180-11-00 330180-50-00 330180-51-00
        Technical notes
        The 330180-X1-05 MOD:145004-66 uses SpringLoc terminal strips for field wiring. These terminals require no special tools and eliminate screw‑type clamping mechanisms that can loosen in high‑vibration environments. The spring mechanism provides a gas‑tight connection.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How do I match the 330180-X1-05 MOD:145004-66 with probe and cable?
        The 330180-X1-05 MOD:145004-66 has a 1.0 meter system length. The sum of the probe cable length and extension cable length must equal 1.0 meter. For example, a 0.5m probe + 0.5m extension cable, or a 1.0m probe with no extension cable.
        Is 330180-X1-05 MOD:145004-66 approved for hazardous areas?
        Yes. The “05” suffix indicates CSA, ATEX, and IECEx approvals for Zone 2 and Class I Division 2 hazardous locations. The sensor’s high RFI immunity also allows installation in fiberglass housings without special shielded conduit.
        How is 330180-X1-05 MOD:145004-66 mounted?
        The “X1” in the part number indicates DIN mount (ordering option 11). The sensor snaps onto standard 35 mm DIN rail. The mounting base provides electrical isolation; no separate isolator plates are needed. The same 4‑hole footprint fits older Proximitor sensors.
        Is 330180-X1-05 MOD:145004-66 calibrated for my shaft material?
        By default, the sensor is factory calibrated to AISI 4140 steel. If your shaft material is different (e.g., stainless steel, chrome‑plated, or titanium), Bently Nevada offers calibration to other target materials upon request. Contact your representative for custom calibration ordering.
