    Apter Power supplies original Bently Nevada 330901 eddy current probes, offering factory-fresh, certified hardware with reliable ClickLoc connectors to safeguard compact compressor lines and high-vibration rotary assets.

330901-00-08-10-02-CN

/ 4.9
1001 reviews | Need a Specific Revision?

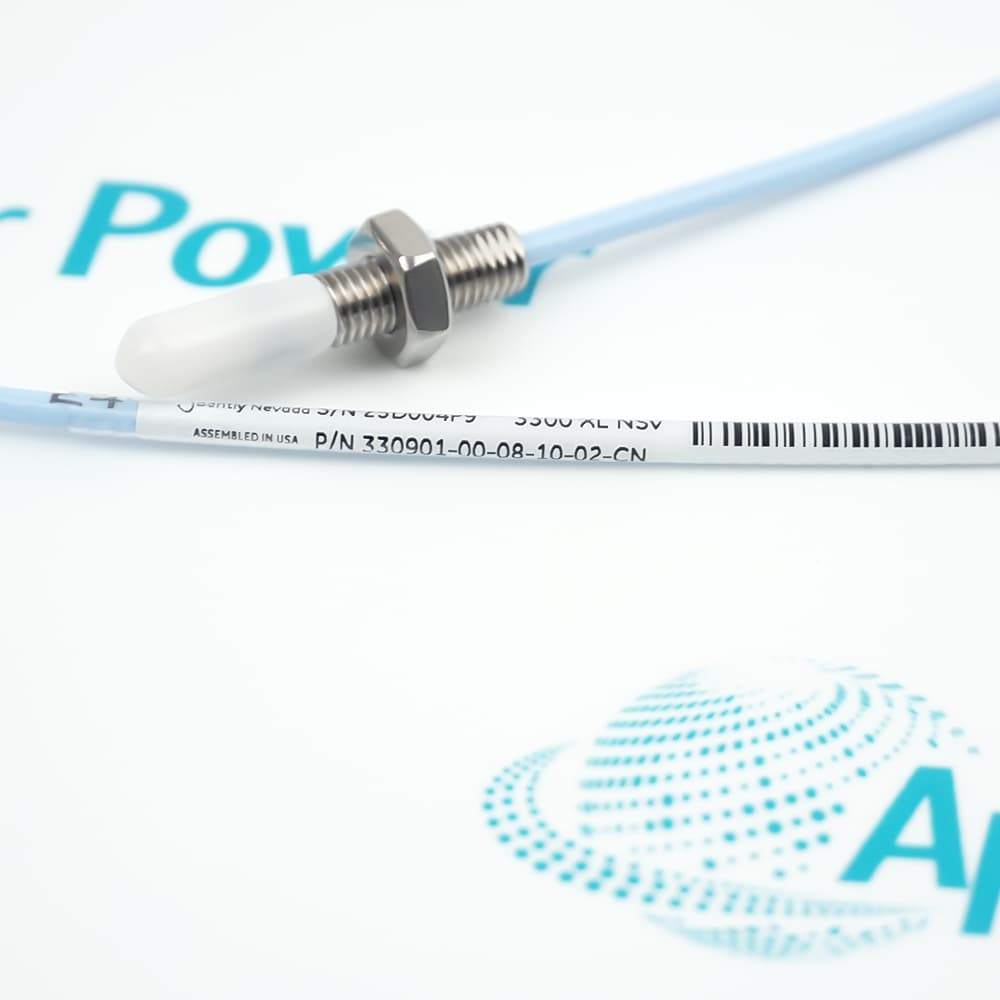

330901-00-08-10-02-CN is a Bently Nevada 3300 NSv Proximity Probe designed for accurate vibration and displacement monitoring in rotating machinery.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330901-00-08-10-02-CN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330901-00-08-10-02-CN

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330901-00-08-10-02-CN
  • Product Family:
    NSV Probe
  • Stock:
    1
  • Unthreaded Length:
    0.0 in
  • Overall Case Length:
    0.8 in
  • Total Length:
    1.0 meter (39 in)
  • Connector and Cable-Type:
    Miniature coaxial ClickLoc connector, standard cable
  • Agency Approval:
    Multiple Approvals
  • Probe Case Thread:
    1/4-28 UNF thread
  • armor or not:
    without armor
  • Weight:
    0.14 kg
  • Estimated shipping dimensions:
    20.3x22x3.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Monitoring & Control Certifications & Standards

Features:

  • Advanced Narrow Side-view Geometry for Spatial Constraint Optimization
  • Heavy-Duty TipLoc™ & CableLoc™ Mechanical Integrity Architecture
  • Gold-Plated ClickLoc™ Connection with Vibration-Proof Engagement
The Bently Nevada 330901-00-08-10-02-CN features an optimized NSv tip profile designed to prevent electromagnetic side-wall interference. Unlike standard 8mm probes, it operates reliably near counterbores down to 9.5 mm and keeps structural crosstalk to a minimum. This feature enables accurate radial vibration capture on very confined, narrow machinery components.

Built with patented co-molding technology, the Bently Nevada 330901-00-08-10-02-CN forms a secure bond between its PPS tip and stainless steel body to block moisture and chemical ingress. The cable assembly handles pull forces up to 220 N (50 lb). This rugged design prevents premature failure from severe turbulence, case expansion, or accidental handling during maintenance.

The Bently Nevada 330901-00-08-10-02-CN comes equipped with gold-plated brass coaxial ClickLoc™ connectors that snap securely into place. This design prevents signal drops and impedance shifts caused by high-frequency machine vibrations. It maintains low contact resistance and provides dependable, tool-free connectivity throughout long maintenance cycles.

The 330901-00-08-10-02-CN Bently Nevada 3300 XL NSv Proximity Transducer Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330901-00-08-10-02-CN 3300 XL NSv Proximity Transducer Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330901-00-08-10-02-CN 3300 XL NSv Proximity Transducer Probe

General

  • Manufacturer Bently Nevada
  • Model 330901-00-08-10-02-CN
  • Condition New Original ready stock
  • Product Family 330901-00-08-10-02-00,330901-00-08-10-02-05,330901-00-24-05-02-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Centrifugal Air Compressor Machinery: The probe is widely used to track high-speed rotor dynamics in centrifugal air compressors. Its narrow side-view field profile allows it to operate without interference from internal structural counterbores, delivering steady radial vibration data.
  • Industrial Refrigeration Compressors: It is well-suited for confined chiller and refrigeration compressor housings. The chemical-resistant PPS tip withstands exposure to harsh synthetic oils and refrigerants.
  • Process Gas Turbomachinery: It plays a key role in tracking shaft motion inside gas-processing expanders and downscaled turbines, where restricted clearances make standard-sized 8mm eddy current sensors impractical.
  • Small-Diameter Shaft Applications: The system is optimized for precision monitoring on shafts smaller than 51 mm (2.0 in). This makes it an ideal choice for localized auxiliary pumps, blowers, and high-speed pilot plant machinery.
  • Radial Vibration & Position Capture: It tracks dynamic shaft orbit paths and fluid-film bearing clearances. The high-frequency response ensures early detection of oil whirl, unbalance, and rotor rub conditions.
  • Axial (Thrust) Displacement Tracking: It provides early warning of thrust bearing wear by monitoring small flat targets down to 15 mm (0.6 in). This measurement helps protect machine internals from catastrophic axial contact.
  • Phase Reference & Keyphasor® Provision: It delivers precise phase timing markers and zero-speed indicators. This data is essential for vector analysis, balancing routines, and tracking speed thresholds during startup and shutdown cycles.
  • Machinery Protection System Integration: The raw analog outputs connect to processing monitors to drive automated alarm and trip functions. This integration provides a fast safety shutdown path for critical industrial assets.
  • NEPSI & Regional Explosion Protection: The specialized "-CN" model complies with regional hazardous area requirements, ensuring safe operation in volatile Zone 0, Zone 1, and Zone 2 gas environments.
  • ATEX / IECEx Intrinsically Safe Compliance: It meets European ATEX directives and global IECEx standards for explosion protection. When connected to approved intrinsic safety barriers, it is certified for Class I, Division 1 and Zone 0 hazard zones.
  • Functional Safety (SIL 2 / SIL 3 Rated): The design complies with systematic IEC 61508 safety standards, supporting Hardware Fault Tolerance configurations up to SIL 2 (HFT=0) or SIL 3 (HFT=1). This allows for direct use in safety instrumented functions.
  • CE Mark & Industrial EMC Directives: The system meets EN 61000-6-2 and EN 61000-6-4 standards, offering high immunity to radio frequency (RFI) and electromagnetic (EMI) noise. This ensures stable signal quality even when installed near high-power industrial motor drives.
Description
330901-00-08-10-02-CN is a Bently Nevada 3300 NSv Proximity Probe designed for accurate vibration and displacement monitoring in rotating machinery. This probe features a 1/4-28 UNF threaded configuration and is supplied without armor, making it suitable for compact installations where space efficiency and reliable signal performance are required within the 3300 NSv proximity transducer system.

In terms of physical dimensions, 330901-00-08-10-02-CN has an unthreaded length of 0.0 inches and an overall probe case length of 0.8 inches, supporting precise mounting in tight machinery housings. The probe is supplied with a total cable length of 1.0 meter (39 inches), providing additional flexibility for routing to nearby monitoring or protection equipment.

For connection and cabling, 330901-00-08-10-02-CN is equipped with a miniature coaxial ClickLoc connector and uses a standard cable, ensuring stable electrical connection and consistent signal transmission in typical industrial environments.

Regarding compliance, 330901-00-08-10-02-CN carries multiple agency approvals, making it suitable for use in a wide range of industrial and regulated applications, while maintaining the proven performance and reliability of the 3300 NSv Proximity Probe series.
Alternative Names
330901 00 08 10 02 CN 330901-00-08-10-02-05 33O901-OO-O8-1O-O2-CN 330901-00-08-10-02-BR 330901-00-08-05-02-CN 330901-00-08-10-02-00 330901-00-24-05-02-05
Technical notes
The Bently Nevada 330901-00-08-10-02-CN features an Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil) over a 1.5 mm (60 mils) linear range when calibrated against an AISI 4140 steel target at a recommended 1.0 mm (40 mils) gap setting. For accurate diagnostics, the probe's inherent DC loop resistance must measure between 4.2 ± 0.5 Ω from the center conductor to the outer shield.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the accurate internal impedance signature required to verify the health of a Bently Nevada 330901-00-08-10-02-CN probe during troubleshooting?
To diagnose the Bently Nevada 330901-00-08-10-02-CN, you should measure the DC resistance between the center conductor and the outer shield of the ClickLoc™ connector. Because this specific probe features a 1.0-meter total cable length, the nominal baseline resistance must fall precisely within the range of 4.2±0.5Ω. Any reading significantly higher indicates an open circuit or cable degradation, while a near-zero ohm value points to a short circuit within the probe tip or coaxial line.
Does the Bently Nevada 330901-00-08-10-02-CN support direct integration with third-party Modbus or Ethernet/IP PLCs, and how is the dynamic signal processed?
No, the Bently Nevada 330901-00-08-10-02-CN is an analog eddy-current sensor that cannot communicate directly via digital network protocols. It must interface with a 3300 XL NSv Proximitor® Sensor. The Proximitor demodulates the high-frequency RF signal into an analog voltage output at 7.87 V/mm (200 mV/mil). This output is routed to machinery monitors like the Bently Nevada 3500 series, which process the raw waveform data and can transfer register data to third-party DCS or PLCs via Modbus or communications gateways.
What are the specific terminal wiring constraints and cross-talk parameters when installing multiple Bently Nevada 330901-00-08-10-02-CN probes in an X-Y configuration?
When installing two Bently Nevada 330901-00-08-10-02-CN probes in an X-Y radial vibration layout, proximity to small shaft targets can cause electromagnetic cross-talk. If the probes are mounted in parallel, their tips must maintain a minimum physical separation of at least 25 mm (1.0 in). For standard 90-degree orthogonal configurations, you can minimize cross-talk by offsetting the probe centerlines axially along the shaft by at least 23 mm (0.9 in) to keep scale factor distortion under 10%.
How does target material composition alter the calibration and diagnostic depth of the Bently Nevada 330901-00-08-10-02-CN transducer system?
The Bently Nevada 330901-00-08-10-02-CN system comes factory-calibrated to standard AISI 4140 magnetic steel. If the probe is targeted against other metals, such as K-Monel, Inconel, or various stainless steel grades, the magnetic permeability and electrical conductivity shifts will alter the system's Incremental Scale Factor (ISF). Integrating the probe with non-4140 targets requires a custom calibration curve or a specialized Proximitor to prevent major amplitude measurement errors.
What is the proper mechanical installation procedure and maximum case torque rating for the Bently Nevada 330901-00-08-10-02-CN probe?
When threading the Bently Nevada 330901-00-08-10-02-CN into a 1/4-28 UNF tapped hole, you should first check that the unthreaded length is correct. The absolute maximum torque limit for this 1/4-inch case size is 7.3 N·m (65 in·lb); exceeding this value can twist the probe housing or damage the internal coaxial joints. It is highly recommended to tighten the probe to a operational torque of 5.1 N·m (45 in·lb). The coaxial ClickLoc connectors should be joined finger-tight.
What hazardous area approvals are covered by the "-CN" designation on the Bently Nevada 330901-00-08-10-02-CN, and what are its global safe-use conditions?
The "-CN" option code for the Bently Nevada 330901-00-08-10-02-CN indicates regional hazardous area compliance, primarily matching Chinese NEPSI standards along with ATEX and IECEx certifications for Zone 0, Zone 1, and Zone 2 environments. When used in intrinsically safe "ia" configurations, the probe must be wired through approved galvanic isolators or Zener barriers according to Bently Nevada control drawings.
