330901-00-15-70-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

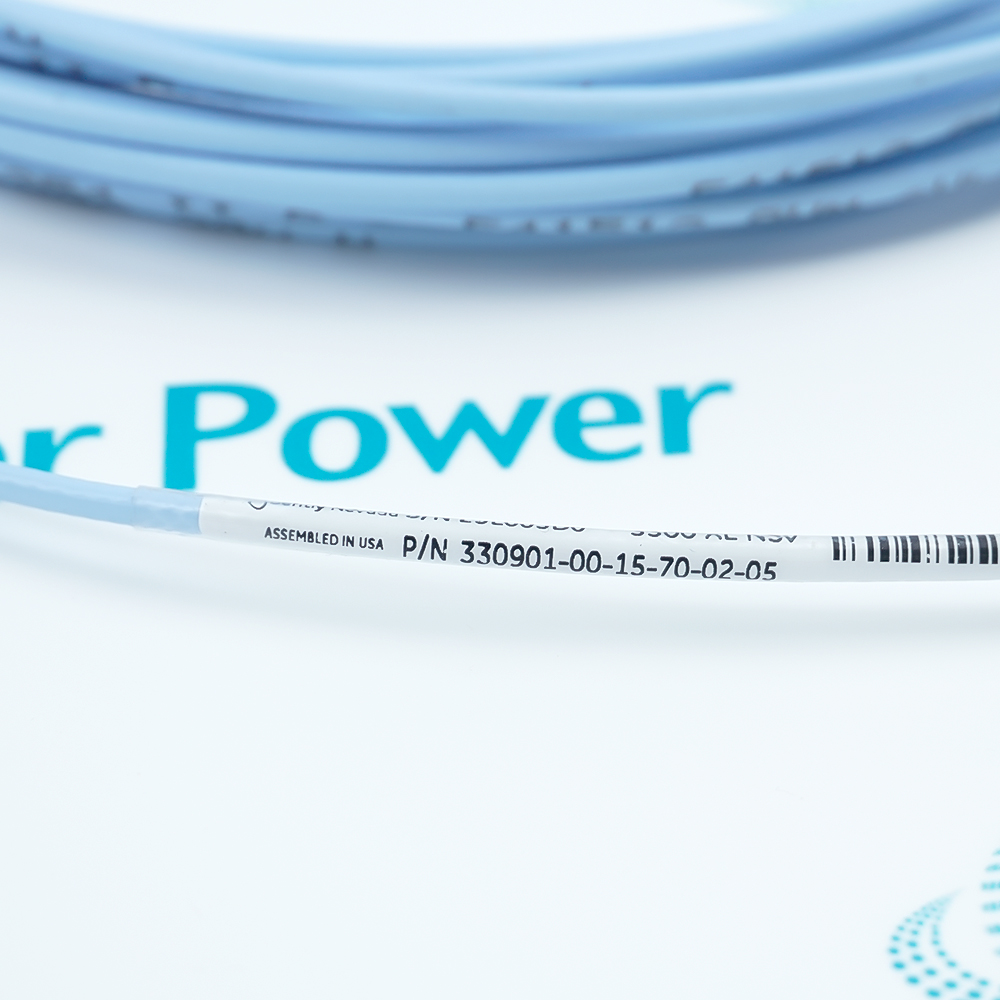

Bently Nevada 330901-00-15-70-02-05 is an unarmored 3300 NSv proximity probe with a 7.0 m lead for a matched NSv transducer channel.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330901-00-15-70-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330901-00-15-70-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330901-00-15-70-02-05
  • Product Family:
    NSV Probe
  • Product Type:
    3300 NSv Proximity Probe
  • Stock:
    1
  • Mounting thread:
    1/4-28 UNF
  • Probe armor:
    Without armor
  • Unthreaded length:
    0.0 in
  • Overall case length:
    1.5 in
  • Probe lead length:
    7.0 m
  • Probe cable:
    75 Ω coaxial, FEP insulated; standard cable
  • Connector:
    Miniature coaxial ClickLoc; no protector
  • Agency approval option:
    05 — Multiple Approvals
  • Maximum thread engagement:
    0.375 in
  • Probe DC resistance:
    5.9 ± 0.9 Ω
  • Probe tip material:
    Polyphenylene sulfide (PPS)
  • Probe case material:
    AISI 304 stainless steel
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Mounting Fit 7 m Signal Chain Performance Product Applications

Features:

  • Compact sensing position: The NSv design serves restricted counterbores and limited side or rear view.
  • Ordered case: The 330901 configuration is an unarmored 1/4-28 UNF probe.
  • Continuous lead: The 70 option provides a 7.0 m probe length.
This NSv probe is a sensing component for a tight-clearance machinery measurement point, not an assembled monitor channel.

A separate NSv Proximitor conditions the probe input for monitoring; the probe does not perform that role by itself.

The mounting case and connector option remain part of the exact-code selection, so the order should reflect the installed opening and cable route.

Apter Power can support an exact-code quotation and technical documentation for the Bently Nevada 330901-00-15-70-02-05 3300 NSv Proximity Probe.
Bently Nevada 330901-00-15-70-02-05 3300 NSv Proximity Probe Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Threaded opening: A 1/4-28 UNF mount is the match for this case; metric or 3/8-24 openings call for a different order code.
  • Case reach: The 0.0 in unthreaded section and 1.5 in overall case length set the available mounting geometry.
  • Engagement limit: The OEM caps 1/4-28 thread engagement at 0.375 in; a deeper engagement can bind during installation.
  • Unarmored route: This case and lead are ordered without armor, so an installation needing cable armor calls for another configuration.
  • Conditioning stage: The probe supplies the non-contact input; a matched NSv Proximitor conditions it for the monitor.
  • Sensor mounting: The 330980 7 m options include panel and DIN mounting, selected separately from this probe case.
  • Joint retention: Gold-plated brass ClickLoc connectors latch to resist a loose signal connection.
  • Linear range: The matched NSv system has a 1.5 mm linear range, shorter than the XL 5 and 8 mm systems despite its side-view advantage.
  • Small targets: A flat target below the recommended 13 mm diameter can shift scale factor, so reduced targets need an application-specific measurement review.
  • Probe spacing: Close radial or axial tips can cross-talk on small shafts; OEM minimum separations differ by measurement arrangement.
  • Radial measurement: On fluid-filmed bearing machines, the NSv system measures radial vibration and position where small shafts or restricted side view matter.
  • Thrust position: The manufacturer lists axial-position measurement, including installations with small flat targets.
  • Speed reference: Tachometer and zero-speed measurement are listed uses of a matched NSv channel.
  • Phase reference: Keyphasor signal measurement is another listed use of the NSv transducer system.
Description
In an NSv monitoring installation with little room around the shaft, 330901-00-15-70-02-05 puts the sensing tip at a restricted counterbore or side-view location. That narrow-view probe choice can preserve a measurement position that a standard 5 or 8 mm probe arrangement may not accommodate.

A continuous 7.0 m probe lead lets 330901-00-15-70-02-05 reach a matched 7 m NSv Proximitor without routinely adding a separate extension cable. This is useful when the cable route makes another joint undesirable, while the selected Proximitor must still match the full probe length.

The unarmored case and standard-cable ClickLoc end of 330901-00-15-70-02-05 leave the physical mount and exposed connection as separate purchasing decisions. Specifying the complete order code keeps those choices tied to the intended installation, without treating the probe as a complete calibrated transducer system.
Alternative Names
Bently Nevada 330901-00-15-70-02-05 Baker Hughes 330901-00-15-70-02-05 330901 00 15 70 02 05 3309010015700205 330901/00/15/70/02/05 330901-00-15-70-02-5 330901-00-15-70-2-05 330901-OO-15-7O-O2-O5
Technical notes
For 330901-00-15-70-02-05, the published NSv system accuracy and interchangeability specifications apply to the stated Bently Nevada AISI 4140 steel target, not automatically to another shaft material. A Proximitor may be calibrated for another target on request, so the target material must be part of the measurement-system specification before the published sensitivity is used for a different machine.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Our 7 m 3300 RAM channel still has a separate extension cable. Can 330901-00-15-70-02-05 replace just the probe?
Not while a positive-length extension remains in a 7 m chain. This probe lead already fills the 7 m system length; family-level RAM interchangeability does not make the added cable length a matched installation. Review the existing route and Proximitor before ordering the probe alone.
We are converting a 7000-series 190 installation. Is 330901-00-15-70-02-05 sufficient on its own?
The probe alone is not the NSv conversion. Baker Hughes general 190-conversion guidance names replacement probe, extension and Proximitor components, but a matched 7 m probe lead can eliminate a separate extension. Scope the complete channel rather than automatically adding an extension.
The connector will be exposed to turbine oil. Should we choose 330901-00-15-70-02-05 as ordered?
Its 02 connector option has no protector. Baker Hughes recommends connector protectors to keep most liquids out of ClickLoc joints, so specify a protected connector option or a separate protector for an exposed location.
For a hazardous-area job, does the 05 option on 330901-00-15-70-02-05 settle our approval choice?
No. Option 05 is an ordering choice called Multiple Approvals, not universal site approval. Check the applicable country and product certificate, protection method, complete installed system and site classification.
Our spare 330901-00-15-70-02-05 could sit below −34 °C through winter. Is that a suitable storage plan?
Sustained exposure below −34 °C can prematurely damage the probe pressure seal, even though the listed storage range extends lower. Store the spare warmer before installation.
With 330901-00-15-70-02-05 reaching a 7 m Proximitor, can our monitor sit 350 m farther away?
The 7 m probe lead does not extend the field-wiring allowance. Baker Hughes specifies up to 305 m between the NSv Proximitor and monitor and notes high-frequency roll-off on longer runs. Rework the 350 m layout.
