    Apter Power also offers high-quality, tested 330902-00-38-05-02-05 proximity probes to maintain the integrity and performance of your existing mechanical protection systems.

330902-00-38-05-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

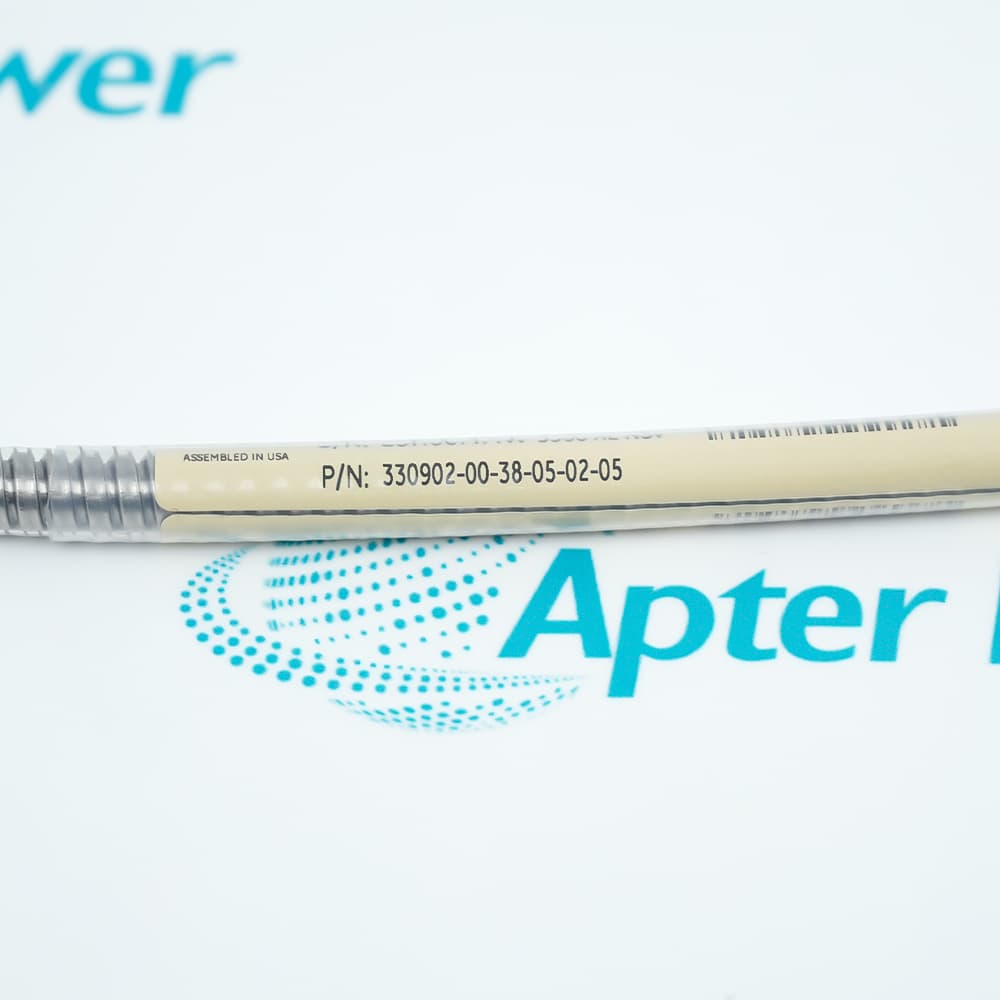

The 330902-00-38-05-02-05 is a 3300 NSv Proximity Probe featuring a 1/4-28 UNF thread with armor protection. This model includes a 0.5 meter (20 inch) total length with an overall case length of 3.8 inches and unthreaded length of 0.0 inches.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330902-00-38-05-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330902-00-38-05-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330902-00-38-05-02-05
  • Product Family:
    NSV Probe
  • Product Type:
    Proximity Probe
  • Stock:
    1
  • Thread Type:
    1/4-28 UNF (with armor)
  • Total Length:
    0.5 meter (20 inches)
  • Unthreaded Length:
    0.0 inches
  • Overall Case Length:
    3.8 inches
  • Connector Type:
    Miniature coaxial ClickLoc™
  • Connector Material:
    Gold-plated brass
  • Cable Type:
    Standard cable
  • Agency Approvals:
    Multiple Approvals
  • Key Benefit:
    Model 330902-00-38-05-02-05 addresses measurement accuracy challenges in confined spaces with superior side-view characteristics versus 3000-series 190 probes.
  • Weight:
    0.08 kg
  • Estimated shipping dimensions:
    1.3x1.2x66cm
  • Tariff Code:
    9030900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Protection Installation Notes

Features:

  • 1/4-28 UNF thread with armor protection provides enhanced mechanical durability for standard UNF mounting applications in harsh industrial environments.
  • Increased chemical resistance compared to 3300 RAM probes enables reliable operation in process compressor applications with exposure to aggressive media.
  • Superior side-view characteristics versus 3000-series 190 probes allow accurate measurements in confined spaces where optimal probe orientation is limited.
The 330902-00-38-05-02-05 is engineered with a 1/4-28 UNF thread and full armor protection, delivering exceptional mechanical durability for demanding industrial environments. The armored construction shields the probe against crushing, abrasion, and impact damage during installation and operation—critical in heavy machinery applications such as compressors, turbines, and large rotating equipment. With an overall case length of 3.8 inches and a 0.5 meter total length, this probe provides the reach needed for deeper installations while maintaining the ruggedness required for long-term reliability.

The 330902-00-38-05-02-05 offers significantly increased chemical resistance compared to the previous 3300 RAM probe designs, making it ideally suited for process compressor applications where exposure to aggressive media is a daily reality. In environments such as natural gas compression, chemical processing, and refinery operations, probes are routinely exposed to sour gas, corrosive vapors, lubricating oils, and chemical solvents that can degrade standard materials over time.

The 330902-00-38-05-02-05 delivers superior side-view characteristics compared to the 3000-series 190 probe when gapping at the same distance from the probe target—a critical advantage in applications where space constraints limit optimal probe orientation. In tightly packed machinery such as centrifugal compressors, steam turbines, and gearboxes, achieving perfect perpendicular alignment between probe and target is often physically impossible.

The 330902-00-38-05-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330902-00-38-05-02-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330902-00-38-05-02-05 3300 NSv Proximity Probes Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330902-00-38-05-02-05
  • Condition New Original ready stock
  • Product Family 330902-00-38-05-01-05,330902-00-38-05-11-05,330902-00-38-05-02-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Key Equipment: Centrifugal air compressors, refrigeration compressors, process gas compressors, steam turbines, and pumps.
  • Radial Vibration and Displacement: Suitable for thin shafts with a diameter less than 51 mm (2 in).
  • Axial (Thrust) Position: Suitable for small planar targets with a diameter less than 15 mm (0.6 in).
  • Hazardous Area Protection: CSA, ATEX, and IECEx certified, suitable for Zone 0/Class 1 or Zone 2/Class 2 hazardous environments.
  • Chemical Resistance: Compared to the older RAM probe, the NSv offers superior resistance to chemical corrosion.
  • ClickLoc Connector: The metal ClickLoc connector features a locking mechanism to prevent loosening under vibration.
  • Tightening Torque: Do not overtighten during installation. A maximum torque of 65 in-lb is recommended.
  • Thread Fit: The maximum thread engagement length is typically 1.5 times the nominal diameter to prevent jamming during installation.
  • Gap Adjustment: Ensure the initial gap voltage between the probe face and the target is within the linear range required by the system.
Description
The 330902-00-38-05-02-05 features a 1/4-28 UNF thread configuration with armor protection, providing enhanced durability for demanding industrial installations requiring standard UNF mounting threads. This model includes a 0.5 meter (20 inch) total length with an overall case length of 3.8 inches and unthreaded length of 0.0 inches.

The 330902-00-38-05-02-05 is mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300 RAM proximity probe designs. This NSv probe features increased chemical resistance compared to the 3300 RAM probe, allowing its use in many process compressor applications where exposure to aggressive media is common.

The side-view characteristics of the 330902-00-38-05-02-05 are superior to those of the 3000-series 190 probe when gapping at the same distance from the probe target. This improved performance enables more accurate measurements in confined spaces and applications where probe orientation presents challenges.

The 330902-00-38-05-02-05 represents a complete solution for applications requiring 1/4-28 UNF mounting threads with armor protection and multiple agency approvals. This NSv probe delivers reliable vibration and position monitoring while the increased chemical resistance and superior side-view characteristics ensure long-term performance in demanding process environments.
Alternative Names
330902 00 38 05 02 05 33O9O2-OO-38-O5-O2-O5 330902-00-3B-05-02-05 330902-00-38-05-02-00 330902-00-38-05-02-CN 330902-00-38-05-02-BR 330902-00-38-05-02-RU
Technical notes
The 330902-00-38-05-02-05 is a 3300 XL 11mm Proximity Probe designed for differential expansion (DE) and thrust position measurements on large steam turbines, gas turbines, and compressors.The reverse‑mount design allows the cable to exit the machine casing externally. Features include molded PPS probe tip for high temperature (200°C / 392°F continuous), FluidLoc® cable to prevent fluid wicking, and optional connector protector.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What installation advantage does the 3.8-inch overall case length provide for the 330902-00-38-05-02-05?
The 3.8-inch case length provides extended reach for applications requiring deeper probe insertion through thicker machine casings or insulation layers.
How does the armored construction of the 330902-00-38-05-02-05 protect against physical damage?
The armor shields the probe from crushing, abrasion, and impact damage during installation and operation in harsh industrial environments.
What makes the 330902-00-38-05-02-05 suitable for process compressor applications?
The probe offers increased chemical resistance compared to 3300 RAM designs, allowing reliable operation in environments with exposure to aggressive media such as sour gas and chemical vapors.
Can the 330902-00-38-05-02-05 replace existing 3300 RAM probes?
Yes, it is mechanically and electrically interchangeable with 3300 RAM probes, enabling seamless upgrades while gaining improved chemical resistance and side-view performance.
