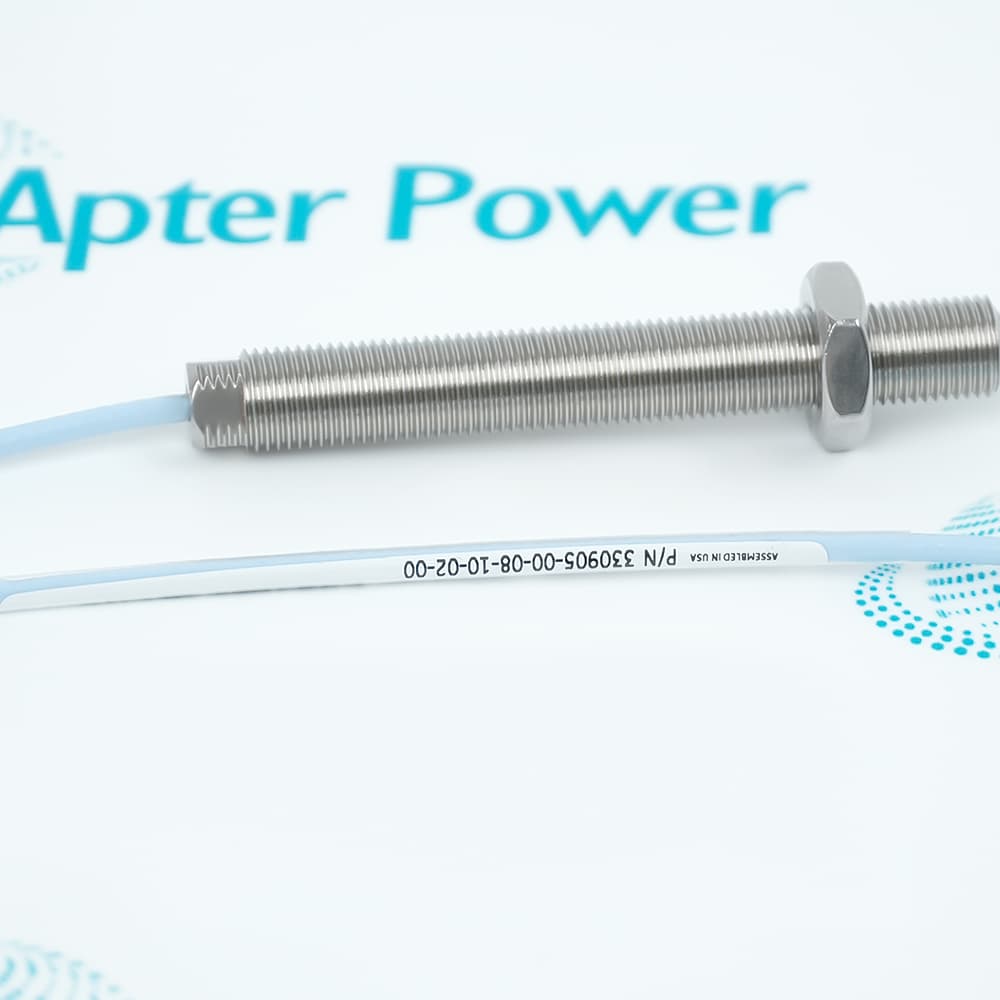

    Apter Power offers this genuine Bently Nevada 330905-00-08-10-02-00 probe to ensure the integrity of your critical rotating equipment and prevent downtime due to sensor data failure.

330905-00-08-10-02-00

/ 4.9
1001 reviews | Need a Specific Revision?
The 330905-00-08-10-02-00 is equipped with a miniature coaxial ClickLoc connector that provides secure and reliable signal transmission while facilitating installation and maintenance.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330905-00-08-10-02-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330905-00-08-10-02-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330905-00-08-10-02-00
  • Product Family:
    NSV Probe
  • Product Type:
    Probes
  • Stock:
    1
  • Unthreaded Length:
    0 mm
  • Overall Case Length:
    80 mm
  • Total Length:
    1.0 meter (39 in)
  • Connector -Type:
    Miniature coaxial ClickLoc connector
  • Cable-Type:
    standard cable
  • Maximum Altitude:
    2000 m
  • Power Supply:
    -24 Vdc
  • Operating Temperature:
    -52°C to +177°C (-62°F to +351°F)
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    1.8x1.6x111cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Configuration & Programming Safety & Compliance

Features:

  • M10X1 Thread Configuration Without Armor Protection
  • Enhanced Chemical Resistance for Process Compressor Applications
  • Compatible and Interchangeable with Previous 3300 RAM Probe Systems
The 330905-00-08-10-02-00 3300 NSv Proximity Probe operates as a high-performance proximity sensing solution, providing reliable displacement measurement capabilities for rotating machinery monitoring applications. It continuously delivers accurate signal output through its advanced probe tip design and distributes this measurement data through the transducer system to support steady state operation of all connected monitors and modules. Seamless compatibility with existing 3300 RAM systems is standard with the 330905-00-08-10-02-00, however using the optional extension cable configuration will allow seamless integration with the full 3300 NSv transducer system in the event of complex installation requirements. The 330905-00-08-10-02-00 has made improvements in several areas over previous probe designs in addition to incorporating superior side-view characteristics within the proximity probe lineup.

The 330905-00-08-10-02-00 provides essential sensing functions common to the entire transducer system, and is a critical component of the monitoring path, directly affecting the proper, normal operation of the overall machinery protection system. One or more 330905-00-08-10-02-00 probes are required per monitoring point depending on the desired measurement coverage. The 330905-00-08-10-02-00 features a compact probe case design and is always integrated with gold-plated brass ClickLoc connectors for secure electrical connectivity.

For robust installation applications, the 330905-00-08-10-02-00 requires proper connector protection at the probe-to-extension cable junction. In addition to standard single probe operation, the transducer configuration also performs reliable signal transmission. The 330905-00-08-10-02-00 cable connection executes secure attachment using the patented CableLoc design specified in the probe specifications. Using this method, the CableLoc system continually maintains 220 N (50 lb) of pull strength between the probe cable and probe tip. If the system detects that the probe connection is subjected to mechanical stress (outside normal operating tolerance levels), the CableLoc design will automatically secure the load to the probe tip and prevent signal interruption in the measurement path.

The 330905-00-08-10-02-00 Bently Nevada 3300 NSv Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330905-00-08-10-02-00 3300 NSv Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330905-00-08-10-02-00 3300 NSv Proximity Probe Specs

General

  • Manufacturer Bently Nevada
  • Model 330905-00-08-10-02-00
  • Condition New Original ready stock
  • Product Family 330905-00-08-10-01-05,330905-00-08-10-02-05,330905-00-08-05-02-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Centrifugal Air Compressors: Ideal for internal monitoring where counterbore clearances are minimal.
  • Small Process Gas & Refrigeration Compressors: Designed to handle the tight installation requirements common in these units.
  • Small Shaft Monitoring: Specifically engineered for measuring radial vibration on shafts as small as 30 mm (1.2 in) and axial position on targets as small as 13 mm (0.5 in).
  • General Rotor Dynamics: Used for tachometer, zero speed, and Keyphasor phase reference measurements.
  • Hardware Matching: The probe must be connected to a dedicated 3300 XL NSv Proximitor Sensor to maintain the standard scale factor of 7.87 V/mm (200 mV/mil).
  • Interchangeability: components are designed to be interchangeable without the need for manual bench calibration, provided standard AISI 4140 steel targets are used.
  • Gapping: Proper installation typically requires gapping the probe at 1.0 mm (40 mils) to ensure accurate linear range performance.
  • Mechanical Connection: Features gold-plated ClickLoc connectors that lock with finger-tight torque, eliminating the need for special tools.
  • Hazardous Area Approvals: The 3300 series generally carries European and North American approvals for use in hazardous areas (though this specific "-00" option indicates no agency approval was required for the order).
  • Functional Safety (SIL): The system is rated for SIL 2 applications with a Hardware Fault Tolerance (HFT) of zero and a rated lifetime of 10 years.
  • Environmental Resistance: Features a Polyphenylene Sulfide (PPS) tip for high chemical resistance and an operating temperature range of -34°C to +177°C.
  • Standards Compliance: Complies with API 670 standards for mechanical configuration and accuracy.
Description
330905-00-08-10-02-00 is part of the 3300 NSv Proximity Probe series and is designed for industrial rotating machinery monitoring systems. The 330905-00-08-10-02-00 features an M10x1 threaded design and is supplied without armor, making it suitable for applications where additional mechanical protection is not required. The compact configuration of the 330905-00-08-10-02-00 supports installation in limited space environments while maintaining stable monitoring performance.

In terms of physical dimensions, the 330905-00-08-10-02-00 has an unthreaded length of 0 mm and an overall case length of 80 mm. The 330905-00-08-10-02-00 is equipped with a total cable length of 1.0 meter (39 inches), allowing it to meet standard installation and routing requirements in industrial equipment monitoring systems.

For connectivity, the 330905-00-08-10-02-00 uses a miniature coaxial ClickLoc connector. This connector type provides secure and reliable signal transmission while supporting convenient installation and maintenance. The 330905-00-08-10-02-00 is equipped with a standard cable type, ensuring stable signal transmission and long-term durability during operation.

Regarding certification, the 330905-00-08-10-02-00 does not require agency approvals. As a model within the 3300 NSv Proximity Probe series, the 330905-00-08-10-02-00 serves as a reliable component for industrial vibration monitoring and equipment condition monitoring applications.
Alternative Names
330905 00 08 10 02 00 330905-00-08-10-02-05 330905-00-08-10-02-CN 330905-00-08-10-02-BR 330905-00-08-10-02-RU 33O9O5-OO-O8-1O-O2-OO 330905-00-08-I0-02-00
Technical notes
The 330905-00-08-10-02-00 probe is available in various housing configurations, including armored and unarmored 1/4-28, 3/8-24, M8X1, and M10X1 thread sizes. The reverse-mounted 330905-00-08-10-02-00 probe comes standard with either a 3/8-24 or M10X1 thread. All components of this sensor system are equipped with gold-plated brass ClickLoc connectors, which lock in place to effectively prevent loosening.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the I/O wiring rules, electrical parameters, and terminal connections required when integrating the Bently-Nevada 330905-00-08-10-02-00?
The Bently-Nevada 330905-00-08-10-02-00 interfaces with a 3300 XL NSv Proximitor Sensor which requires a supply voltage between -17.5 Vdc and -26 Vdc without barriers (-23 Vdc to -26 Vdc with barriers). Field wiring requires a 3-conductor shielded triad cable with wire sizes from 0.2 to 1.5 mm² (16 to 24 AWG), connected directly into the Proximitor’s toolless SpringLoc terminal strips. The maximum field wiring run between the Proximitor sensor and the monitoring platform is 305 meters (1,000 feet) to prevent excessive signal roll-off.
What compatibility constraints dictate how the Bently-Nevada 330905-00-08-10-02-00 works with other legacy or alternative proximity hardware?
The Bently-Nevada 330905-00-08-10-02-00 is mechanically and electrically compatible and interchangeable with the older Bently Nevada 3300 RAM probe series. However, it must never be mixed with standard 3300 XL 5mm or 8mm components. It is mandatory to connect it to an NSv extension cable and an NSv-specific Proximitor Sensor (e.g., 330980 series). Combined, the probe cable (1.0m) and the extension cable length must perfectly match the total system length (typically 5.0m or 7.0m) calibrated to the Proximitor sensor.
How deep are the diagnostic capabilities of the Bently-Nevada 330905-00-08-10-02-00 when assessing signal anomalies or linear errors?
The Bently-Nevada 330905-00-08-10-02-00 operates as an eddy-current system providing raw analog DC/AC voltage signals with an Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil) over a 1.5 mm (60 mils) linear range. Engineers can diagnose calibration issues by tracking the target gap voltage between approximately -1 Vdc and -13 Vdc. System variance can be validated via the Proximitor’s test pin holes; the Deviation from a Best Fit Straight Line (DSL) remains under ±0.06 mm (±2.3 mils) when targeting standard AISI 4140 steel at a recommended 1.0 mm (40 mil) gap.
What specific industrial machinery environments and target sizes are ideal for deploying the Bently-Nevada 330905-00-08-10-02-00?
The Bently-Nevada 330905-00-08-10-02-00 is purpose-built for centrifugal air compressors, refrigeration compressors, and process gas compressors operating with fluid-filmed bearings. It is deployed where tight installation restrictions (like limited counterbore, side-view, or rear-view clearances) rule out standard 8mm probes. It excels in small-target environments, safely measuring radial vibration on shafts smaller than 51 mm (2 inches) or axial position on flat surfaces smaller than 15 mm (0.6 inches).
What are the strict physical environment and pressure limitations that the Bently-Nevada 330905-00-08-10-02-00 must abide by?
The Bently-Nevada 330905-00-08-10-02-00 probe operates within a broad temperature window of -52°C to +177°C (-62°F to +351°F). However, if the probe is exposed to temperatures dropping below -34°C (-30°F) for extended periods, the integrated Viton pressure seal may experience premature failure. Relative humidity is rated up to 100% condensing (non-submersible when connectors are protected). It features enhanced chemical resistance compared to legacy models, but systems handling very high or low pH media can erode the TipLoc molded tip, causing process leaks.
