        330980-71-05
        330980-71-05
        330980-71-05
        330980-71-05
        330980-71-05
        330980-71-05
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power delivers certified Bently Nevada monitoring modules, offering dependable replacement hardware to optimize performance and prevent downtime in heavy rotating assets.

        330980-71-05

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

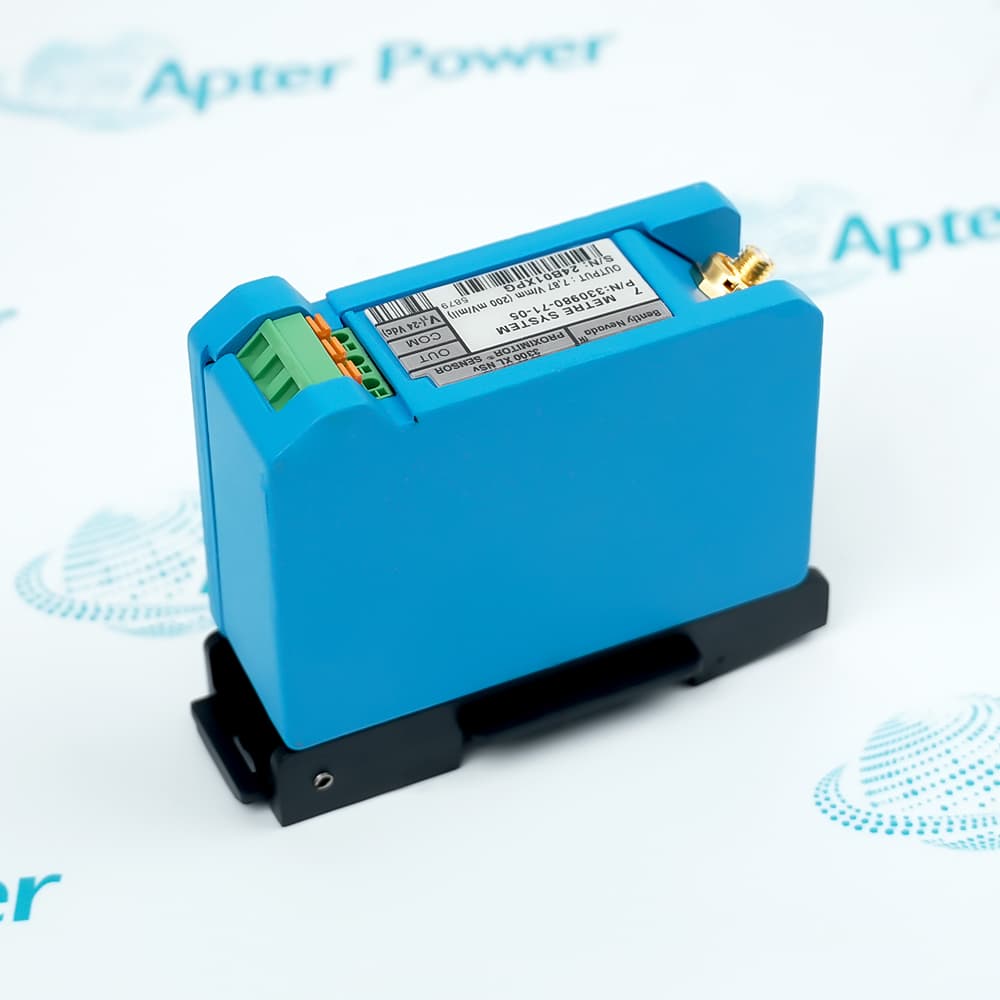

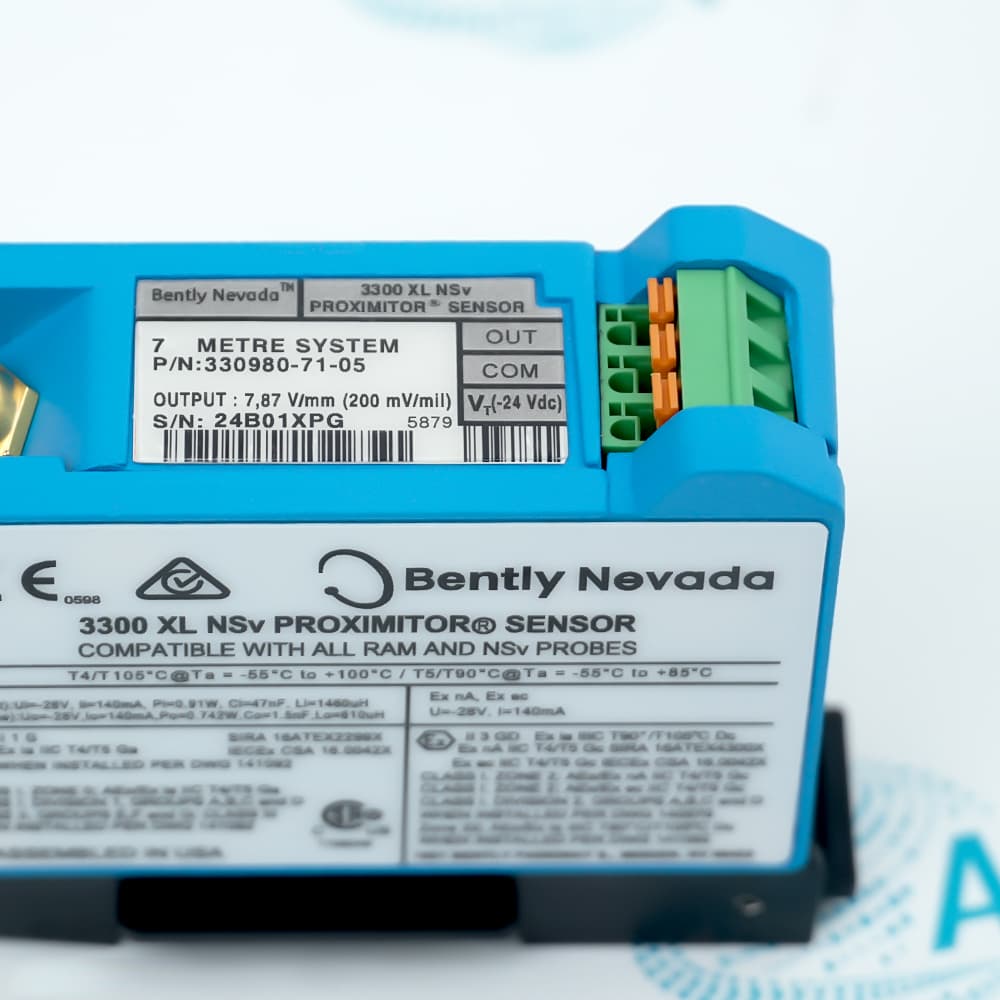

        The Bently Nevada 330980-71-05 is a DIN-rail mounted Proximitor Sensor designed for non-contact vibration and position monitoring in rotating machinery, delivering 7.87 V/mm sensitivity and API 670 compliance.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 330980-71-05
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 330980-71-05

        • Manufacturer:
          Bently Nevada
        • Part Number:
          330980-71-05
        • Product Family:
          NSV Proximitor Sensor
        • Stock:
          5
        • System Length:
          7.0 meters (23.0 feet) – total (probe + extension cable)
        • Mounting Option:
          DIN-rail mount (high-density)
        • Agency Approvals:
          Multiple Approvals (ATEX, IECEx, CSA/NRTL/C, SIL 2/3)
        • Output Sensitivity:
          7.87 V/mm (200 mV/mil) ±5% average scale factor
        • Linear Range:
          1.5 mm (60 mils) from 0.25 mm to 1.75 mm gap
        • Recommended Gap:
          1.0 mm (40 mils)
        • Supply Voltage:
          -17.5 Vdc to -26 Vdc (no barriers) / -23 Vdc to -26 Vdc (with barriers)
        • Supply Curren:
          12 mA maximum
        • Output Resistance:
          50 Ω
        • Frequency Response:
          0 to 10 kHz (+0, -3 dB) with up to 305 m field wiring
        • Operating Temperature:
          -52°C to +100°C (-62°F to +212°F)
        • Storage Temperature:
          -52°C to +105°C (-62°F to +221°F)
        • Weight:
          0.2 kg
        • Estimated shipping dimensions:
          20.5x22.5x3.5cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Operating Environment Safety & Compliance

        Features:

        • Tool-Free SpringLoc Terminal Strips
        • High RFI/EMI Immunity for Unshielded Installations
        • High-Density DIN-Rail Design for Space-Constrained Cabinets
        The Bently Nevada 330980-71-05 incorporates SpringLoc terminal strips that eliminate the need for screwdrivers during field wiring. This design reduces installation time by up to 50%, minimizes wiring errors, and provides a vibration-resistant connection that remains secure even in high-frequency machinery environments.

        Unlike conventional proximity systems that require expensive shielded conduit, the Bently Nevada 330980-71-05 achieves CE Mark compliance without special shielding. This immunity prevents interference from nearby VFDs, radio transmitters, and welding equipment, ensuring signal integrity even when installed in dense electrical cabinets.

        With its thin profile measuring only 61mm in width, the Bently Nevada 330980-71-05 mounts directly on standard DIN rails, allowing up to twice the channel density compared to panel-mount alternatives. This space-saving design is ideal for retrofits where cabinet real estate is limited or for new builds requiring compact machinery protection systems.

        The 330980-71-05 Bently Nevada 3300 XL NSv Proximitor Sensor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 330980-71-05 3300 XL NSv Proximitor Sensor Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 330980-71-05 3300 XL NSv Proximitor Sensor

        General

        • Manufacturer GE / Bently Nevada
        • Model 330980-71-05
        • Condition New Original ready stock
        • Product Family 330980-50-05,330980-51-CN,330980-51-05
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Centrifugal Air and Gas Compressors – The Bently Nevada 330980-71-05 monitors radial vibration and axial position in compressors where limited sideview or counterbore clearance prevents use of standard 8mm probes. Its small target capability (down to 13 mm diameter) is ideal for high-speed integrally geared compressors.
        • Refrigeration Compressors (Screw and Reciprocating) – With operating temperature down to -52°C, the Bently Nevada 330980-71-05 reliably measures shaft vibration and phase reference in ammonia and Freon refrigeration systems, even during cold start conditions where other transducers fail.
        • Steam Turbines with Limited Casing Access – For turbine retrofits where existing probe mounting holes are undersized or obstructed, the Bently Nevada 330980-71-05 provides 1.5 mm linear range with reduced probe tip diameter, enabling non-intrusive installation without costly casing modification.
        • Small-Bore Pumps and Gearboxes – On shafts smaller than 51 mm (2 inches), the Bently Nevada 330980-71-05 delivers accurate radial vibration measurements where standard 5mm or 8mm probes exceed the available flat target area. This makes it the preferred choice for boiler feed pumps and marine propulsion gearboxes.
        • Extreme Temperature Ranges – The Bently Nevada 330980-71-05 operates continuously from -52°C to +100°C, surviving arctic startup conditions and high-temperature turbine casing environments. Storage down to -105°C allows for harsh logistics and unheated warehouse storage.
        • Condensing Humidity and Liquid Exposure – While the Proximitor itself is not submersible, the Bently Nevada 330980-71-05 tolerates 100% relative humidity with condensation when used with connector protectors (part 40180-03). Silicone tape is provided with each extension cable for additional moisture sealing in non-oil environments.
        • Electrically Noisy Industrial Environments – The Bently Nevada 330980-71-05 exhibits less than 0.008 mils peak-to-peak output error when subjected to 300 Gauss magnetic fields at 60 Hz. This RFI/EMI immunity allows installation adjacent to VFDs, motor starters, and radio transmitters without special shielded conduit.
        • Space-Constrained Cabinets – Measuring only 61mm wide, the Bently Nevada 330980-71-05 mounts on standard 35mm DIN rails, achieving twice the channel density of panel-mount alternatives. This high-density design is essential for retrofits where existing cabinets have no available panel space.
        • Intrinsic Safety for Zone 0 Hazardous Areas – The Bently Nevada 330980-71-05 carries ATEX and IECEx Ex ia IIC T4/T5 Ga certification, allowing direct installation in Zone 0 explosive gas atmospheres when used with approved zener barriers (per Bently Nevada drawing 141092) or galvanic isolators. T4 rating applies up to +80°C, T5 up to +40°C ambient.
        • SIL 2 / SIL 3 Capable per IEC 61508 – The Bently Nevada 330980-71-05 is certified for functional safety applications: SIL 2 with hardware fault tolerance (HFT) = 0, or SIL 3 with HFT = 1. This makes it suitable for emergency shutdown (ESD) and fire & gas systems in petrochemical facilities requiring IEC 61511 compliance.
        • CE Mark and Global EMC Compliance – The Bently Nevada 330980-71-05 meets EU EMC Directive 2014/30/EU per EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) for industrial environments. It also complies with FCC Part 15, RoHS 2011/65/EU, China RoHS (15-year EFUP), and major maritime classification society rules.
        • Multiple Approval Option (-05) for Global Procurement – The Bently Nevada 330980-71-05 with -05 suffix includes CSA/NRTL/C for North American hazardous locations, ATEX for Europe, IECEx for international use, and SIL certification. This single SKU simplifies global inventory management, eliminating the need to stock region-specific variants.
        Description
        The Bently Nevada 330980-71-05 is a key component of the 3300 XL NSv Proximity Transducer System, engineered specifically for machinery with tight installation constraints such as centrifugal air compressors, refrigeration compressors, and steam turbines. With a total system length of 7.0 meters (23.0 feet), this sensor provides reliable non-contact measurement of radial vibration, axial thrust position, tachometer signals, and phase reference (Keyphasor) outputs.

        Unlike standard 5mm or 8mm systems, the Bently Nevada 330980-71-05 excels in applications where counterbore, side-view, or rear-view clearance is limited. Its advanced RFI/EMI immunity meets European CE Mark requirements without special shielded conduit, while the SpringLoc terminal strips enable tool-free wiring, reducing installation time by up to 50% compared to traditional screw terminals.

        The Bently Nevada 330980-71-05 is backward compatible with existing 3300 RAM systems, allowing probe and extension cable reuse during upgrades. With a wide operating temperature range of -52°C to +100°C and multiple hazardous area approvals (ATEX, IECEx, CSA/NRTL/C), this Proximitor Sensor delivers industrial-grade reliability for critical machinery protection in oil & gas, power generation, and heavy industry applications.
        Alternative Names
        3309807105 330980-7I-05 33O98O-71-O5 330980-71-00 330980-71-CN 330980-71-RU 330980-71-BR 330980-51-CN
        Technical notes
        The Bently Nevada 330980-71-05 requires a -17.5 Vdc to -26 Vdc power supply and delivers a linear output from 0.25 mm to 1.75 mm gap (approximately -1 to -13 Vdc). For optimal performance, always pair the Bently Nevada 330980-71-05 with genuine 3300 NSv probes and extension cables to maintain calibrated accuracy to AISI 4140 steel targets.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is the exact field wiring length limitation for the Bently Nevada 330980-71-05, and how does it affect frequency response?
        The Bently Nevada 330980-71-05 supports field wiring up to 305 meters (1,000 feet) between the sensor and monitor. However, longer wiring reduces high-frequency response: at 305 meters, signal rolloff begins above 2 kHz with -3 dB attenuation at approximately 4 kHz. For full 0-10 kHz response, keep field wiring under 30 meters.
        Can the Bently Nevada 330980-71-05 interface directly with a 3500 Series monitoring system?
        Yes. The Bently Nevada 330980-71-05 outputs a standard -1 to -13 Vdc signal that is directly compatible with Bently Nevada 3500/40M Proximitor Monitor modules, as well as third-party PLCs (Rockwell, Siemens, Emerson) via analog input cards configured for 0 to -24 Vdc range. No signal conditioning is required for direct integration.
        What are the diagnostic capabilities of the Bently Nevada 330980-71-05 for open-circuit detection?
        The Bently Nevada 330980-71-05 includes automatic open-circuit detection: if the probe or extension cable is disconnected, the output voltage shifts to a
        How do I verify the Bently Nevada 330980-71-05 is calibrated correctly for non-AISI 4140 steel targets?
        By default, the Bently Nevada 330980-71-05 is factory-calibrated for AISI 4140 steel targets. For other materials (e.g., titanium, Inconel, stainless steel), you must request custom calibration at order time. Aftermarket recalibration is available through Bently Nevada service centers using material-specific target samples.
        What are the minimum shaft diameter requirements for using the Bently Nevada 330980-71-05 in radial vibration measurements?
        For radial vibration measurements, the Bently Nevada 330980-71-05 requires a minimum shaft diameter of 30 mm (1.2 inches) for standard X-Y probe configurations, or 20 mm (0.8 inches) when probes are offset axially by 23 mm. Below these diameters, scale factor deviation exceeds 10%, requiring custom calibration or reduced gap settings.
        What hazardous area certifications does the Bently Nevada 330980-71-05 carry?
        The Bently Nevada 330980-71-05 with -05 approval option carries multiple certifications: ATEX Ex ia IIC T4/T5 Ga (Zone 0), IECEx Ex ia IIC T4/T5 Ga, CSA/NRTL/C Class I Div 1 Groups A-D, and SIL 2/SIL 3 capable (per IEC 61508). For Zone 2 installations, non-incendive ratings (Ex nA/ec) are also available. Always refer to drawings 141092 (intrinsic safety) or 140979 (non-incendive) for barrier requirements.
