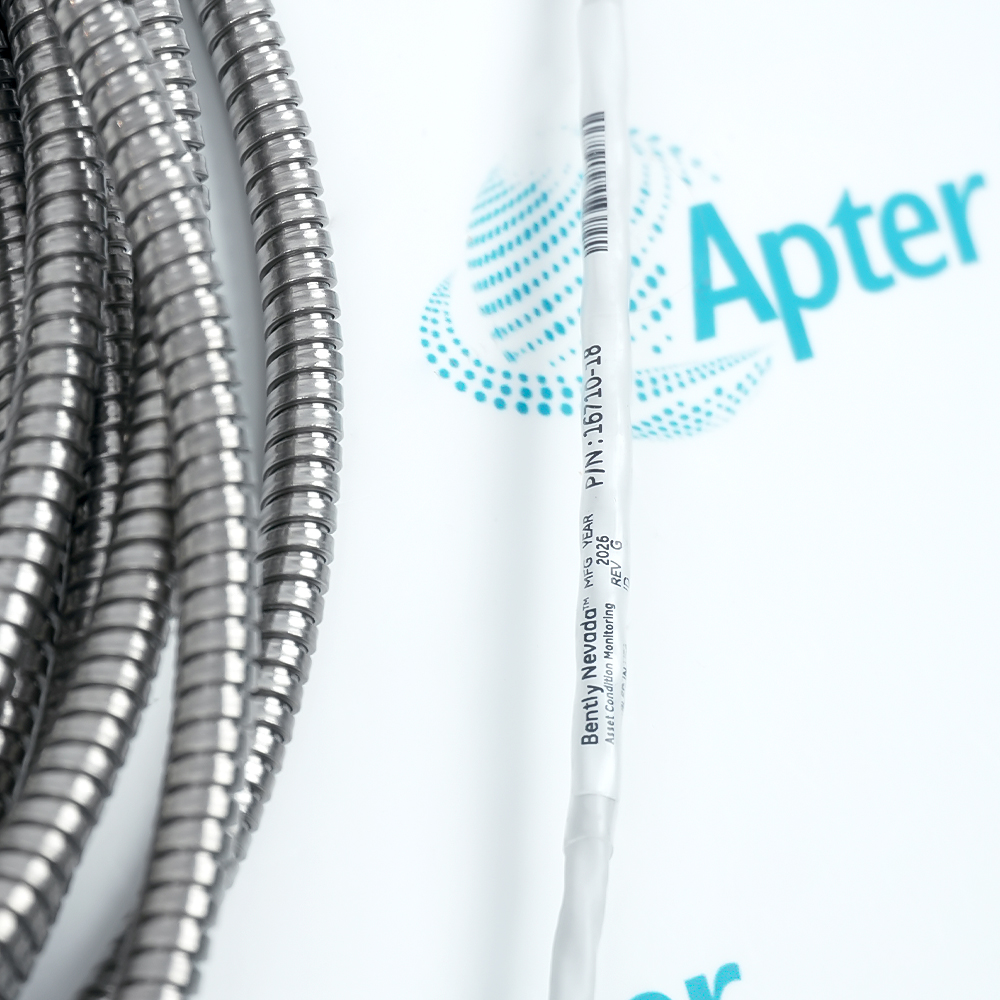

Bently Nevada 16710-18 is an 18 ft armored interconnect cable for documented accelerometer systems, with shielded 22 AWG conductors, a three-socket plug and terminal lugs.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 16710-18
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 16710-18

  • Manufacturer:
    Bently Nevada
  • Part Number:
    16710-18
  • Product Family:
    330400 and 330425 Accelerometers
  • Product Type:
    Armored accelerometer interconnect cable
  • Stock:
    1
  • Ordered cable length:
    18 ft (about 5.49 m)
  • Conductor size:
    3 × 22 AWG (0.5 mm² each)
  • Sensor-end interface:
    3-socket plug
  • Field termination:
    Terminal lugs
  • Cable construction:
    Shielded and armored
  • OEM-listed accelerometers:
    330400 and 330425
  • Weight:
    0.42 kg
  • Estimated shipping dimensions:
    26x26x3cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Cable Selection Connection Path System Boundary Product Applications

Features:

  • Assembly: Armored, shielded three-conductor accelerometer interconnect cable.
  • Ordered length: The -18 option specifies 18 ft.
  • Terminations: Three-socket plug at one end; terminal lugs at the other.
Baker Hughes lists the 16710 family among its 330400 and 330425 accelerometer interconnect choices, not as an accelerometer itself.

Its plug and lug ends connect different points in the acceleration-measurement wiring path; the cable does not measure vibration independently.

For a replacement, verify the installed sensor interface, physical routing and terminal location along with the ordered length.

Apter Power can support exact-part quotation, documentation requests and selection review for the 16710-18 armored cable.
Bently Nevada 16710-18 Armored Accelerometer Interconnect Cable Manuals,Datasheets,Link


Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Armored option: 16710 is the protected construction listed beside unarmored 16925.
  • Conductor gauge: 16710 uses three 22 AWG conductors; 130539 uses 18 AWG.
  • Boot option: The 130539 description includes a boot; the 16710 listing does not.
  • Sensor end: A three-socket plug is specified for the accelerometer-side connection.
  • Field end: Terminal lugs, not a second plug, terminate the opposite end.
  • Sensor family: The 330400 and 330425 order table includes 16710 among their interconnect cable choices.
  • Ingress rating: The sensor IP68 statement expressly excludes the cable.
  • Length range: 16710 is ordered in a 3–99 ft range; another route length requires a matching suffix.
  • Compatibility limit: The cited order table does not establish blanket proximity-probe or 3500-monitor fit.
  • 330400 connection: 16710 is a documented interconnect option for the 330400 casing accelerometer.
  • 330425 connection: The same cable family is listed for the higher-range 330425 accelerometer.
  • 330450 HTAS: Baker Hughes also lists 16710-AA as an armored interconnect option for this system.
Description
For a 330400 or 330425 accelerometer lead, 16710-18 is Baker Hughes' armored, shielded three-conductor interconnect cable. Its 22 AWG conductors terminate in a three-socket plug on one end and terminal lugs on the other.

The -18 option in 16710-18 specifies an 18-foot ordered length within the 16710 family's 3-to-99-foot range. Unlike unarmored 16925 or the 18 AWG 130539 cable with a boot, this assembly follows the armored 22 AWG selection in the manufacturer order table.

For a replacement of 16710-18, Apter Power can coordinate the exact assembly number, installed accelerometer interface and required cable route with the customer's parts list. Baker Hughes also lists the 16710 family for its 330450 high-temperature acceleration system.
Alternative Names
Bently Nevada 16710-18 Baker Hughes 16710-18 16710 18 16710/18 1671018 16710-17 16710-19 16710-20
Technical notes
Baker Hughes lists cable lengths in one-foot increments, but 18 ft is not among the standard 16710 lengths shown. Quote this exact length with lead time and price confirmed for the order.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can I replace an unarmored 16925 lead with 16710-18 on a 330400 accelerometer?
Both cable families appear in the 330400 order list, but 16710-18 adds armor. Check the connector, cable route, length and termination before substituting.
Will 16710-18 work in a 330450 high-temperature acceleration system?
Baker Hughes lists the 16710-AA armored family for 330450. Confirm the installed connector and route; the order code alone does not establish all installation conditions.
Can I expose the 16710-18 connector to washdown because my 330400 sensor is IP68?
No. The manufacturer’s IP68 statement covers the sensor, not the cable. Verify connector and enclosure protection separately for the installation.
Can 16710-18 be used on a Bently Nevada proximity-probe channel?
The cited OEM order tables establish accelerometer applications, not general proximity-probe use. Provide the installed probe and cable numbers for an interface check.
Does 16710-18 include the boot shown with some 330400 cables?
The 16710 order description does not include a boot; 130539 is a separate booted cable family. Specify any required boot separately.
What if my existing accelerometer run is longer than 16710-18?
Select the appropriate 16710 foot-length suffix within the documented range after measuring the installed route. Do not assume an added extension is acceptable.
