        990-05-70-01-05

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

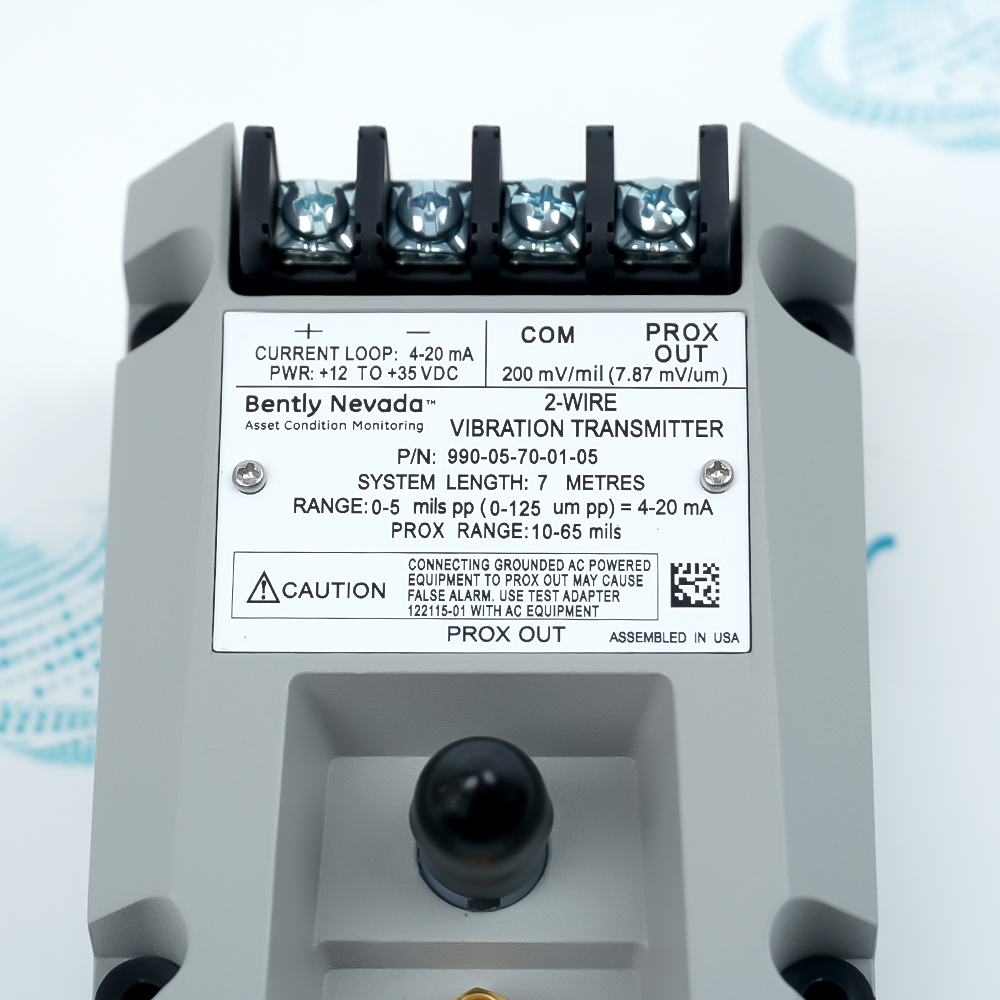

        Bently Nevada 990-05-70-01-05 belongs to the official 990 Vibration Transmitter family: a 2-wire loop-powered transmitter for 3300 NSv proximity probes.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 990-05-70-01-05
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 990-05-70-01-05

        • Manufacturer:
          Bently Nevada
        • Part Number:
          990-05-70-01-05
        • Product Family:
          990 Vibration Transmitter
        • Product Type:
          Vibration transmitter
        • Stock:
          1
        • Loop input:
          +12–35 VDC
        • Output:
          4–20 mA
        • Loop accuracy:
          ±1.5 %
        • Probe gap:
          0.5–1.75 mm
        • Maximum loop resistance:
          1000 Ω at 35 VDC
        • Current limiting:
          23 mA
        • Not-OK threshold:
          <3.6 mA within 100 µs
        • Not-OK restore:
          2–3 s
        • Prox Out impedance:
          10 kΩ
        • Linear range:
          1.4 mm
        • Scale factor:
          7.87 mV/µm
        • Typical noise:
          50 mVpp
        • Frequency response:
          5–6000 Hz, +0/−3 dB
        • Minimum target diameter:
          9.5 mm
        • Maximum cable length:
          3 m
        • Transmitter operating temperature:
          −35…85 °C
        • Storage temperature:
          −52…100 °C
        • Probe range:
          −52…177 °C
        • Humidity:
          100 % condensing
        • Dimensions:
          10.01 x 7.39 x 5.33 cm
        • Weight:
          0.43 kg
        • Tariff Code:
          9033000010
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Transmitter function Order-code configuration Fault response Application
        • Two-wire, loop-powered 4–20 mA vibration transmitter for a matched 3300 NSv proximity-probe system
        • Full-scale vibration range: 0–5 mils peak-to-peak (0–125 μm peak-to-peak)
        • 7.0 m system length, 35 mm DIN-rail mounting, and multiple agency approvals

        Bently Nevada 990-05-70-01-05 is a 990 Series vibration transmitter that converts the signal from a matched 3300 NSv probe system into a proportional 4–20 mA vibration output.

        The ordering code specifies a 0–5 mil peak-to-peak measurement range, 7.0 m probe-system length, and 35 mm DIN-rail mounting. Approval option 05 covers CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval.

        Before replacement, confirm the complete ordering code, 3300 NSv probe and extension-cable combination, total system length, mounting method, loop scaling, and required hazardous-location approvals.

        Availability, condition, price, and shipping time for Bently Nevada 990-05-70-01-05 are confirmed during quotation.

        Bently Nevada 990-05-70-01-05 Vibration Transmitter Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Bently Nevada 990-05-70-01-05 is a two-wire, loop-powered vibration transmitter.
        • It converts the 3300 NSv probe-system signal into a proportional 4–20 mA output.
        • Its configured full-scale range is 0–5 mil pp (0–125 µm pp) with a 7.0 m system length.
        • Code 05 specifies a 0–5 mil pp (0–125 µm pp) full-scale vibration range.

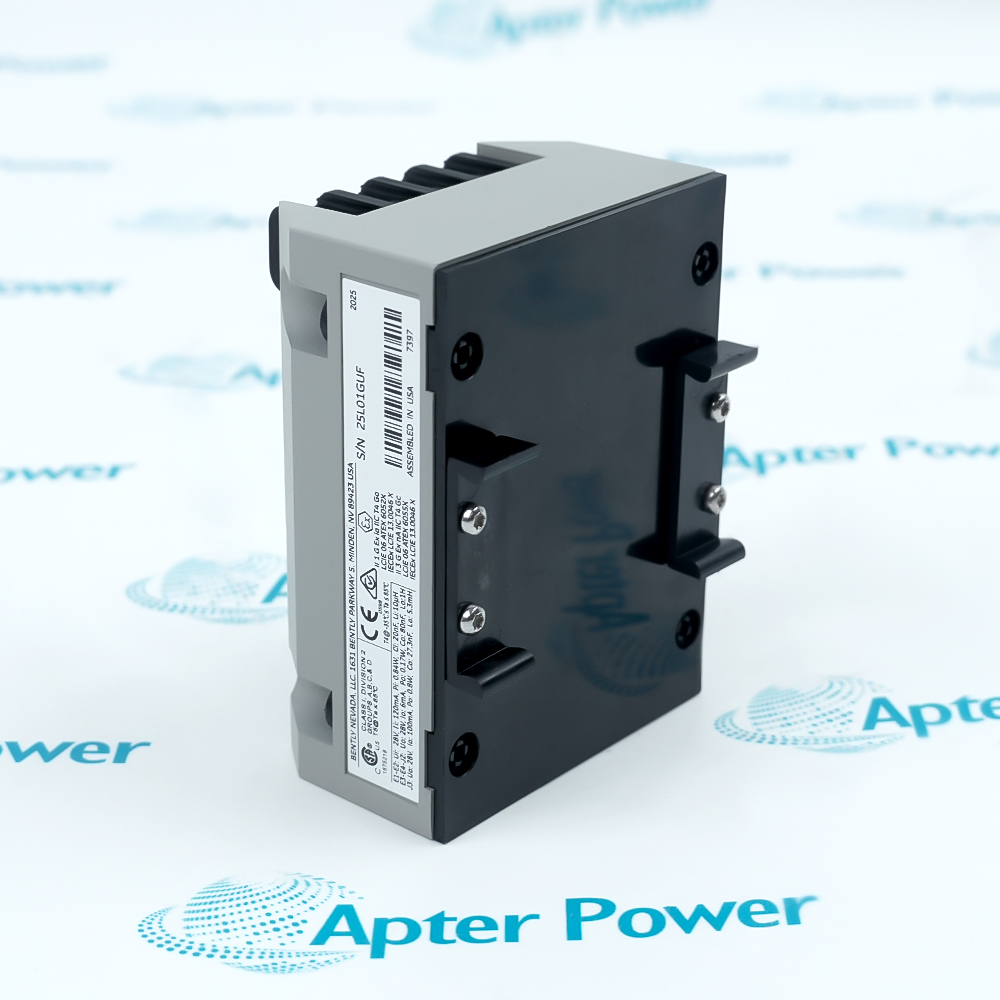

        • Code 70 specifies a 7.0 m probe-and-extension-cable system; code 01 specifies 35 mm DIN-rail mounting.
        • Approval code 05 covers CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval.
        • A faulty 3300 NSv probe or loose connection activates the Not OK/Signal Defeat circuit.
        • Bently Nevada 990-05-70-01-05 drives its output below 3.6 mA within 100 µs of a Not OK condition.
        • The 4–20 mA output recovers approximately 2–3 seconds after the fault is removed.
        • OEM vibration monitoring for centrifugal air compressors.
        • Overall vibration trending for small pumps, motors, and fans.
        • Proportional 4–20 mA input to machinery control systems for protection alarms and control logic.
        Description
        Bently Nevada 990-05-70-01-05 is the requested exact execution within the official 990 Vibration Transmitter family for a 3300 NSv proximity-probe system.

        The Baker Hughes/Bently Nevada datasheet defines the two-wire loop-powered 4–20 mA output, integrated Proximitor interface, probe-gap limits, loop resistance, frequency response, environmental range and option-code structure.

        The exact model must be matched by its complete option string, probe and extension-cable system, loop supply, mounting option and approval selection; the generic 990-series datasheet is used under the user-approved option-code exception.
        Alternative Names
        990-05-70-01-05 Bently Nevada 990-05-70-01-05 Baker Hughes 990-05-70-01-05 Bently 990-05-70-01-05 990-05-70-01-05 Vibration Transmitter Bently Nevada 990 Vibration Transmitter 990-05-70-01-05
        Technical notes
        990-05-70-01-05 must be matched to the 3300 NSv probe, option code, 12–35 VDC loop, loop resistance, target geometry, and cable length before commissioning; generic-series option mapping is the main risk.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How can a buyer confirm that Bently Nevada 990-05-70-01-05 matches the existing 3300 NSv monitoring loop?
        Compare the complete option marking with the installed probe, extension cable, target arrangement, mounting method and approved loop drawing before accepting the transmitter.
        What should a technician verify before wiring Bently Nevada 990-05-70-01-05 into a plant loop?
        Confirm polarity, loop power, receiving-input compatibility, cable continuity, grounding or shielding practice, hazardous-area requirements and the approved probe gap procedure before energizing the circuit.
        How can a purchaser avoid ordering the wrong Bently Nevada 990-05-70-01-05 option-code assembly?
        Require the full option string on the quotation and nameplate photograph, then reconcile each option position with the probe system, mounting choice, approval requirement and project bill of materials instead of relying on the generic 990 family name.
        What should be investigated if the output from Bently Nevada 990-05-70-01-05 is missing or unstable?
        Check the probe and extension cable, target condition, gap setting, loop continuity, supply polarity, receiving-input configuration, terminal wiring and transmitter diagnostics before replacing the unit.
        What should be checked if the 4–20 mA signal from Bently Nevada 990-05-70-01-05 is incorrect?
        Check loop supply and resistance, probe gap, target diameter, cable continuity, option-code scaling, PROX OUT/COM wiring and the receiving input configuration before replacing the transmitter.
        How is a Not-OK event handled by Bently Nevada 990-05-70-01-05?
        The datasheet specifies a Not-OK current below 3.6 mA within 100 µs and a 2–3 s restore interval; verify the control system alarm logic against these values.
        What evidence should be retained after commissioning Bently Nevada 990-05-70-01-05?
        Retain the complete option marking, probe and cable identities, loop measurements, gap setting, target information, mounting/approval record, 4–20 mA scaling and dynamic/gap-signal verification.
