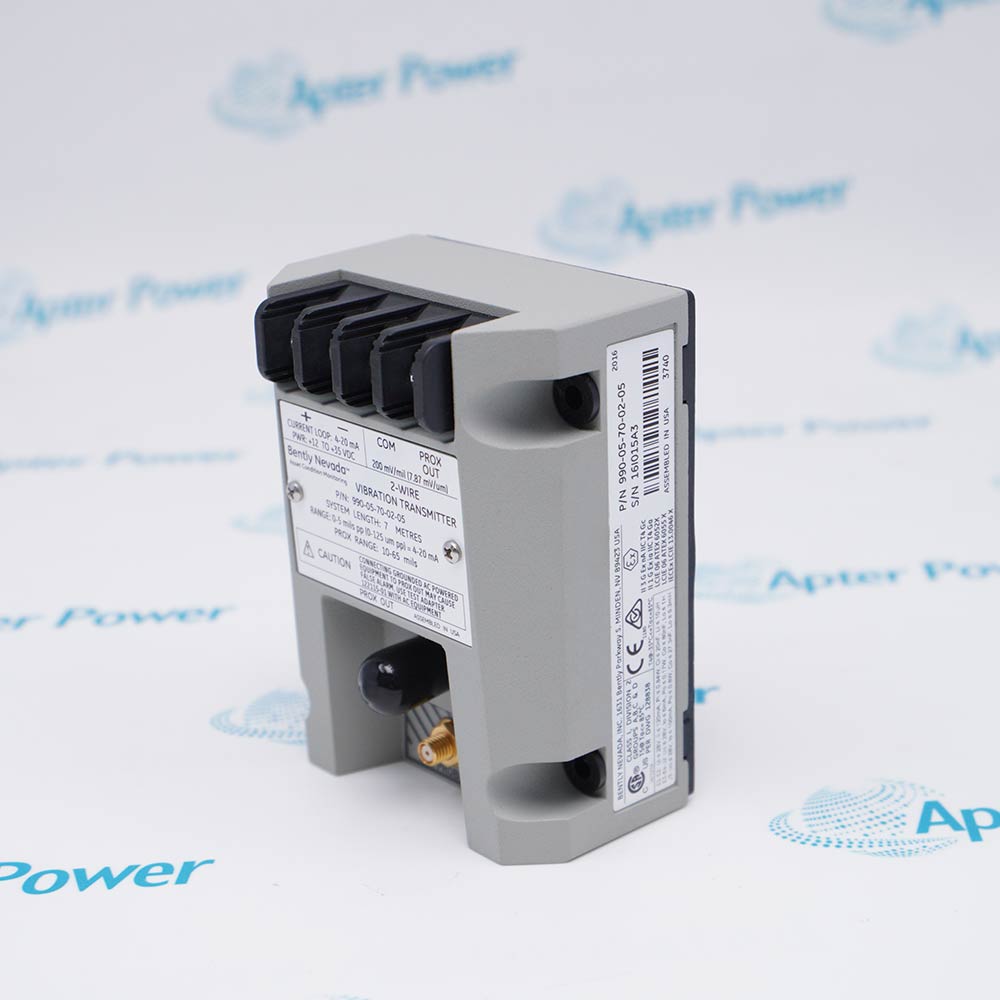

Bently Nevada 990-05-70-03-00 vibration transmitter, terminal block and enclosure

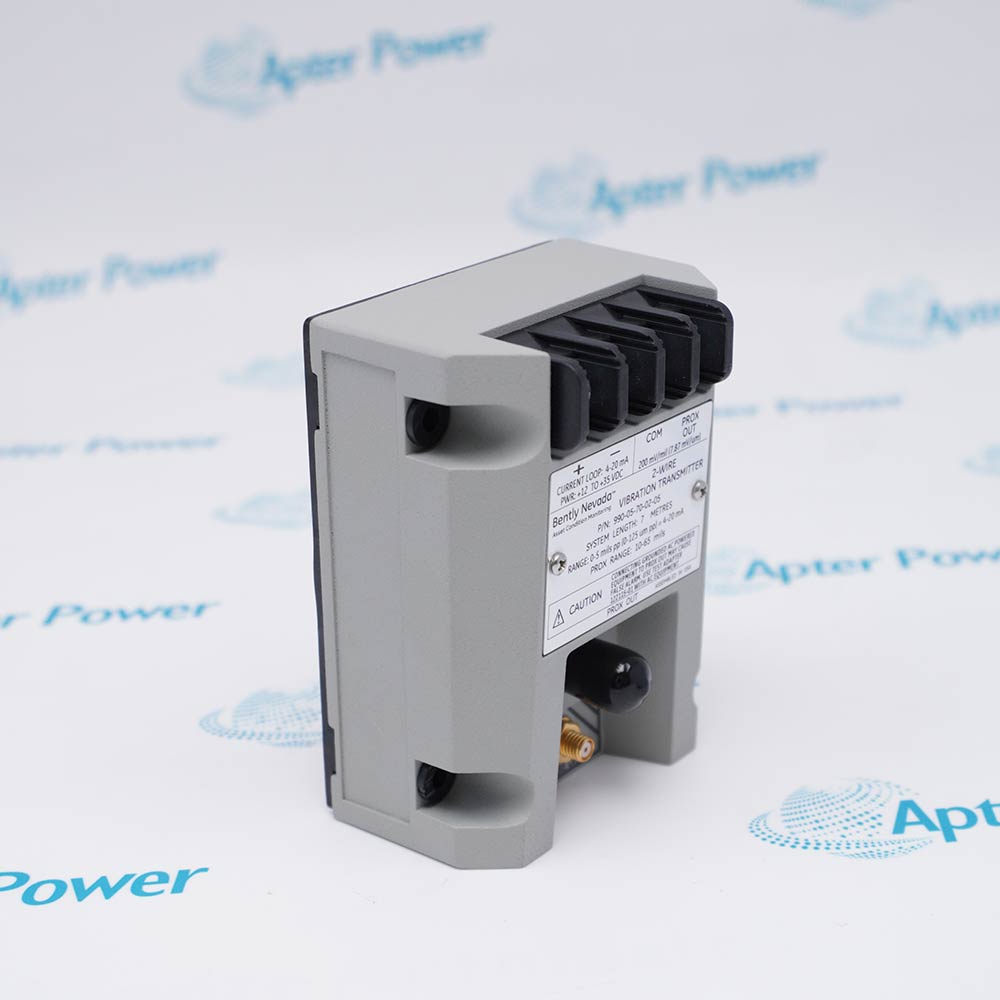

Bently Nevada 990-05-70-03-00 vibration transmitter, product label and connectors
Bently Nevada 990-05-70-03-00 vibration transmitter, overall view
Bently Nevada 990-05-70-03-00 vibration transmitter, terminal block and enclosure
Bently Nevada 990-05-70-03-00 vibration transmitter, product label and connectors
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

990-05-70-03-00

/ 4.9
1001 reviews | Need a Specific Revision?
The 990-05-70-03-00 is a 990 Vibration Transmitter featuring a 0-5 mils pp (0-125 μm pp) full-scale range with a 7.0 meter (23.0 feet) system length.
Get a quick price for 990-05-70-03-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 990-05-70-03-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    990-05-70-03-00
  • Product Family:
    990 Vibration Transmitter
  • Product Type:
    990 Vibration Transmitter
  • Full-Scale Range:
    0-5 mils pp (0-125 μm pp)
  • System Length:
    7.0 meters (23.0 feet)
  • Mounting:
    DIN clips and screws
  • Agency Approval:
    Not required
  • Power Supply:
    Two-wire, loop-powered
  • Output Signal:
    Proportional 4-20 mA
  • Key Benefit:
    Model 990-05-70-03-00 provides a 7.0 meter system length, eliminating the need for separate extension cables.
  • Weight:
    0.5 kg
  • Estimated shipping dimensions:
    9.8x7.3x5.8cm
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Communication and Connectivity Safety

Features:

  • The 990-05-70-03-00 features a two-wire, loop-powered design for simple integration into OEM control systems.
  • This model includes a 0-5 mils pp (0-125 μm pp) full-scale range with a 7.0 meter system length.
  • The 990-05-70-03-00 mounts securely using DIN clips and screws for reliable installation in control panels.
The 990-05-70-03-00 provides essential vibration monitoring functions common to the 990 series, and is a practical solution for measuring general vibration levels and providing overall trending data. It features a 0-5 mils pp (0-125 μm pp) full-scale range with a 7.0 meter (23.0 feet) system length, eliminating the need for separate extension cables in many installations. The 990-05-70-03-00 mounts using DIN clips and screws, ensuring secure installation in control panels without requiring specialized tools.

For applications requiring simplified system architecture, the 990-05-70-03-00 delivers reliable peak-to-peak trending data while maintaining compatibility with 3300 NSv proximity probes. However, this transmitter has limitations compared to continuous monitoring systems. The 4-20 mA signal from the 990-05-70-03-00 cannot determine vibration phase, and advanced functions such as gap alarms, phase alarms, Danger Bypass, and Trip Multiply are not supported.

The 990-05-70-03-00 solves the pain point of integrating vibration monitoring into OEM control systems with a simple, proportional 4-20 mA output. While PLCs attached to this transmitter can only provide peak-to-peak trending data and are not suitable for plant-wide diagnostic systems like System 1 or Rule Paks, the 990-05-70-03-00 provides a cost-effective solution for centrifugal air compressors, pumps, motors, and fans where basic trending is sufficient without full diagnostic capability.

The 990-05-70-03-00 Bently Nevada 990 Vibration Transmitter may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 990-05-70-03-00 990 Vibration Transmitter Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 990-05-70-03-00 990 Vibration Transmitter Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 990-05-70-03-00
  • Condition New Original ready stock
  • Product Family 990-08-70-03-00,990-10-70-03-00,990-05-50-03-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • OEM Mechanical Integration: Widely used by manufacturers of centrifugal air compressors, small cooling tower fans, motors, and industrial pumps.
  • Confined Space Monitoring: Ideal for installation in extremely confined spaces within bearing housings where conventional probes cannot access, thanks to the 3300 NSv (Narrow Side View) probe.
  • Non-Critical Asset Protection: Suitable for auxiliary equipment in factories where the expensive 3500 monitoring unit is not required, but continuous monitoring of vibration trends is still necessary.
  • 4-20 mA Current Circuit: This is a two-wire device that receives power and transmits proportional vibration signals through the same pair of wires, directly connecting to an analog input card of a PLC (Programmable Logic Controller) or DCS (Distributed Control System).
  • Dynamic Signal Output (Prox Out): The transmitter panel provides a non-isolated dynamic signal connector (typically BNC or terminal). Technicians can obtain the raw vibration waveform and gap voltage at this contact for fault diagnosis and spectrum analysis.
  • Power Requirements: Accepts a wide voltage input range of +12 to +35 Vdc.
  • Signal Shielding Protection (Not OK Circuit): Features self-diagnostic capabilities. When a probe is damaged or the cable is disconnected, the output current drops to < 3.6 mA. The control system can identify this state as a "sensor failure" rather than "high vibration," thus preventing false trips.
  • Environmental Compliance: Internal circuitry is fully potted, compliant with IEC 68-2-3 humidity and heat testing, and possesses excellent resistance to chemical corrosion and high humidity.
  • Electromagnetic Compatibility (EMC): Designed to comply with European CE standards, it has strong immunity to radio frequency interference (RFI), ensuring signal stability even in environments with strong electromagnetic interference.
Description
The 990-05-70-03-00 operates as a two-wire, loop-powered vibration transmitter designed for OEM applications such as centrifugal air compressors, pumps, motors, and fans. It continuously accepts input from 3300 NSv proximity probes and matching extension cables, conditioning the signal into appropriate peak-to-peak vibration amplitude engineering units.

The 990-05-70-03-00 features a 0-5 mils pp (0-125 μm pp) full-scale range with a 7.0 meter (23.0 feet) system length, eliminating the need for separate extension cables in many installations. It mounts on DIN clips and screws for secure installation in control panels.

The 990-05-70-03-00 provides essential vibration monitoring functions for OEM equipment manufacturers who prefer a simple 4-20 mA proportional signal. This transmitter is a practical solution for measuring general vibration levels and providing overall trending data.

The 990-05-70-03-00 solves the pain point of integrating vibration monitoring into OEM control systems with a simple, proportional 4-20 mA output. While the 4-20 mA signal cannot determine vibration phase or support advanced functions like gap alarms or Trip Multiply.
Alternative Names
990-08-70-03-00 990-10-70-03-00 990-05-70-01-00 990-05-70-02-00
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What types of OEM equipment are best suited for the 990-05-70-03-00?
Centrifugal air compressors, pumps, motors, and fans benefit from this transmitter when OEMs require simple 4-20 mA vibration signals for control system integration.
What is the system length of the 990-05-70-03-00?
The 990-05-70-03-00 features a 7.0 meter (23.0 feet) system length, eliminating the need for separate extension cables in many installations.
What are the limitations of using the 990-05-70-03-00 compared to a full monitoring system?
The 4-20 mA signal cannot determine vibration phase, and advanced functions like gap alarms, phase alarms, Danger Bypass, and Trip Multiply are not supported.
What probes are compatible with the 990-05-70-03-00?
The transmitter accepts input from 3300 NSv proximity probes with matching extension cables available in 5 m and 7 m system length options.
