Bently-Nevada 330880-28-15-106-00-02
Bently-Nevada 330880-28-15-106-00-02
Bently-Nevada 330880-28-15-106-00-02
Bently-Nevada 330880-28-15-106-00-02
Bently-Nevada 330880-28-15-106-00-02
Bently-Nevada 330880-28-15-106-00-02
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Quotation, official-document access, sourcing support and installation-configuration guidance for 330880-28-15-106-00-02 are available from Apter Power. Stock and lead time are subject to confirmation.

330880-28-15-106-00-02

/ 4.9
1001 reviews | Need a Specific Revision?

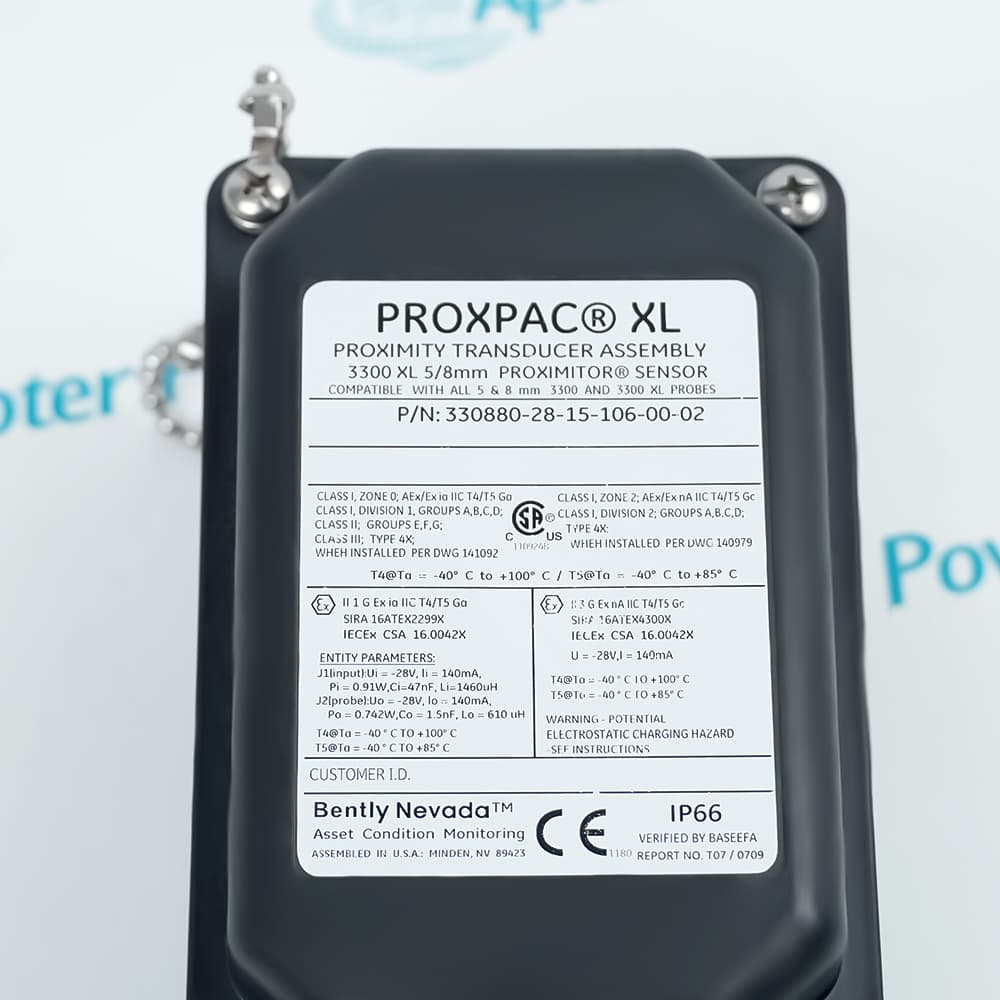

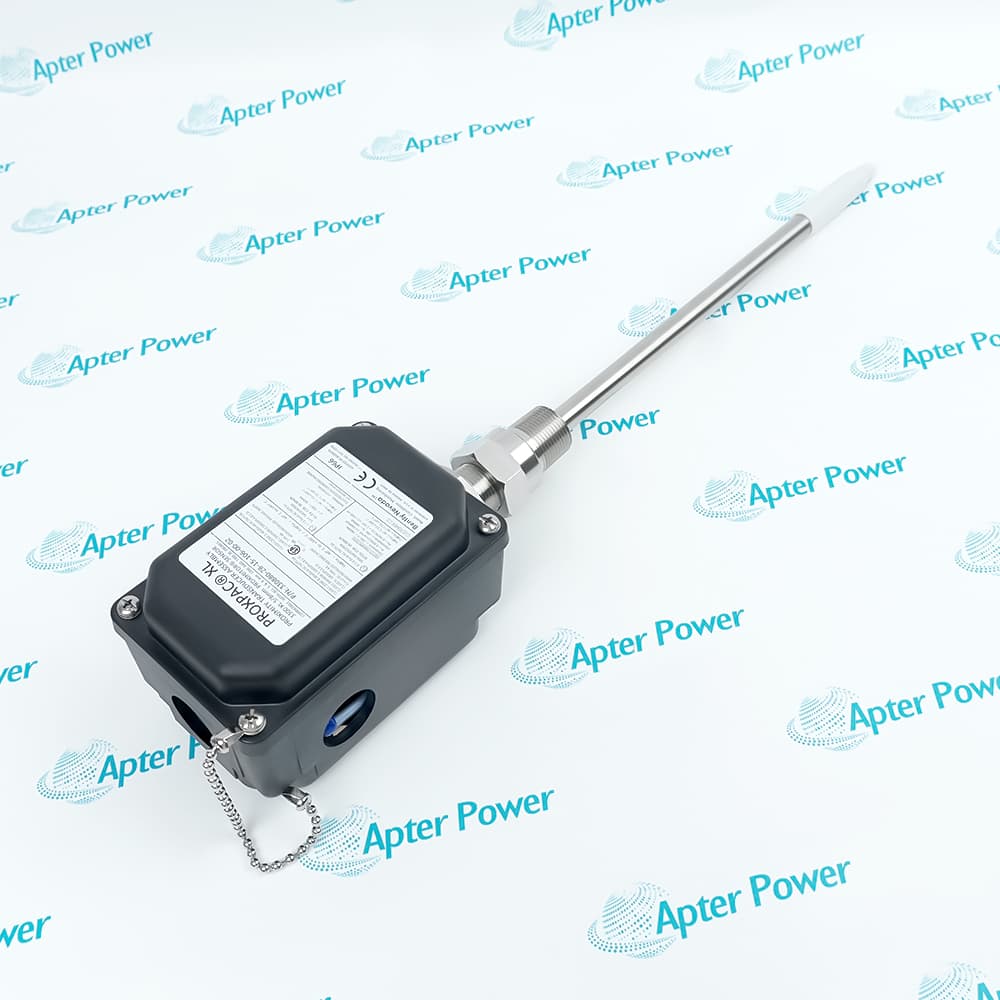

The Bently Nevada 330880-28-15-106-00-02 is a PROXPAC XL proximity transducer assembly with an approved 8 mm probe, 1.5-inch standoff, 10.6-inch penetration and 3/4-14 NPT mounting thread.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330880-28-15-106-00-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330880-28-15-106-00-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330880-28-15-106-00-02
  • Product Family:
    PROXPAC XL Proximity Transducer Assembly
  • Product Type:
    PROXPAC XL Proximity Transducer Assembly
  • Stock:
    1
  • Probe Option:
    28 - 3300 XL 8 mm probe with Multiple Approvals
  • Standoff Adapter:
    1.5 in (38 mm)
  • Probe Penetration:
    10.6 in
  • Fittings Option:
    00 - Two plugs and two washers; no fittings
  • Mounting Thread:
    3/4-14 NPT
  • Probe Cable:
    1.0 m, 75-ohm FEP-insulated triaxial cable
  • Housing Protection:
    IP66; Type 4X
  • Typical Weight:
    1.44 kg with 0.3 m (12 in) sleeve
  • Weight:
    1.44 kg
  • Estimated shipping dimensions:
    36.5 x 9.0 x 9.3 cm
  • Tariff Code:
    90318090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Order Configuration Protection Installation

Features:

  • Integrated PROXPAC XL probe, extension cable and Proximitor Sensor assembly
  • 1.5-inch standoff with 10.6-inch probe penetration
  • IP66 and Type 4X glass- and conductive-fiber-reinforced PPS housing
The Bently Nevada 330880-28-15-106-00-02 is a configured PROXPAC XL proximity transducer assembly. Option 28 selects a 3300 XL 8 mm probe with Multiple Approvals. Option 15 selects a 1.5-inch standoff adapter. Option 106 specifies 10.6 inches of probe penetration.

The 330880-28-15-106-00-02 uses option 00 for two plugs and two washers without fittings. Option 02 specifies a 3/4-14 NPT mounting thread. The 8 mm probe has a 1.0 m 75-ohm FEP-insulated triaxial cable. A miniature coaxial ClickLoc connector joins the probe cable inside the assembly.

The 330880-28-15-106-00-02 places the Proximitor Sensor and cable connections in a glass- and conductive-fiber-reinforced polyphenylene sulfide (PPS) housing. The housing is rated IP66 and Type 4X. The probe operating range is -52 to +177 degrees C, while the housing and Proximitor Sensor range is -52 to +100 degrees C. Verify penetration, target clearance and mounting-thread compatibility before installation.

Bently Nevada 330880-28-15-106-00-02 PROXPAC XL Proximity Transducer Assembly is covered by the current official PROXPAC XL datasheet. Apter Power supports quotation, official-document access and installation-configuration checks; availability is confirmed at inquiry.
Bently Nevada 330880-28-15-106-00-02 PROXPAC XL Proximity Transducer Assembly Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330880-28-15-106-00-02 PROXPAC XL Proximity Transducer Assembly Specs

General

  • Manufacturer Bently Nevada
  • Model 330880-28-15-106-00-02
  • Condition New Original ready stock
  • Product Family PROXPAC XL Proximity Transducer Assembly
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Order Configuration:

  • 28 - 3300 XL 8 mm probe with Multiple Approvals
  • 15 - 1.5 in (38 mm) standoff adapter
  • 106 - 10.6 in probe penetration
  • 00 - Two plugs and two washers; no fittings
  • 02 - 3/4-14 NPT mounting thread

Protection:

  • IP66 ingress protection
  • Type 4X housing rating
  • Glass- and conductive-fiber-reinforced PPS enclosure

Installation:

  • Confirm 3/4-14 NPT mounting compatibility
  • Verify the 10.6-inch penetration against the machine geometry
  • Set probe gap and target conditions with the official manual
Description
The 330880-28-15-106-00-02 is a Bently Nevada PROXPAC XL proximity transducer assembly. Order option 28 selects a 3300 XL 8 mm probe with multiple approvals, option 15 adds a 1.5-inch standoff adapter and option 106 specifies 10.6 inches of probe penetration. Option 00 supplies two plugs and two washers without fittings, while option 02 specifies a 3/4-14 NPT mounting thread.

The 330880-28-15-106-00-02 integrates the probe, extension cable and Proximitor Sensor inside a glass- and conductive-fiber-reinforced polyphenylene sulfide (PPS) housing for external machinery mounting. The PPS housing contains glass and conductive fibers for strength and electrostatic-charge dissipation, and it is rated IP66 and Type 4X. The probe uses a 1.0 m, 75-ohm FEP-insulated triaxial cable with a miniature coaxial ClickLoc connector.

The 330880-28-15-106-00-02 supports non-contact vibration and position measurement on rotating machinery where external access to the transducer assembly is required. The probe temperature range is -52 to +177 degrees C, while the housing and Proximitor Sensor range is -52 to +100 degrees C. Installation must follow the official mounting, target and clearance instructions for this exact order configuration.
Alternative Names
330880 28 15 106 00 02 33088028151060002 Bently Nevada 330880-28-15-106-00-02 Bently-Nevada 330880-28-15-106-00-02 BN 330880-28-15-106-00-02 PROXPAC XL 330880-28-15-106-00-02 Proximity Assembly 330880-28-15-106-00-02 3/4-14 NPT PROXPAC 330880-28-15-106-00-02
Technical notes
Bently Nevada 330880-28-15-106-00-02 combines an approved 3300 XL 8 mm probe, 1.5-inch standoff, 10.6-inch penetration and 3/4-14 NPT mount in an IP66/Type 4X PROXPAC XL assembly. Verify insertion depth and target clearance before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the exact configuration of 330880-28-15-106-00-02?
Bently Nevada 330880-28-15-106-00-02 includes an approved 8 mm probe, 1.5-inch standoff, 10.6-inch penetration, no fittings and a 3/4-14 NPT mounting thread.
What product type is 330880-28-15-106-00-02?
Bently Nevada 330880-28-15-106-00-02 is a PROXPAC XL Proximity Transducer Assembly.
What enclosure rating applies to 330880-28-15-106-00-02?
Bently Nevada 330880-28-15-106-00-02 uses an IP66 and Type 4X rated housing.
What probe is included in 330880-28-15-106-00-02?
Bently Nevada 330880-28-15-106-00-02 uses order option 28 for a 3300 XL 8 mm probe with Multiple Approvals.
Where is 330880-28-15-106-00-02 used?
Bently Nevada 330880-28-15-106-00-02 supports external non-contact vibration and position measurement on compatible rotating machinery installations.
Where is the official document for 330880-28-15-106-00-02?
The Manuals tab for Bently Nevada 330880-28-15-106-00-02 links to the locally hosted official PROXPAC XL datasheet.
How can I request a quote for 330880-28-15-106-00-02?
Send the complete Bently Nevada 330880-28-15-106-00-02 model and quantity to Apter Power for stock, lead-time and installation-configuration confirmation.
