300-4969

/ 4.9
1001 reviews | Need a Specific Revision?
The Cummins 300-4969 is identified in the DQKB/DQKC parts manual as a generator-control base printed circuit board supplied with a fuse.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 300-4969
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 300-4969

  • Manufacturer:
    Cummins
  • Part Number:
    300-4969
  • Product Family:
    Cummins
  • Product Type:
    Genset Base Printed Circuit Board
  • Stock:
    1
  • Documented Generator Families:
    DQKB and DQKC
  • Assembly Context:
    Generator-set control cage
  • Controller platform:
    PowerCommand 3200
  • Applicable generator sets:
    DQKB and DQKC
  • Applicable specifications:
    Spec A–F
  • Official part description:
    Board, Printed Circuit – Base
  • Installation location:
    Genset card cage
  • Quantity per card cage:
    1
  • Fuse arrangement:
    Includes two 5 A fuses
  • Dimensions:
    3.6 × 18.8 × 22.5 cm
  • Weight:
    0.5 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Parts Identity Compatibility Review Service Controls Application
  • Cummins part 300-4969 is documented as a base printed circuit board
  • The documented assembly includes the associated fuse
  • Official parts-manual coverage applies to DQKB and DQKC generator sets

300-4969 is a Cummins generator-control printed circuit assembly confirmed for DQKB and DQKC control-cage service.

The base board provides the documented electrical interconnection platform for the compatible control assembly and is listed by Cummins as including a fuse.

Before installation, verify the generator model and specification, board markings, connector and harness arrangement, mounting points, fuse rating and revision evidence.

Availability, condition, price, and shipping time for 300-4969 are confirmed during quotation.

Cummins 300-4969 Genset Base Printed Circuit Board Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Cummins part 300-4969 is the manufacturer-confirmed identifier
  • The official description identifies a base printed circuit board
  • The listed assembly includes the associated fuse
  • Confirm the DQKB or DQKC generator model and specification
  • Compare control-cage connectors, harness labels and board markings
  • Verify the Cummins part marking and board revision before substitution
  • Use electrostatic-discharge protection during board handling
  • Isolate generator power and starting circuits before service
  • Complete authorized functional and alarm tests after replacement
  • Base printed circuit board service in Cummins DQKB generator-set control cages
  • Base printed circuit board service in Cummins DQKC generator-set control cages
  • Fuse-equipped base-board use in Cummins generator-control assemblies specified for part 300-4969
Description
300-4969 is a Cummins generator-control printed circuit assembly confirmed in the DQKB and DQKC parts manual as the base board supplied with a fuse.

The board is installed within the compatible generator-set control assembly and provides the base electrical interconnection platform for the documented control-cage components.

Before replacement, verify the generator model and specification, control-cage arrangement, connector positions, harness labels, fuse rating, board revision markings and static-control precautions.
Alternative Names
300-4969 Cummins 300-4969 3004969 Cummins 3004969 300-4969 AX1005414 Cummins 300-4969 AX1005414
Technical notes
300-4969 replacement requires generator-specification verification, connector and harness matching, fuse confirmation, static-control handling, and authorized startup, alarm and load testing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should the 300-4969 and AX1005414 markings be interpreted when sourcing Cummins 300-4969?

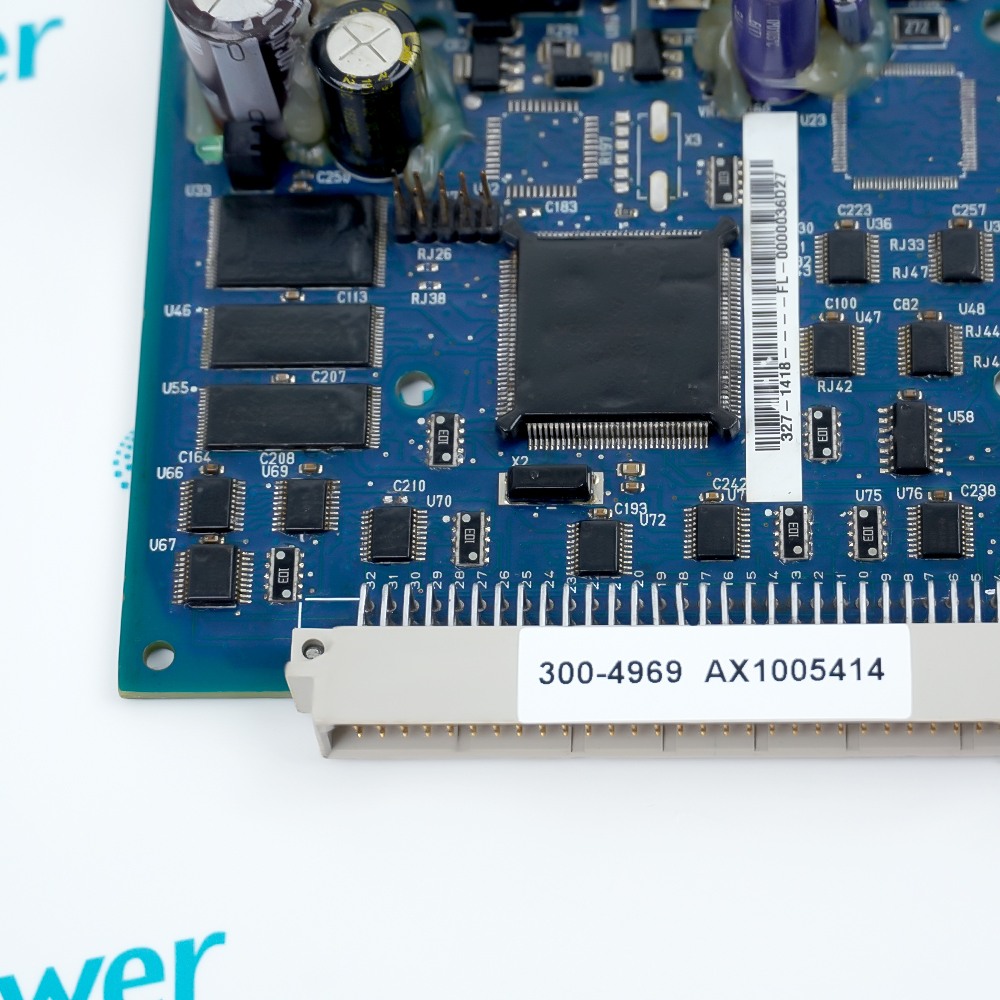

Use 300-4969 as the Cummins primary part number. The supplied product photos show AX1005414 beside 300-4969 as an additional board identifier, so the combined marking should be compared with the removed board without replacing the official main model.
Which physical interfaces should be compared before installing Cummins 300-4969?
Compare the control-cage position, connector locations and keying, harness labels, mounting points and visible terminal arrangement with the removed board before installation.
What should be included with Cummins 300-4969 when the parts-manual description says the board includes a fuse?
Confirm that the supplied assembly includes the specified fuse and verify its rating against the installed generator documentation rather than assuming any visually similar fuse is acceptable.
What service precautions matter when handling Cummins 300-4969?
Isolate generator power and starting circuits, follow electrostatic-discharge controls, retain the verified fuse arrangement and avoid disturbing keyed harness connections during board removal and installation.
Which documented generator families use Cummins 300-4969?
The accepted Cummins parts manual lists 300-4969 in the DQKB and DQKC generator-set control-cage context; the exact generator model and specification must still be matched before installation.
Can Cummins 300-4969 be selected only from a general board photograph?
No. Confirm the 300-4969 part marking, the visible 300-4969 AX1005414 label combination, generator specification, control-cage position, connectors, fuse arrangement and any revision marking.
What should be investigated if the generator control does not operate correctly after installing Cummins 300-4969?
Recheck the specified fuse, board seating, connector and harness engagement, terminal connections, power isolation restoration and Cummins-authorized alarm and startup checks before further troubleshooting.
