Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power supports 5X00481G04 quotations, documentation, sourcing and system matching.

5X00481G04

/ 4.9
1001 reviews | Need a Specific Revision?

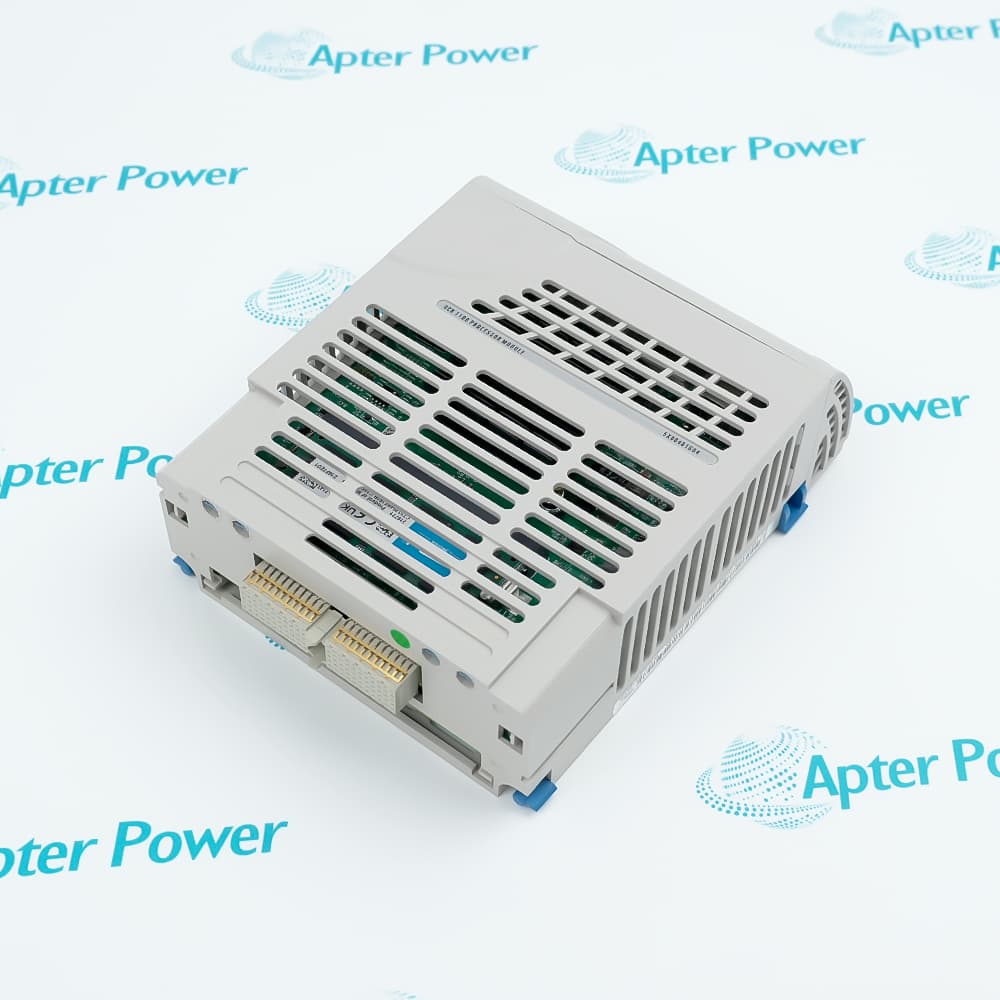

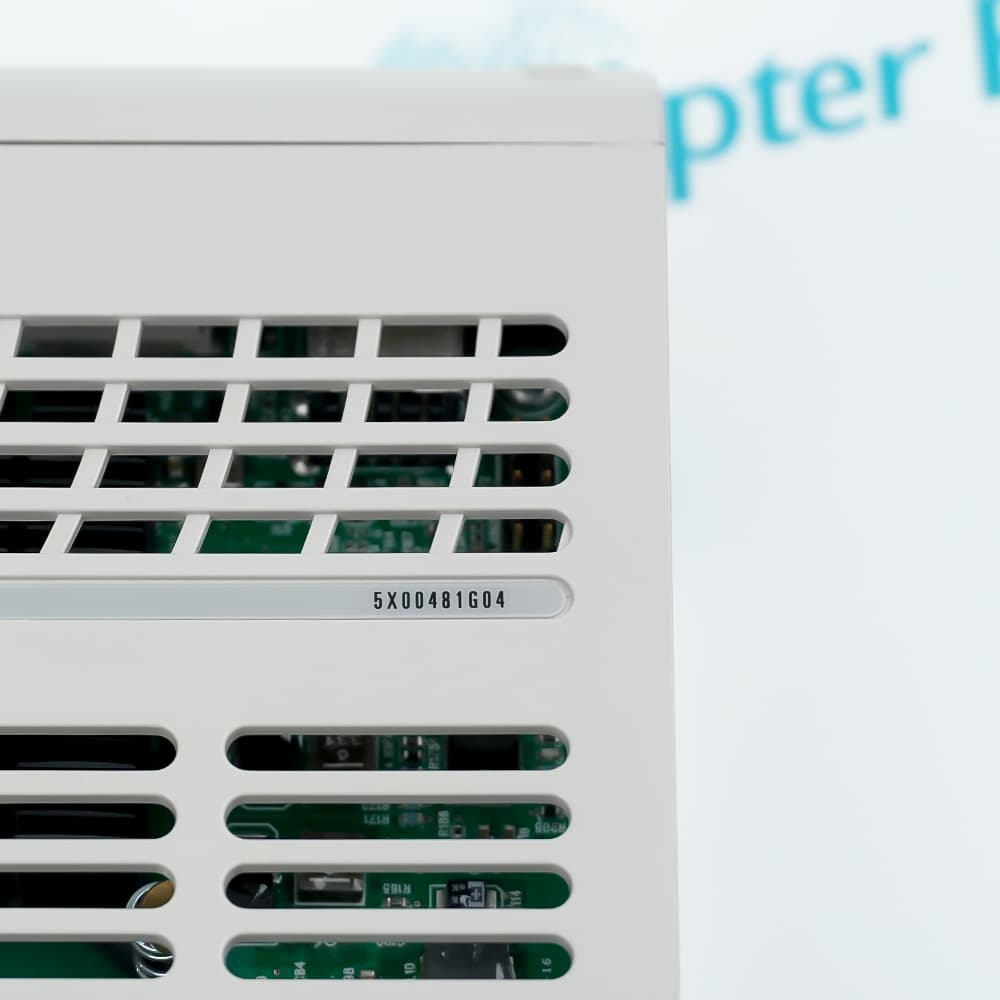

Emerson 5X00481G04 is the processor card used in an Ovation OCR1100 controller assembly. It supplies the computing, memory and network resources for real-time control and redundant controller operation.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 5X00481G04
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 5X00481G04

  • Manufacturer:
    Emerson
  • Part Number:
    5X00481G04
  • Product Family:
    Ovation
  • Product Type:
    controller processor card
  • Stock:
    1
  • Controller platform:
    Ovation OCR1100
  • Processor speed:
    1.1 GHz
  • Flash memory:
    1 GB
  • RAM:
    256 MB
  • Point capacity:
    Up to 32,000 originated points
  • Control tasks:
    Up to 5
  • Fastest configurable task:
    10 ms
  • Slowest configurable task:
    30 s
  • Task increment:
    10 ms
  • Ethernet ports:
    4
  • Ethernet speed:
    10/100 Mbps
  • Copper network option:
    Four RJ45 ports
  • Fiber network option:
    One RJ45 and three SFP ports
  • DC supply:
    24 VDC
  • Power consumption:
    40 W
  • Relative humidity:
    0-95%
  • Copper option temperature:
    0-60 °C
  • Fiber option temperature:
    0-50 °C
  • Cabinet envelope:
    20 in W x 8 in H x 7 in D
  • Redundancy mode:
    Synchronized primary and backup processors
  • Cybersecurity certification:
    Achilles Level 1 embedded device
  • Weight:
    0.88 lbs (0.4 kg)
  • Estimated shipping dimensions:
    12.8x5.4x16.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Control Communication Protection

Features:

  • Provides the OCR1100 processor and memory resources.
  • Supports Ovation controller networking.
  • Pairs with the documented OCR1100 I/O interface card.
The current ordering configuration is 5X00481G04, which is the Emerson Ovation OCR1100 processor card that supplies the CPU, memory and network resources used by the documented controller assembly.

Within the installed Ovation OCR1100 Controller architecture, this configuration provides processor, memory and network resources for control execution and works with the documented I/O interface card and controller base.

Confirm the processor revision, I/O interface, controller base, network option and Ovation software before replacement.
Availability is subject to Apter Power inventory and sourcing confirmation.

Verified resources for Emerson 5X00481G04:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerEmerson
  • Model5X00481G04
  • ConditionNew / Surplus / Refurbished
  • Product FamilyOvation OCR1100 Controller
  • The processor card executes the OCR1100 control application and manages the active controller database.
  • Onboard working and nonvolatile resources support software, configuration and runtime control state.
  • Processing load is evaluated from the complete point, strategy and communication design of the controller.
  • Controller assembly options provide the copper or fiber Ethernet media required by the plant network design.
  • Network interfaces carry the documented Ovation control and supervisory communications.
  • Port assignment, addressing and topology must remain consistent with the engineered controller installation.
  • Primary and backup processors execute the same validated application in a redundant arrangement.
  • Only the active partner performs direct I/O access while the standby remains synchronized.
  • Processor revision, control memory and network configuration must align for dependable automatic failover.
Description
5X00481G04 is the Emerson Ovation OCR1100 processor card that provides the computing, memory and network resources for the documented controller assembly.

It executes real-time control, manages the configured point database and participates in synchronized primary-backup operation while coordinating with plant I/O.

Ordering and replacement require the G04 revision, controller base, Ethernet media option, I/O interface, redundancy design and Ovation software to remain aligned.
Alternative Names
5X00481G04 Emerson 5X00481G04 5X00481G04 controller processor card Ovation OCR1100 Controller 5X00481G04 Emerson Ovation OCR1100 Controller 5X00481G04 Emerson Ovation OCR1100 Controller controller processor card
Technical notes
Before energizing 5X00481G04, verify field wiring, power isolation and the validated Ovation OCR1100 Controller configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which assembly records should be matched before installing 5X00481G04?
Match the G04 processor revision, OCR1100 base, I/O interface, Ethernet media option, redundancy role and supported Ovation software.
Which controller hardware must be matched with 5X00481G04?
Match the documented I/O interface card, OCR1100 base, Ethernet media option and supported Ovation software release.
How is 5X00481G04 used in an OCR1100 controller?
It supplies the processor, memory and network resources used for real-time control execution and coordination with the controller I/O interface.
How should redundancy requirements be stated when checking 5X00481G04 supply?
Tell Apter Power whether the order is simplex or for a redundant pair, together with network option, quantity and required date.
What must be synchronized before a replacement 5X00481G04 becomes a valid backup?
The application, control memory, processor revision, network configuration and Ovation software must align before relying on automatic failover.
Which details should accompany a 5X00481G04 Datasheet and price request?
Use the Manuals PDF and provide the exact G04 revision, base, I/O interface, Ethernet option, software version, quantity and destination.
