DS200DTBCG1AAA

/ 4.9
1001 reviews | Need a Specific Revision?
General Electric DS200DTBCG1AAA is a control output termination module designed with two fully independent isolated channels for stable signal handling. It provides high-precision electrical isolation and signal processing within GE industrial control systems.
Get a quick price for DS200DTBCG1AAA
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DS200DTBCG1AAA

  • Manufacturer:
    General Electric
  • Part Number:
    DS200DTBCG1AAA
  • Product Family:
    GE Mark V/VI Driver Board
  • Product Type:
    Control Output Termination Module
  • Number of Channels:
    2 fully independent, isolated channels
  • Isolation:
    1500 V RMS
  • Input Impedance:
    >1 MΩ for voltage inputs
  • Common Mode Rejection (CMR):
    >120 dB @ 50/60 Hz
  • A/D Resolution:
    16-bit sigma-delta
  • Power Supply:
    +5 VDC and ±15 VDC
  • Power Consumption:
    4 W typical
  • Operating Temperature:
    –20 °C to +70 °C
  • Storage Temperature:
    –40 °C to +85 °C
  • Relative Humidity:
    5% to 95% non-condensing
  • Estimated shipping dimensions:
    28.6x7x3.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Configuration Compatibility Application Scenarios

Features:

  • Dual-channel architecture with full electrical isolation for stable signal separation
  • High-precision signal conversion supported by 16-bit sigma-delta A/D resolution
  • Strong noise immunity achieved through high common mode rejection performance
General Electric DS200DTBCG1AAA is designed as a control output termination module used in industrial control systems requiring precise signal handling. It provides two independent channels that operate with electrical isolation, ensuring stable signal separation. The structure supports consistent performance in complex control signal environments.

In terms of electrical characteristics, General Electric DS200DTBCG1AAA integrates high isolation of 1500 V RMS and strong input impedance exceeding 1 MΩ for voltage signals. Its 16-bit sigma-delta A/D conversion ensures detailed signal resolution, while a high common mode rejection ratio improves noise resistance. These characteristics support stable signal processing under electrical interference conditions.

General Electric DS200DTBCG1AAA also operates under defined power and environmental limits, using +5 VDC and ±15 VDC supplies with low power consumption. It maintains performance across wide temperature and humidity ranges, making it suitable for industrial environments with varying conditions. The combination of precision, isolation, and environmental tolerance supports reliable long-term operation.

The DS200DTBCG1AAA General Electric Control Output Termination Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric DS200DTBCG1AAA Control Output Termination Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric DS200DTBCG1AAA Control Output Termination Module Specs

General

  • Manufacturer GE / Bently Nevada
  • Model DS200DTBCG1AAA
  • Condition New Original ready stock
  • Product Family DS200DTBCG1A,DS200TBCAG1AAB,DS200TBQCG1ABB
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Jumper Setting: Onboard 10 hardware jumpers allow users to configure output loops as "dry contacts" or "125 VDC active outputs" as needed.
  • Output Assignment: Through hardware configuration, 18 of the 30 relay outputs can be set as dedicated wetted loops to drive solenoids.
  • Loop Commissioning: Designed with easily accessible test points, loop diagnostics can be performed by adjusting jumper positions without disassembling complex terminal wiring.
  • Logic Preset: Relays 19-30 on the board are typically preset to fixed dry contact mode, providing no-potential status feedback to external DCS systems.
  • Core Matching: Perfectly supports multiple control cores such as Mark V Speedtronic systems, offering extremely high system versatility.

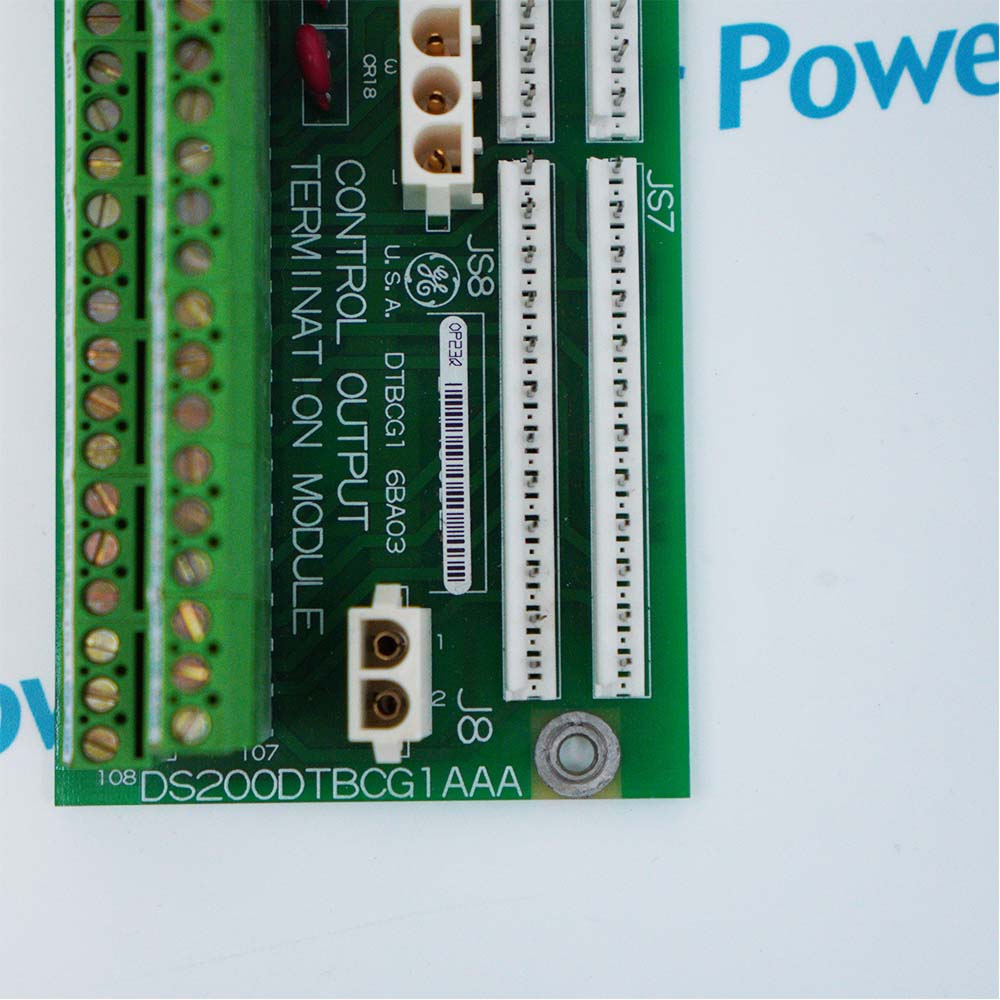

  • Board Collaboration: Direct communication with the TCRA relay board via JS1-JS8 connectors ensures control commands are routed to the output terminals without delay.
  • Power Supply Interaction: A dedicated J8 interface allows for the introduction of 125VDC high-voltage power from the TCPD power board, ensuring stable startup for high-power inductive loads.
  • System Consistency: As a standard model in the DTBC series, this board maintains complete physical and electrical consistency when replacing older versions (such as non-AAA suffix models).
  • Solenoid Valve Actuation: In gas turbine control systems, responsible for directly driving the solenoid valve loads of fuel, gas lines, and cooling systems.
  • Logic Signal Relay: Converts electronic control commands within Mark V into high-current or high-voltage contact outputs to drive field actuators.
  • Safety Relief Control: Dedicated to the core, used to manage critical safety loops such as gas manifold relief valves.
  • Distributed System Termination: In large-scale industrial automation architectures, serves as a physical aggregation point for output signals, enabling neat and reliable field cable connections.
Description
General Electric DS200DTBCG1AAA is a control output termination module developed by General Electric to support structured signal termination and processing in industrial control environments. It is configured with two fully independent channels, each electrically isolated to ensure separation of signal paths. This architecture allows consistent signal integrity across multiple control lines.

The electrical design of General Electric DS200DTBCG1AAA includes 1500 V RMS isolation and an input impedance greater than 1 MΩ for voltage inputs. It also features a 16-bit sigma-delta A/D resolution combined with a common mode rejection ratio greater than 120 dB at 50/60 Hz. These parameters define its capability for precise signal conversion and noise resistance.

From a power and environmental standpoint, General Electric DS200DTBCG1AAA operates on +5 VDC and ±15 VDC power supplies with a typical power consumption of 4 W. It supports an operating temperature range from –20 °C to +70 °C and a storage range from –40 °C to +85 °C. Relative humidity tolerance is specified between 5% and 95% non-condensing, ensuring stable operation in industrial conditions.
Alternative Names
DS200DTBCG1A DS200TBCAG1AAB DS200TBQCG1ABB
Technical notes
General Electric DS200DTBCG1AAA control output termination module features 2 fully independent isolated channels, 1500 V RMS isolation, >1 MΩ input impedance for voltage inputs, >120 dB CMR at 50/60 Hz, 16-bit sigma-delta A/D resolution, +5 VDC and ±15 VDC power supply, 4 W typical power consumption, operating temperature –20 °C to +70 °C, storage temperature –40 °C to +85 °C, and 5% to 95% non-condensing relative humidity.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What temperature range supports DS200DTBCG1AAA operation?
DS200DTBCG1AAA operates from –20 °C to +70 °C and stores from –40 °C to +85 °C.
How does General Electric DS200DTBCG1AAA manage input signal conditions?
General Electric DS200DTBCG1AAA supports input impedance greater than 1 MΩ for voltage signals.
Why does DS200DTBCG1AAA include high common mode rejection?
DS200DTBCG1AAA provides >120 dB CMR at 50/60 Hz to reduce electrical noise interference.
