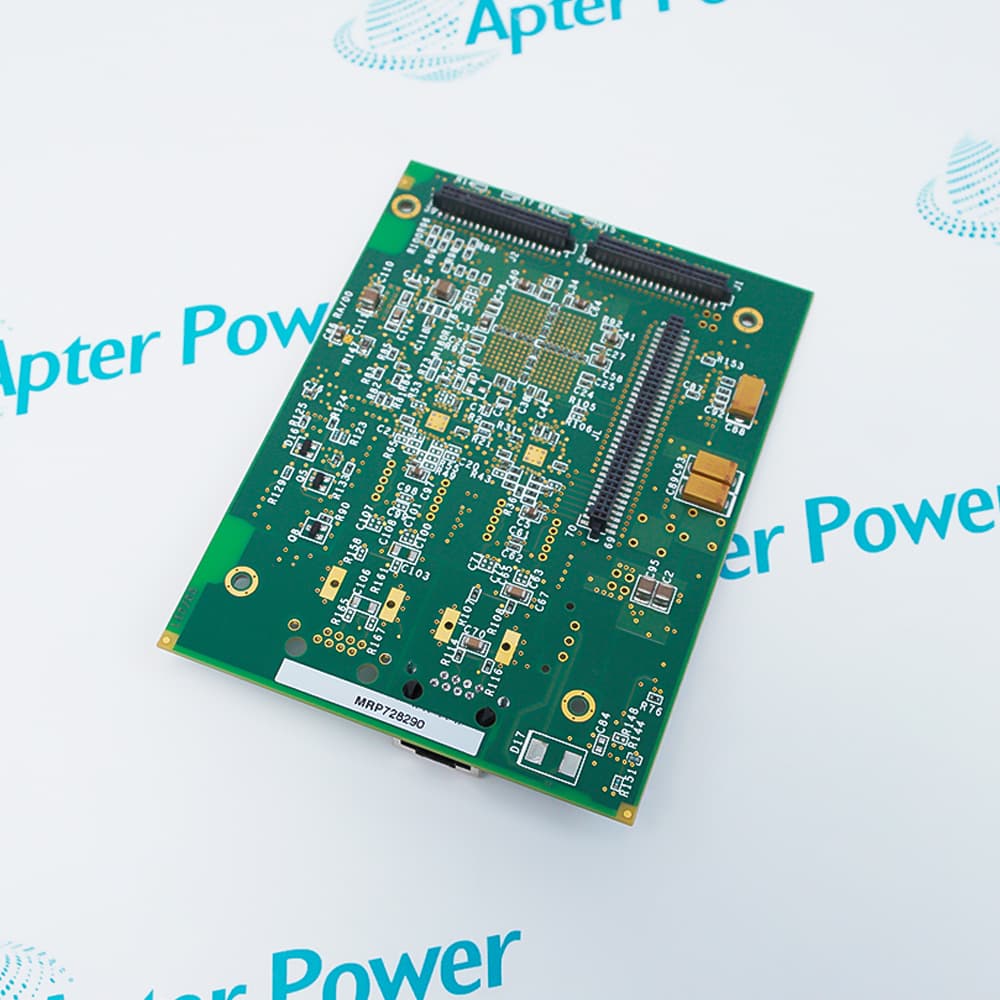

General Electric IS200HSLAH1ADE is an HS serial link interface board that supports HSSL communication for high-speed data transmission between control system components.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS200HSLAH1ADE
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200HSLAH1ADE

  • Manufacturer:
    General Electric
  • Part Number:
    IS200HSLAH1ADE
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    HS Serial Link Interface Board
  • Stock:
    1
  • Primary Function:
    High-speed serial communication interface between CPU/Expander and External I/O
  • Communication Protocol:
    High-Speed Serial Link (HSSL)
  • Interface Type:
    Serial link interface for host application boards (MVRA, MVRC, etc.)
  • Port Configuration:
    2 jack-style I/O ports (top edge); 2 female connectors (bottom edge)
  • Data Rate High-speed:
    serial data transmission
  • Link Integrity:
    LED indicators for TX/RX and link status
  • Operating Temperature:
    -30°C to +65°C
  • Storage Temperature:
    -40°C to +85°C
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    11x8.2x1.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Product Applications Configuration Diagnostics

Features:

  • High-Speed Signal Processing Enables Accurate Real-Time Control And Monitoring.
  • Robust Industrial-Grade Design Ensures Reliable Operation Under Harsh Conditions.
  • Modular Architecture Provides Flexible Integration And Simplified System Expansion.
The IS200HSLAH1ADE is specifically developed to manage complex industrial automation tasks with precision and efficiency. It excels at handling high-speed input and output signals, making it ideal for controlling critical processes and reducing response times in demanding industrial environments.

Designed for harsh operating conditions, the IS200HSLAH1ADE withstands temperature fluctuations, vibration, and electromagnetic interference. Its industrial-grade construction ensures consistent performance and durability, minimizing downtime and maintenance requirements.

Compared with similar modules, the IS200HSLAH1ADE stands out for its combination of high signal fidelity, safety features, and wide compatibility with various sensors and actuators. This makes it a reliable choice for industries such as power generation, manufacturing, chemical processing, and heavy machinery automation, supporting both new installations and system upgrades seamlessly.

The IS200HSLAH1ADE General Electric HS Serial Link Interface Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200HSLAH1ADE HS Serial Link Interface Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200HSLAH1ADE HS Serial Link Interface Board Specs

General

  • Manufacturer GE
  • Model IS200HSLAH1ADE
  • Condition New Original ready stock
  • Product Family IS200HSLAH2A,IS200HSLAH3A
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Mark VI Control System Communication Hub: This board, mounted in the VME rack, acts as a communication bridge between the control processor and the I/O network (such as UCRT or IONet). It handles large-scale, real-time data flow between the controller and distributed I/O terminal blocks.
  • Heavy-duty power equipment monitoring: Applied to the automation control of GE gas turbines (such as the 7F/9F series) and large steam turbines. Ensuring that critical sensor data (such as speed, pressure, and temperature) is transmitted to the processor with millisecond-level latency.
  • Multi-unit network (Control Network): Used to connect multiple Mark VI racks, enabling plant-wide distributed control system (DCS) integration. It supports high-speed data synchronization with the host computer HMI (Human-Machine Interface) to ensure that the data seen by the operator is consistent with the data on site.
  • IP Address and Subnet Mask: Configure its static IP address in the UCRT (Universal Control Remote Terminal) or IONet network.
  • Hardware Definition: In the Toolbox's Hardware Tree, the correct HSLA type and its revision must be selected. If the physical board is H1ADE, the version defined in the software must be compatible; otherwise, a "Configuration Mismatch" alarm will be triggered.
  • Slot Assignment: HSLAs are typically installed in specific communication slots within a VME rack. The correct rack number and slot number must be specified in the software.
  • RUN (Green): A solid light indicates the board power is normal and the processor is executing a program. If it is off, check the VME rack power supply or the board's fuse.
  • FAIL (Red): A solid light indicates the board's self-test failed or there is a hardware failure. If it flashes, it usually indicates a configuration loss or version mismatch.
  • Status (Yellow/Green): Reflects LAN communication activity. Frequent flashing indicates data exchange is in progress; if it is completely off, the network link is broken.
Description
General Electric IS200HSLAH1ADE serves as a high-speed communication interface board that utilizes the HSSL protocol to facilitate data exchange within industrial control systems. Designed to operate from a nominal +5.0 VDC power source, the board enables dependable serial communication while maintaining efficient energy usage. Its capability to support transmission rates of up to 5.0 Mbps makes it suitable for applications requiring rapid data transfer between interconnected devices.

The board combines communication performance with compact power requirements. With a maximum quiet operating current of 1.2 A and total board power consumption of approximately 6.0 W, IS200HSLAH1ADE provides a practical solution for systems where communication reliability and power efficiency are both important considerations. The HSSL communication architecture supports stable signal exchange, contributing to consistent system operation and coordination.

Environmental compatibility further enhances the suitability of General Electric IS200HSLAH1ADE for industrial installations. The board operates within temperatures ranging from 0°C to +55°C and can be stored in environments from -40°C to +85°C. Support for relative humidity levels between 5% and 95% RH, non-condensing, along with operation at altitudes up to 3000 meters, allows the module to perform across a broad range of industrial conditions.
Revisions

Revision Part #

Also known as

IS200HSLAH1ADD
IS200HSLAH1A-DD, Series DD, Rev DD
IS200HSLAH1ABB
IS200HSLAH1A-BB, Series BB, Rev BB
IS200HSLAH1ABA
IS200HSLAH1A-BA, Series BA, Rev BA
Alternative Names
IS2OOHSLAH1ADE IS200HSLAHIADE IS200HSLAH2A IS200HSLAH2ADE IS200HSLAH1ADD IS200HSLAH1ABB IS200HSLAH3A
Technical notes
Acting as a dedicated communication daughtercard, the GE IS200HSLAH1ADE bridges core host processors and distributed I/O via a high-speed 5.0 Mbps HSSL interface, featuring 500V RMS isolation to protect complex turbine networks from severe electrical noise.
