F6217

/ 4.9
1001 reviews | Need a Specific Revision?

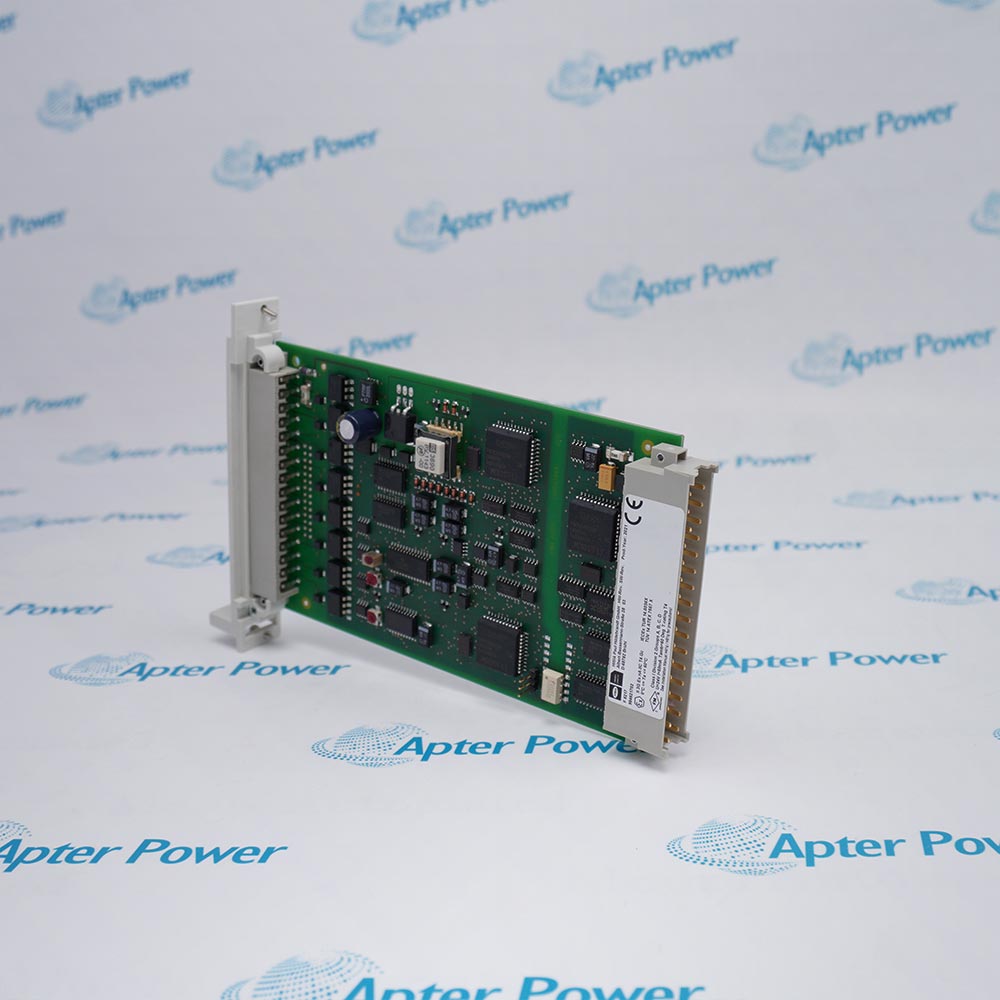

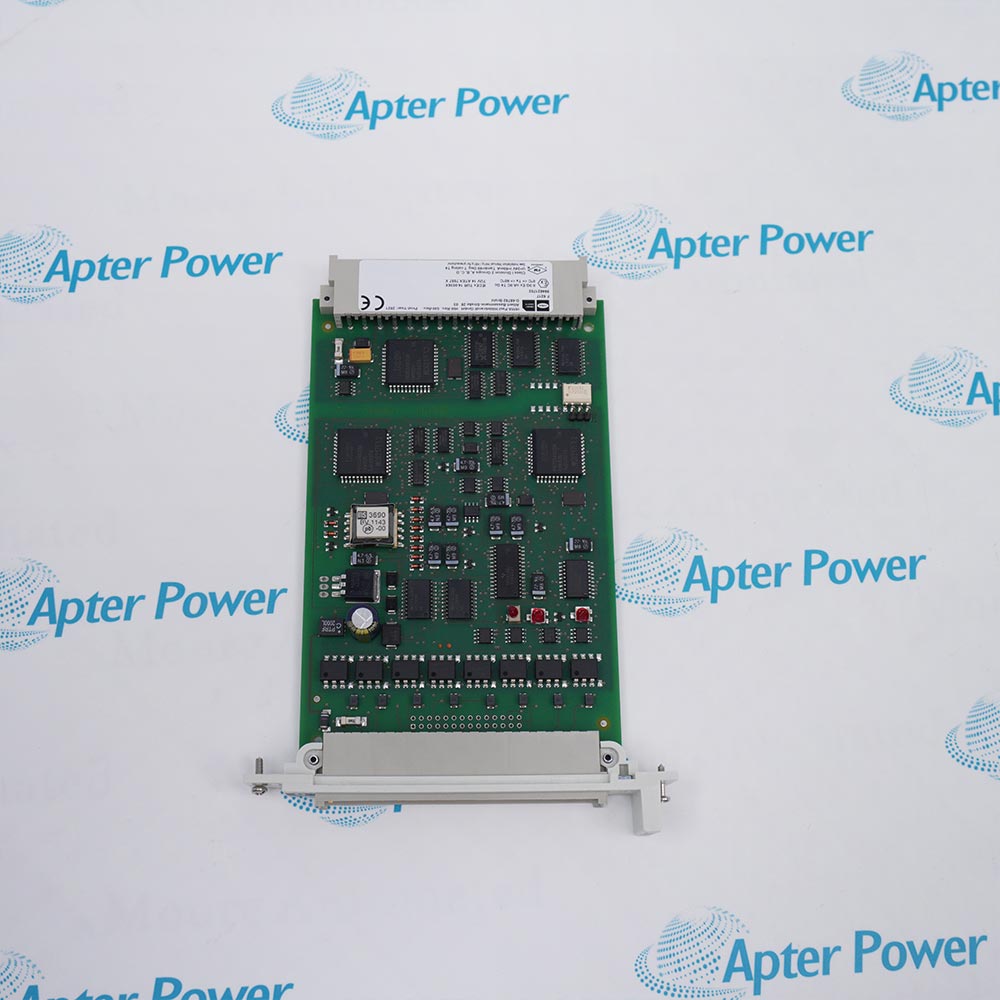

The F6217 is an 8-channel, safety-related analog input module designed for high-precision current (0/4-20 mA) and voltage (0-5/10 V) signal acquisition. It features safety isolation, 12-bit resolution.
Get a quick price for F6217
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for F6217

  • Manufacturer:
    HIMA
  • Part Number:
    F6217
  • Product Family:
    HIMA HIMatrix system
  • Safety Standard:
    Tested according to AK6 / SIL3
  • Input Types:
    Current: 0-20 mA, 4-20 mA; Voltage: 0-5 V, 0-10 V
  • Isolation:
    Safety Isolation
  • Resolution:
    12 bits
  • Voltage Input Range:
    0 ... 5.5 V
  • Max. Voltage Input:
    7.5 V
  • Current Input Range (via shunt):
    0 ... 22 mA
  • Max. Input Current:
    30 mA
  • Input Impedance (Voltage):
    100 kΩ
  • Input Filter Time Constant:
    ~10 ms
  • Weight:
    0.14 kg
  • Estimated shipping dimensions:
    2.1x19.1x12.9cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Gemany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
The F6217 is a high-performance, safety-certified analog input module, engineered to meet the stringent demands of safety instrumented systems up to AK6/SIL3. This 8-channel module, designated as F6217, is specifically designed to interface with a wide range of field instruments, supporting current inputs of 0-20 mA or 4-20 mA, and voltage inputs of 0-5 V or 0-10 V.

The electrical characteristics and measurement performance of the F6217 are defined to ensure safe and accurate operation under specified conditions. For voltage measurement, the F6217 accepts inputs from 0 to 5.5 V, with a maximum allowable voltage of 7.5 V, and provides an input resistance of 100 kOhm.

In terms of timing, accuracy, and safety performance, the F6217 excels with clearly defined parameters. The module updates measured values with a cycle time of 50 ms and guarantees a critical safety reaction time of less than 450 ms.

Constructed for integration into industrial control racks, the F6217 has a compact footprint, requiring only 4 TE (Terminal Element) of space. It operates from standard DC supplies, consuming 80 mA from a 5 V DC rail and 50 mA from a 24 V DC rail. The module provides electric strength of 200 V against ground (GND).
Alternative Names
F6214 F6215 F6216 F6218
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What safety certification does the F6217 analog input module hold, and what are its key accuracy specifications?
The F6217 is a safety-related module tested and certified according to AK6 / SIL3 standards. It delivers exceptional accuracy with a basic error of only 0.1% at 25°C and an operating error within 0.3% across a temperature range of 0 to +60°C. Crucially for safety applications, its error limit related to safety is 1%, ensuring functional safety integrity is maintained.
What input signal types and ranges are supported by the F6217, and how is current measurement configured?
The F6217 supports versatile industrial signal types: voltage inputs of 0-5 V and 0-10 V (with a working range of 0-5.5 V), and current inputs of 0-20 mA and 4-20 mA. For current measurement, the F6217 requires an external high-precision 250 Ohm shunt resistor (part-no: 00 0710251, 0.05%, 0.25 W, T<10 ppm/K). The module provides 12-bit resolution for all inputs.
What are the timing characteristics and safety performance metrics of the F6217?
The F6217 is designed for responsive safety systems. It updates the measured value with a cycle time of 50 ms. Its most critical timing parameter is the safety time, which is guaranteed to be less than 450 ms. This defines the maximum time from a dangerous field condition being detected by the F6217 to a corresponding reaction being initiated in the safety logic, which is vital for SIL3 loop calculations.
What are the electrical and physical specifications for integrating the F6217 into a control system?
The F6217 module has a compact space requirement of 4 TE. For power, it consumes 80 mA from a 5 V DC supply and 50 mA from a 24 V DC supply. It provides 200 V of electric strength against ground (GND). The voltage input channel has an input resistance of 100 kOhm and includes an input filter with a ~10 ms time constant to smooth signals. The maximum allowable inputs are 7.5 V for voltage and 30 mA for current.
