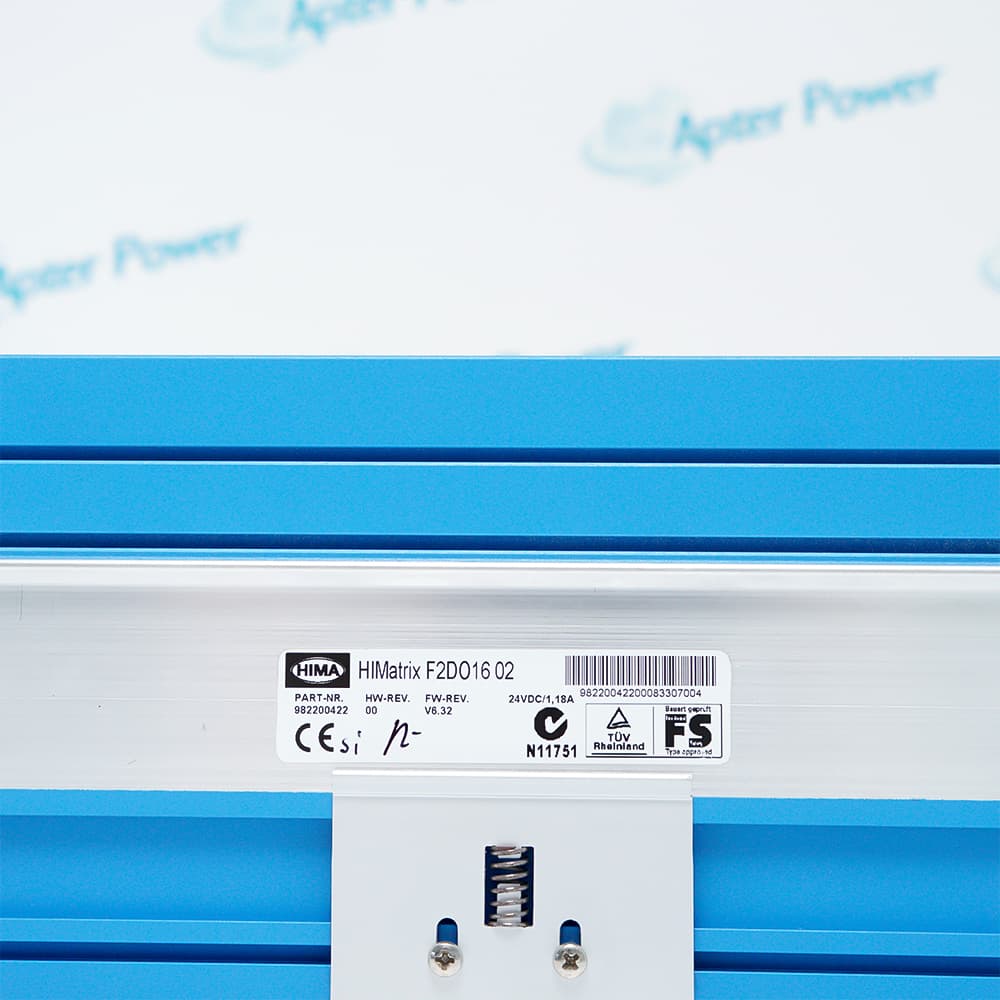

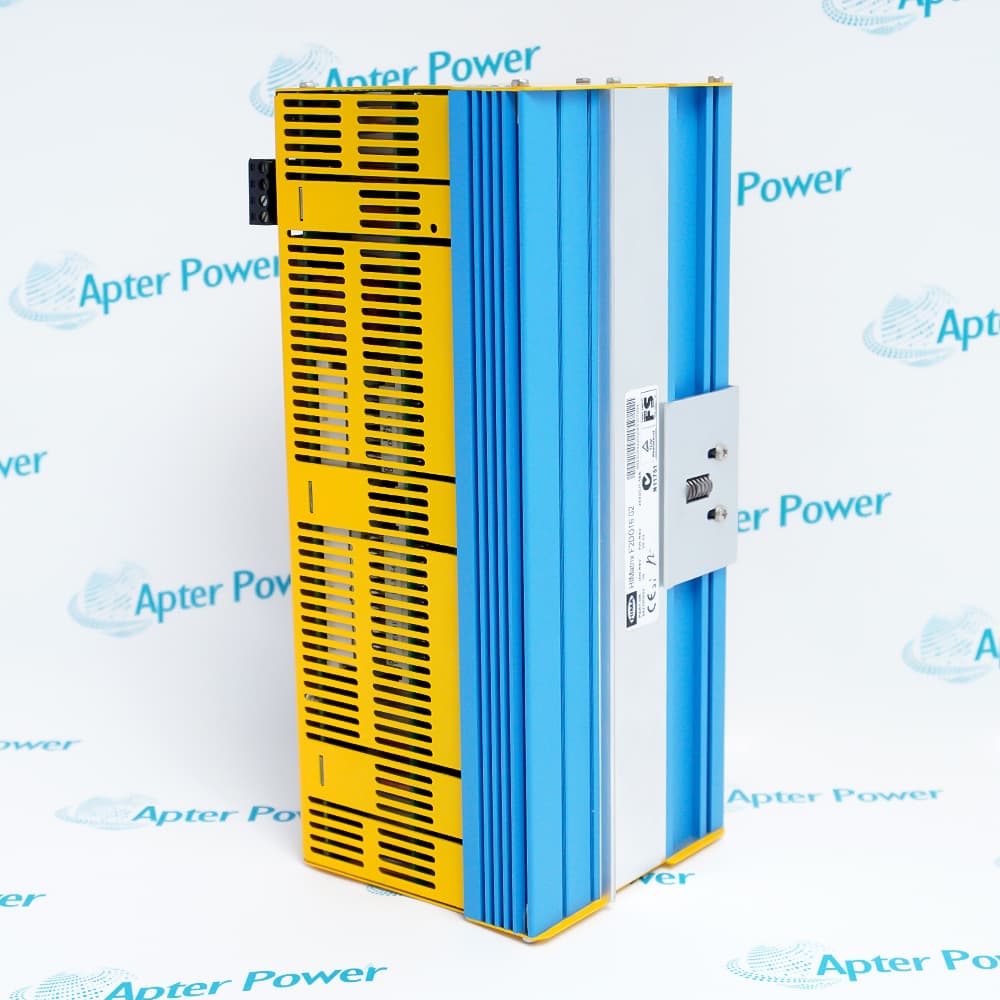

        HIMA HIMATRIX F2DO1602
        HIMA HIMATRIX F2DO1602
        HIMA HIMATRIX F2DO1602
        HIMA HIMATRIX F2DO1602
        HIMA HIMATRIX F2DO1602
        HIMA HIMATRIX F2DO1602
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle Status

          Active / Available from OEM
          Strengthen your industrial safety protocols with this genuine HIMA component. Apter Power supplies the high-quality hardware required for reliable output control.

        HIMATRIX F2DO1602

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The safety-related HIMATRIX F2DO1602 remote I/O is a compact system located in a metalenclosure with 16 safety-related relay outputs.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for HIMATRIX F2DO1602
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for HIMATRIX F2DO1602

        • Manufacturer:
          HIMA
        • Part Number:
          HIMATRIX F2DO1602
        • Product Family:
          HIMA HIMatrix system
        • Product Type:
          Remote I/O Module
        • Stock:
          1
        • Response time:
          ≥ 10 ms
        • Ethernet interfaces:
          2 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch
        • Operating voltage:
          24 VDC, -15...+20 %, rPP ≤ 15 %, from a power supply unit with safe insulation in accordance with IEC 61131-2
        • Current input:
          max. 0.6 A
        • Fuse (external):
          10 A time-lag (T)
        • Electrical isolation of the channels:
          Yes
        • Back-up battery:
          None
        • Operating temperature:
          0...+60 °C
        • Storage temperature:
          -40...+85 °C
        • Type of protection:
          IP20
        • Relay types for each channel:
          2 safety relays with forcibly guided contacts, 1 standard relay
        • Number of outputs:
          16 potential-free normally open contacts
        • Switching voltage:
          ≥ 5 V, ≤ 30 VAC / 60 VDC
        • Switching current:
          ≥ 10 mA, ≤ 3 A, internally fused with 3.15 A, fuse breaking capacity: 100 A
        • Contact material:
          Silver alloy (AgNi)
        • Switching time:
          approx. 30 ms
        • Reset time:
          approx. 10 ms
        • Bounce time:
          approx. 15 ms
        • mechanical:
          ≥ 10 x 10⁶ switching operations
        • Weight:
          2 kg
        • Estimated shipping dimensions:
          25.5x11.4x11.3cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Scenarios Compliance Hardware Configuration

        Features:

        • Sixteen safety-related relay outputs with triple-relay architecture and electrically isolated channels for dependable functional safety.
        • Certified for SIL 3, SIL 4, Cat. 4, and PL e applications with safeethernet communication to HIMax and HIMatrix controllers.
        • Supports hot industrial environments with integrated Ethernet switching, comprehensive diagnostics, individual output indication, and ATEX Zone 2 installation capability.
        HIMA HIMATRIX F2DO1602 expands the output capacity of HIMax and HIMatrix safety systems without requiring local application execution. Communication through safeethernet enables distributed installation while maintaining centralized safety control. The compact metal housing allows efficient integration into industrial control cabinets.

        The module provides 16 potential-free relay outputs designed for applications where reliable safety shutdown and secure signal transmission are essential. Every output incorporates dedicated safety relays with forcibly guided contacts, while electrical isolation between channels improves operational reliability. Individual LED indicators simplify diagnostics and allow maintenance personnel to monitor output conditions quickly.

        HIMA HIMATRIX F2DO1602 is well suited for process industries, emergency shutdown systems, burner management systems, and other high-integrity automation applications. Support for hazardous area installation, extensive international safety certifications, and straightforward network integration make the module a practical solution for demanding industrial environments requiring certified remote safety I/O.

        The HIMATRIX F2DO1602 HIMA Remote I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        HIMA HIMATRIX F2DO1602 Remote I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        HIMA HIMATRIX F2DO1602 Remote I/O Module Specs

        General

        • Manufacturer HIMA
        • Model HIMATRIX F2DO1602
        • Condition New Original ready stock
        • Product Family F60CPU03,F60MI2401,F60GEH01
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Oil and Gas: Commonly used in emergency shutdown (ESD) systems in large oil and gas fields, pipelines, and liquefied natural gas (LNG) receiving terminals.
        • Petrochemical and Chemical Industries: Deployed in high-risk process areas such as hazardous chemical reactors and distillation towers for interlocking control of safety shut-off valves (XV valves).
        • Thermal Power Generation: Widely used in core safety circuits such as the Furnace Safety Monitoring System (FSSS) for power plant boilers and turbine overspeed protection.
        • Rail Transit: As a distributed safety slave station, it is used in signal control, platform screen door (PSD) interlocking, and track switch safety control in high-speed rail and subway systems.
        • Safety Integrity Level: This module has passed the authoritative TÜV Rheinland certification, reaching the most stringent SIL 3 (IEC 61508) safety integrity level in the industrial automation field.
        • Performance Level Architecture: The underlying hardware design fully complies with the EN ISO 13849-1 functional safety specification, meeting the high diagnostic coverage requirements of the highest safety protection level PL e (Performance Level e).
        • Rail Transit Standards: For railway signaling and special vehicle applications, the module is certified to the EN 50155 / EN 50126 series standards, and can support a safety chain closed loop of up to SIL 4 under certain redundant system architectures.
        • Industrial and Explosion-Proof Access: Electrical safety and enclosure protection fully comply with international mainstream CE marking and UL industrial control equipment certification, and possesses industrial explosion-proof qualification for ATEX Zone 2 hazardous areas.
        • Module Structure: Utilizes an F2 compact distributed hardware architecture, supporting standard 35mm DIN rail mounting, saving rack space.
        • Output Channels: Built-in 16 independent digital/switching safety relay output channels, each with a forced-guided safety contact.
        • Core Parameters: Operating voltage is standard 24 VDC; its relay output contacts support a contact potential of up to 60 VDC / 30 VAC and a maximum load current of 2 A.
        • Communication Interface: Integrated with two 10/100 Mbit/s RJ-45 Ethernet dual-port switches, supporting the proprietary SafeEthernet secure network bus.
        Description
        HIMA HIMATRIX F2DO1602 is a compact remote I/O module housed in a robust metal enclosure and equipped with 16 safety-related relay outputs. Connected to individual HIMax or HIMatrix controllers through safeethernet, the module extends the system I/O level while all application logic remains in the connected controller. HIMATRIX F2DO1602 cannot execute a user program independently, making it an efficient distributed I/O solution for safety-critical automation systems. The module supports SILworX and ELOP II Factory model variants and is certified by TÜV for applications up to SIL 3 in accordance with IEC 61508, IEC 61511, IEC 62061, Cat. 4, PL e according to EN ISO 13849-1, and SIL 4 under EN 50126, EN 50128, and EN 50129.

        The safety function of HIMA HIMATRIX F2DO1602 follows the de-energize-to-trip principle. If a system fault occurs, all relay outputs automatically change to the de-energized safe state, while a channel fault affects only the corresponding output channel. In both situations, the FAULT LED provides a clear visual indication, and diagnostic error codes can trigger appropriate reactions in the user program. For applications requiring energized-to-trip operation, the relay outputs can also be configured to energize while performing the safety function.

        Each of the 16 potential-free normally open relay outputs is switched through three relays connected in series, including two safety relays with forcibly guided contacts conforming to EN 50205 and one standard relay. All channels are electrically isolated from one another and from the device power supply, with insulation distances designed according to IEC 61131-2 for overvoltage class II up to 300 V. Relay outputs support switching voltages from 5 V to 30 VAC or 60 VDC and switching currents from 10 mA up to 3 A, protected internally by a 3.15 A fuse with a 100 A breaking capacity. Silver alloy (AgNi) contacts provide a mechanical life of at least 10 million switching operations.

        HIMA HIMATRIX F2DO1602 operates from a 24 VDC supply with an allowable tolerance of -15% to +20% and consumes a maximum input current of 0.6 A. Two integrated RJ-45 Ethernet interfaces with an internal switch provide 10BASE-T and 100BASE-TX communication. Typical relay switching time is approximately 30 ms, reset time is about 10 ms, and response time is no less than 10 ms. Individual LEDs indicate the status of every relay output, simplifying operation and maintenance. A dedicated reset key allows administrators to restore default communication parameters and administrator access when required.

        Designed for demanding industrial environments, HIMA HIMATRIX F2DO1602 operates between 0°C and +60°C and can be stored from -40°C to +85°C. The module meets IP20 protection requirements and is suitable for installation in ATEX Zone 2 when mounted inside an enclosure providing at least IP54 protection according to EN 60529. For hazardous locations, the installation must follow the specified ATEX conditions, including the use of a 10 A time-lag fuse and a SELV or PELV isolated 24 VDC power supply. In burner control applications, internal current limiting supports compliance with EN 298 and EN 50156-1 by limiting relay switching current to 3.15 A, while external pre-fusing can be applied where lower switching currents are required.
        Alternative Names
        F2 DO 16 02 HIMATRIX F2DO16O2 HIMATRIX F2DOI602 HIMATRIX F60MI2401 HIMATRIX F60CPU03 HIMATRIX F60GEH01 HIMATRIX F3DIO8/801 HIMATRIX F60AO801
        Technical notes
        The HIMA HIMatrix F2 DO 16 02 is a compact, remote safety-related digital output module featuring 16 relay channels designed for SIL 3 and PL e applications. It operates on a 24 VDC supply voltage and integrates dual 10/100 Mbit/s safeethernet ports for rapid, real-time safety network routing.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Can HIMATRIX F2DO1602 operate in hazardous areas?
        Yes. HIMATRIX F2DO1602 is suitable for installation in ATEX Zone 2 when mounted inside an enclosure providing at least IP54 protection and installed according to the specified safety requirements.
        Does HIMA HIMATRIX F2DO1602 execute user programs independently?
        No. HIMA HIMATRIX F2DO1602 functions as a remote I/O module and relies on the connected HIMax or HIMatrix controller to execute user programs and assign output values.
        Which communication interfaces are available on HIMATRIX F2DO1602?
        Two integrated RJ-45 Ethernet ports supporting 10BASE-T and 100BASE-TX with an internal Ethernet switch enable safeethernet communication between HIMATRIX F2DO1602 and the controller.
        Why does HIMATRIX F2DO1602 use three relays for each output channel?
        Each output channel combines two safety relays with forcibly guided contacts and one standard relay connected in series to achieve high functional safety and dependable switching performance.
        What function does HIMA HIMATRIX F2DO1602 perform in a safety system?
        HIMA HIMATRIX F2DO1602 extends the I/O level of HIMax and HIMatrix safety controllers by providing 16 safety-related relay outputs connected through safeethernet.
